Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QOM125VH

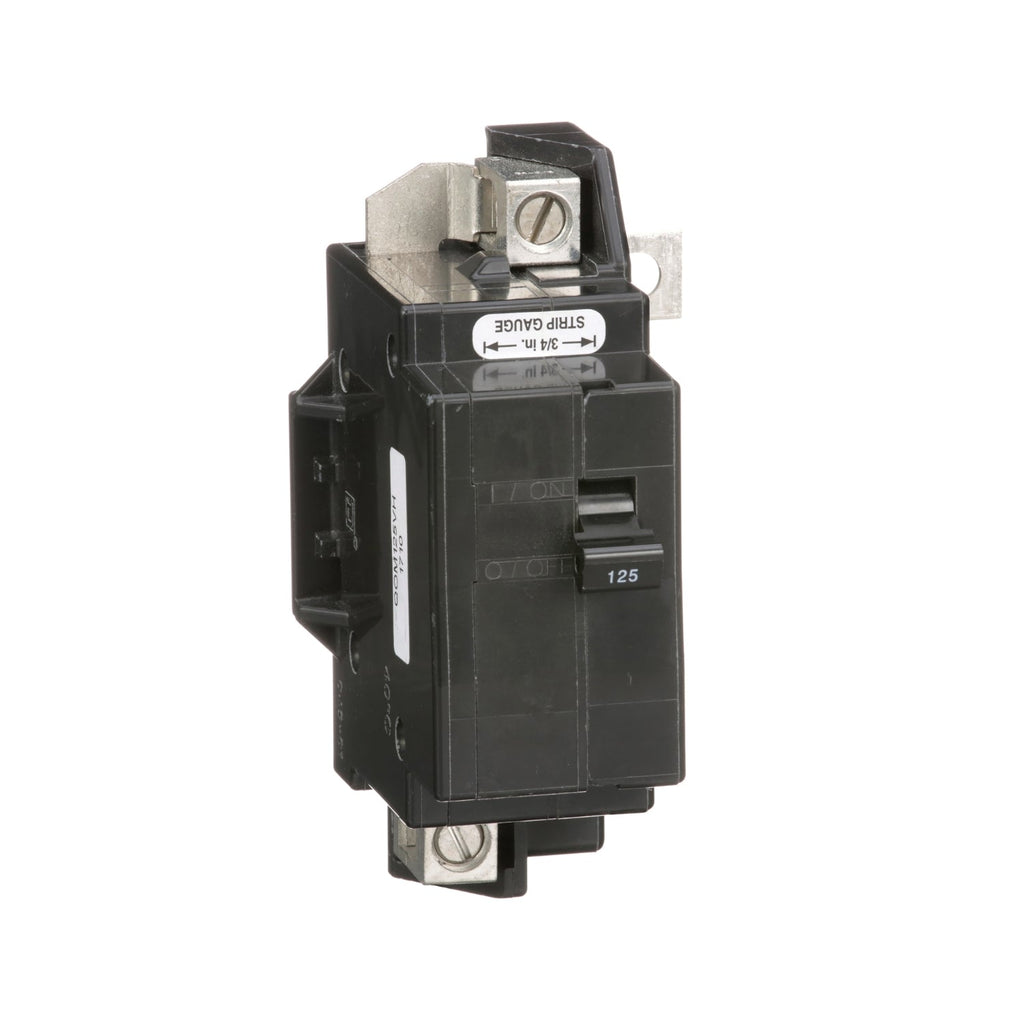

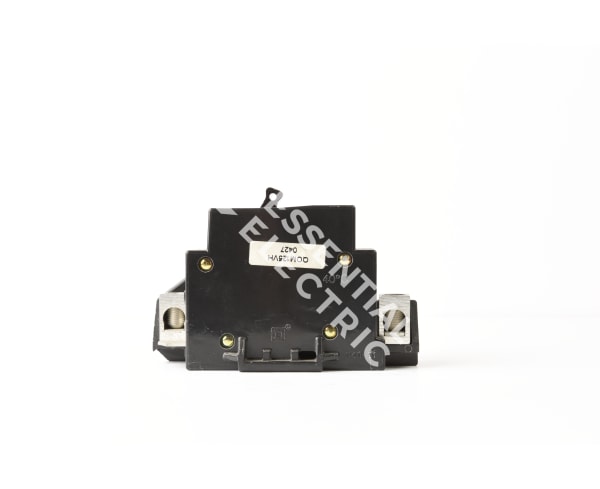

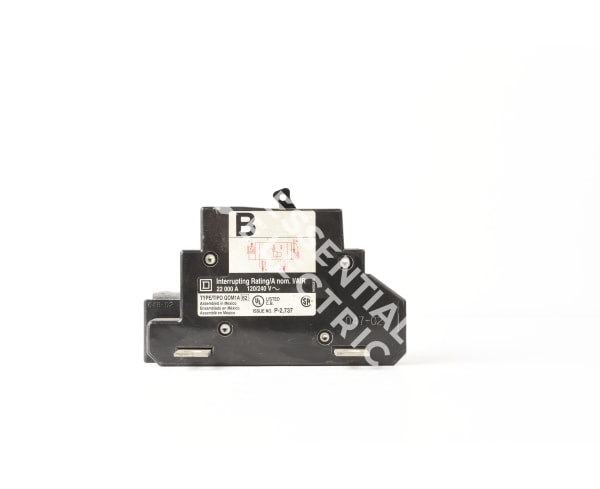

QOM125VH is a Square D 2-pole, 125A main circuit breaker designed for reliable overcurrent protection in residential and light commercial applications.
This thermal magnetic molded case circuit breaker features a bolt-on mounting type, 120/240VAC voltage rating, and a high 22kA interrupting capacity. It is compatible with QO and Homeline load centers, supports both aluminum and copper conductors (4 AWG to 300 kcmil), and operates in ambient temperatures up to 40°C. The QOM125VH includes long-time and instantaneous trip functions for enhanced circuit protection and is backed by UL and CSA certifications.
-
Key Specifications
- Part Number: QOM125VH
- Manufacturer: Square D
- Amperage: 125A
- Voltage: 120/240VAC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 22kAIC at 120/240VAC
- Series/Frame: QO
- Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
- Certifications: UL, CSA
- Wire Size: 4 AWG to 300 kcmil (Aluminum/Copper)
- Temperature Rating: 40°C
- Connection Type: Lugs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: QOM125VH
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QOM Series
- Type : QOM
- Voltage : 120/240
- Amperage : 125
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 100A/QO
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
- Breaker Type : Main Breaker
- Protection : Thermal Magnetic
Product Data
- UPC : 785901004042
- GTIN : 00785901004042
- Country of Origin : Mexico
- Dimensions : 5.08 in (129 mm) x 3.5 in (88 mm) x 5 in (127 mm) (Height x Width x Depth)
- Weight : 1.37
- Panel Type : Homeline Load Center, QO Load Center
- Standards : CSA, UL Listed
- Certification : UL Listed
- Wire Size : AWG 4 to 300KCmil, Aluminum/Copper
