Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Lug Terminal Kit
Description
QOL125

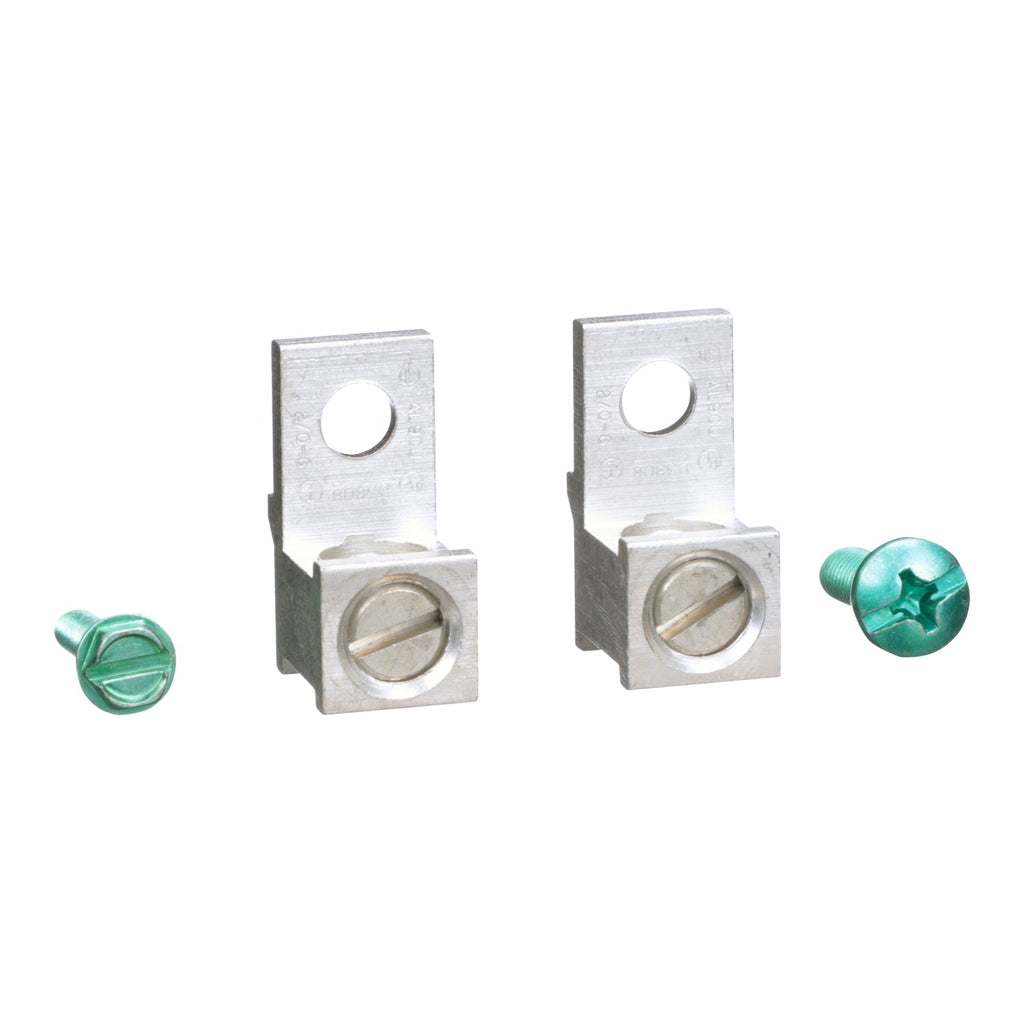

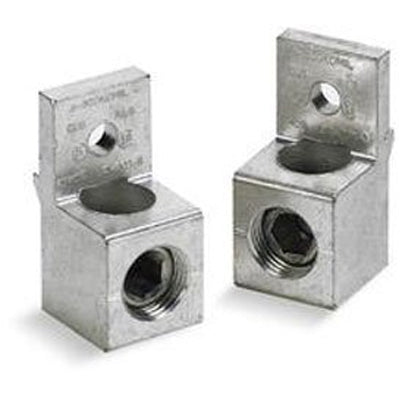

QOL125 is a 125 amp main lug kit designed for Square D QO series load centers and circuit breakers.This lug kit is field installable in convertible main circuit breaker and main lug load centers rated from 100 to 125 amps. It accepts copper or aluminum wire sizes from 6 AWG to 2/0 AWG and is UL listed and CSA certified for safety and reliability. The kit provides a secure and compliant connection for load center applications.
- 125 amp line rated current
- Compatible with QO series load centers and breakers
- Accepts 6 AWG to 2/0 AWG copper or aluminum wire
- Field installable main lug kit
- UL listed and CSA certified
- Single-phase application
- Trip free toggle mechanism on breakers (related feature)
- Supports load centers rated 100 to 125 amps
- RoHS compliant
- Positive handle indication on breakers (related feature)
Specifications
- Part Number: QOL125
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Lug Terminal Kit
- Family : QO Series
- Type : QOL
- MCM Size : 300
- Barrels : 1
- Metal Type : Aluminum
- Compatible Frames : QO,HOMELINE
Product Data
- UPC : 785901747963
- GTIN : 00785901747963
- Country of Origin : United States
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 0.23
