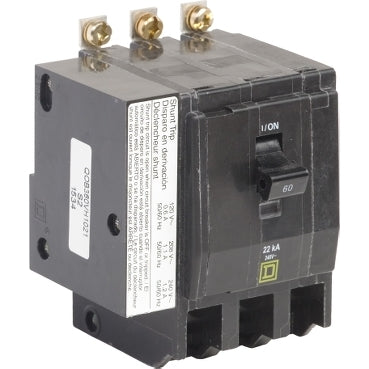

QOB360VH1021 - Square D 60A 240V 3 Pole Bolt-On QO Miniature Circuit Breaker with AC Shunt Trip

QOB360VH1021

QOB360VH1021 is a Square D QO series 3 pole miniature circuit breaker rated for 60 amps and 120/240 volts AC with bolt-on mounting and AC shunt trip feature.

This circuit breaker provides reliable and durable circuit protection with a 22 kA interrupt rating at 120/240 VAC. It features a bolt-on mount design for secure installation and is HACR rated for HVAC applications. The breaker supports 3 poles and is designed for use in panelboards requiring QO type breakers.

• Amperage: 60 Amps
• Voltage Rating: 120/240 VAC
• Number of Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 22 kA at 120/240 VAC
• Series/Frame: QO
• Trip Unit: AC Shunt Trip
• Certifications: UL Listed, CSA Approved
• HACR Rated for HVAC Equipment

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB360VH1021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG (Cu/Al) Max. Wire Size 2 AWG (Cu/Al)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901335498
• GTIN : 00785901335498
• Country of Origin : Mexico
• Dimensions : 3.1 in (79 mm) x 3.0 in (76 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 1.31
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 8 to AWG 2, Copper/Aluminum
