Square D QOB360VH 60A 3-Pole 240VAC Bolt-On Circuit Breaker, 22kA

QOB360VH

Square D QOB360VH 60A 3-Pole 240VAC Bolt-On Circuit Breaker, 22kA

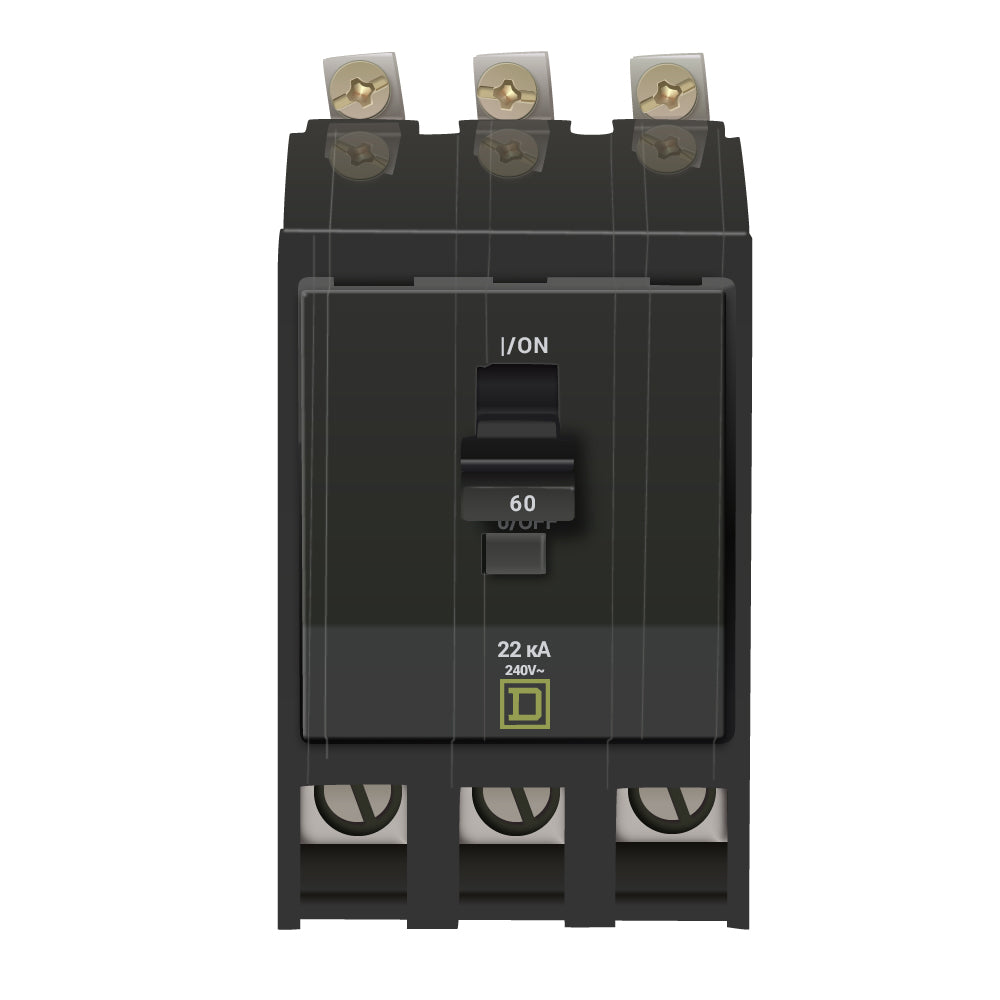

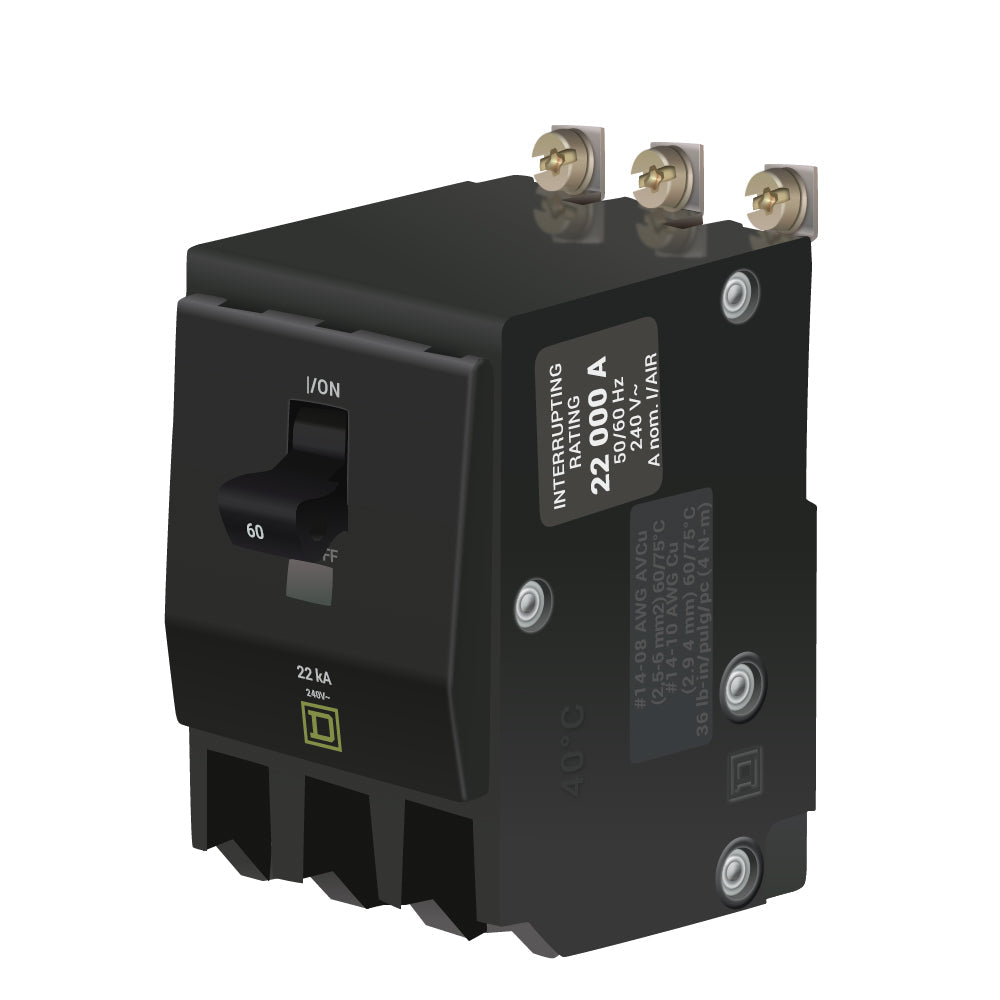

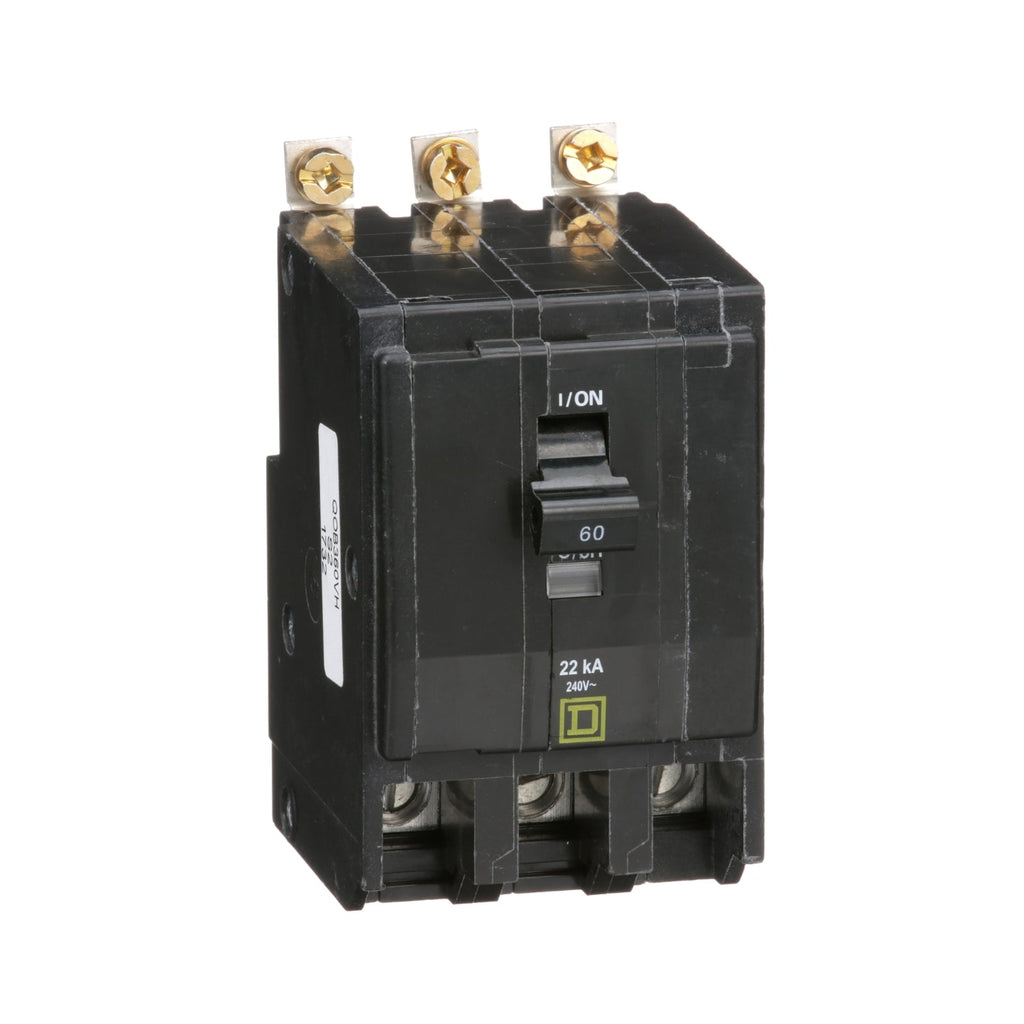

The Square D QOB360VH is a 3-pole, 60A, 120/240VAC bolt-on molded case circuit breaker rated for 22kA interrupting capacity at 120/240V. It carries thermal-magnetic (long-time and instantaneous) protection and is UL Listed under UL File E84967 and CSA Certified under CSA Master Contract 153555, supporting specification and submittal use in commercial and industrial distribution systems. At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

The QOB360VH is built on the compact QO frame platform and is designed for bolt-on mounting in Square D NQ and NQOD panelboards. It includes the Visi-Trip indicator, providing visual confirmation when the breaker has tripped, and terminates to box lugs accepting 8-2 AWG copper or aluminum conductors.

Common Applications

• Branch and feeder overcurrent protection in commercial and industrial panelboards
• Replacement or spec-in breaker for Square D NQ and NQOD panelboards
• Distribution systems requiring 22kA interrupting capacity
• New construction submittals and MRO stocking programs

Key Features

• 22kA interrupting rating: Rated for higher fault current conditions at 120/240VAC

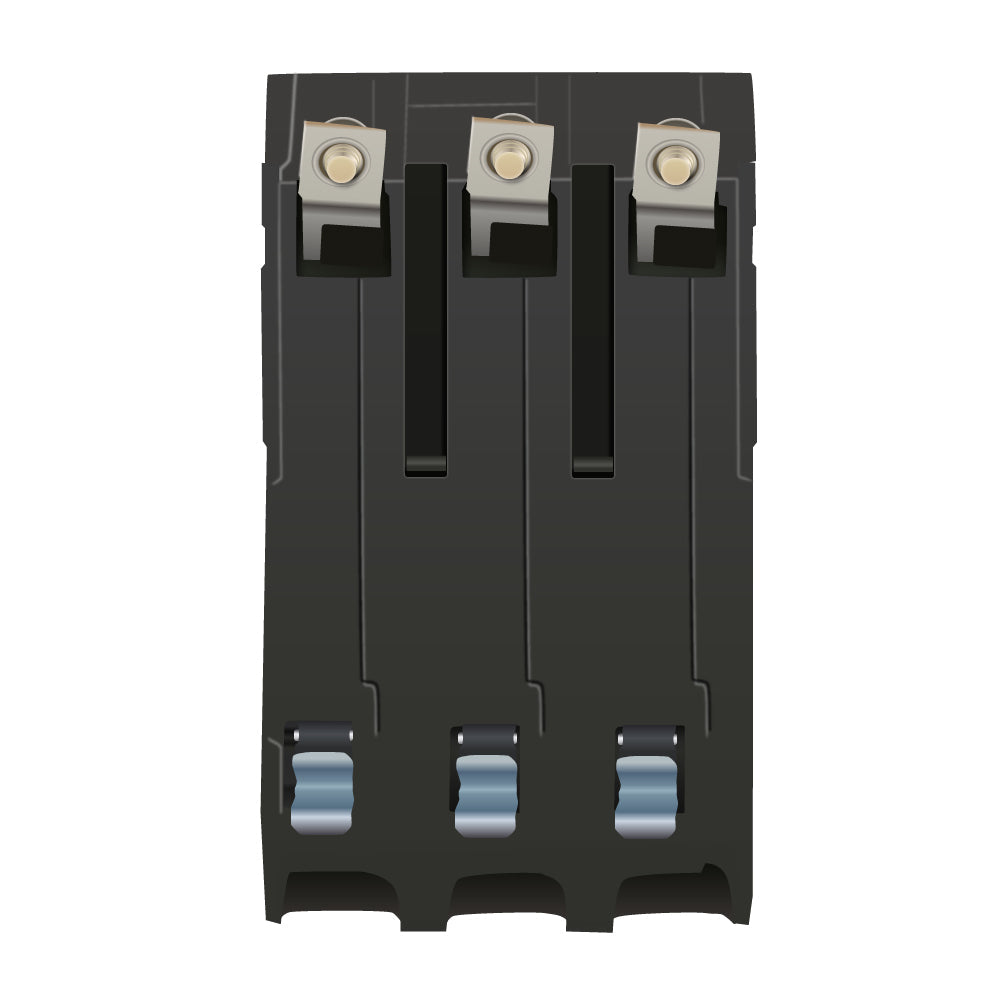

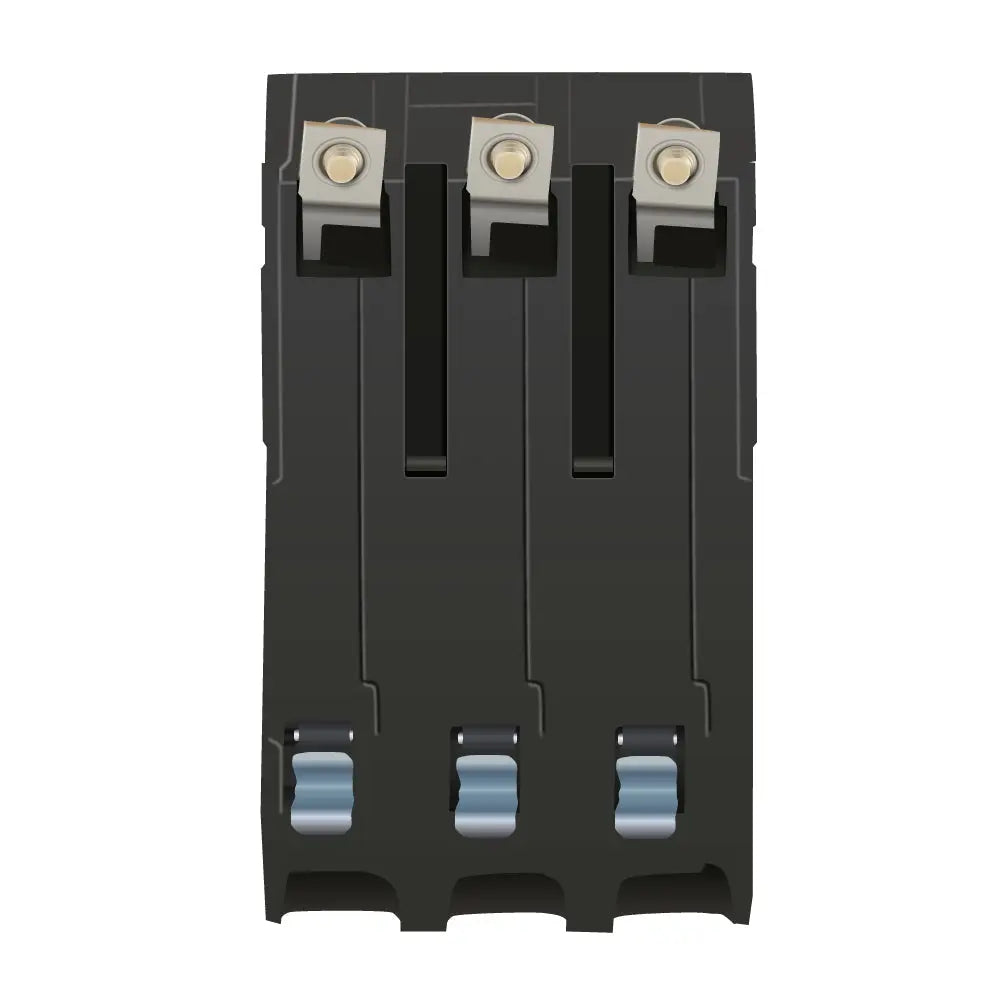

• Bolt-on mounting: Provides a rigid, vibration-resistant connection in the panelboard
• Visi-Trip indication: Visual flag confirms a tripped condition at a glance
• Thermal-magnetic trip: Long-time and instantaneous protection in one unit
• UL Listed and CSA Certified: Meets recognized standards for commercial and industrial use

Specifications

• Manufacturer: Square D (Schneider Electric)
• Catalog Number: QOB360VH
• Series: QOB / QO Frame
• Poles: 3
• Amperage: 60A
• Voltage: 120/240VAC

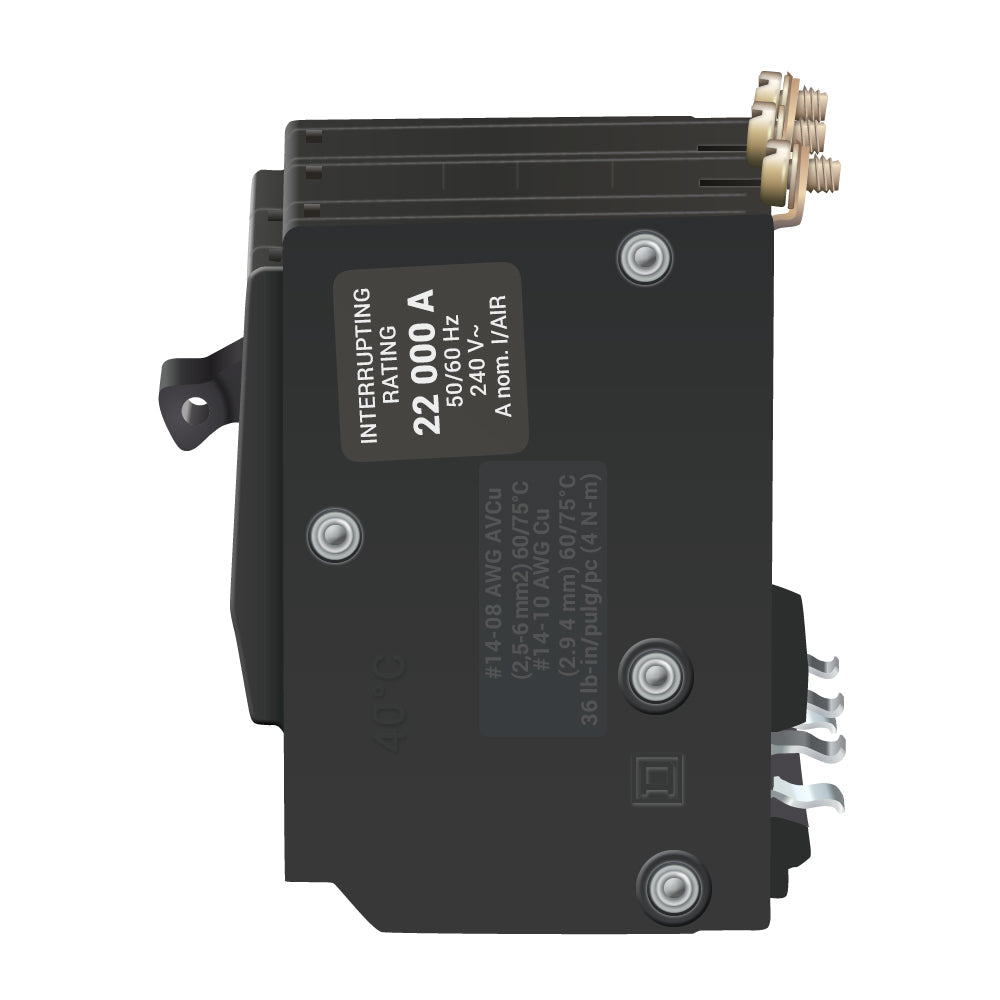

• Interrupting Rating: 22kA at 120/240VAC
• Trip Type: Thermal-Magnetic (Long-Time and Instantaneous)
• Mounting: Bolt-On
• Terminal: Box Lug, 8-2 AWG Cu/Al
• Certifications: UL Listed (File E84967), CSA Certified (Master Contract 153555)

Product Identification

• Country of Origin: Mexico
• Dimensions: 2.24 in W x 3.11 in H x 2.91 in D
• Weight: 1.10 lb (0.499 kg)
• UPC: 785901054832
• GTIN: 00785901054832

FAQ

• What is the Square D QOB360VH? It is a 3-pole, 60A, 120/240VAC bolt-on molded case circuit breaker with a 22kA interrupting rating and thermal-magnetic trip.
• What panels accept the QOB360VH? It is designed for bolt-on mounting in Square D NQ and NQOD panelboards.
• What is the interrupting rating of the QO


  Specifications

  • Part Number: QOB360VH
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOB Series
  • Type : QOB
  • Voltage : 120/240VAC
  • Amperage : 60
  • Phase : 3
  • Poles : 3
  • AIC rating : 22kA@240V
  • Connection : Bolt-On
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Pressure Plate
  • Frame Size : 100A/QO
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
  • Breaker Type : High Interrupting Capacity
  • Protection : Thermal Magnetic



  Product Data

  • UPC : 785901054832
  • GTIN : 00785901054832
  • Country of Origin : Mexico
  • Dimensions : 3.1 in (79 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
  • Weight : 1.1 lb
  • Panel Type : Square D NQOD Panelboards
  • Standards : CSA, UL Listed
  • Certification : UL Listed
  • Wire Size : AWG 8 to AWG 2, Copper or Aluminum
