QOB3601042 - Square D 60A 120/240V 3 Pole Circuit Breaker Bolt-On Mount Shunt/Thermal Magnetic Trip

Save $482.00
SKU: QOB3601042-New
Condition: New
Price:
$0.00 $482.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

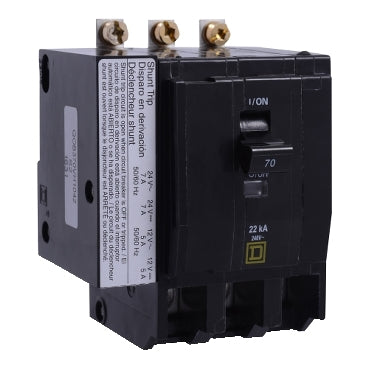

QOB3601042 - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QOB3601042 - Essential Electric Supply

Description

QOB3601042


QOB3601042 is a Square D 3 pole miniature circuit breaker rated for 60 amps and 120/240 volts AC with bolt-on mounting and shunt/thermal magnetic trip features.This Square D QOB3601042 circuit breaker provides reliable overcurrent protection with a 10kA interrupt rating at 120/240VAC and 5kA at 48VDC. It features a thermal magnetic trip unit with shunt trip capability, bolt-on mounting for easy installation, and is UL listed and CSA certified. Designed for use in NQ panelboards, it includes VisiTrip trip indication for visual confirmation of tripped status.
  • Amperage: 60A
  • Voltage: 120/240 VAC, 48 VDC
  • Poles: 3
  • Mounting Type: Bolt-On
  • Interrupt Rating: 10kA at 120/240 VAC, 5kA at 48 VDC
  • Trip Unit: Shunt/Thermal Magnetic
  • Series/Frame: QOB
  • Certifications: UL Listed, CSA Certified
  • Phase: 3
  • Toggle Mechanism: Over center, trip free with quick make/break
  • VisiTrip trip indication for visual trip status
At Essential Parts, we offer fast shipping, lowest price, and expert s(more...)

Specifications

  • Part Number: QOB3601042
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOB Series
  • Type : QOB
  • Voltage : 120/240VAC
  • Amperage : 60
  • Phase : 3
  • Poles : 3
  • AIC rating : 10kA@240V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Pressure Plate
  • Protection : Thermal Magnetic

Product Data

  • UPC : 78590143550
  • GTIN : 00785901435501
  • Country of Origin : Mexico
  • Dimensions : 3.1 in (79 mm) x 3.0 in (76 mm) x 2.9 in (74 mm) (Height x Width x Depth)
  • Weight : 1.25
  • Standards : CSA, UL Listed
  • Certification : UL Listed
