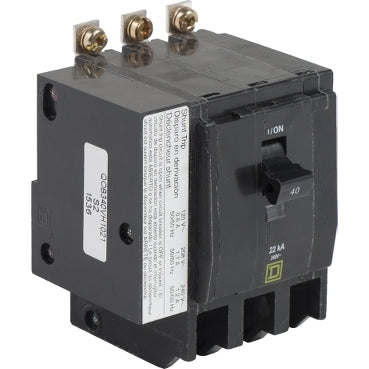

QOB340VH1021 - Square D 40A 240VAC 3-Pole Bolt-On Thermal Magnetic Circuit Breaker

QOB340VH1021

QOB340VH1021 is a Square D 3-pole thermal magnetic molded case circuit breaker rated for 40 amps and 120/240VAC operation.This circuit breaker features a bolt-on mounting type with a 22kA interrupting rating at 120/240VAC. It includes long-time and instantaneous trip functions, suitable for use with QOB series load centers. The breaker supports wire sizes from AWG 8 to AWG 2 for copper and aluminum conductors and is UL and CSA approved.

• Amperage: 40A
• Voltage Rating: 120/240VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupting Rating: 22kAIC at 120/240VAC
• Series/Frame: QOB
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Certifications: UL, CSA
• Terminal Connection: Box Lugs
• Wire Gauge: AWG 8 to AWG 2 Copper/Aluminum
• Breaker Feature: Mercury Free
• Temperature Rating: 40 ¡C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB340VH1021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG (Cu/Al) Max. Wire Size 2 AWG (Cu/Al)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901311317
• GTIN : 00785901311317
• Country of Origin : Mexico
• Dimensions : 3.1 in (79 mm) x 3.0 in (76 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 1.33
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 8 to AWG 2, Copper/Aluminum
