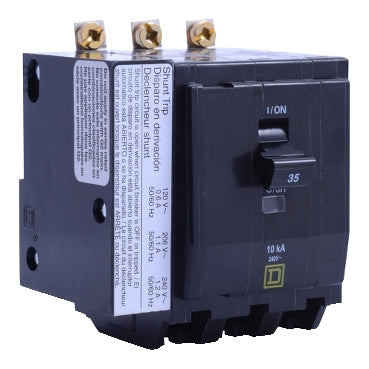

QOB3351021 - Square D 35A 240V 3 Pole Bolt-On Circuit Breaker QOB Series

QOB3351021

QOB3351021 is a Square D 3 pole, 35 amp, 240 volt bolt-on circuit breaker from the QOB Series.This miniature circuit breaker is designed for use in 120/240 VAC systems with a 10kA interrupt rating. It features bolt-on mounting for secure installation and includes an AC shunt trip accessory option. The breaker is UL and CSA certified, suitable for panelboards requiring reliable overcurrent protection.

Key Specifications
• Amperage: 35A
• Voltage: 120/240 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA @ 120/240V
• Series/Frame: QOB
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QOB3351021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 35
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 8 AWG (Cu/Al)
• Breaker Type : Standard
• Protection : Thermal Magnetic



Product Data

• UPC : 785901115533
• GTIN : 00785901115533
• Country of Origin : Mexico
• Dimensions : 3.1 in (79 mm) x 3.0 in (76 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 1.18
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper/Aluminum
