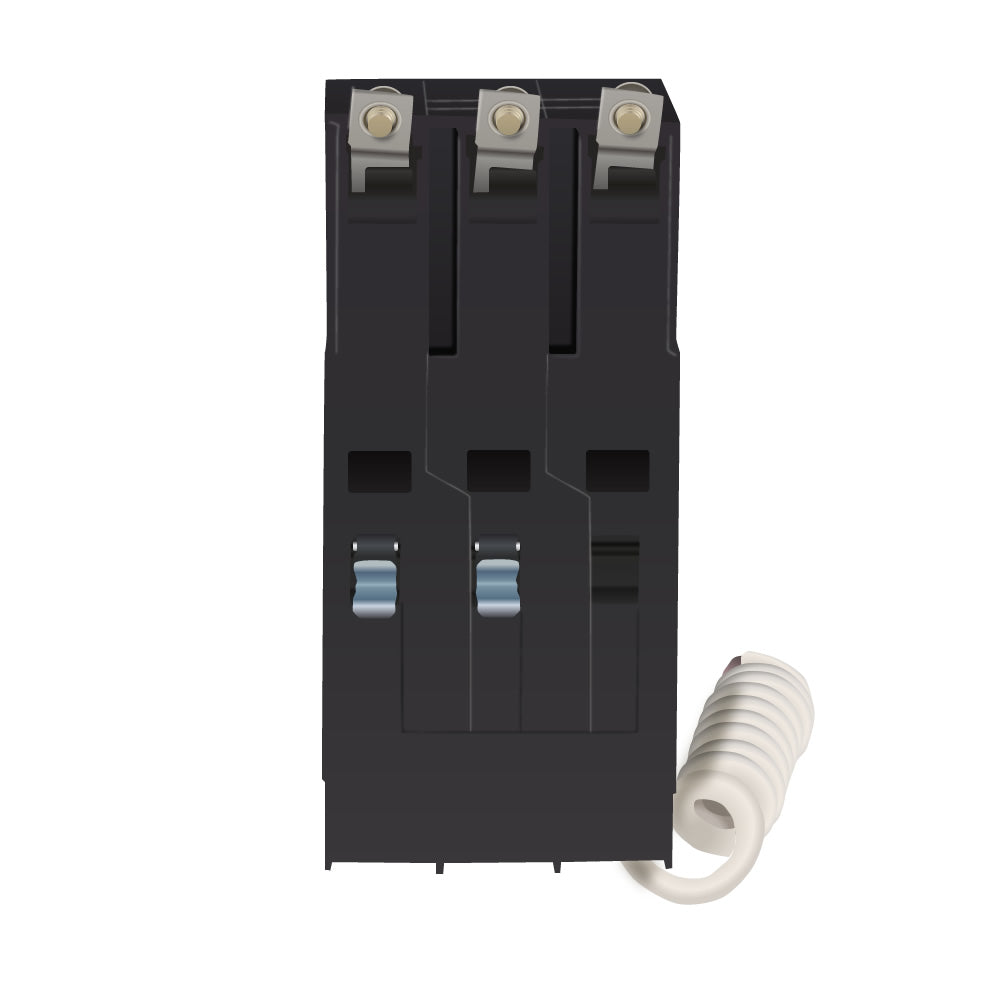

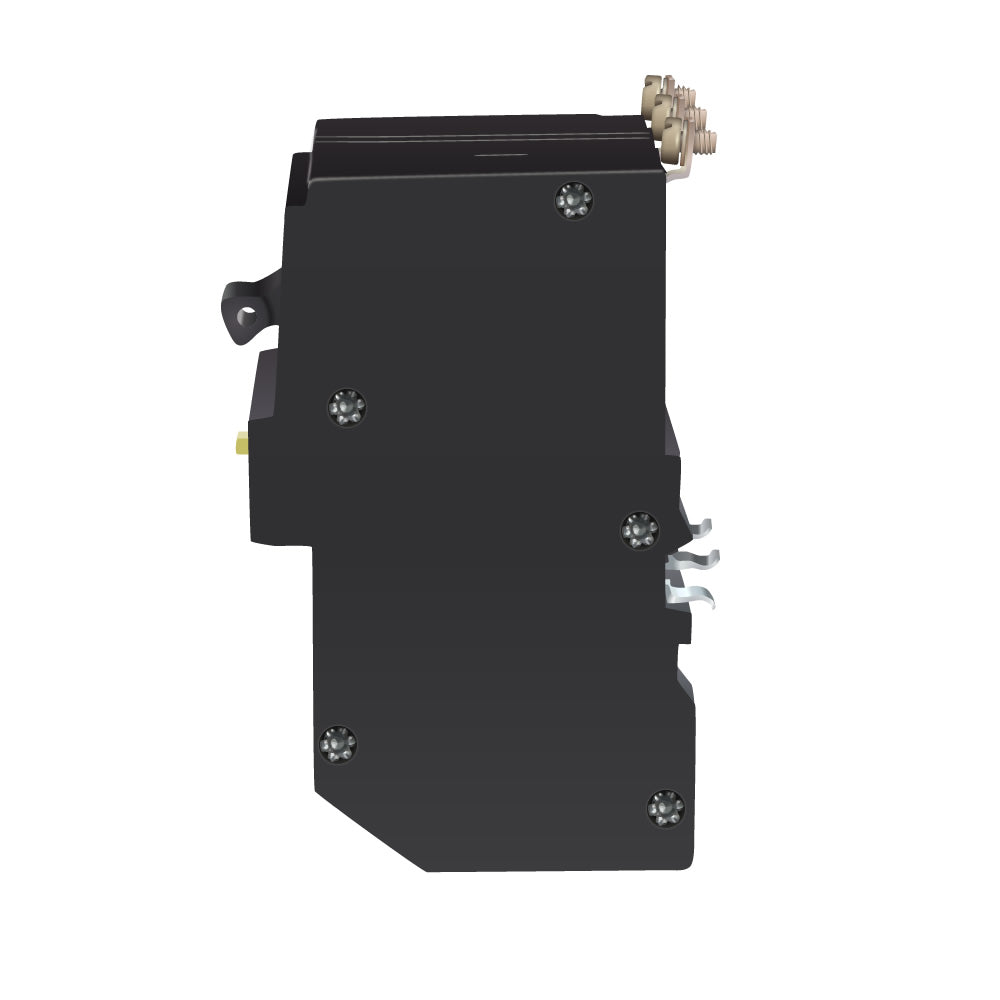

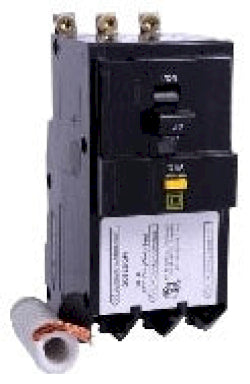

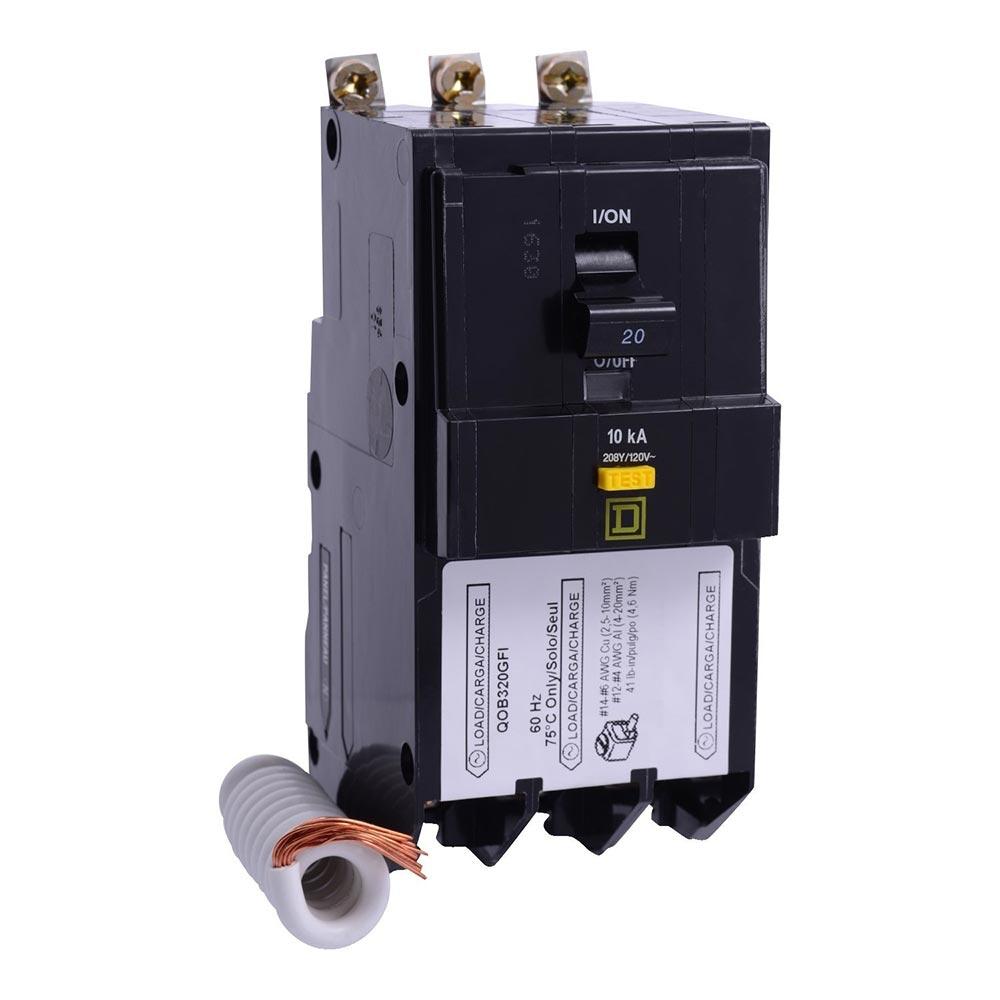

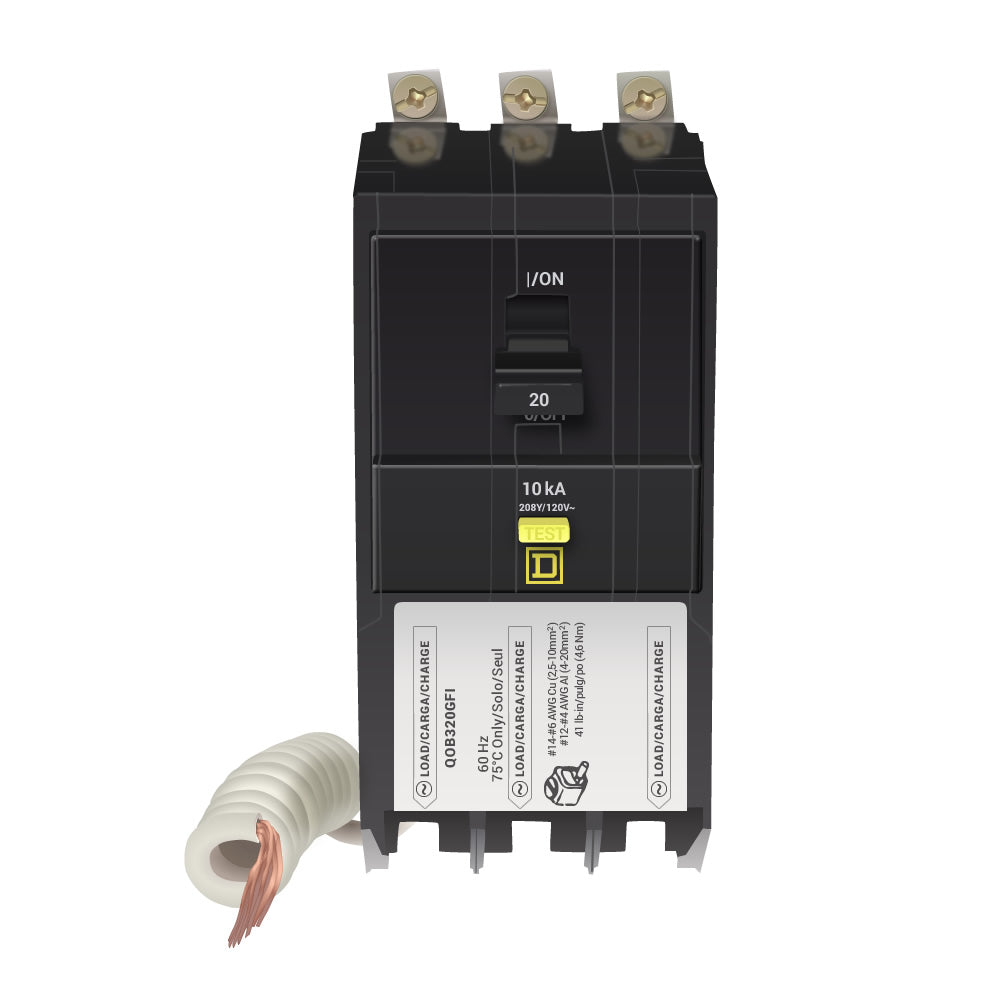

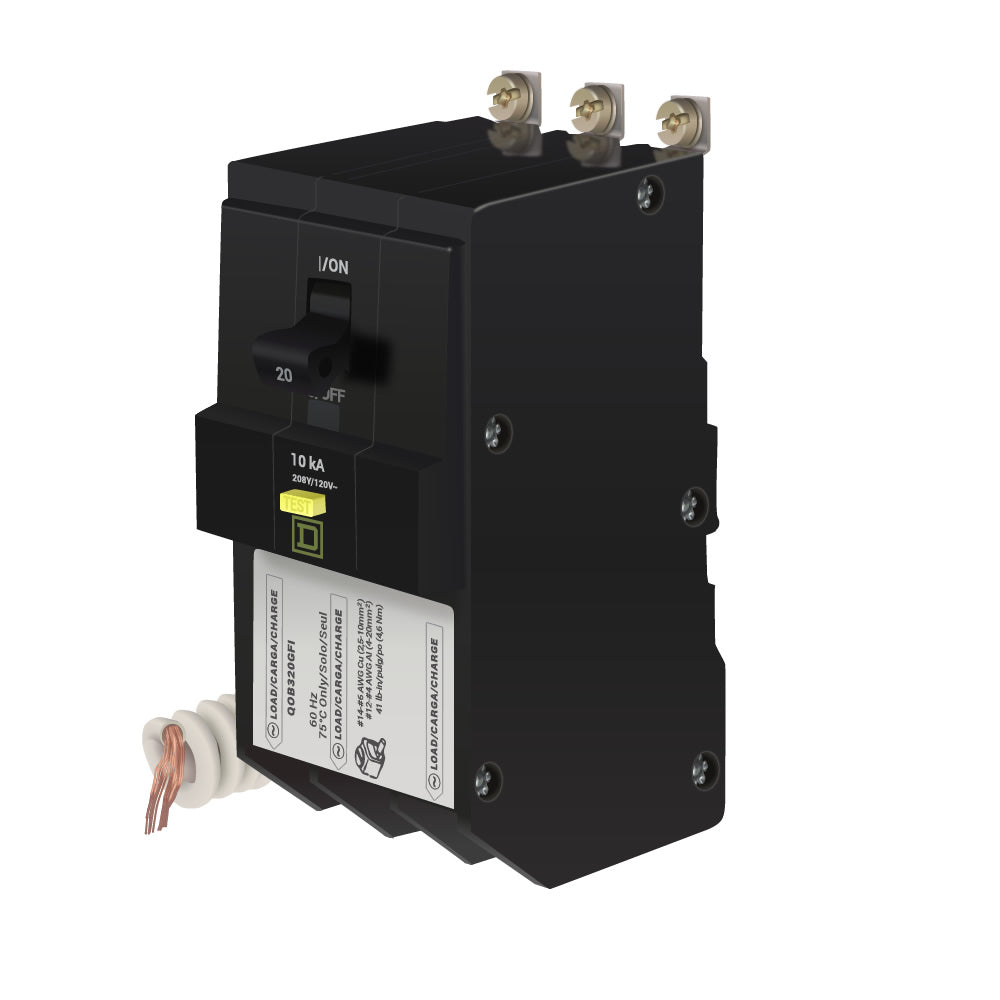

QOB320GFI - Square D 20 Amp 3 Pole Ground Fault Circuit Breaker 208Y/120V AC Bolt-On 10kA Interrupting Rating

QOB320GFI

QOB320GFI is a 3 pole ground fault circuit breaker by Square D rated for 20 amps and 208Y/120 volts AC with bolt-on mounting.This Square D QOB320GFI circuit breaker features a 10kA interrupting rating at 208Y/120 VAC, thermal magnetic trip unit with long time and instantaneous trip functions, and ground fault protection Class A 6 mA. It is designed for use with QO load centers and NQ panelboards and includes lug terminal connections supporting wire sizes from 14 AWG copper to 12 AWG aluminum minimum and up to 6 AWG copper or 4 AWG aluminum maximum. The breaker is UL and CSA certified and has a paddle actuator.

Key Specifications
• Manufacturer: Square D
• Part Number: QOB320GFI
• Amperage: 20 A
• Voltage: 208Y/120 V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupting Rating: 10 kA at 208Y/120 V AC
• Series/Frame: QOB
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Circuit Breaker Type: Ground Fault Protecting Class A 6 mA
• Certifications: UL, CSA
• Terminal Connection: Lug
At Essential P(more...)


Specifications

• Part Number: QOB320GFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901732228
• GTIN : 00785901732228
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 1.3
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : 12 AWG (Al), 14 AWG (Cu) Min 4 AWG (Al), 6 AWG (Cu) Max
