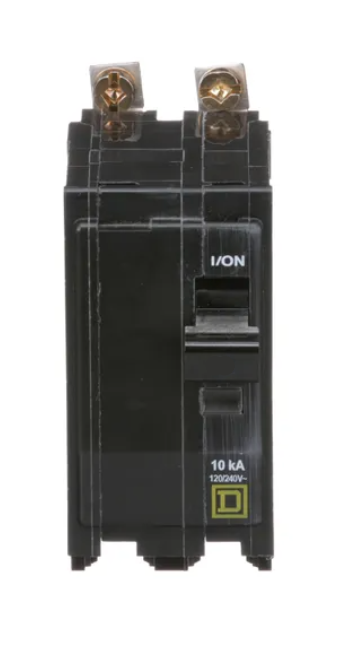

QOB250HID - Square D 50 Amp 240V 2 Pole Thermal Magnetic Circuit Breaker Bolt-On HID

QOB250HID

QOB250HID is a Square D 2 pole thermal magnetic circuit breaker rated for 50 amps and 120/240 volts AC with high interrupting capacity and bolt-on mounting.

This circuit breaker features a 10kA interrupt rating at 240V, designed for high intensity discharge (HID) applications. It includes long time and instantaneous trip functions, suitable for residential, commercial, and industrial use. The breaker is part of the QOB series frame and supports 1-phase systems with thermal magnetic trip units. It is UL listed and calibrated for operation at 40 degrees Celsius.

Key Specifications
• Amperage: 50 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Interrupt Rating: 10,000 AIC (10kA) at 240V
• Mounting Type: Bolt-On
• Series/Frame: QOB
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Application: High Intensity Discharge (HID)
• Phase: Single Phase
• Certifications: UL Listed
• Wire Range: #8 to #2 AWG Aluminum/Copper

At Essential Parts, we offer fast shipping

Specifications

• Part Number: QOB250HID
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• GTIN : 00785901362982
• Country of Origin : United States
• Dimensions : 3.1 in (79 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.6
• Standards : CSA, UL Listed
• Certification : UL Listed
