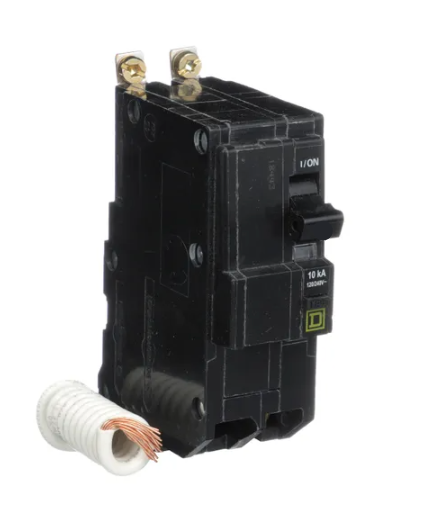

QOB240EPD2100 - Square D 40A 2-Pole 120/240V AC Bolt-On Circuit Breaker with Alarm Switch

QOB240EPD2100

QOB240EPD2100 is a Square D 2-pole, 40 amp, 120/240V AC bolt-on circuit breaker with an alarm switch feature.This miniature circuit breaker from the QO series features a thermal-magnetic trip unit and is rated for 10kA interrupt capacity at 120/240 volts AC. It is designed for bolt-on mounting and includes ground fault protection with a 30mA trip level and a class B ground fault sensor. The breaker operates at 50/60 Hz frequency and provides reliable overcurrent and ground fault protection with an integrated alarm switch for enhanced safety monitoring.

Key Specifications
• Manufacturer: Square D
• Part Number: QOB240EPD2100
• Series/Frame: QO
• Current Rating: 40 Amps
• Voltage Rating: 120/240 V AC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA at 120/240 V AC
• Trip Unit: Thermal Magnetic
• Ground Fault Protection: 30 mA, Class B
• Alarm Switch: Included
• Frequency: 50/60 Hz
At Essential Parts, we offer fast shipping, lowest price, and &l(more...)


Specifications

• Part Number: QOB240EPD2100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Pressure Plate
• Protection : Thermal Magnetic



Product Data

• UPC : 785901415411
• GTIN : 00785901415411
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 1.31
• Standards : CSA, UL Listed
• Certification : UL Listed
