Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QOB240EPD

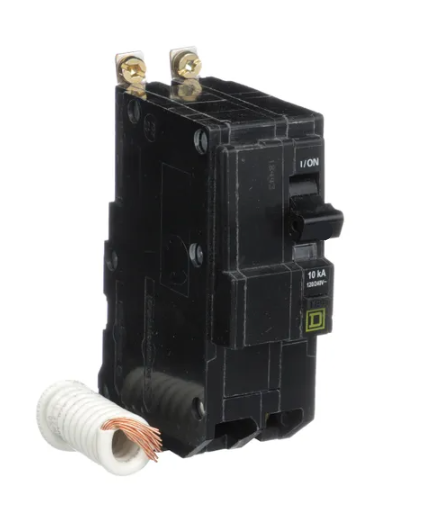

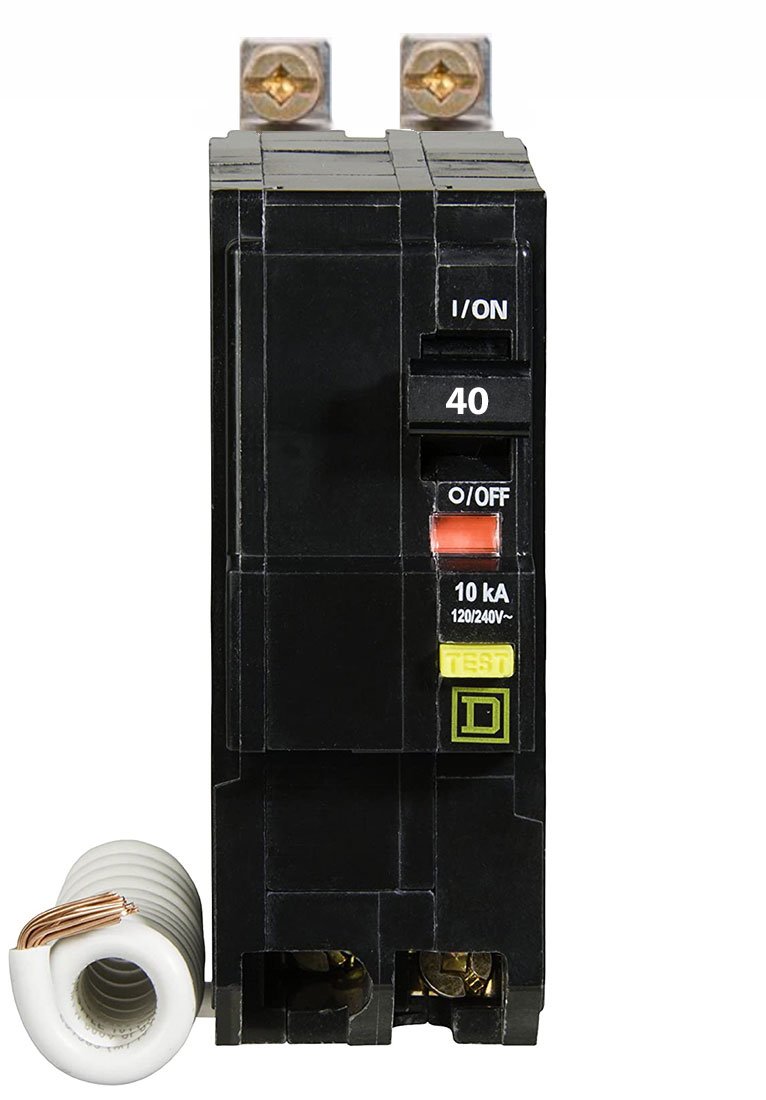

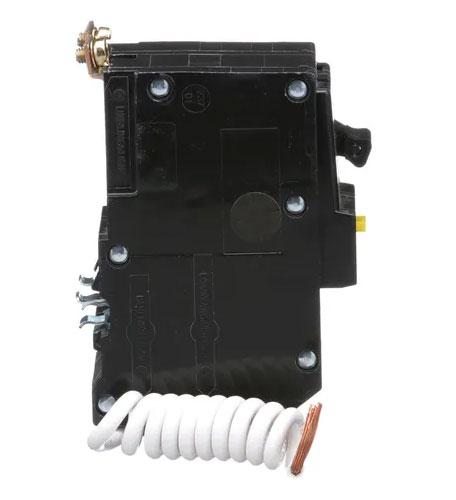

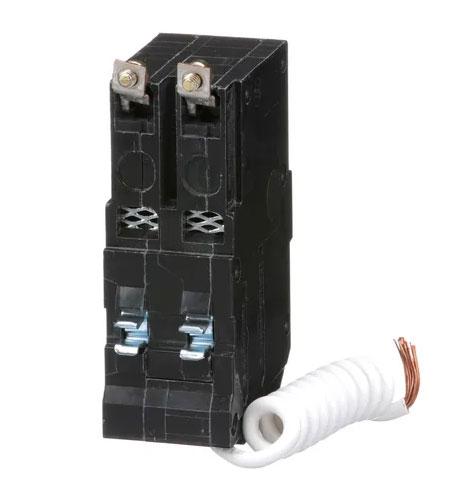

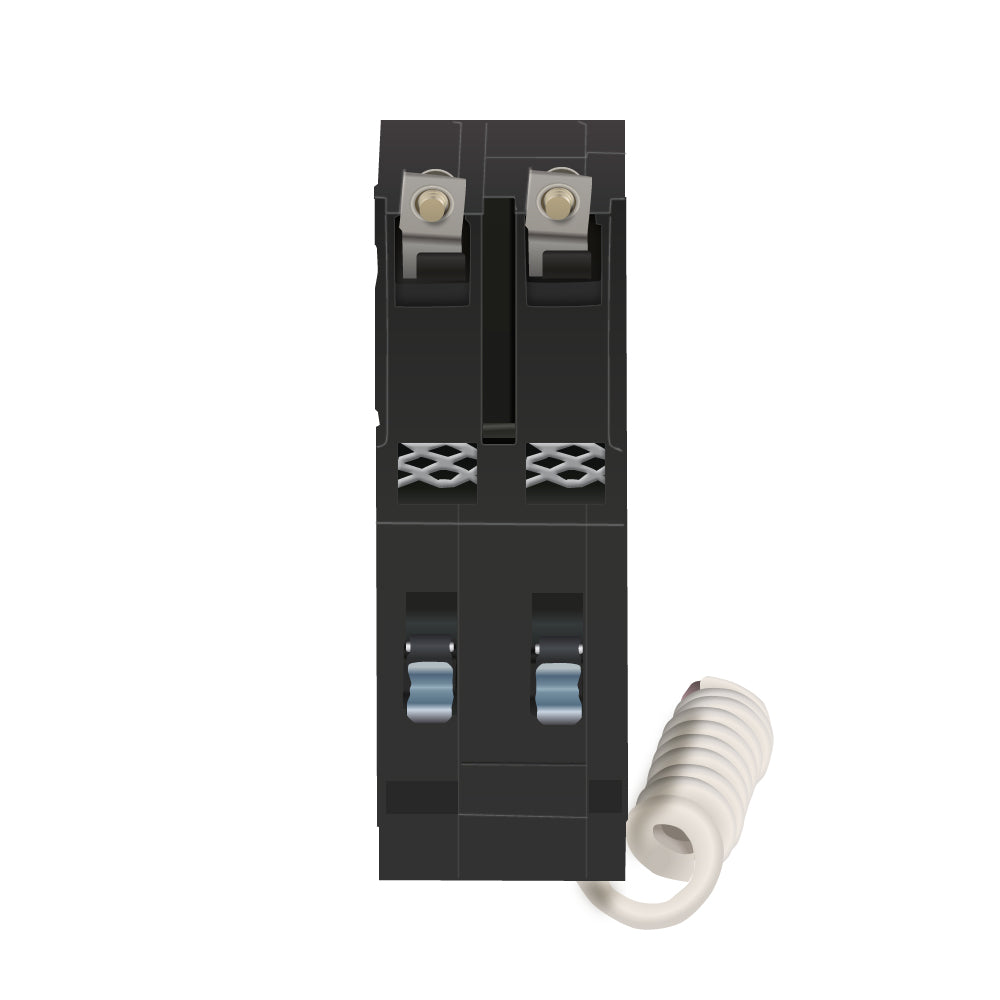

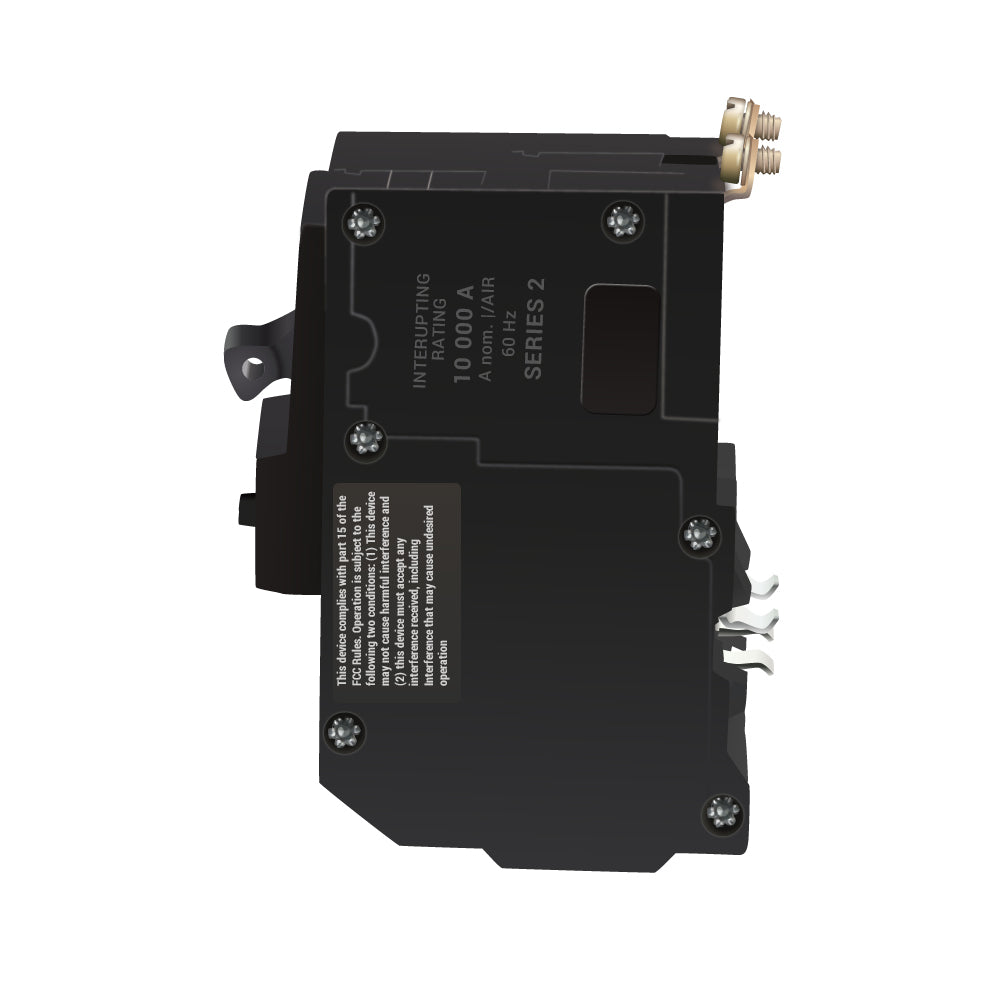

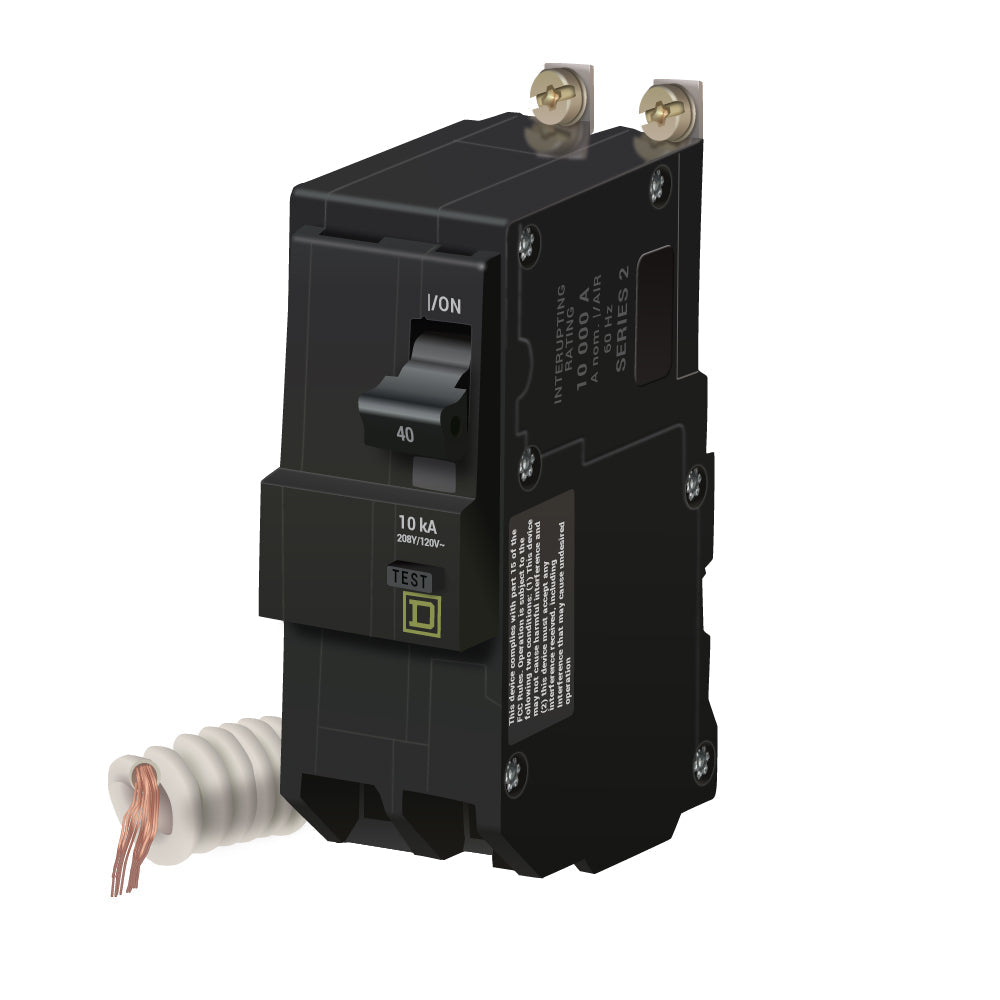

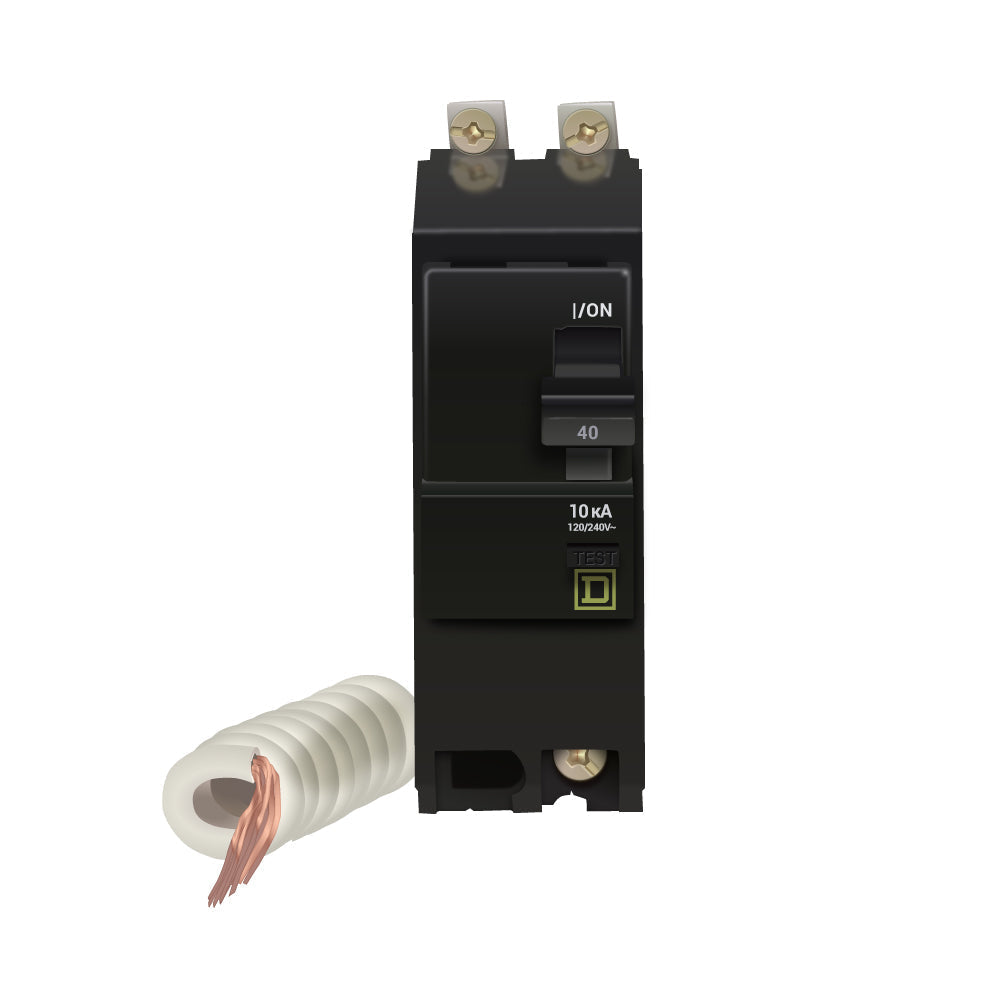

QOB240EPD is a Square D 40 Amp, 2 Pole QO miniature circuit breaker designed for 120/240 Volt AC systems with bolt-on mounting.This thermal magnetic breaker provides reliable overload, short circuit, and 30 mA Class B ground fault protection. It features a 10 kA interrupt rating at 120/240 VAC, supports wire sizes 12 to 4 AWG aluminum and 14 to 6 AWG copper, and is UL and CSA certified. The breaker is constructed with a fiberglass filled thermoset housing and operates at a temperature rating of 104¡F.
- Key Specifications
- Amperage: 40 A
- Voltage Rating: 120/240 VAC
- Number of Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 10 kA
- Trip Type: Thermal/Magnetic
- Ground Fault Protection: 30 mA Class B
- Wire Size: 12-4 AWG Al, 14-6 AWG Cu
- Dimensions: 1.5 in W x 2.91 in D x 4.12 in H
- Certifications: UL, CSA
- Material: Fiberglass Filled Thermoset
- Temperature Rating: 104¡F
- Part Number: QOB240EPD
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QOB Series
- Type : QOB
- Voltage : 120/240VAC
- Amperage : 40
- Phase : 1
- Poles : 2
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Pressure Plate
- Frame Size : 100A/QO
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
- Breaker Type : Ground Fault Equipment Protection
- Protection : Thermal Magnetic
- UPC : 785901116493
- GTIN : 00785901116493
- Country of Origin : Mexico
- Dimensions : 4.1 in (105 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight : 1.02
- Panel Type : QO Load Centers and NQ Panelboards
- Standards : CSA, UL Listed
- Certification : UL Listed
- Wire Size : AWG 12 to AWG 4, Aluminum, AWG 14 to AWG 6, Copper
