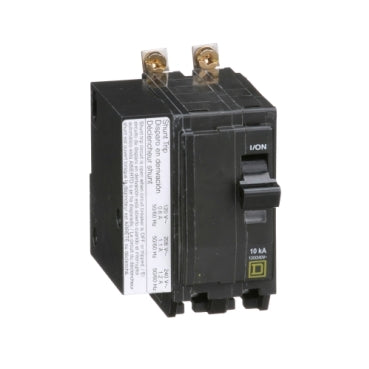

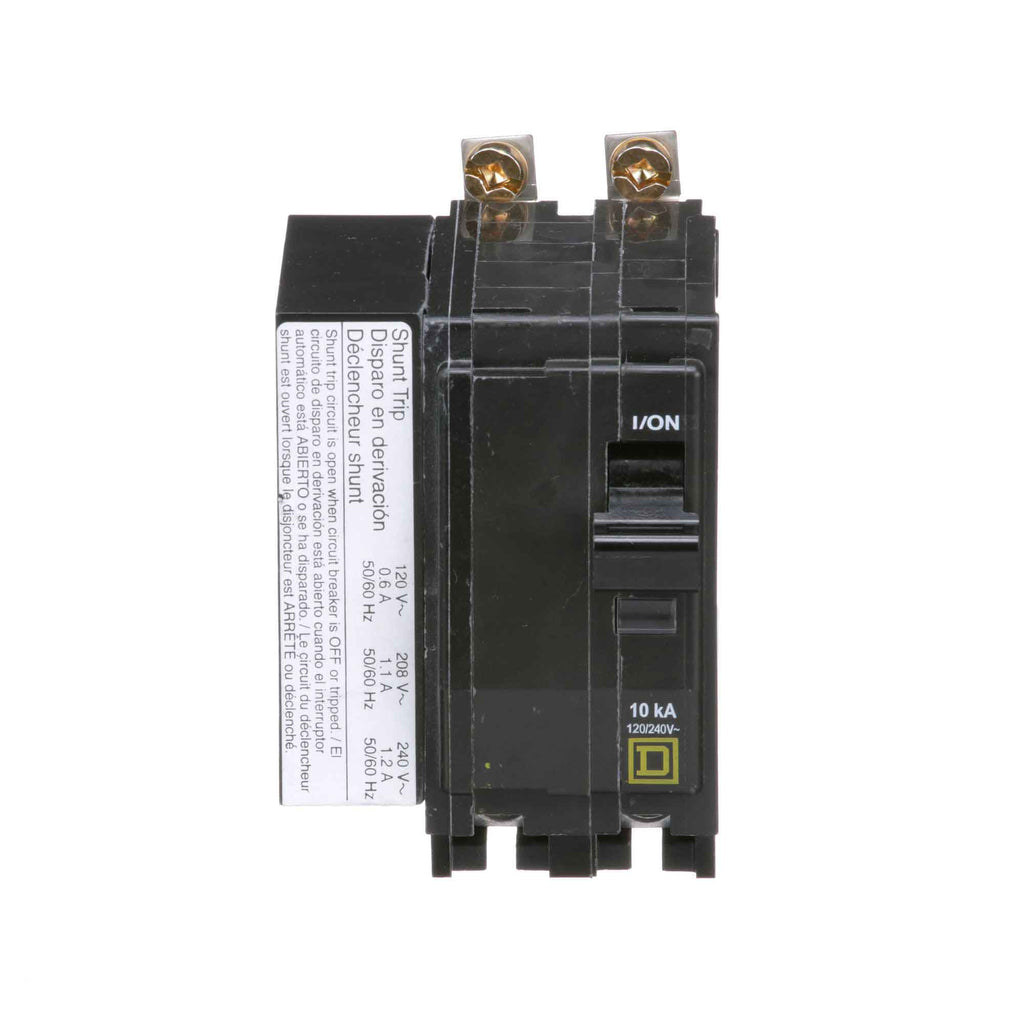

QOB2401021 - Square D 40A 2 Pole 120/240VAC Bolt-On Circuit Breaker with AC Shunt Trip

QOB2401021

QOB2401021 is a 2 pole, 40 amp thermal magnetic circuit breaker designed for 120/240VAC applications with bolt-on mounting and AC shunt trip feature.This Square D QOB2401021 circuit breaker provides reliable circuit protection with a 10kA interrupt rating at 120/240VAC. It features a thermal magnetic trip unit, bolt-on mounting for easy installation, and is suitable for QO and QOB series load centers. The breaker is UL and CSA certified, supports 48VDC, and includes an AC shunt trip for remote tripping capability.

• Amperage: 40 Amps
• Voltage Rating: 120/240VAC, 48VDC
• Number of Poles: 2 Pole
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA at 120/240VAC
• Trip Unit: Thermal Magnetic
• Series/Frame: QO/QOB Series
• AC Shunt Trip Included
• Certifications: UL, CSA
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB2401021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 785901494324
• GTIN : 00785901494324
• Country of Origin : Mexico
• Dimensions : 3.1 in (79 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.96
• Panel Type : Square D NQOD Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 8 to AWG 2, Copper/Aluminum
