QOB2351021 - Square D 35 Amp 120/240V 2 Pole Bolt-On Circuit Breaker QOB Series

QOB2351021

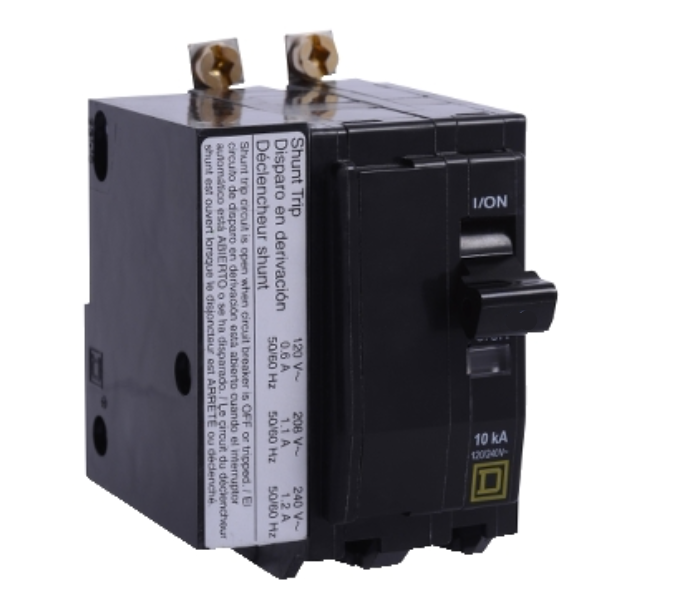

QOB2351021 is a Square D 2 pole miniature circuit breaker rated for 35 amps and 120/240 volts AC, designed for bolt-on mounting.This QOB Series circuit breaker features a 10kA interrupt rating at 120/240 VAC, suitable for residential and commercial electrical panel protection. It includes an AC shunt trip and is UL and CSA certified for safety and reliability.

• Amperage: 35 Amp
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA
• Series/Frame: QOB Series
• Trip Unit: Standard Thermal-Magnetic
• Certifications: UL, CSA
• Frequency: 50/60 Hz
• Application: Panelboard Protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB2351021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 35
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901703624
• GTIN : 00785901703624
• Country of Origin : Mexico
• Dimensions : 3.1 in (79 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.99
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 8 to AWG 2, Copper/Aluminum
