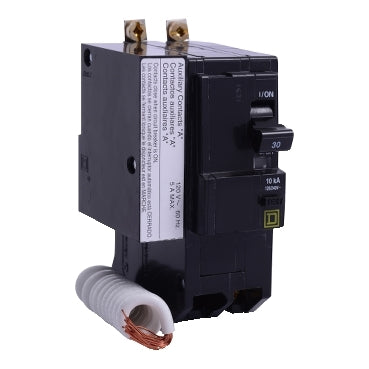

QOB230EPD1200 - Square D QO 30A 2 Pole 120/240VAC 10kA Bolt-On Miniature Circuit Breaker with 30mA Ground Fault

QOB230EPD1200

QOB230EPD1200 is a Square D QO series miniature circuit breaker designed for reliable overload, short circuit, and 30mA Class B ground fault protection in equipment applications. This 2-pole, 30A breaker features a thermal magnetic trip unit and is rated for 120/240VAC with a 10kA interrupting capacity. It uses a bolt-on mounting style and is compatible with QO panelboards. The unit includes a 30mA ground fault protection and an auxiliary switch for added monitoring and control.

• Part Number: QOB230EPD1200
• Manufacturer: Square D
• Series/Frame: QO
• Amperage: 30A
• Voltage: 120/240VAC
• Poles: 2
• Interrupt Rating: 10kA
• Mounting Type: Bolt-On
• Ground Fault: 30mA Class B
• Trip Unit: Thermal Magnetic
• Wire Size: 14-8 AWG Copper, 12-8 AWG Aluminum
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB230EPD1200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901538264
• GTIN : 00785901538264
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 1.13
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, AWG 12 to AWG 8, Copper/Aluminum
