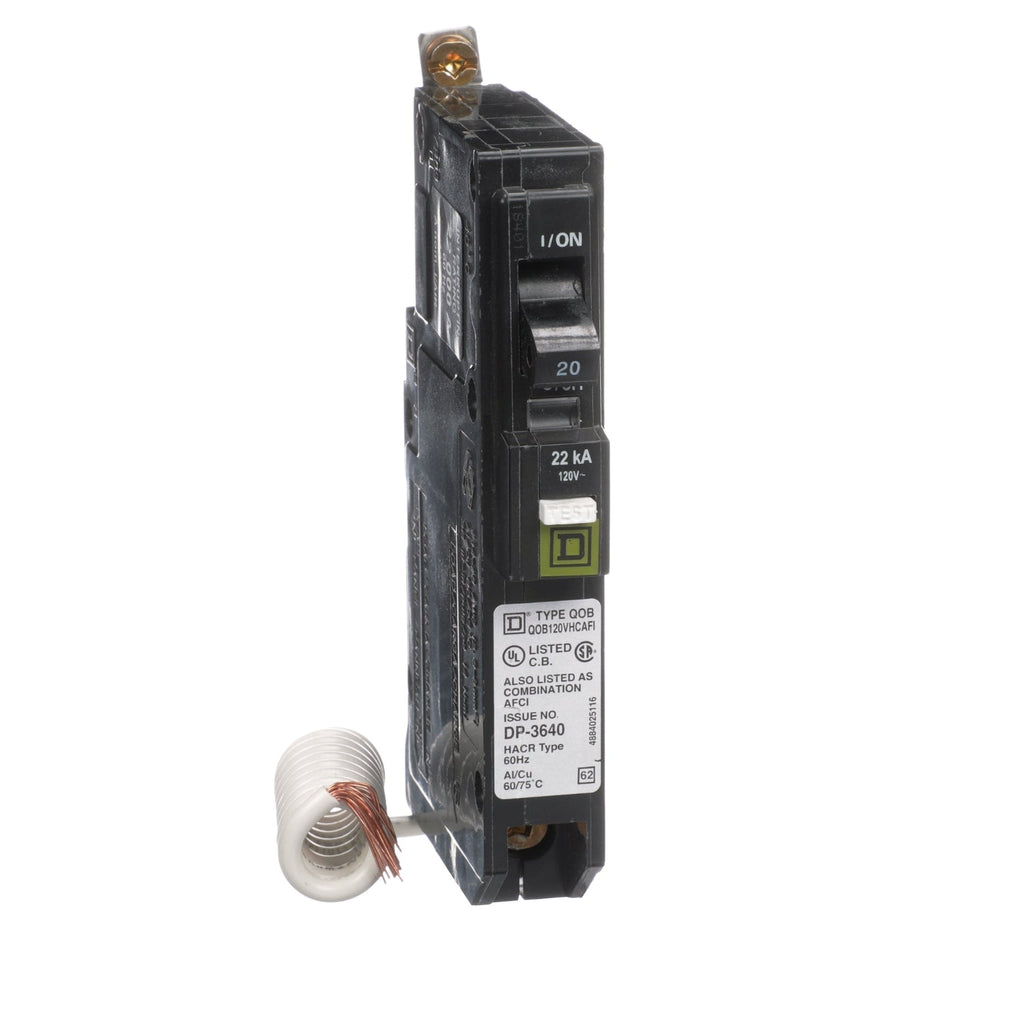

QOB120VHCAFI - Square D 20 Amp 120V 1 Pole Bolt-On Ground Fault Circuit Breaker

Save $34.70
SKU: QOB120VHCAFI-New
Condition: New
Price:
$577.30 $612.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

QOB120VHCAFI - Square D Bolt-On 20 Amp 1 Pole Circuit Breaker - Essential Electric Supply
QOB120VHCAFI - Square D 20 Amp 120V 1 Pole Bolt-On Ground Fault Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QOB120VHCAFI - Square D Bolt-On 20 Amp 1 Pole Circuit Breaker - Essential Electric Supply
QOB120VHCAFI - Square D 20 Amp 120V 1 Pole Bolt-On Ground Fault Circuit Breaker - Essential Electric Supply

Description

QOB120VHCAFI


QOB120VHCAFI is a Square D 20 Amp, 120 Volt, 1 Pole bolt-on ground fault circuit breaker designed for reliable electrical protection.This circuit breaker features thermal magnetic trip technology with a 10kA interrupting rating at 120VAC. It mounts with a bolt-on connection and includes ground fault protection with a 6mA trip sensitivity. The breaker is UL and CSA certified, suitable for use in QO load centers and panelboards, and supports wire sizes from 14 to 8 AWG copper or aluminum.
  • Amperage: 20 Amps
  • Voltage: 120 VAC
  • Number of Poles: 1
  • Mounting Type: Bolt-On
  • Interrupt Rating: 10 kA at 120V
  • Ground Fault Trip Sensitivity: 6 mA
  • Series/Frame: QOB
  • Trip Unit: Thermal Magnetic
  • Certifications: UL Listed, CSA Certified
  • Wire Size Range: 14 to 8 AWG Copper or Aluminum
  • Operating Temperature: 104 ¡F (40 ¡C)
  • Breaker Feature: Mercury Free
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right pr(more...)

Specifications

  • Part Number: QOB120VHCAFI
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOB Series
  • Type : QOB
  • Voltage : 120/240VAC
  • Amperage : 20
  • Phase : 1
  • Poles : 1
  • AIC rating : 22kA@120V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Pressure Plate
  • Frame Size : 100A/QO
  • Temp Rating : Minimum Operating Temp 104 Degrees F Max. Operating Temp.104 Degrees F
  • MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
  • Breaker Type : Arc Fault Circuit Interrupter
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901677918
  • GTIN : 00785901677918
  • Country of Origin : Mexico
  • Dimensions : 4.8 in (121 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
  • Weight : 0.56
  • Panel Type : QO Load Centers and NQ Panelboards
  • Standards : CSA, UL Listed
  • Certification : UL Listed
  • Wire Size : AWG 14, AWG 8 Copper, AWG 12, AWG 8 Aluminium
