QOB120AFI - Square D 20A 1-Pole 120VAC Combination Arc Fault Circuit Breaker Bolt-On

QOB120AFI

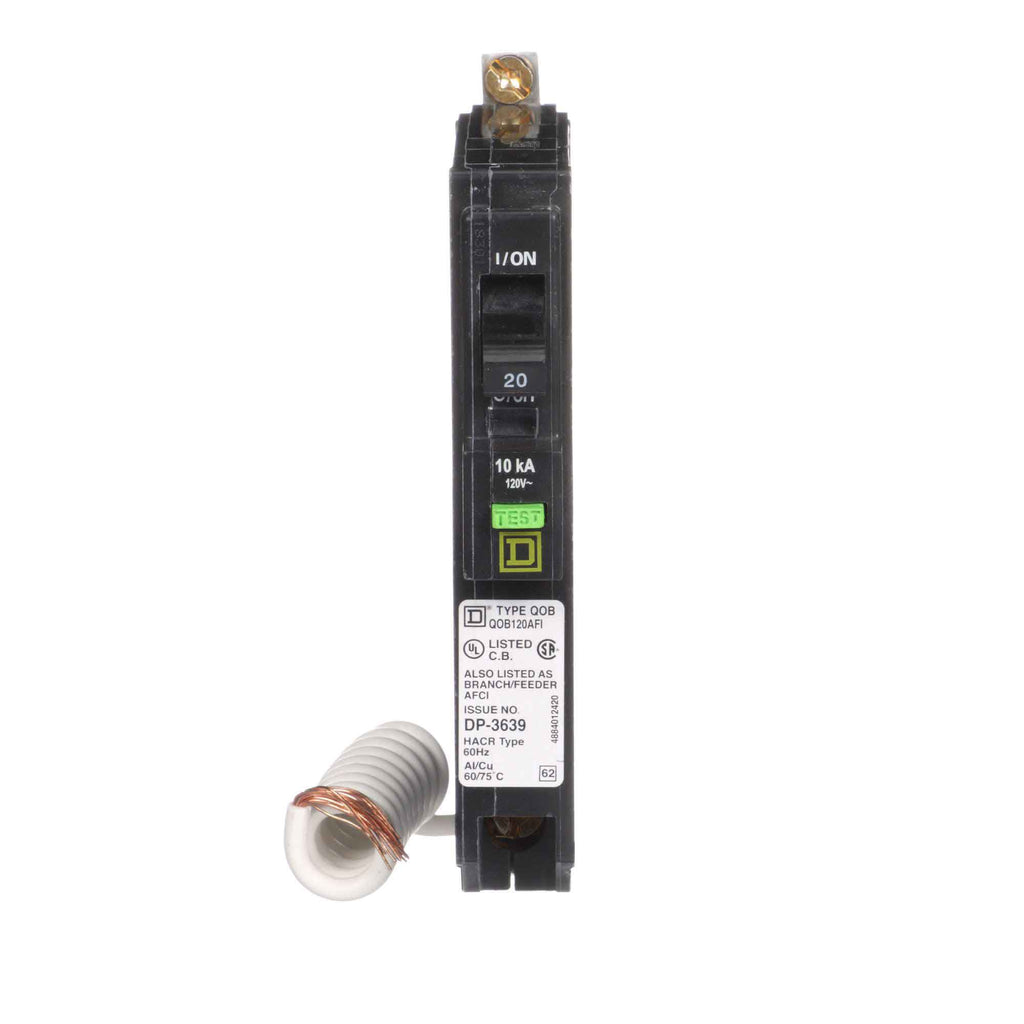

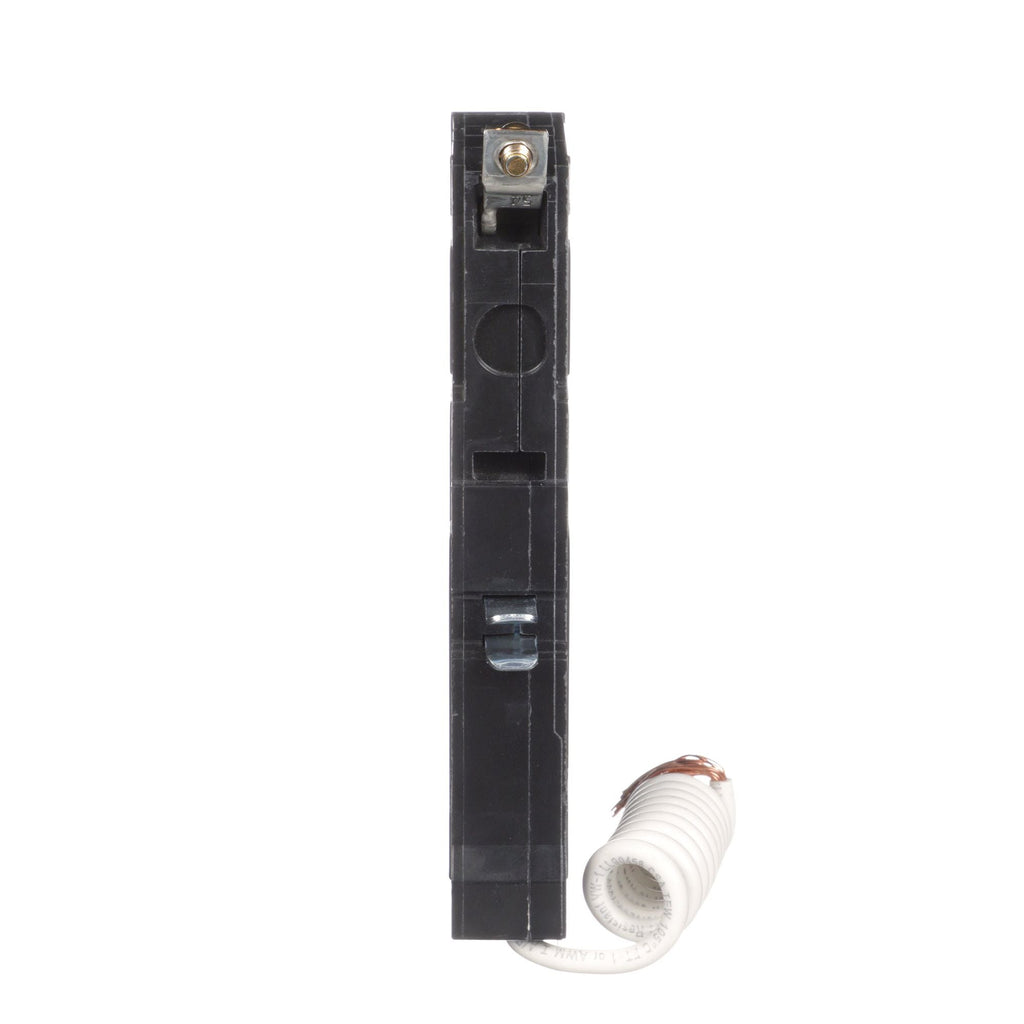

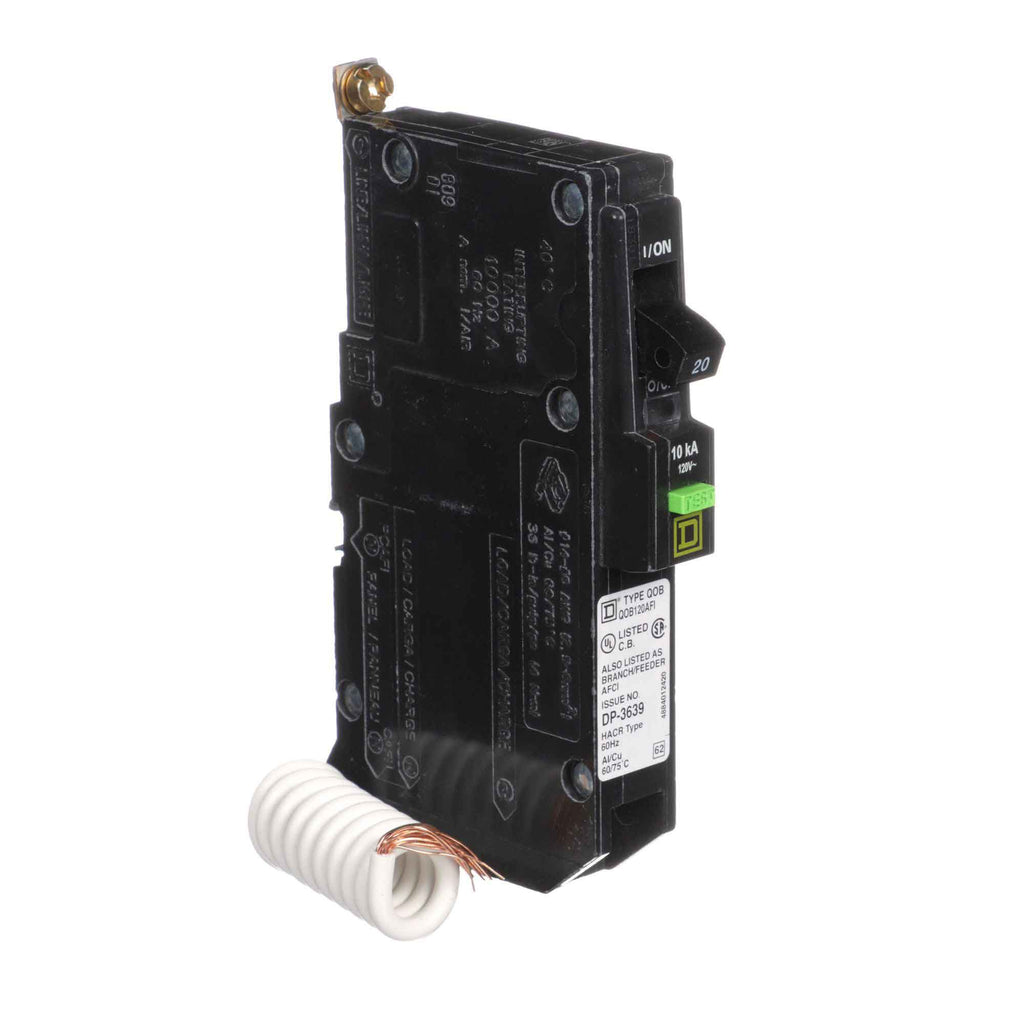

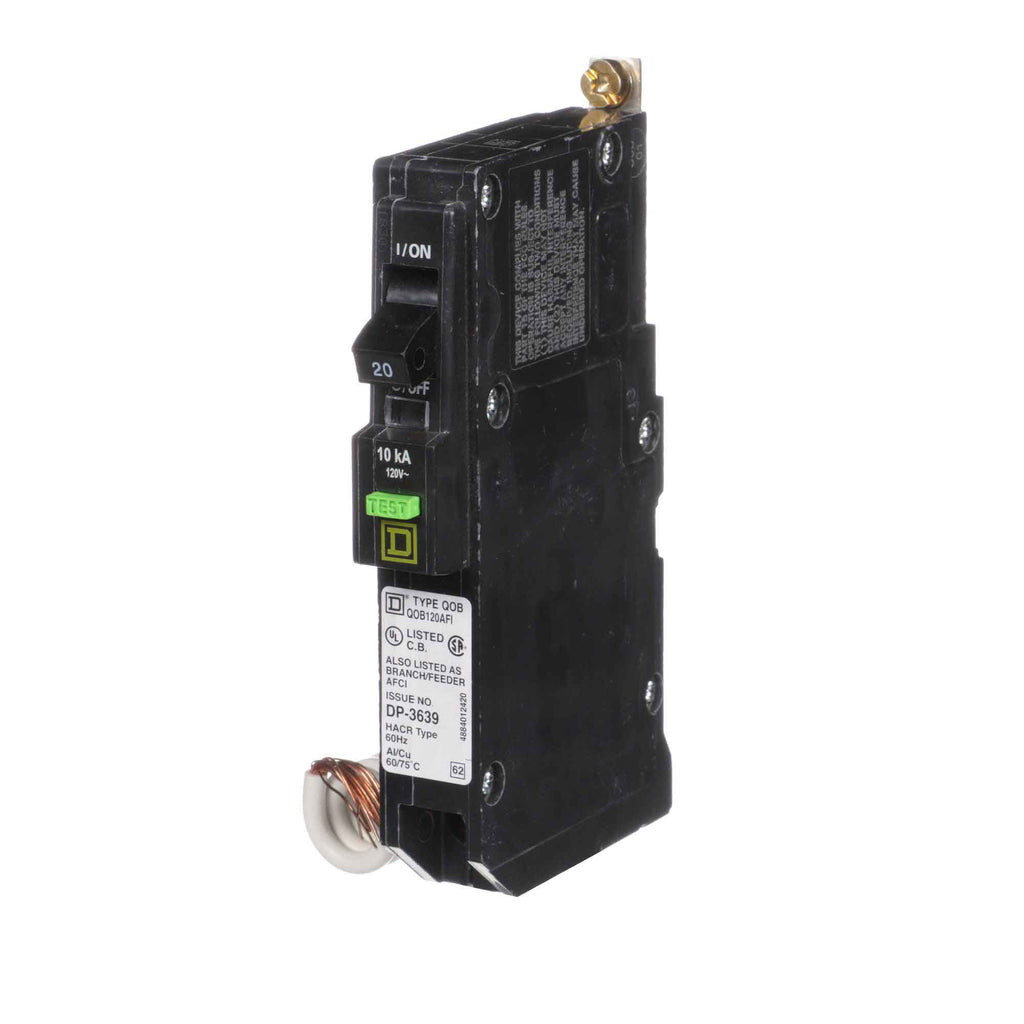

QOB120AFI is a 20 Amp, 1 Pole combination arc fault circuit breaker from Square D designed for 120VAC applications with bolt-on mounting.This Square D QOB120AFI circuit breaker features a thermal magnetic trip unit with a 10kA interrupt rating at 120V, suitable for QOB Series load centers. It provides reliable arc fault protection with a trip-free toggle and VisiTrip indication for quick diagnostics. The compact bolt-on design ensures easy installation and compatibility with QOB panelboards.

Key Specifications
• Amperage: 20 Amps
• Voltage: 120VAC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA at 120V
• Series/Frame: QOB Series
• Trip Unit: Thermal Magnetic
• Arc Fault Circuit Interrupter (Combination Type)
• Phase: Single Phase
• UL and CSA Certified
• VisiTrip indication for trip status

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB120AFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : Arc Fault Circuit Interrupter
• Protection : Thermal Magnetic

Product Data

• UPC : 785901299356
• GTIN : 00785901299356
• Country of Origin : Mexico
• Dimensions : 4.8 in (121 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.563
• Panel Type : Square D NQOD Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8 Copper, AWG 12 to AWG 8 Aluminum
