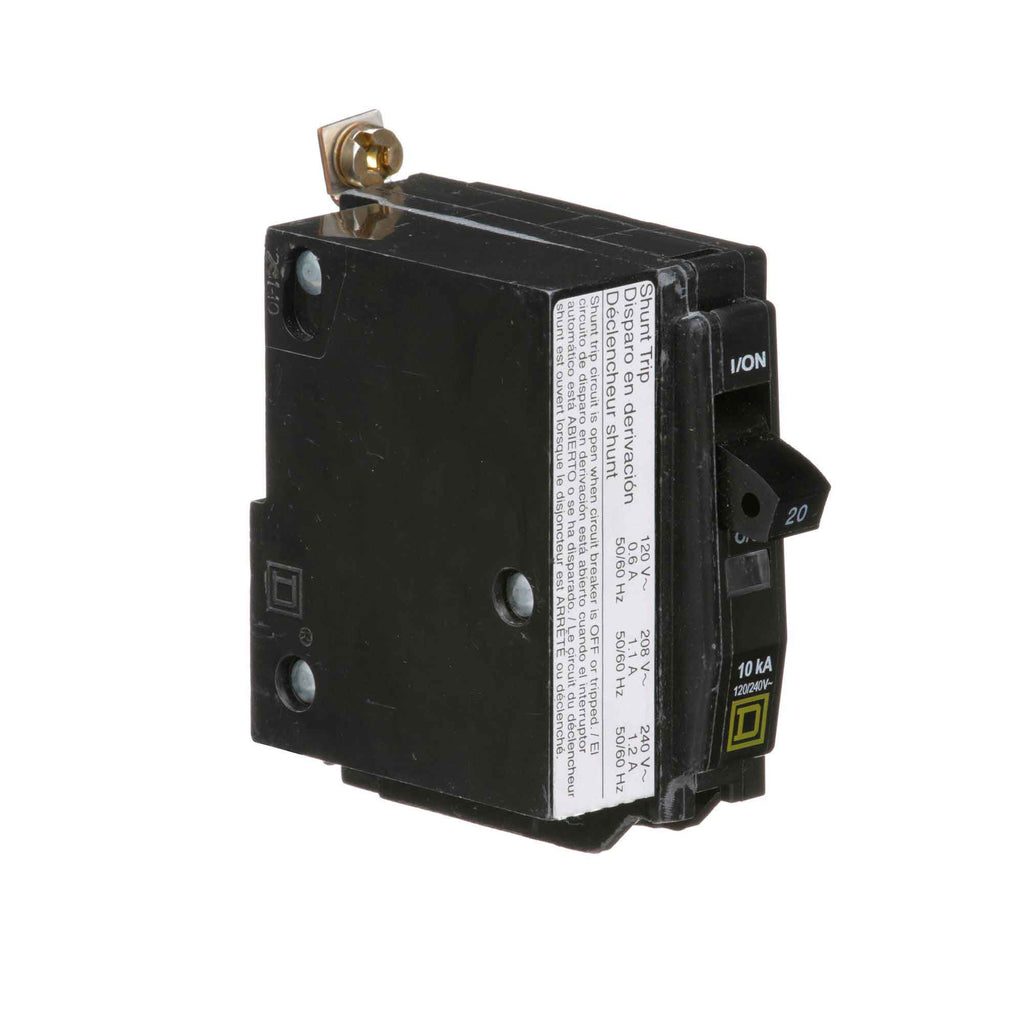

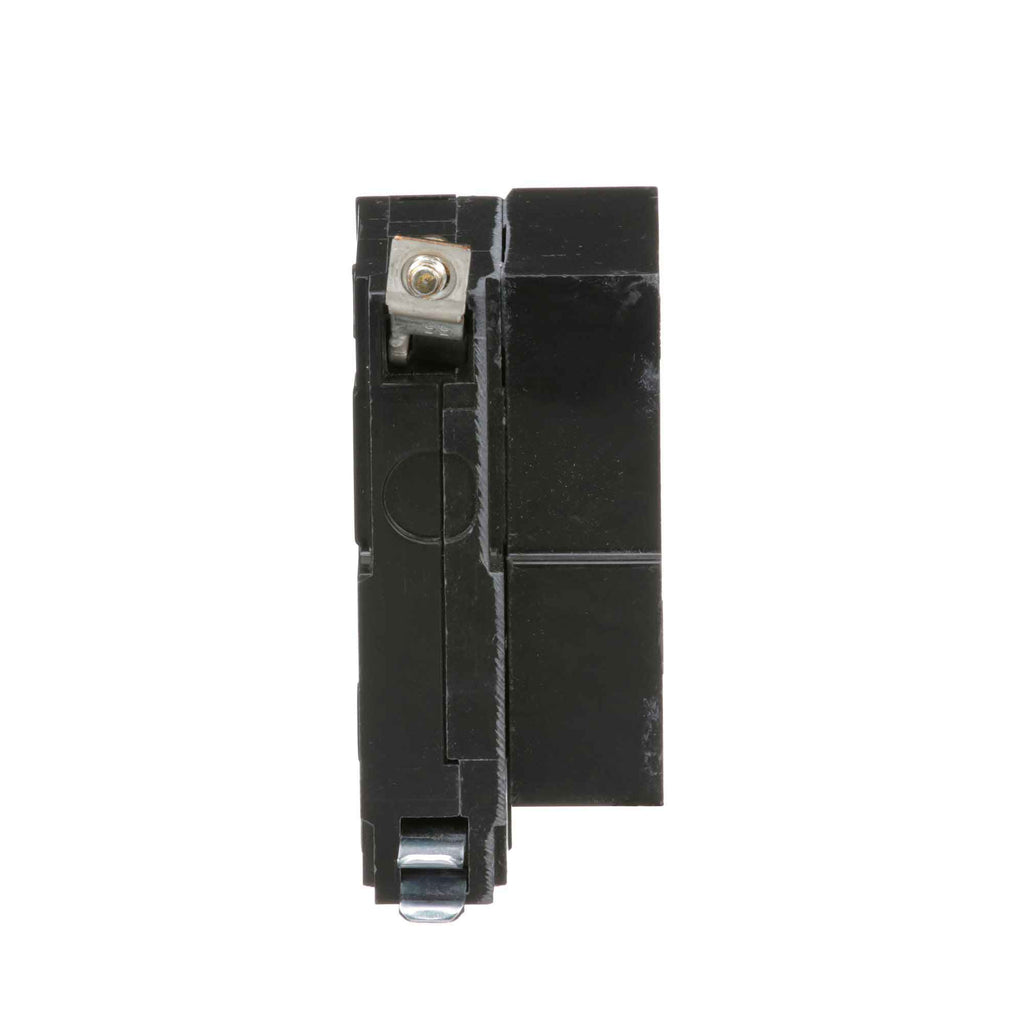

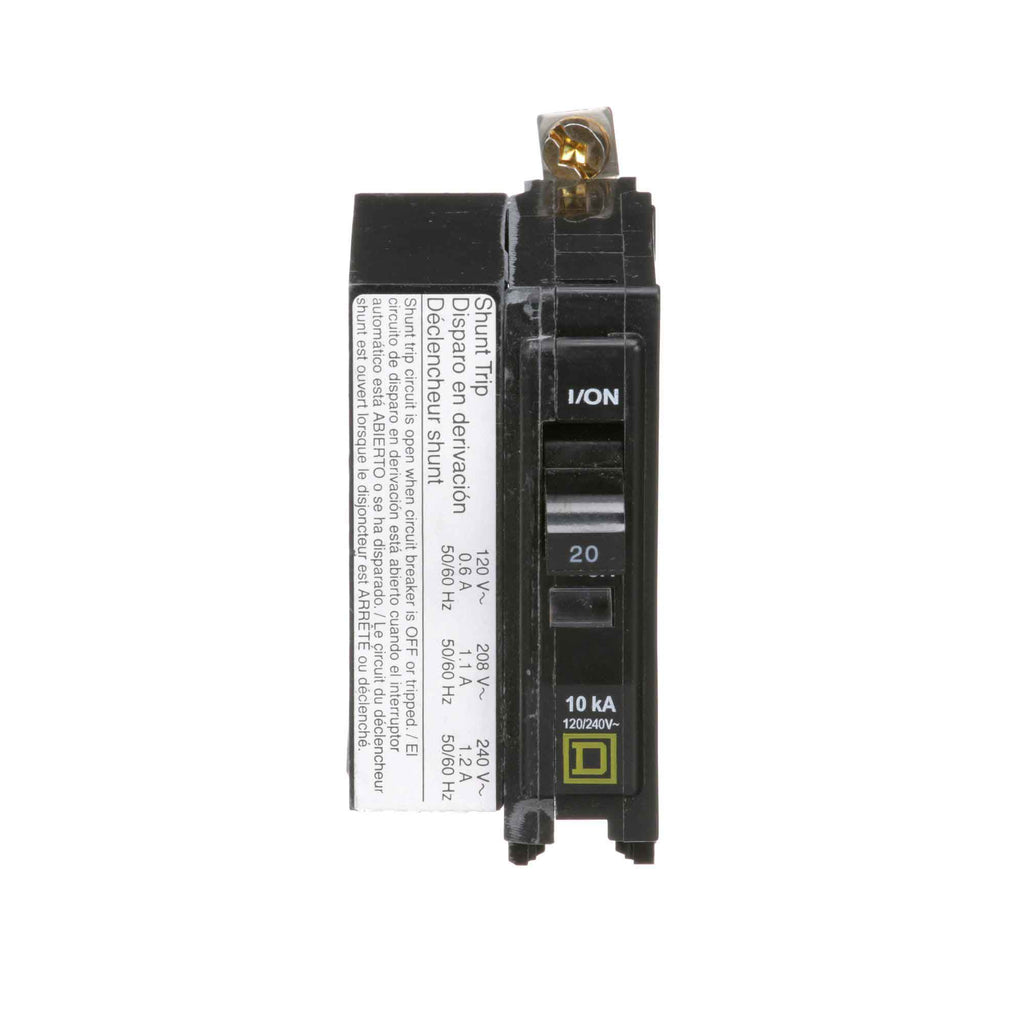

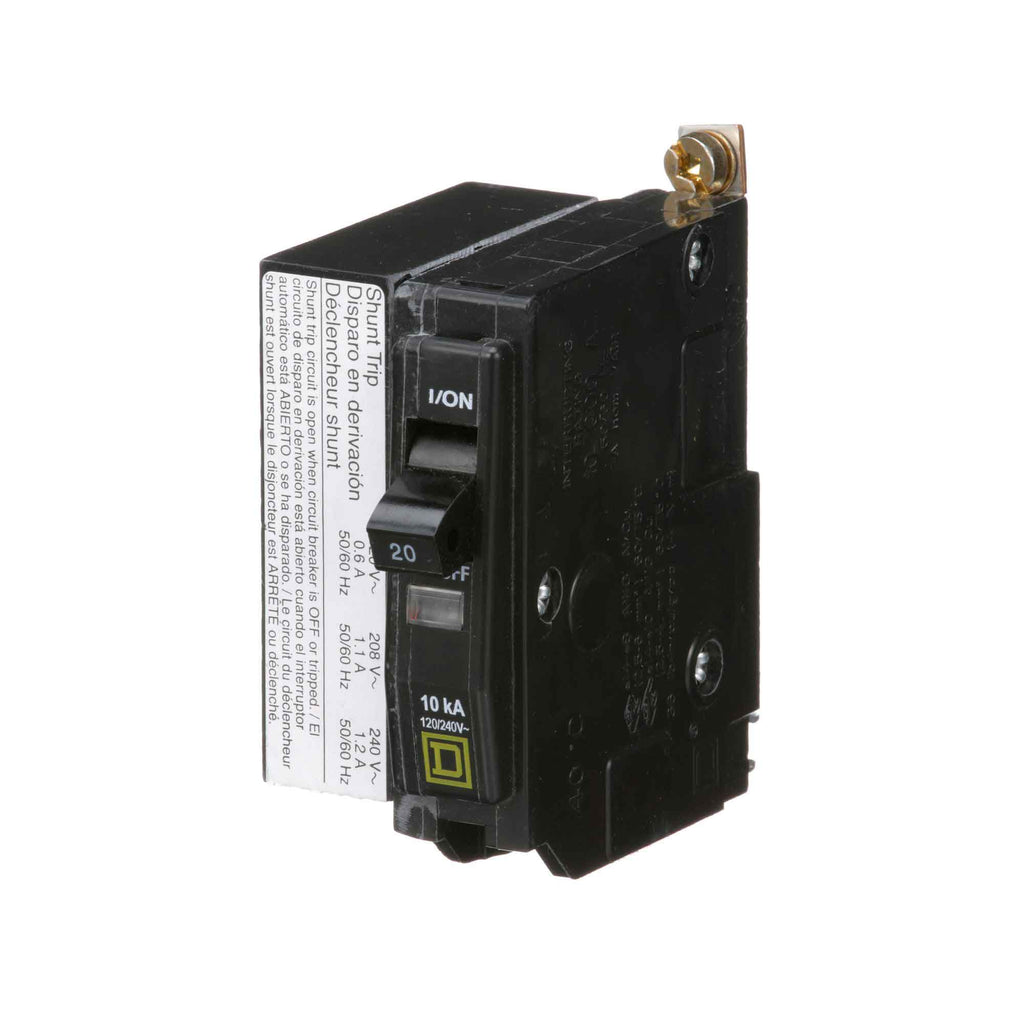

QOB1201021 - Square D 20A 120/240V 1 Pole Bolt-On Circuit Breaker QOB Series

QOB1201021

QOB1201021 is a 1 pole, 20 amp thermal magnetic molded case circuit breaker from Square D's QOB series designed for reliable circuit protection.QOB1201021 features a 120/240VAC voltage rating and a 10kA interrupting capacity at 120V. It uses a bolt-on mounting type and includes long-time and instantaneous trip functions for enhanced protection. Certified UL and CSA, this breaker supports wire sizes from AWG 14 to AWG 8 for copper or aluminum conductors and is mercury free.

• Manufacturer: Square D
• Series: QOB
• Amperage: 20A
• Voltage: 120/240VAC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupting Rating: 10kA at 120V
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Certifications: UL Listed, CSA Certified
• Wire Size Range: AWG 14 to AWG 8 (Copper/Aluminum)
• Dimensions: 2.9" L x 1.5" W x 3" H
• Mercury Free

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product e(more...)

Specifications

• Part Number: QOB1201021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG

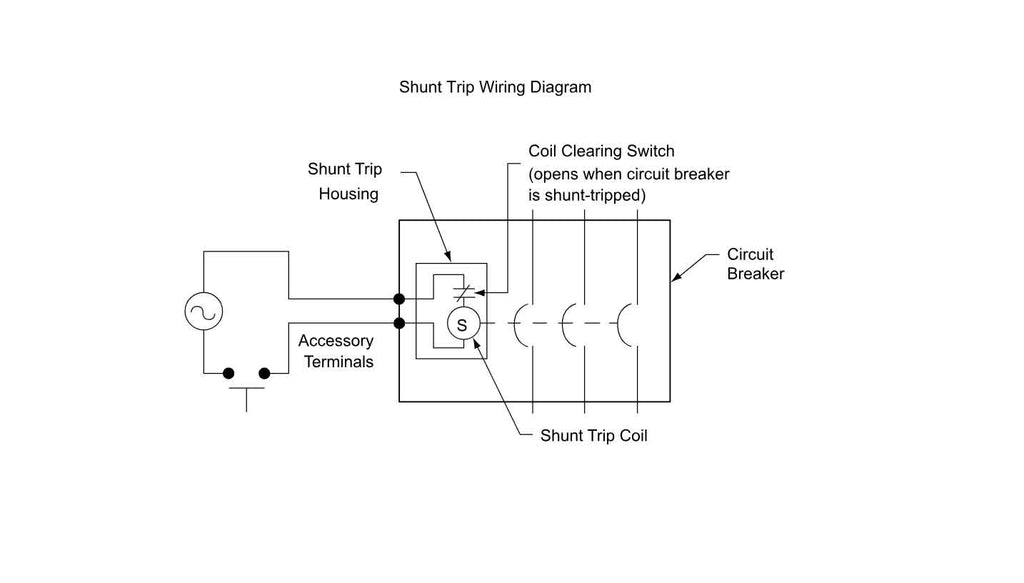

• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 785901494195
• GTIN : 00785901494195
• Country of Origin : Mexico

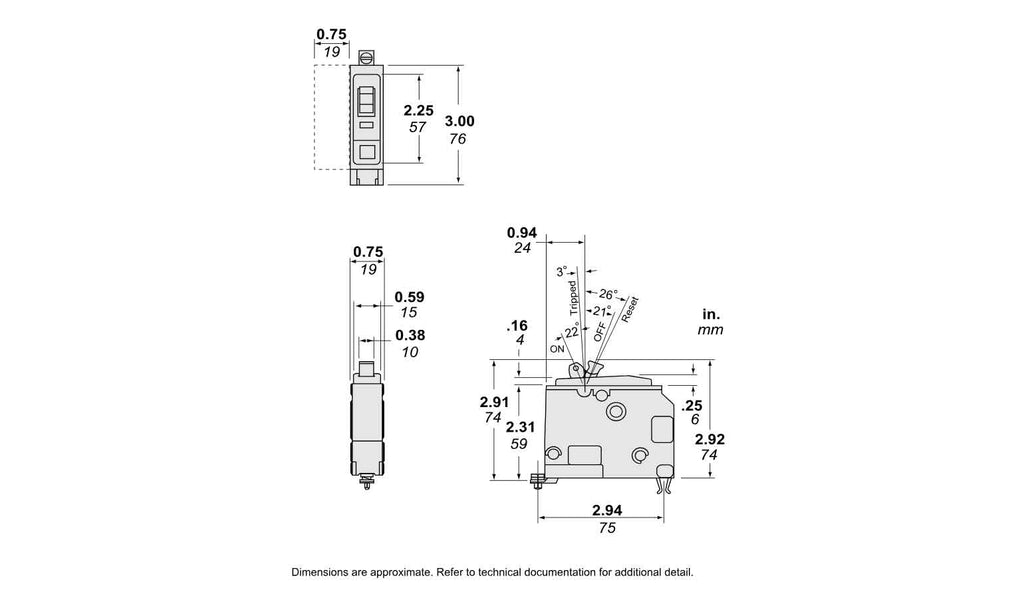

• Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.281
• Panel Type : Square D NQOD Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper/Aluminum
