QOB115HID - Square D 15A 120/240V AC 1 Pole Bolt-On Miniature Circuit Breaker 10kA Interrupt Rating

QOB115HID

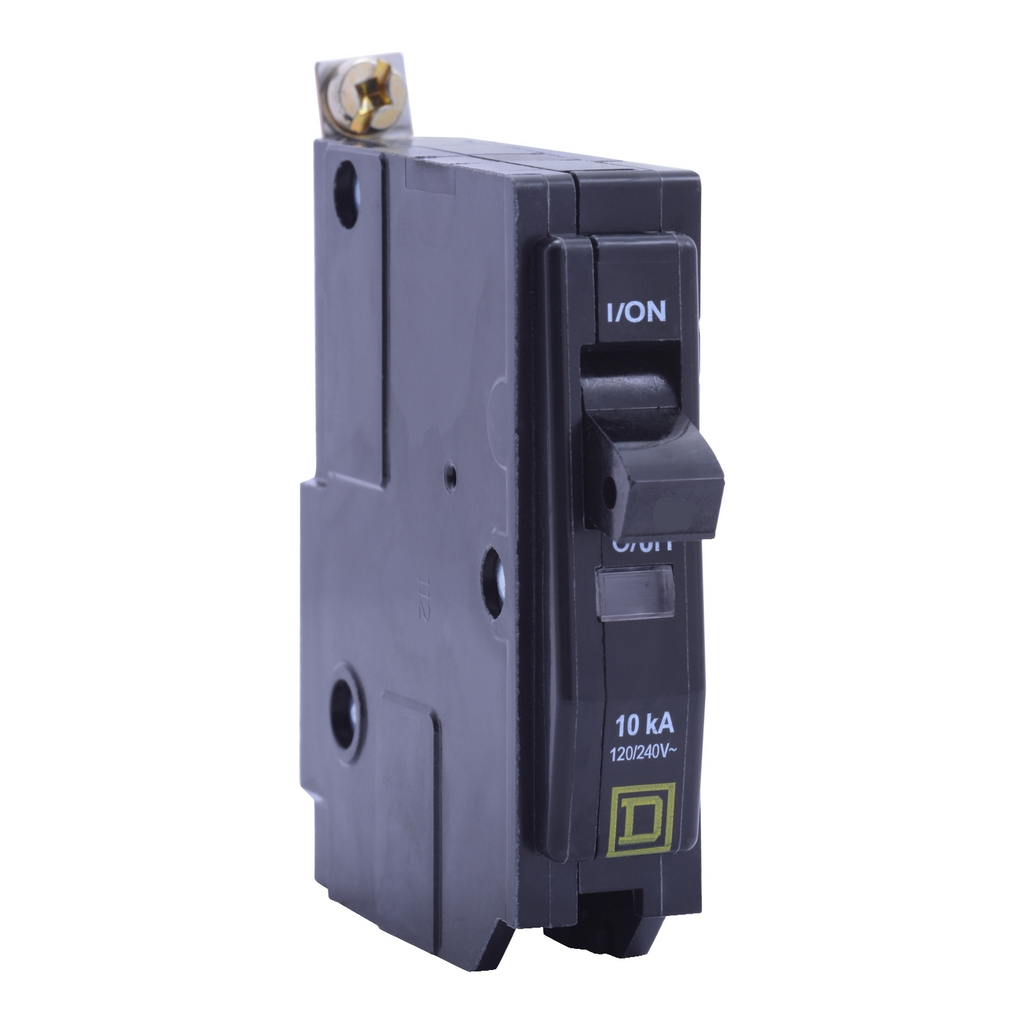

QOB115HID is a Square D miniature circuit breaker with a 15 amp rating, designed for 120/240V AC systems and featuring a bolt-on mounting type.This QO series circuit breaker provides reliable thermal magnetic protection with a 10 kA interrupt rating at 120/240 volts AC. It is a single-pole breaker suitable for high intensity discharge applications and supports wire sizes from AWG 14 to AWG 8 copper or aluminum. The breaker is UL listed and CSA certified, ensuring compliance with industry safety standards.

• Amperage: 15 A
• Voltage Rating: 120/240 V AC, 48 V DC
• Number of Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA at 120/240 V AC, 5 kA at 48 V DC
• Series/Frame: QO
• Trip Unit: Thermal Magnetic
• Wire Size: AWG 14 to AWG 8 copper or aluminum
• Certifications: UL Listed, CSA
• Switching Duty Rated (HACR)
• Panel Spaces: 1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB115HID
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 078590154388
• GTIN : 00785901543886
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.31
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper/Aluminum
