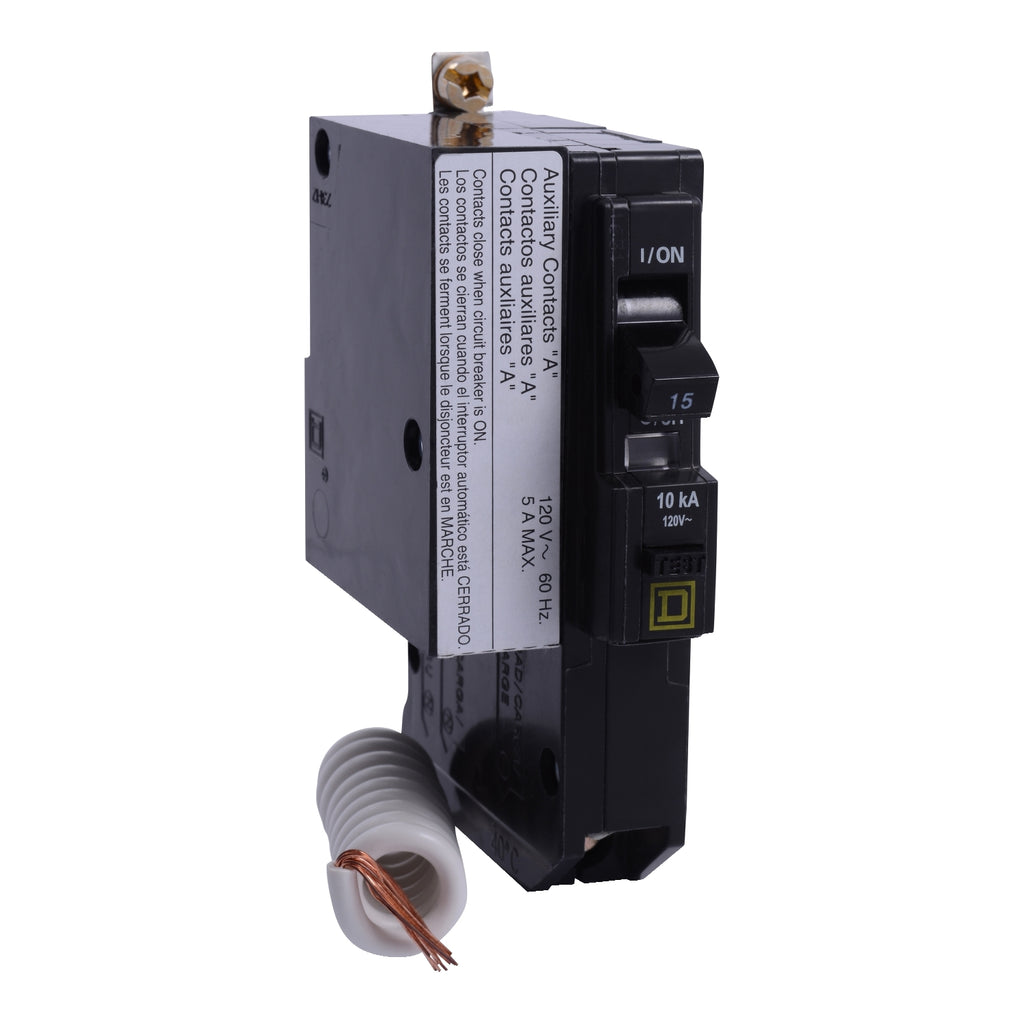

QOB115EPD1200 - Square D 15A 1-Pole 120/240V Bolt-On Miniature Circuit Breaker 10kA Interrupt Rating

QOB115EPD1200

QOB115EPD1200 is a Square D miniature circuit breaker designed for reliable electrical protection with a 15 amp rating and 1 pole configuration.This circuit breaker features a bolt-on mounting type suitable for QO load centers and panelboards. It supports a voltage rating of 120/240 V AC and 48 V DC with a 10 kA interrupt rating at 120/240 V AC. The breaker uses a thermal magnetic trip unit and is HACR and switching duty rated. It is UL Listed and CSA certified for safety and performance.

• Amperage: 15 A
• Voltage Rating: 120/240 V AC, 48 V DC
• Number of Poles: 1P
• Mounting Type: Bolt-on
• Interrupt Rating: 10 kA at 120/240 V AC
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CSA
• Wire Size: AWG 14 to AWG 8 copper or aluminum
• Dimensions: 3 in H x 0.75 in W x 2.91 in D
• Electrical Connection: Pressure plate
• HACR and Switching Duty Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every ti(more...)

Specifications

• Part Number: QOB115EPD1200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Pressure Plate
• Protection : Thermal Magnetic

Product Data

• UPC : 785901833321
• GTIN : 00785901833321
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.71 lb
• Standards : CSA, UL Listed
• Certification : UL Listed
