Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Load Center
Description

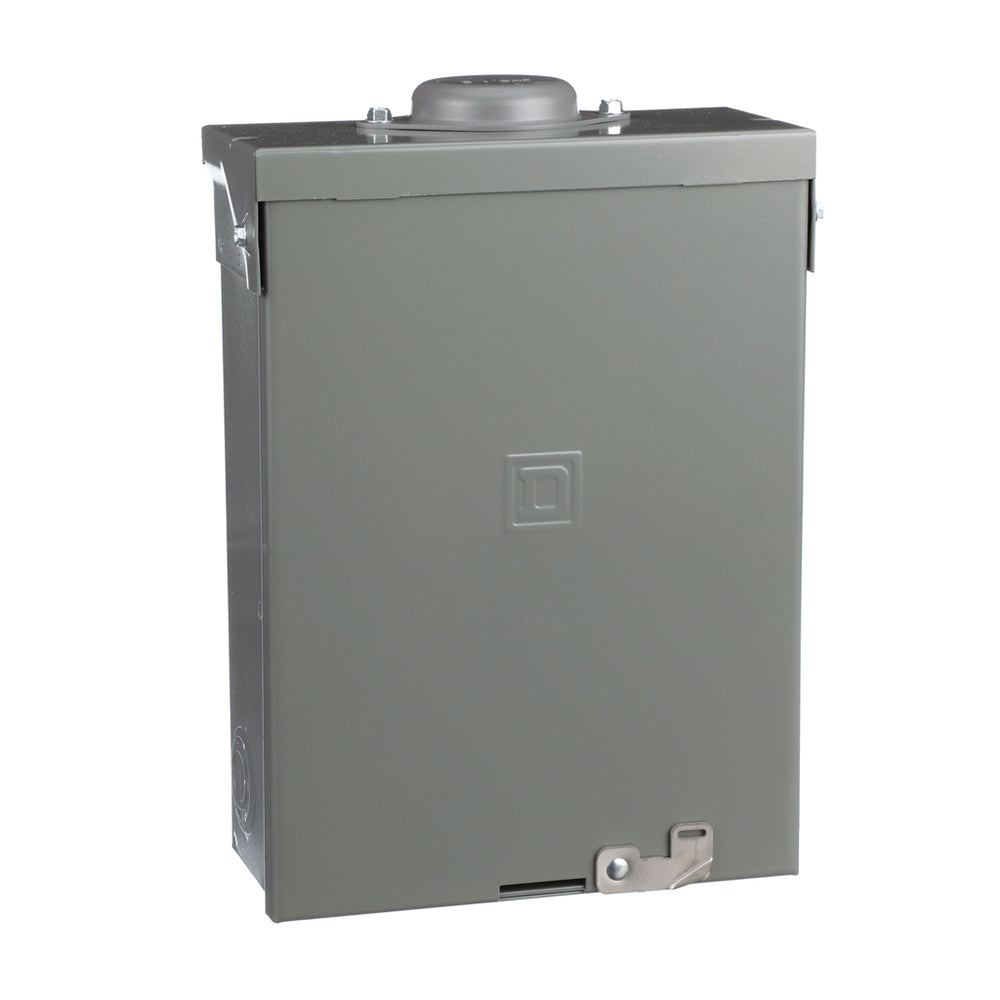

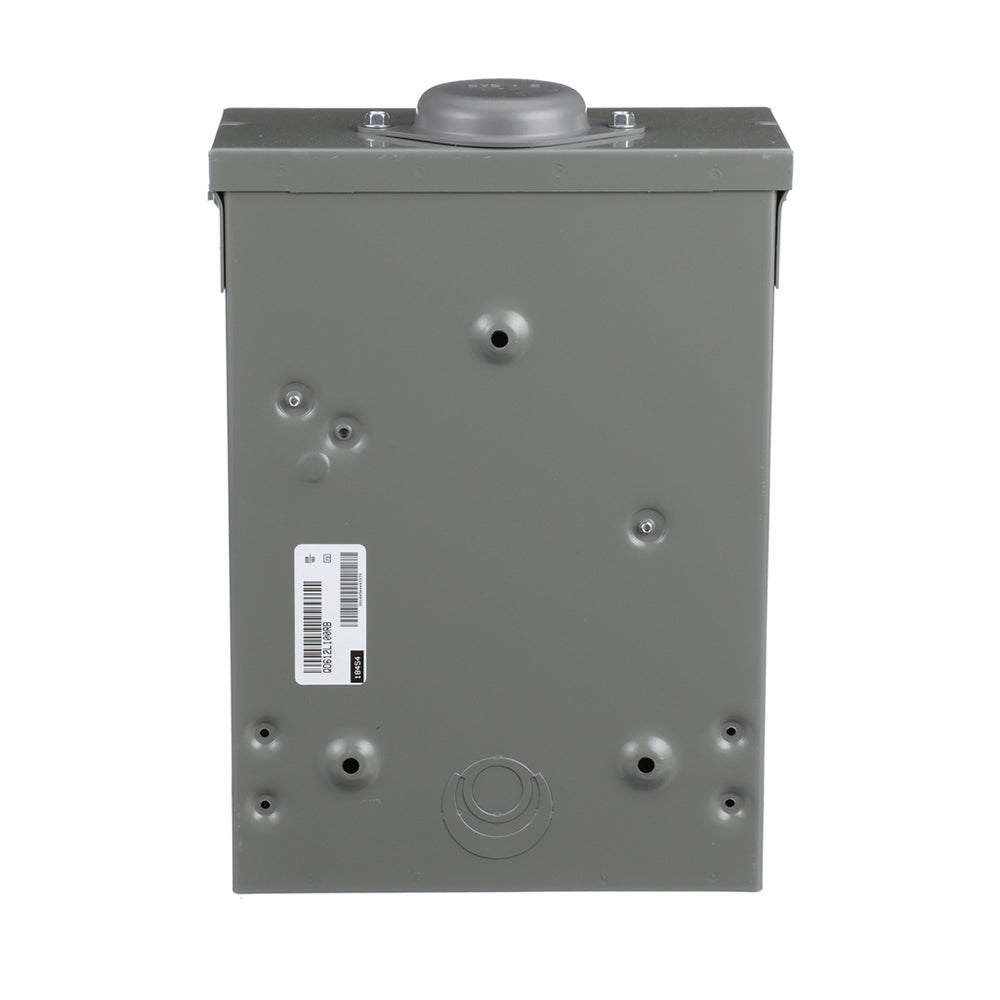

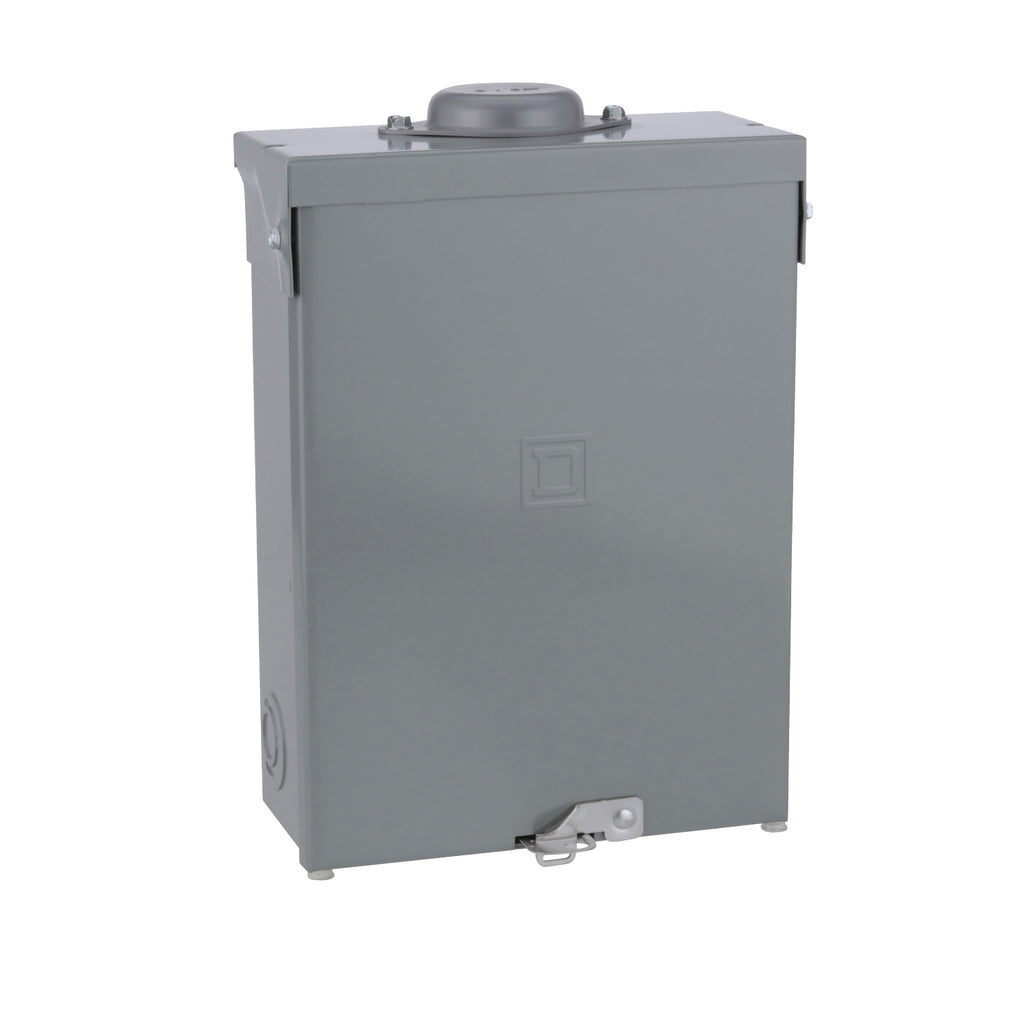

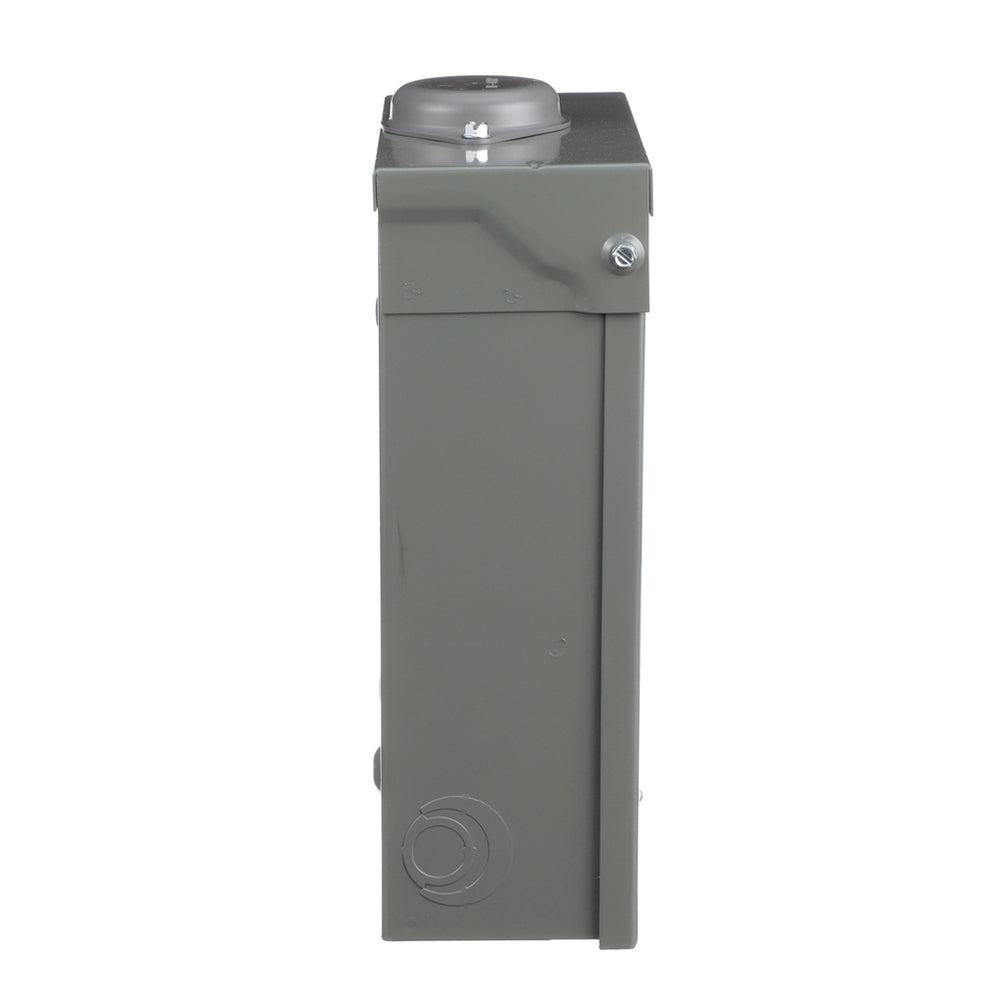

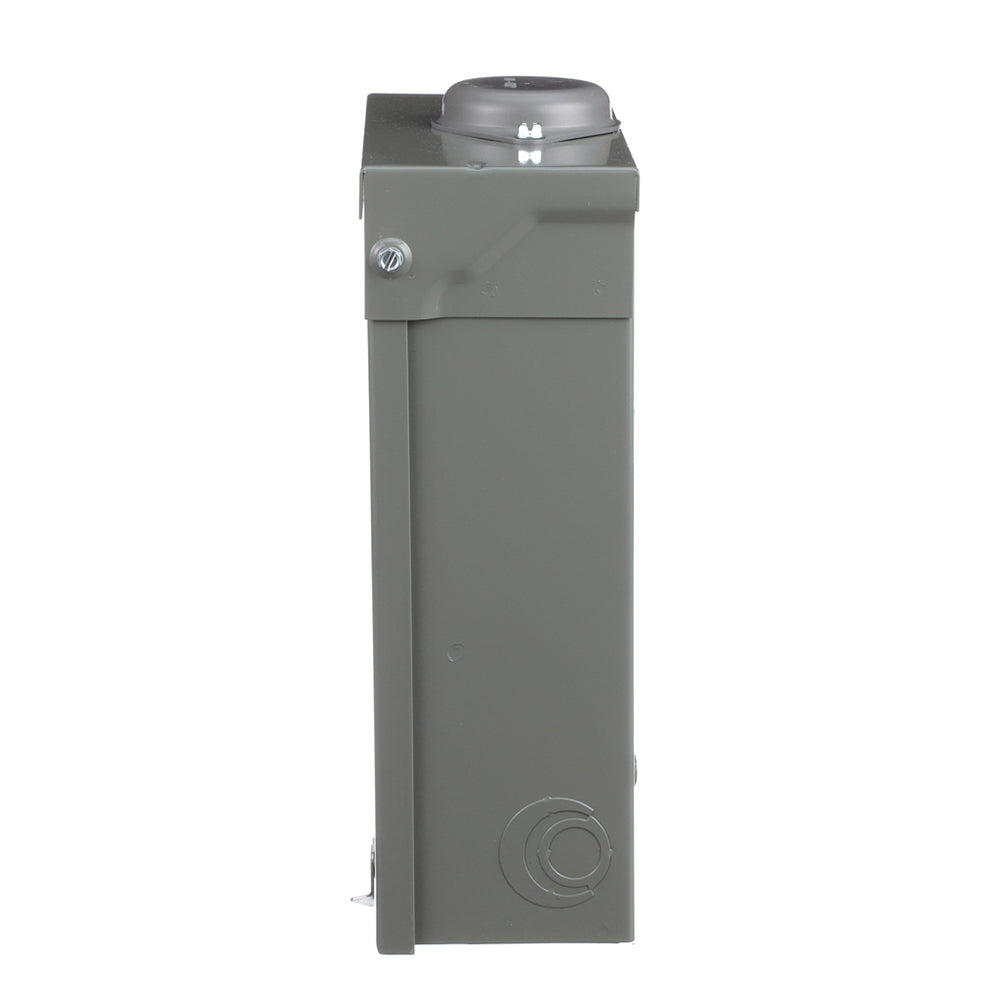

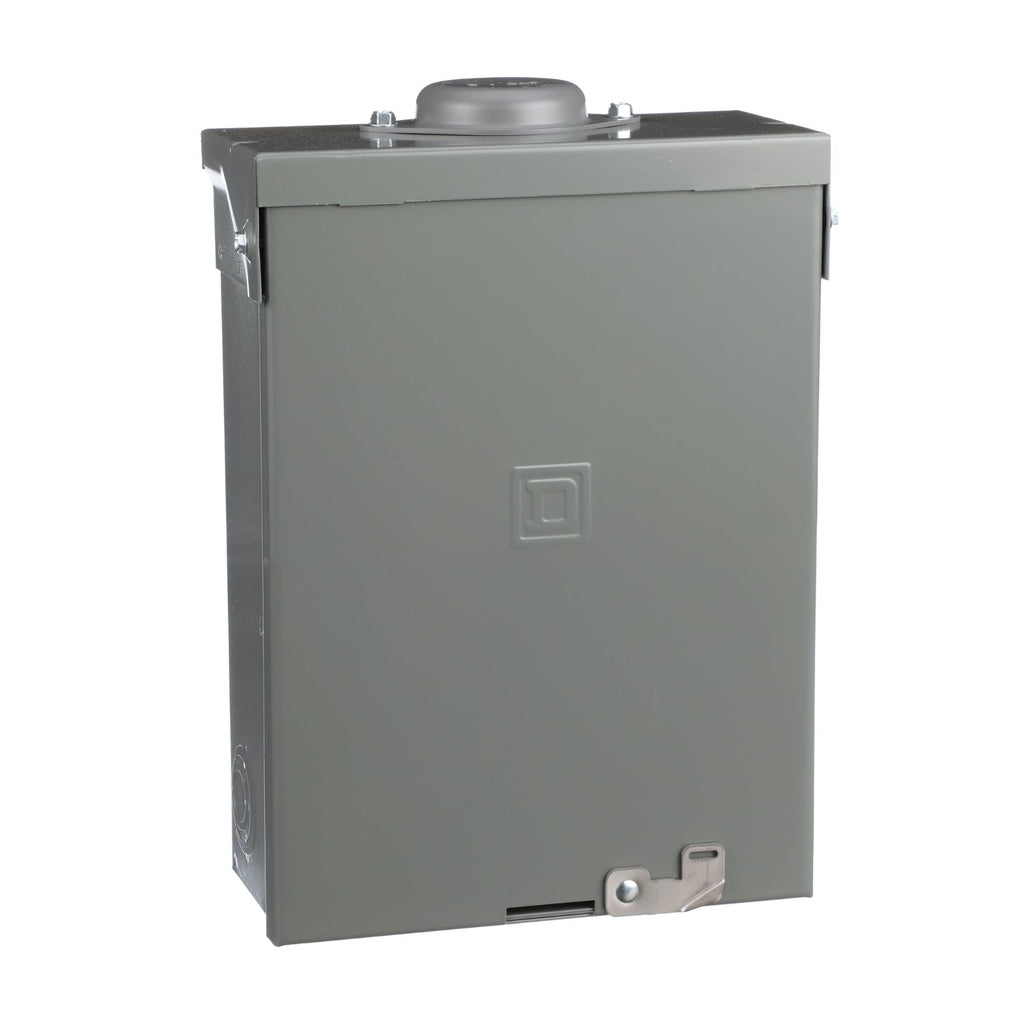

QO612L100RB
QO612L100RB is a Square D load center designed for 120/240V single-phase electrical systems with a 100 amp main lug rating and 6 spaces for circuit breakers.
This load center features a main lug type design, supports up to 12 circuits, and has a 10,000 A interrupt rating. It is UL 67 listed and CSA certified, suitable for surface mounting with a baked enamel gray finish. The unit offers straight-in wiring for faster installation and superior durability, complying with industry standards for safety and performance.
- Key Specifications
- Manufacturer: Square D
- Part Number: QO612L100RB
- Amperage: 100 Amps
- Voltage: 120/240 Volts AC
- Phase: Single Phase
- Number of Spaces: 6
- Max Circuits: 12
- Interrupt Rating: 10,000 Amps
- Mounting Type: Surface Mount
- Type: Main Lug Load Center
- Certifications: UL 67 Listed, CSA Certified
- Finish: Baked Enamel Gray
- Part Number: QO612L100RB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Load Center
- Family : QO Series
- Type : QO
- Voltage : 120/240 AC
- Amperage : 100
- Phase : 1
- Temp Rating : -13–158 °F (-25–70 °C)
- Wire : 3
- Nema Rating : 3
- Bus Type : Aluminum
- UPC : 785901785590
- GTIN : 00785901785590
- Country of Origin : Mexico
- Dimensions : 8.91 in x 12.64 in
- Weight : 9.661
- Certification : RoHS Compliant, UL Listed
- Wire Size : AWG 8 to AWG 1, Aluminum/Copper
