QO330GFI - Square D 30A 3 Pole 208Y/120V Plug-In Ground Fault Circuit Breaker

QO330GFI

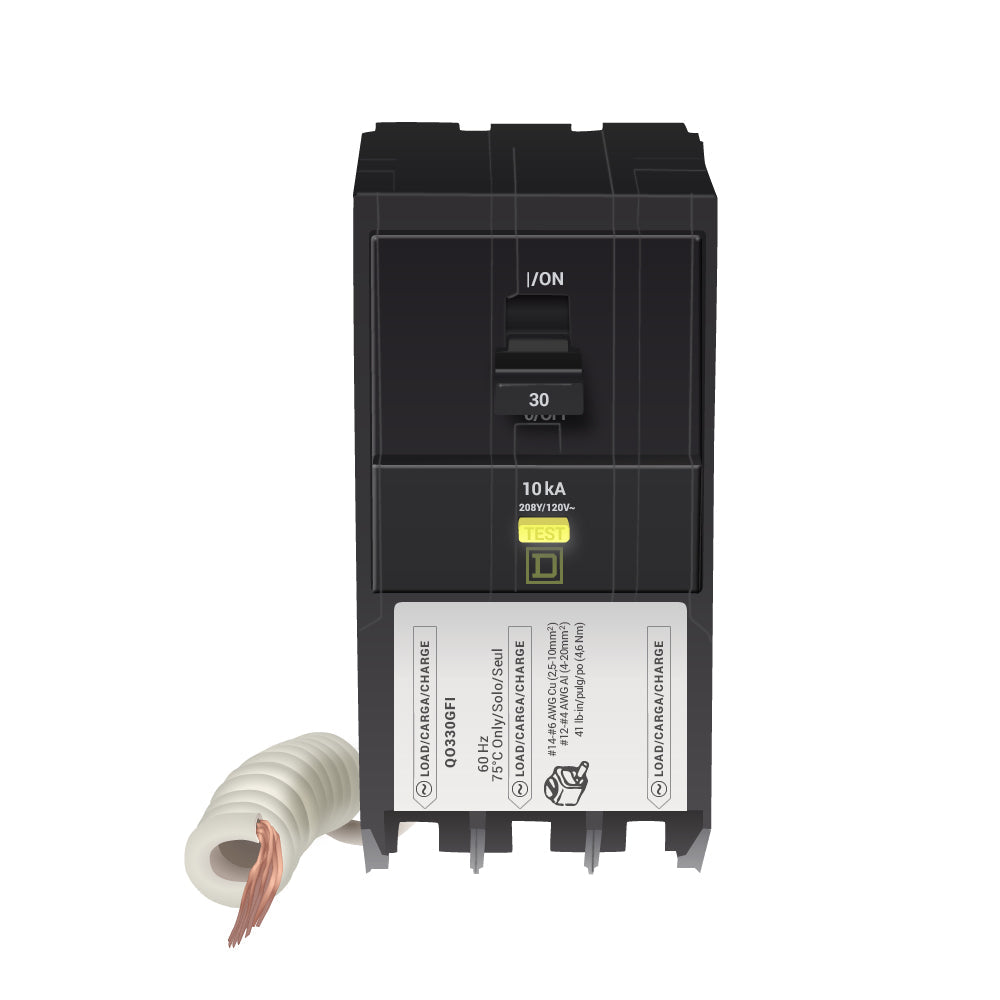

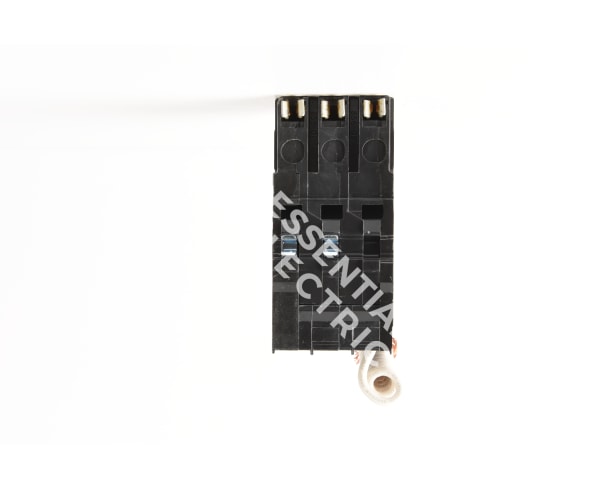

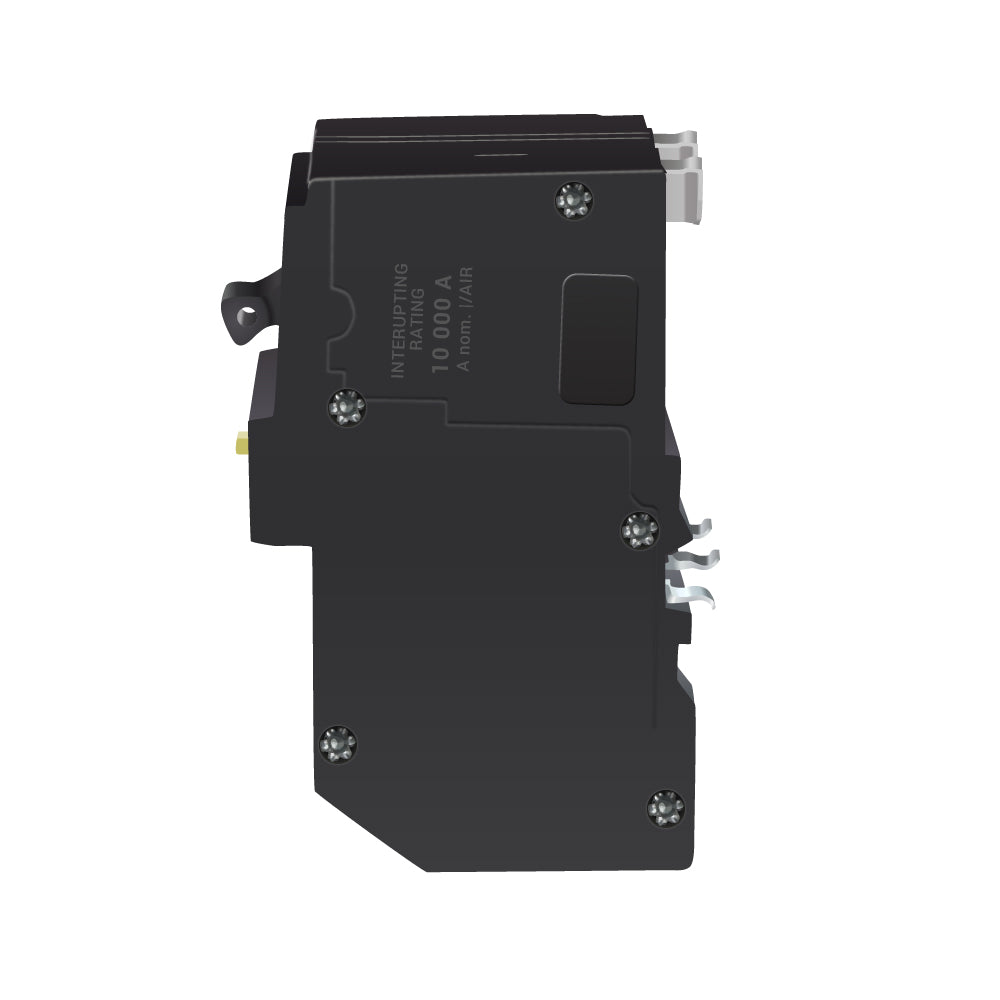

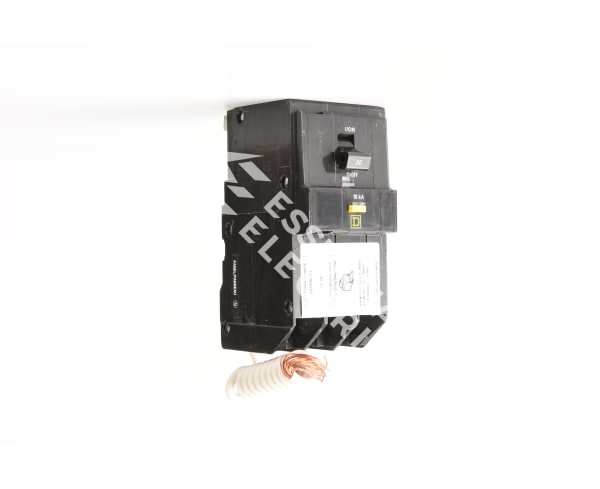

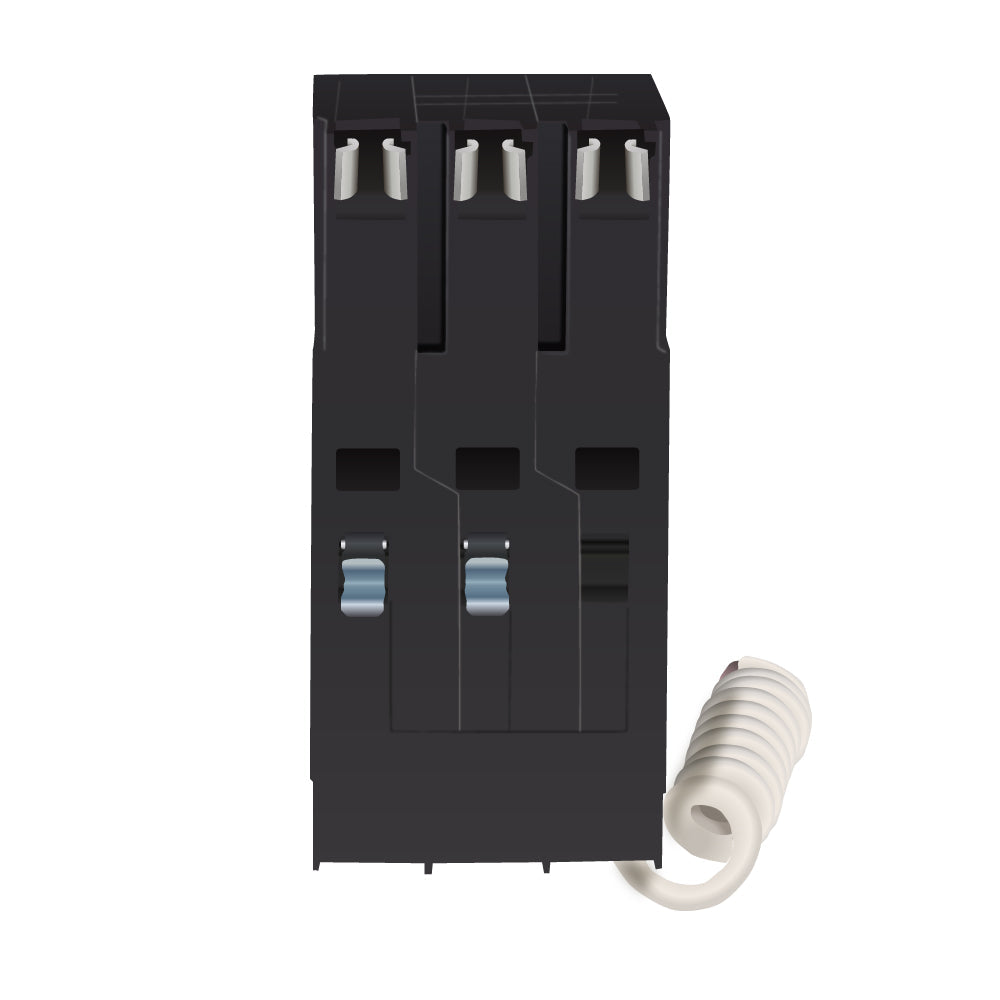

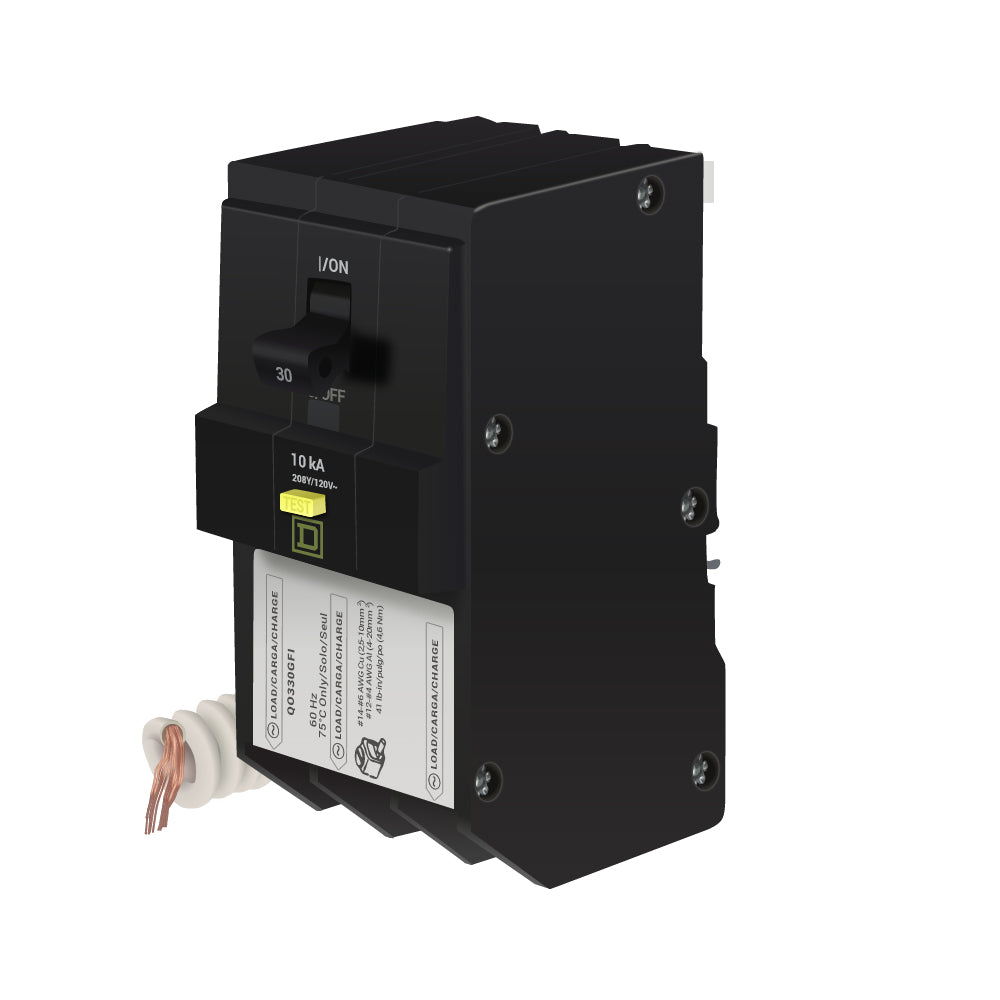

QO330GFI is a 30 Amp, 3 Pole plug-in circuit breaker from Square D designed for ground fault protection in QO load centers and NQ panelboards.This Square D QO330GFI circuit breaker features a thermal magnetic trip unit with long time and instantaneous trip functions. It is rated for 208Y/120 VAC voltage and has a 10 kA interrupting rating. The breaker uses a pressure plate connection type and supports wire sizes from 14 to 8 AWG copper or aluminum. It is UL and CSA certified and includes a pigtail for ground fault sensing. The compact design allows for easy installation in QO series load centers.

Key Specifications
• Amperage: 30 Amps
• Voltage: 208Y/120 VAC
• Poles: 3
• Mounting Type: Plug-In
• Interrupting Rating: 10 kA
• Series/Frame: QO
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous
• Connection Type: Pressure Plate
• Ground Fault Protection: Class A 6 mA
• Certifications: UL Listed, CSA Certified
• Dimensions: 4.12" H x 2.25" W x 2.91" D
• Wire Gauge: AWG 14-8 Copper/Aluminum

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO330GFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO
• Voltage : 120/240
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901218975
• GTIN : 00785901218975
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 1.36
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14, AWG 8 Copper, AWG 12, AWG 8 Aluminium
