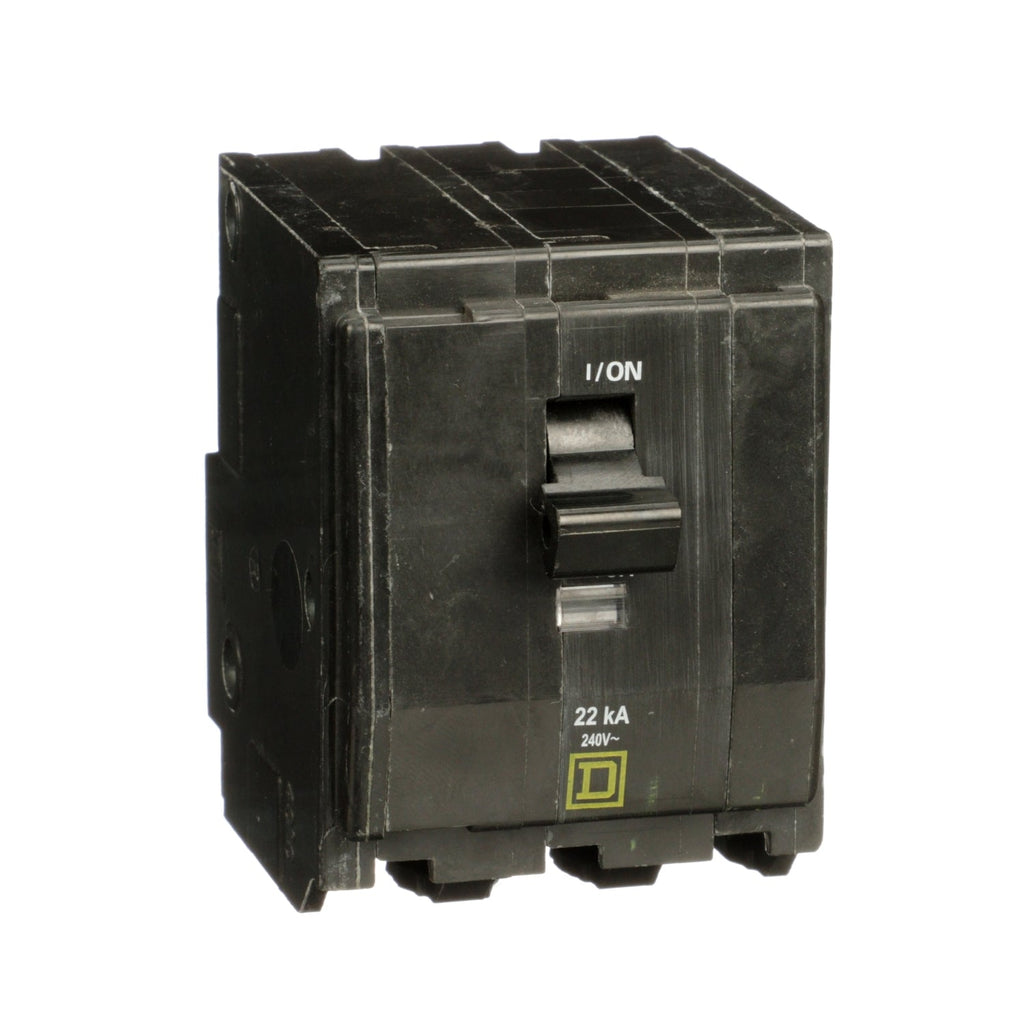

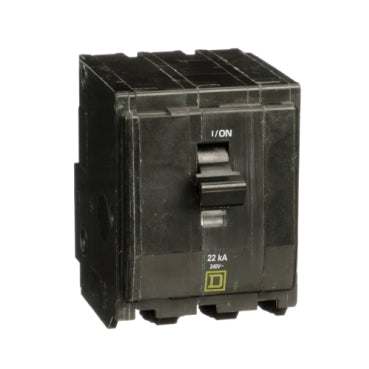

QO325VH - Square D 25A 3 Pole 120/240V AC Miniature Circuit Breaker QO Series 22kA Plug-In

QO325VH

QO325VH is a 25 Amp, 3 Pole Miniature Circuit Breaker from Square D's QO Series designed for 120/240V AC applications with a 22kA interrupt rating and plug-in mounting.QO325VH features a thermal magnetic trip unit, pressure plate terminal connections, and is UL Listed and CSA certified. It is HACR rated for use with QO Load Centers and NQ Panelboards, providing reliable circuit protection with a compact 100A/QO frame size. This breaker supports wire sizes from 14 to 8 AWG copper or aluminum and is mercury free for environmentally safe operation.

Key Specifications
• Amperage: 25A
• Voltage Rating: 120/240V AC
• Number of Poles: 3
• Interrupt Rating: 22 kA at 120/240V AC
• Mounting Type: Plug-In
• Trip Unit: Thermal Magnetic
• Terminal Connection: Pressure Plate
• Frame Size: 100A/QO
• Certifications: UL Listed, CSA
• Application: HACR Rated
• Wire Size Range: 14 to 8 AWG Copper or Aluminum
• Ambient Temperature Rating: 104°F (40°C)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO325VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 240
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 785901371878
• GTIN : 00785901371878
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.86
• Certification : UL Listed
