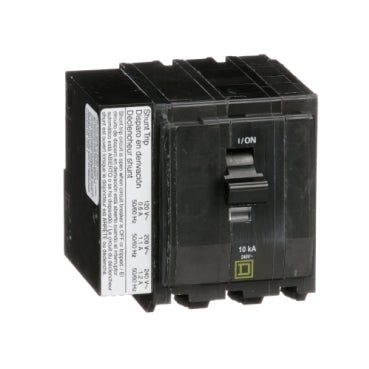

QO3201021 - Square D 20 Amp 3 Pole 240V Plug-In Circuit Breaker with Shunt Trip, 10kA Interrupt Rating

QO3201021

QO3201021 is a 3 pole, 20 amp, 240 volt plug-in circuit breaker from Square D featuring a shunt trip for enhanced control.This QO Series breaker offers thermal magnetic common trip protection with a 10 kiloampere interrupt rating at 120/240 VAC and 5 kiloampere at 48 VDC. It is bolt-on mounted and compatible with NQ series panelboards. The breaker includes a Visi-Trip indicator and supports 14 to 8 AWG aluminum or copper wiring.

Key Specifications
• Manufacturer: Square D
• Part Number: QO3201021
• Amperage: 20 Amps
• Voltage Rating: 120/240 VAC, 48 VDC
• Poles: 3
• Interrupt Rating: 10 kA at 120/240 VAC, 5 kA at 48 VDC
• Mounting Type: Bolt On
• Series/Frame: QO Series
• Trip Unit: Thermal Magnetic, Common Trip
• Certifications: UL, CSA
• Wire Range: 14 to 8 AWG Aluminum/Copper
• Feature: Shunt Trip, Visi-Trip Indicator

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO3201021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 240
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Pressure plate
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 785901494096
• GTIN : 00785901494096
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 3.0 in (76 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 1.19
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper/Aluminum
