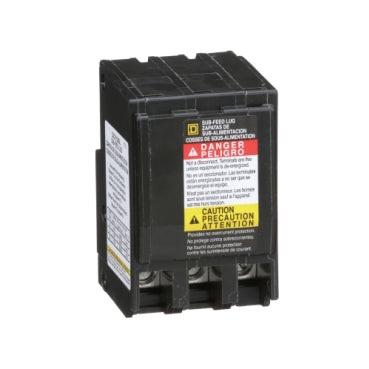

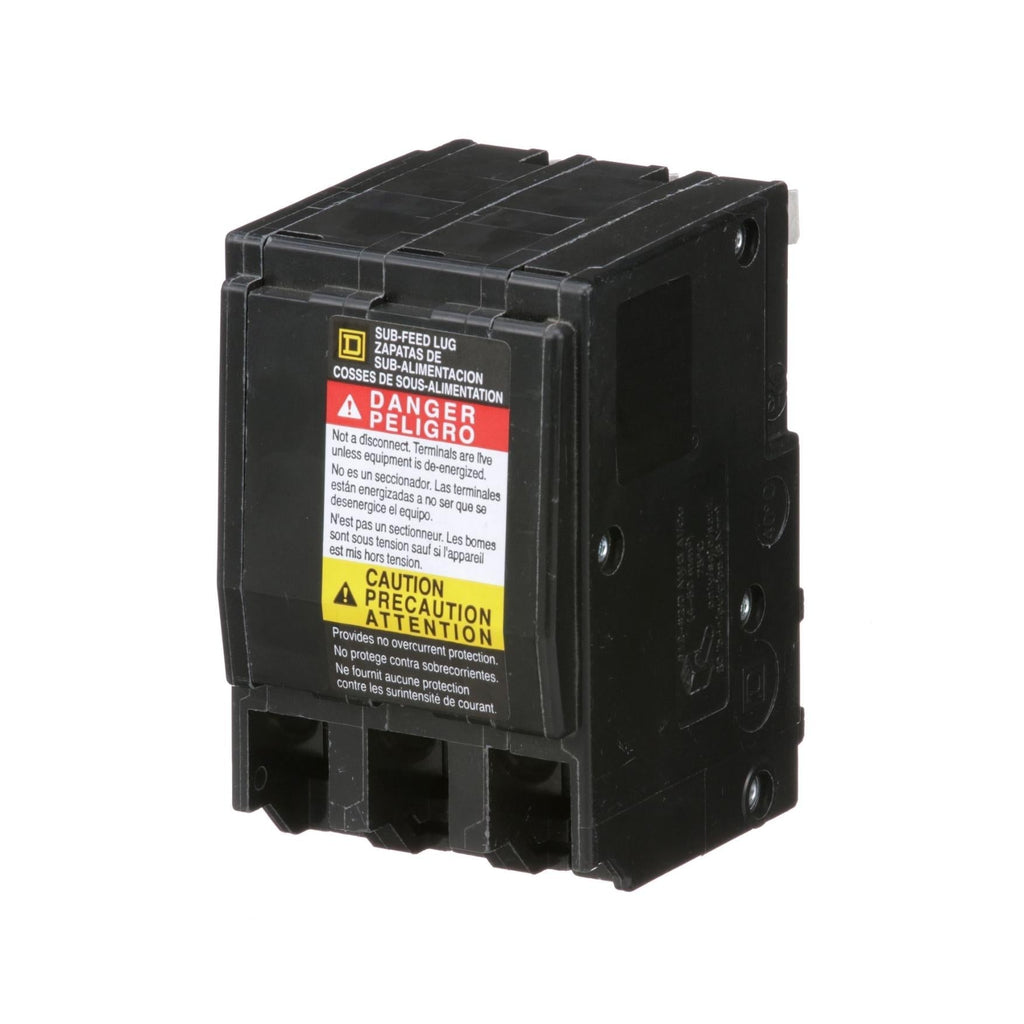

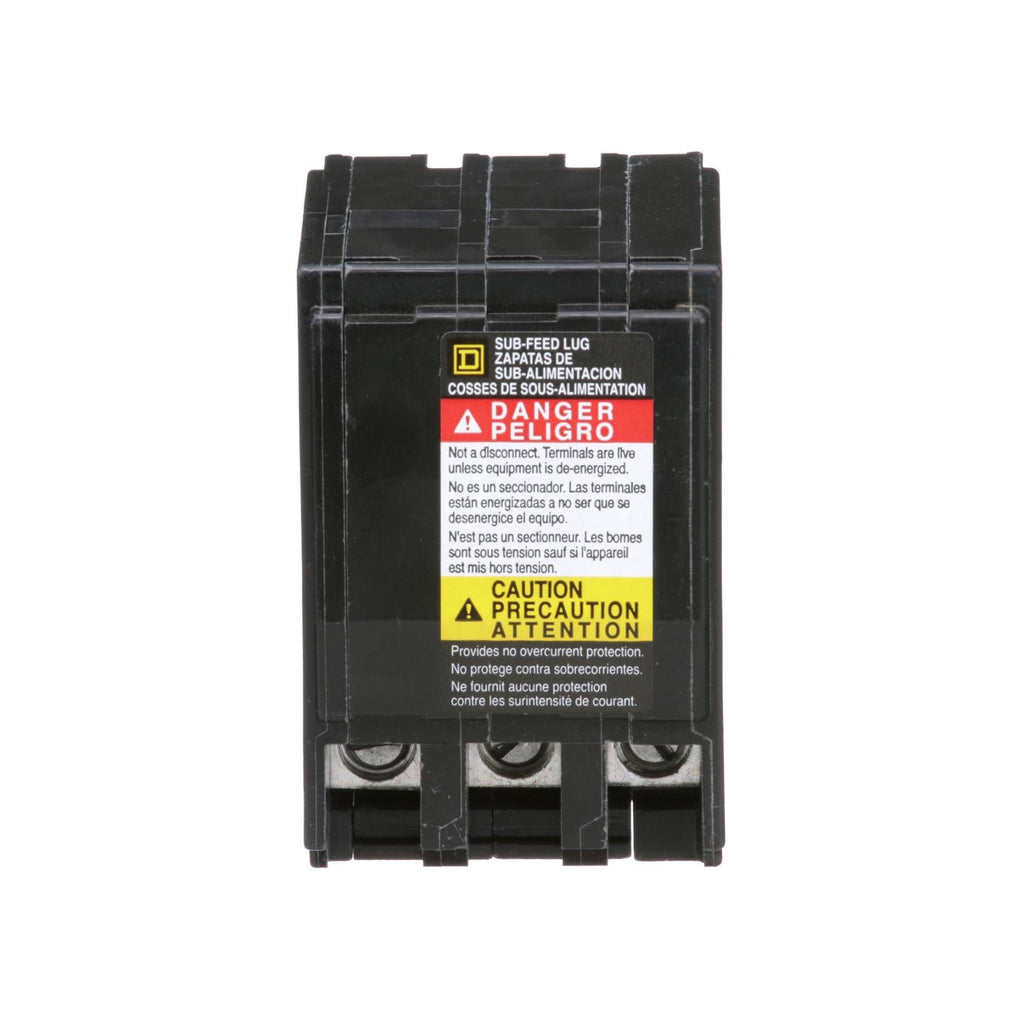

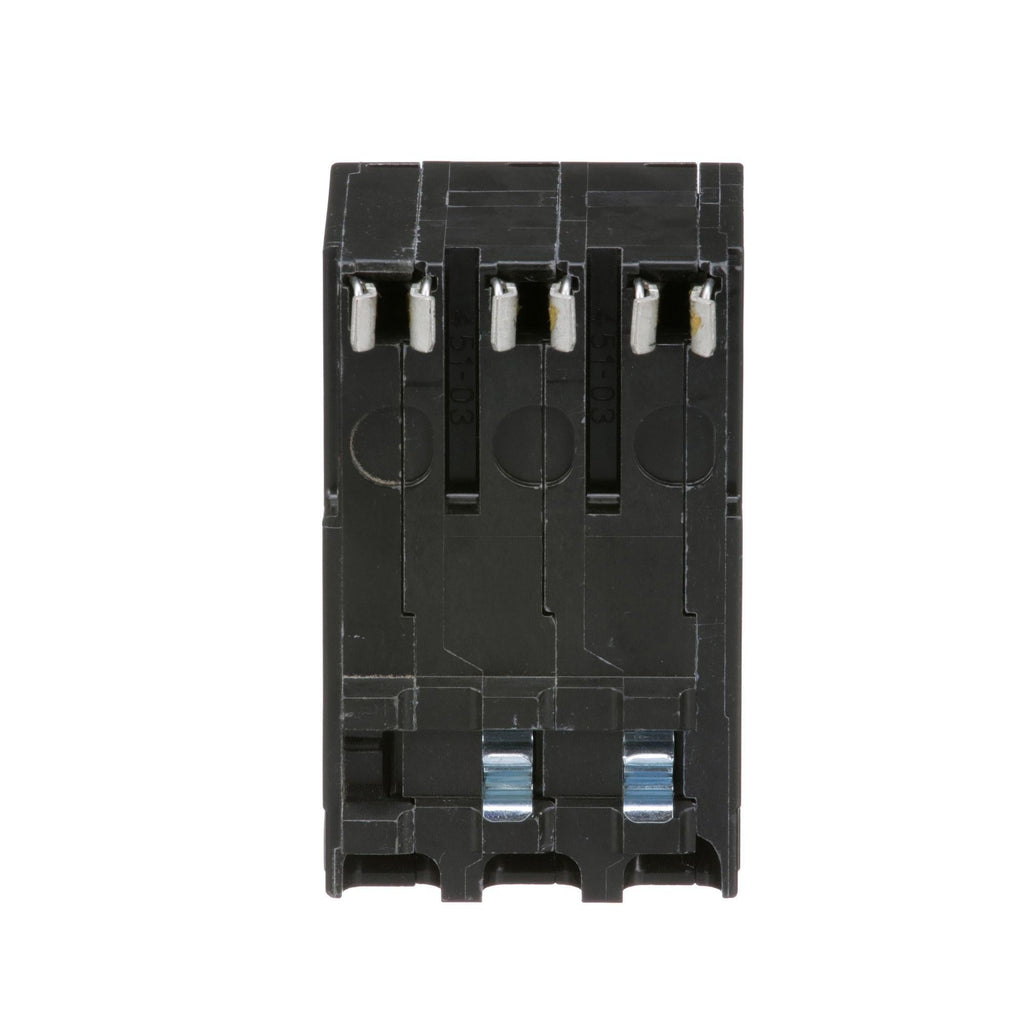

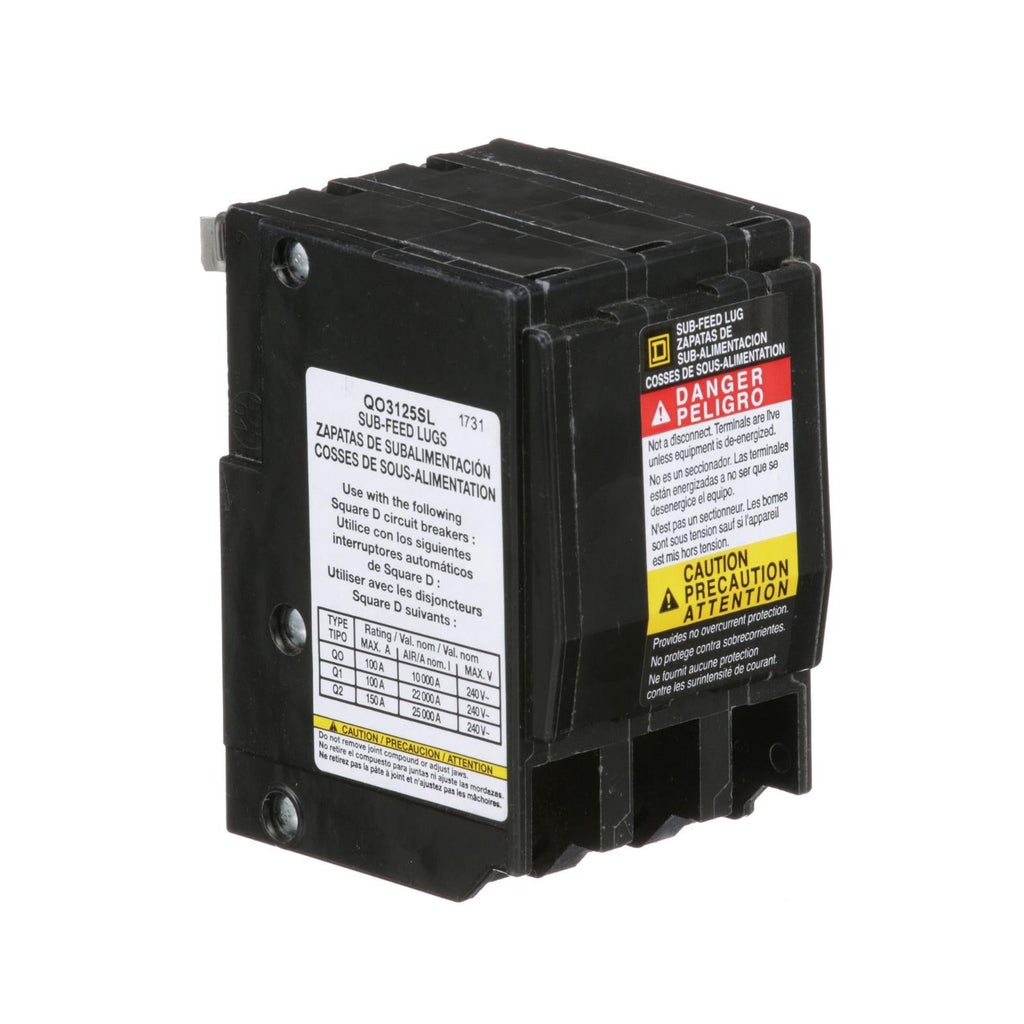

QO3125SL - Square D 125A 3 Pole 240VAC Circuit Breaker Sub Feed Lug Kit

QO3125SL

QO3125SL is a 125 Amp, 3 pole circuit breaker sub feed lug kit by Square D designed for reliable power distribution in three-phase systems.This Square D QO3125SL sub feed lug kit supports up to 125 Amps with a 240 VAC voltage rating and a 10kA interrupting rating. It is plug-in mountable and compatible with wire sizes from AWG 12 to AWG 2/0 copper or aluminum. The product is engineered for use with QO Load Centers and NQOD merchandised panelboards, featuring a plated copper bus for superior conductivity and durability. It is CSA certified, cULus recognized, and compliant with Prop 65, REACH, and RoHS standards.

Key Specifications
• Amperage: 125A
• Voltage: 240 VAC
• Poles: 3
• Mounting Type: Plug-in
• Interrupt Rating: 10kA @ 240 VAC
• Wire Size Range: AWG 12 to AWG 2/0 (Copper/Aluminum)
• Series/Frame: QO
• Compatible with QO Load Centers and NQOD Panelboards
• Certifications: CSA, cULus, Prop 65, REACH, RoHS
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QO3125SL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 240 AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Protection : Thermal Magnetic



Product Data

• UPC : 785901031338
• GTIN : 00785901031338
• Country of Origin : Mexico
• Dimensions : 3.500 in (88.900 mm) x 2.241 in (56.921 mm) x 2.310 in (58.674 mm) (Height x Width x Depth)
• Weight : 0.88
• Certification : CSA;cURus
• Wire Size : AWG 12 to AWG 2/0, Cu/Al
