QO290VH - Square D 90 Amp 120/240V 2-Pole Thermal Magnetic Circuit Breaker Plug-In

QO290VH

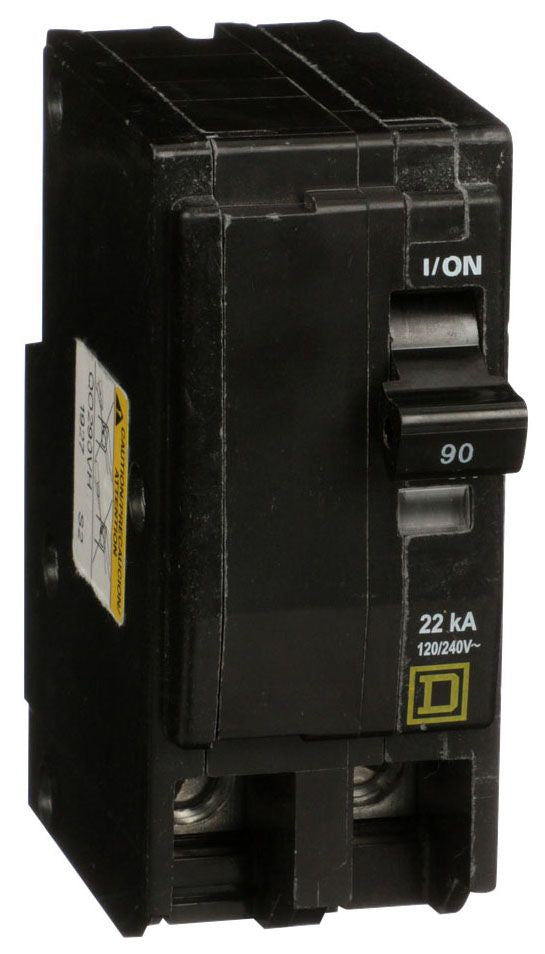

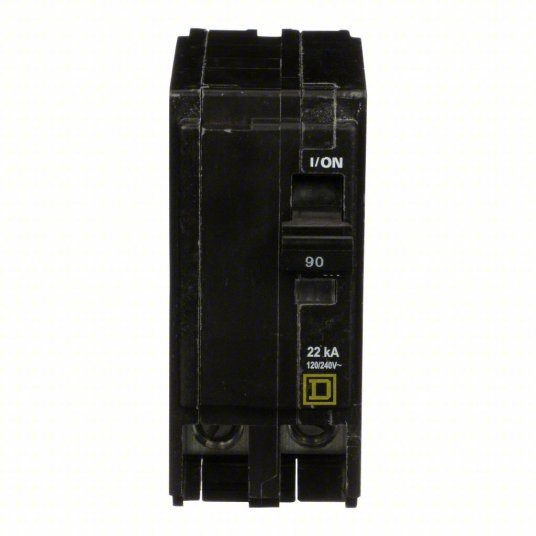

QO290VH is a Square D 2-pole thermal magnetic circuit breaker rated for 90 amps and 120/240 volts AC with plug-in mounting.This circuit breaker features a 22kA interrupting rating at 120/240VAC, long time and instantaneous trip functions, and a VISI-TRIP indicator for easy trip status identification. It is designed for use with QO load centers and NQ panelboards, supports AWG 4 to AWG 2 aluminum or copper wiring, and meets UL and CSA certifications.

• Manufacturer: Square D
• Series/Frame: QO
• Amperage: 90 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 22kA at 120/240VAC
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Terminal Connection: Box Lug
• Wire Gauge: AWG 4 to AWG 2 Aluminum/Copper
• Phase: Single Phase
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO290VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 120/240
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 22kA@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic

Product Data

• UPC : 785901060185
• GTIN : 00785901060185
• Country of Origin : Mexico
• Dimensions : 3.5 in (89 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.7
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 4 to AWG 2 Aluminum/Copper
