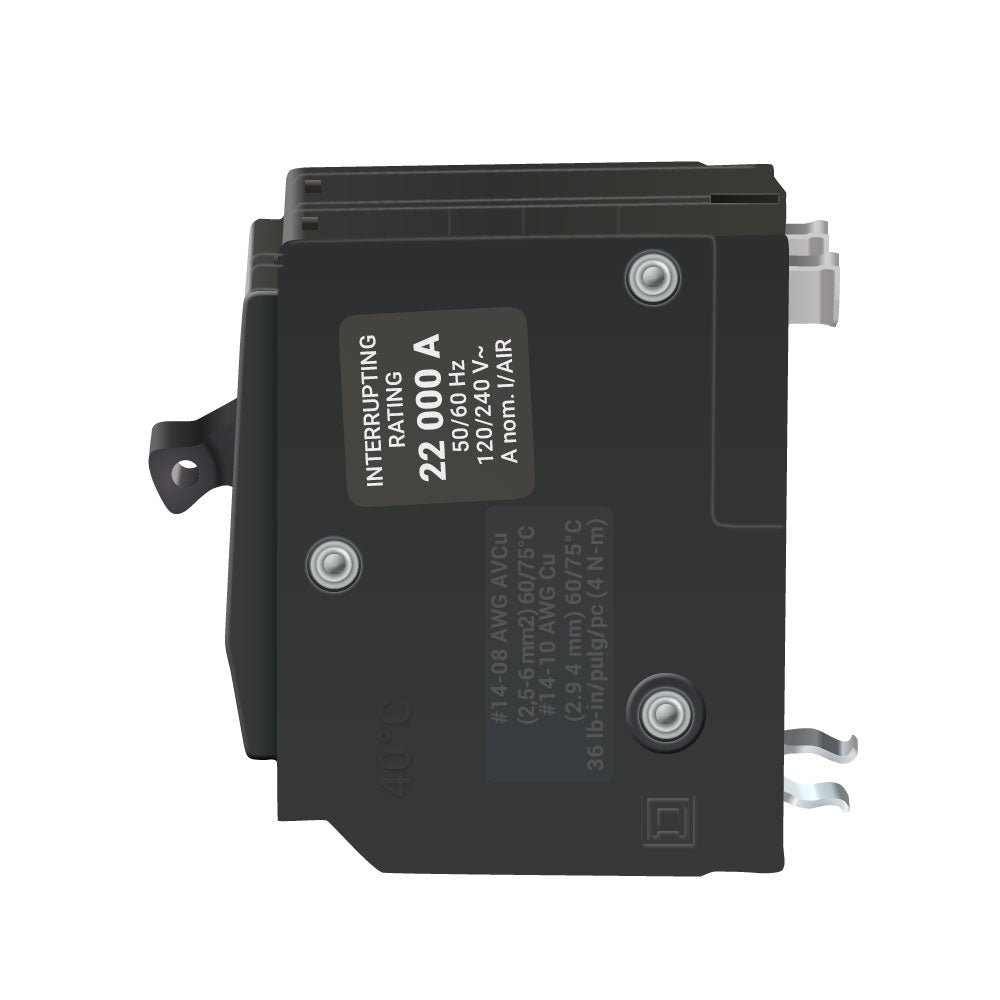

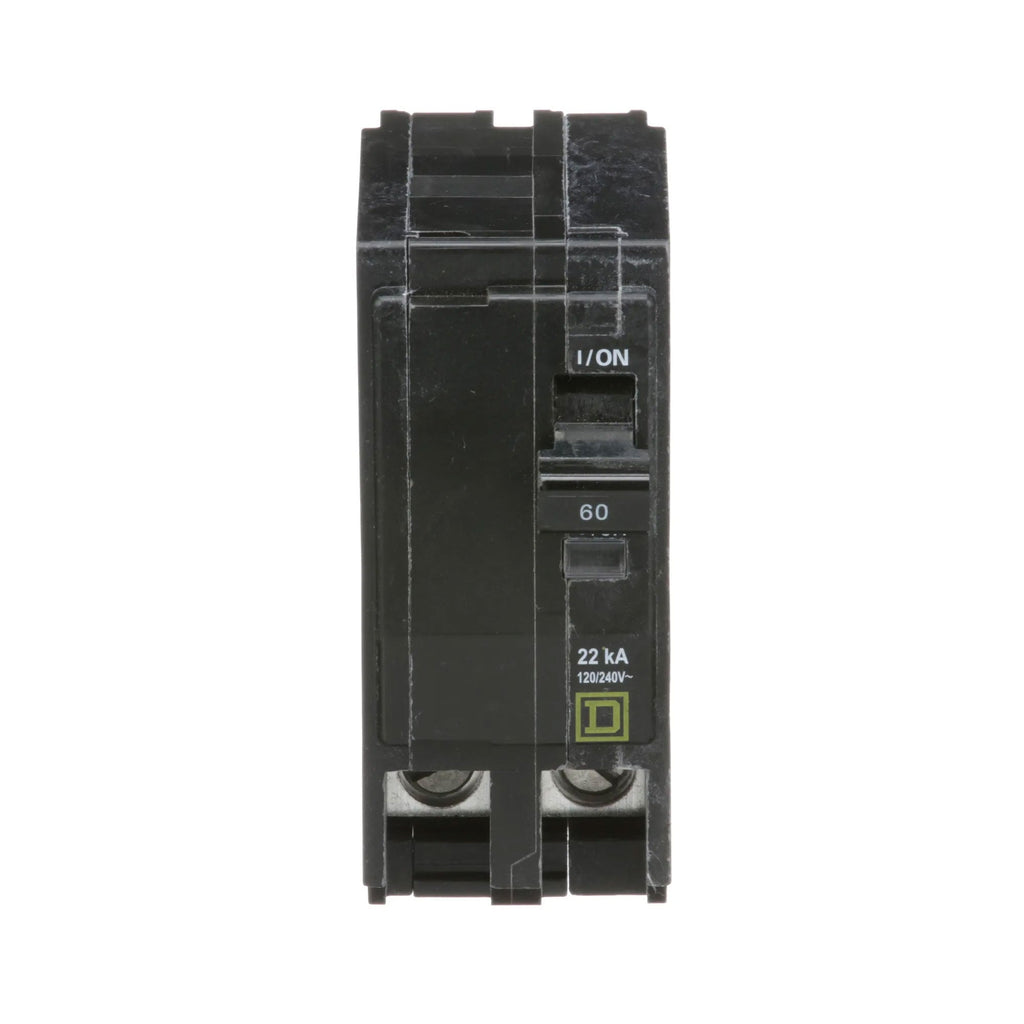

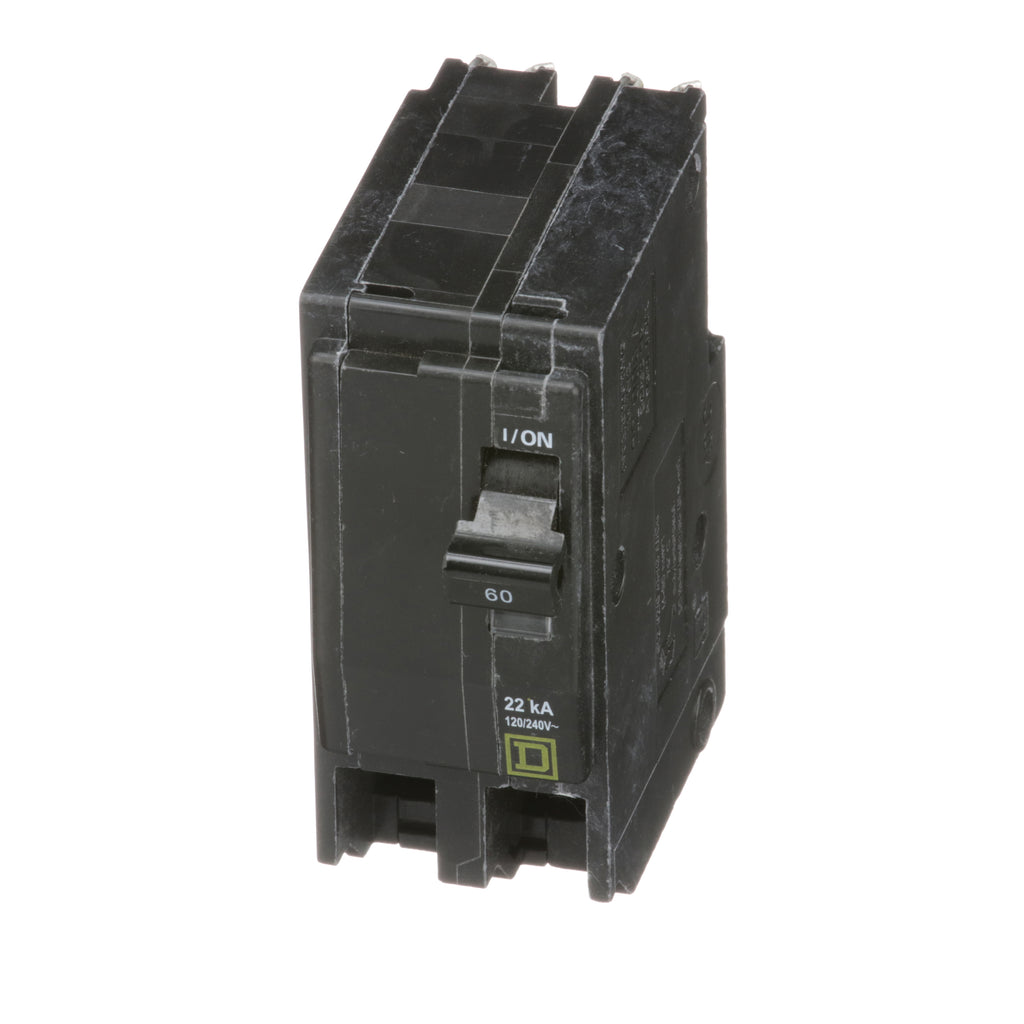

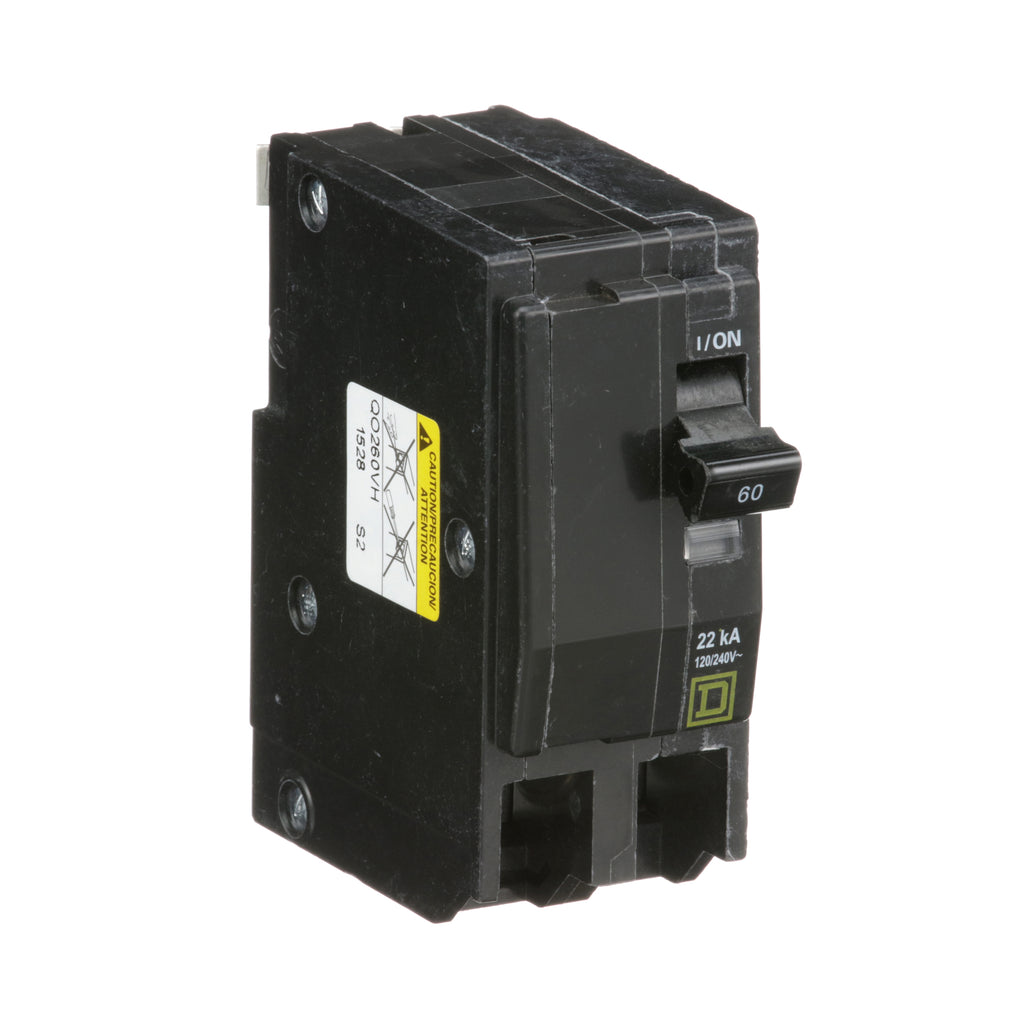

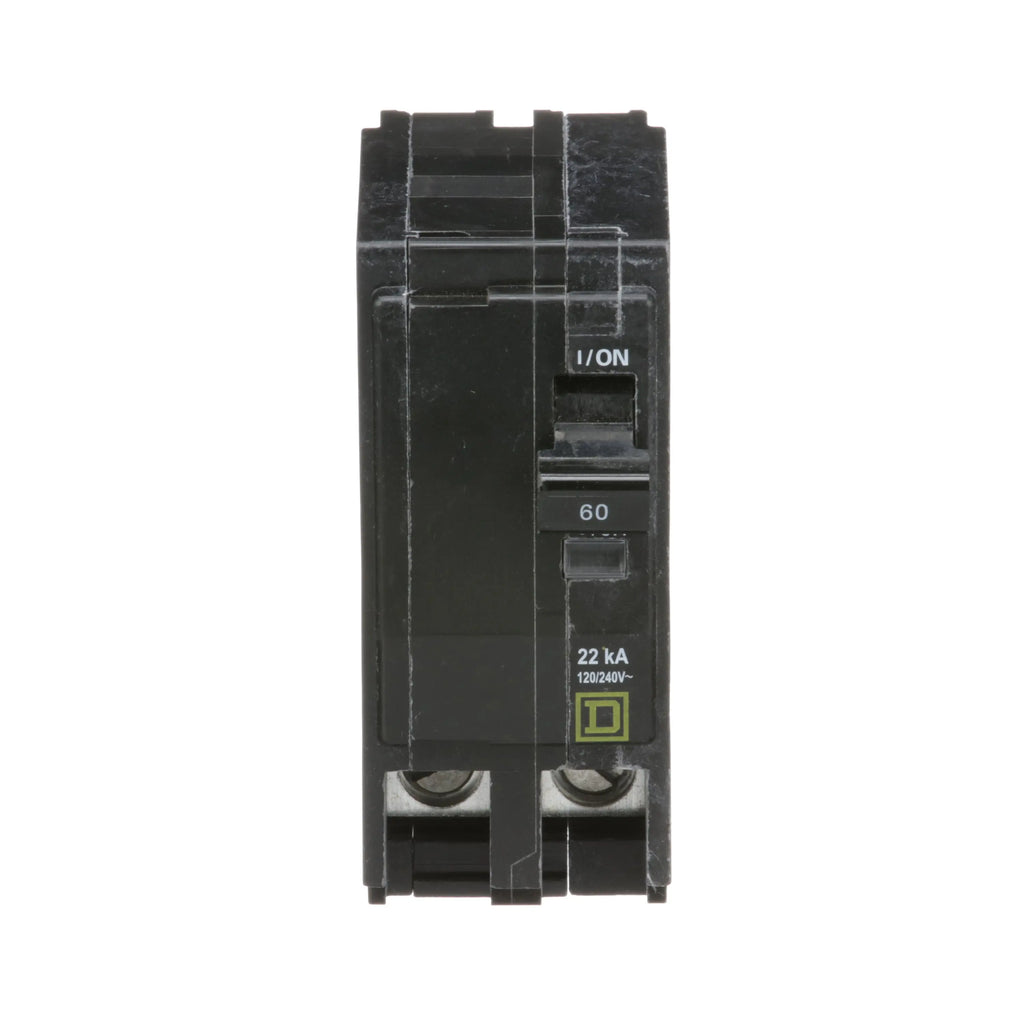

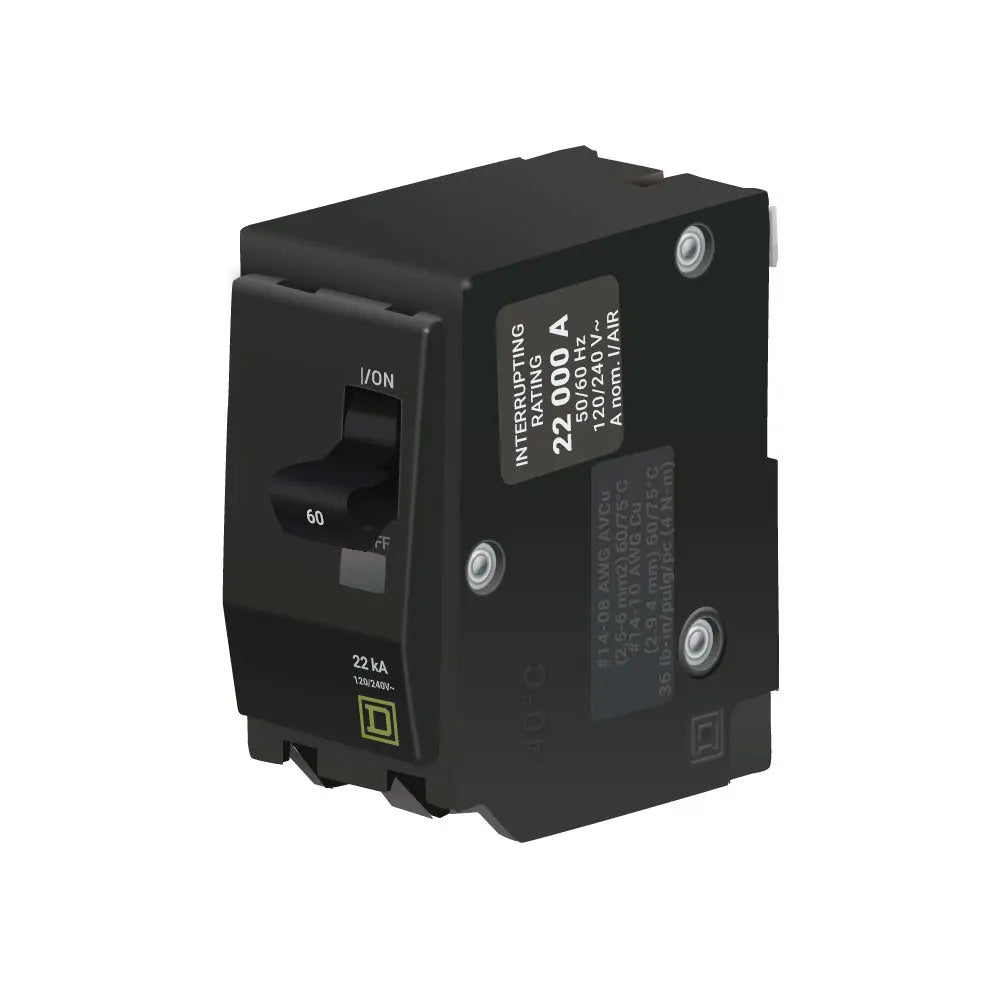

QO260VH - Square D 60A 240V 2-Pole QO Series Circuit Breaker Plug-In

QO260VH

QO260VH is a Square D 60 Amp, 2-Pole circuit breaker designed for 240 Volt applications with plug-in mounting.This QO series miniature circuit breaker features a 22 kA interrupt rating, common trip mechanism, and is compatible with Square D QO load centers. It provides reliable overcurrent protection for residential and commercial electrical systems.

• Amperage: 60A
• Voltage: 120/240V AC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 22 kA
• Series/Frame: QO
• Trip Unit: Common Trip
• Compatible with Square D QO Load Centers
• UL Listed and CSA Certified
• Operating Temperature: Up to 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO260VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 120/240
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 22kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 100A/QO
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic

Product Data

• UPC : 785901054979
• GTIN : 00785901054979
• Country of Origin : Mexico
• Dimensions : 3.1 in (79 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.7
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
