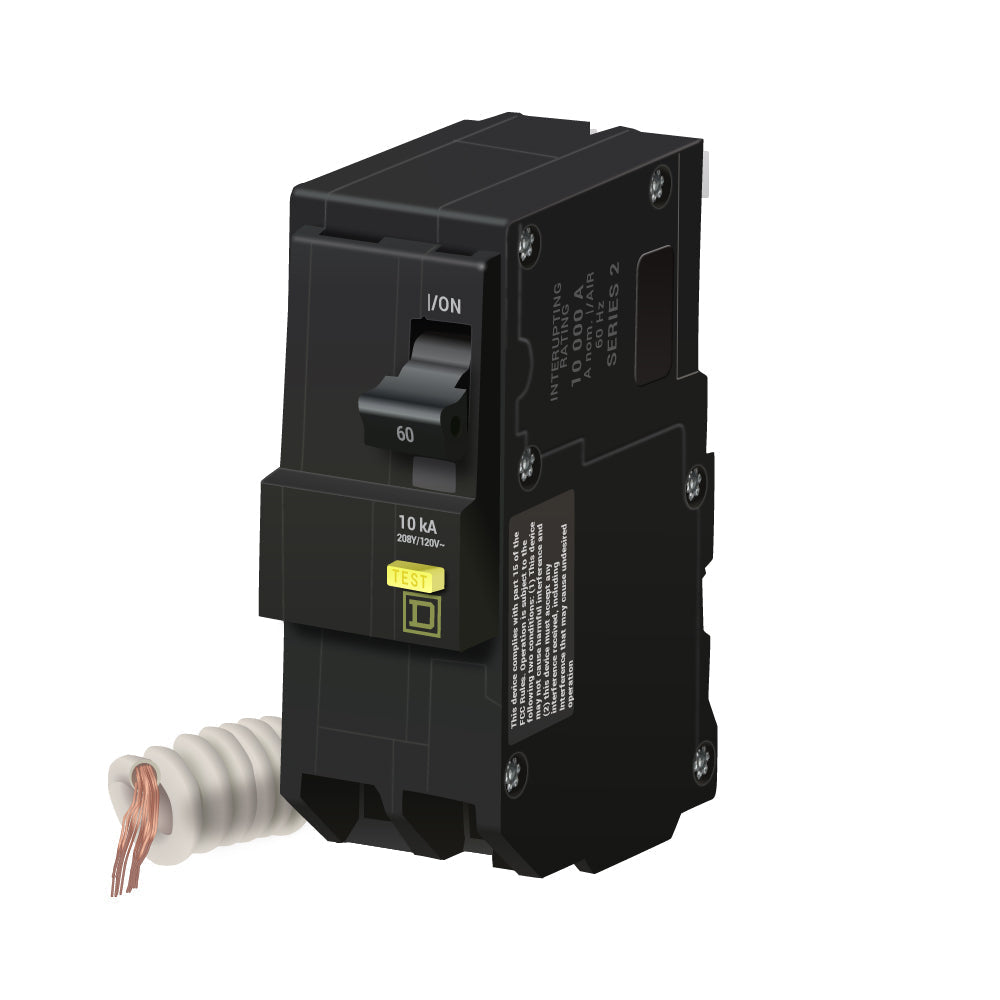

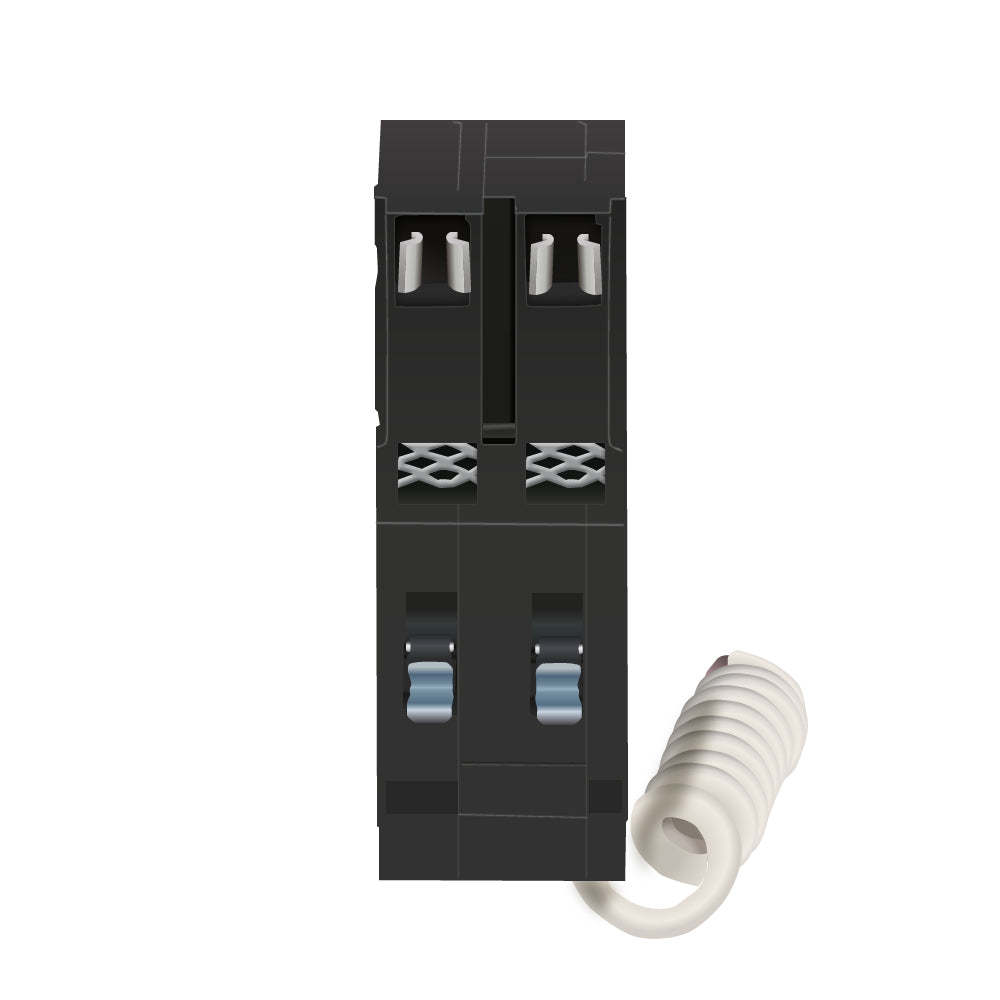

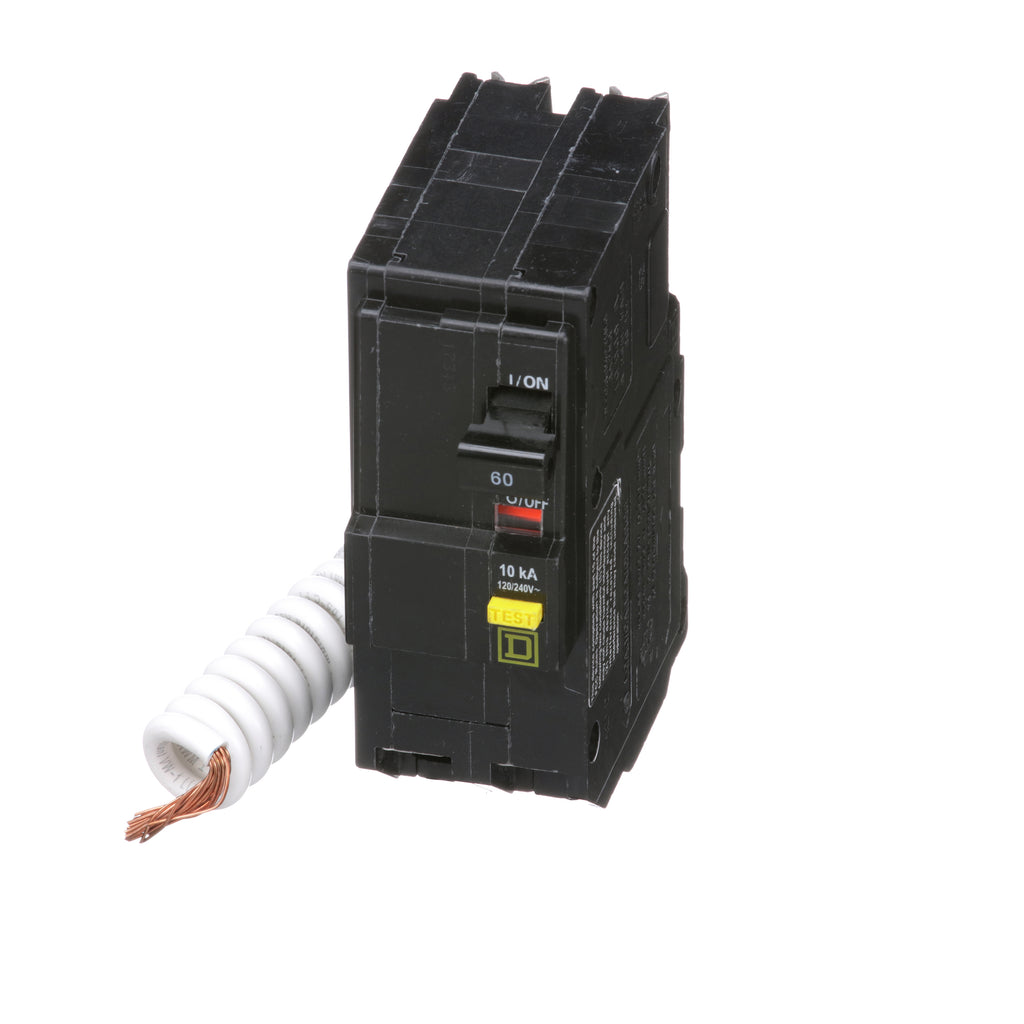

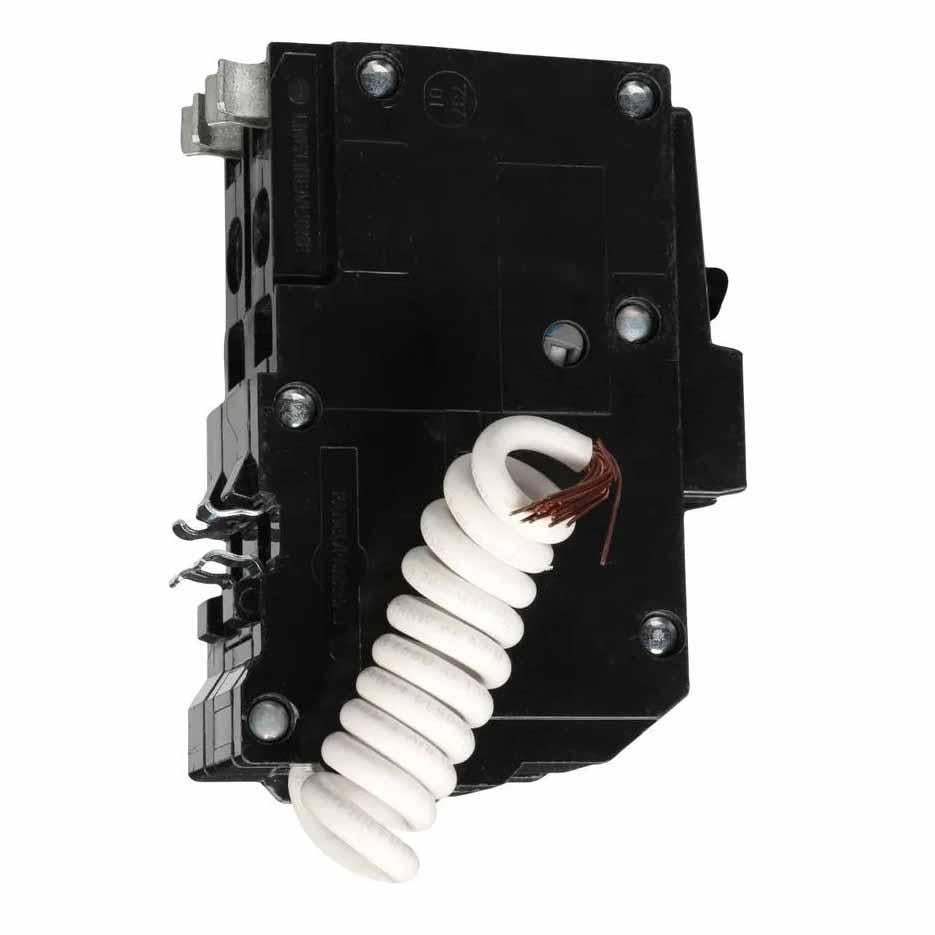

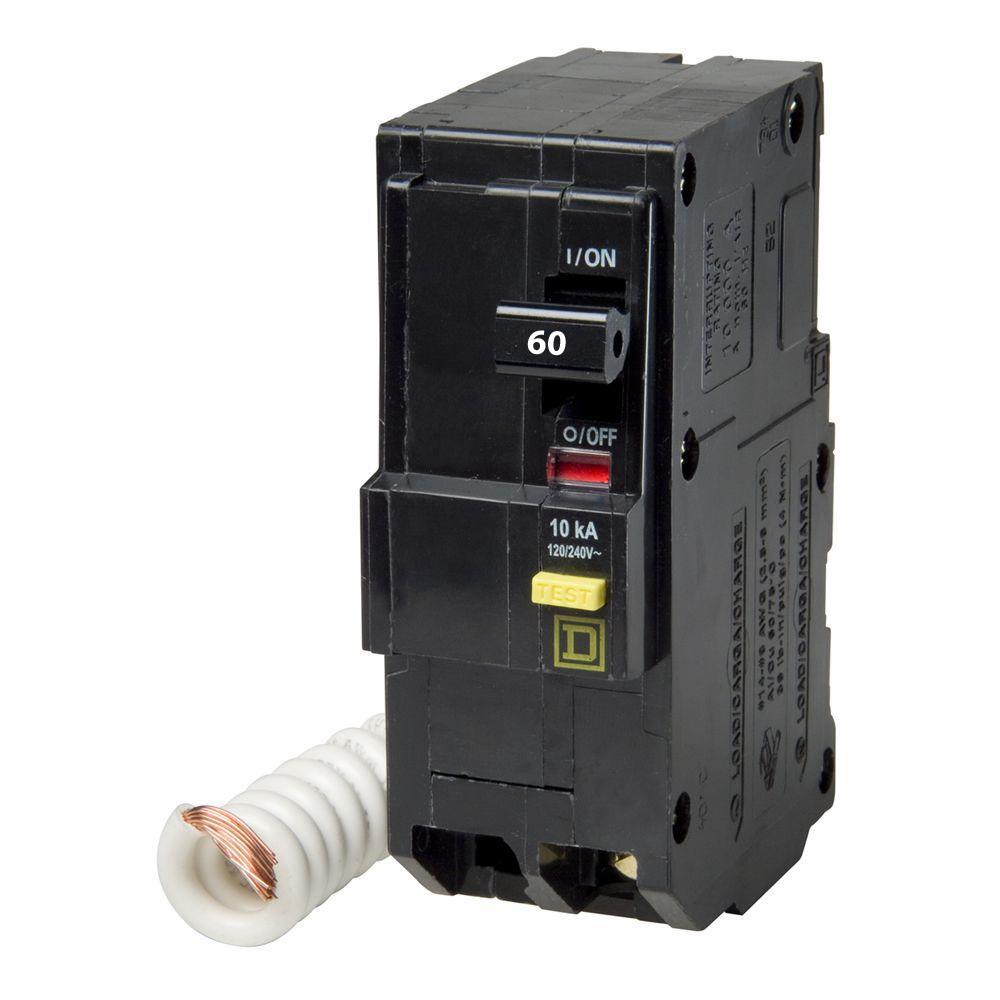

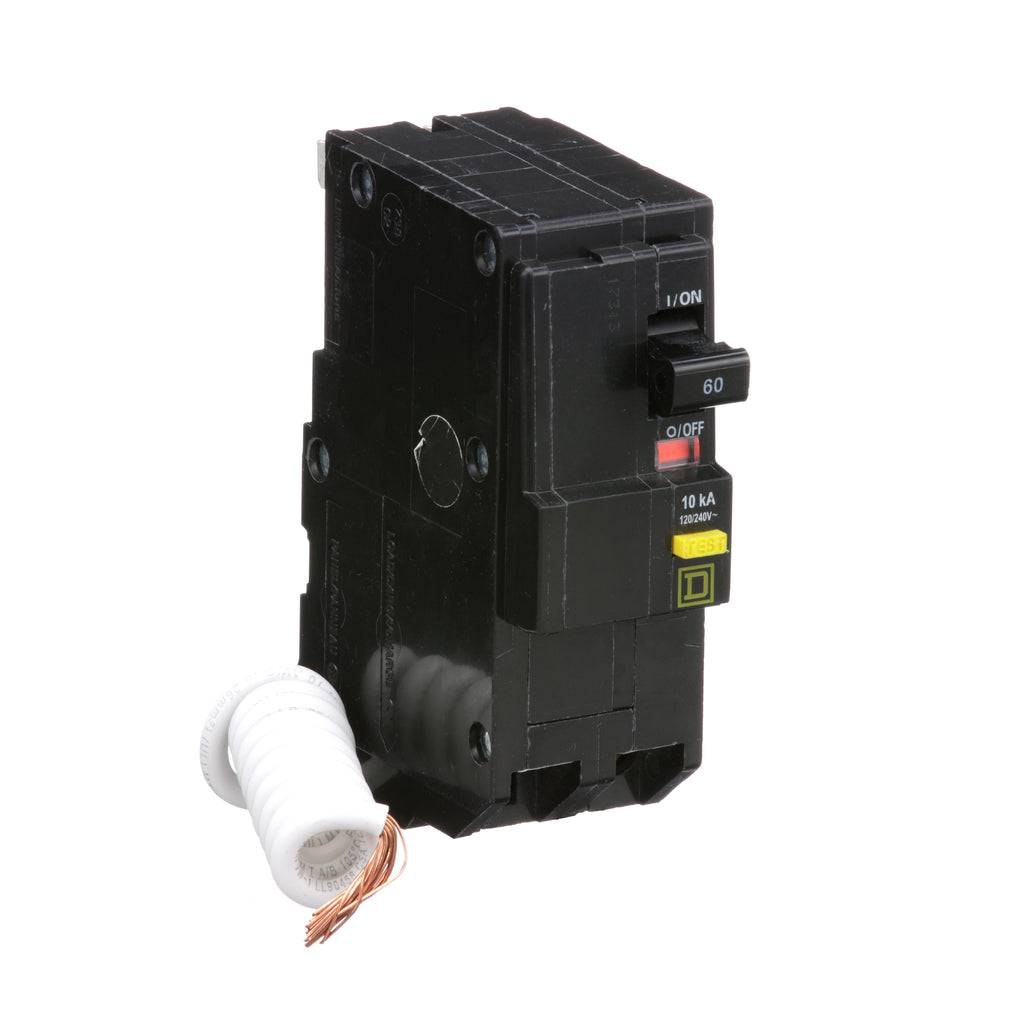

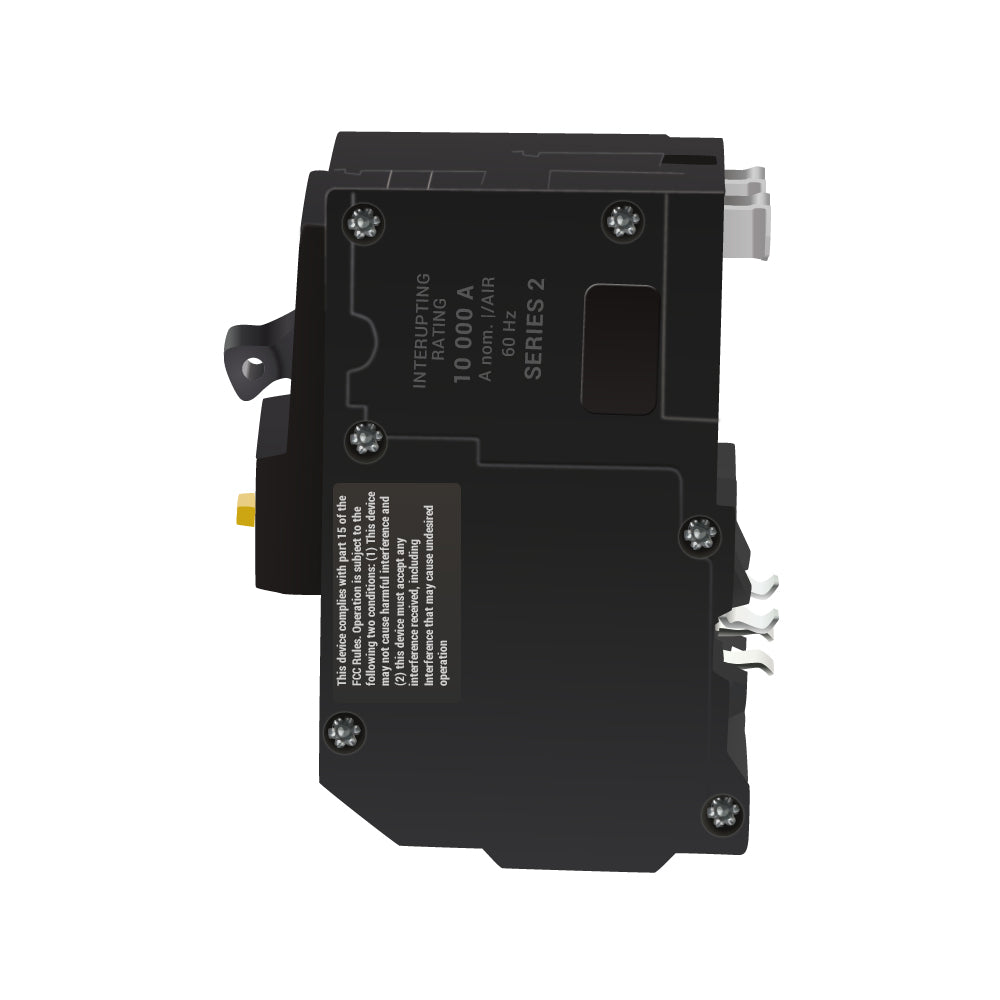

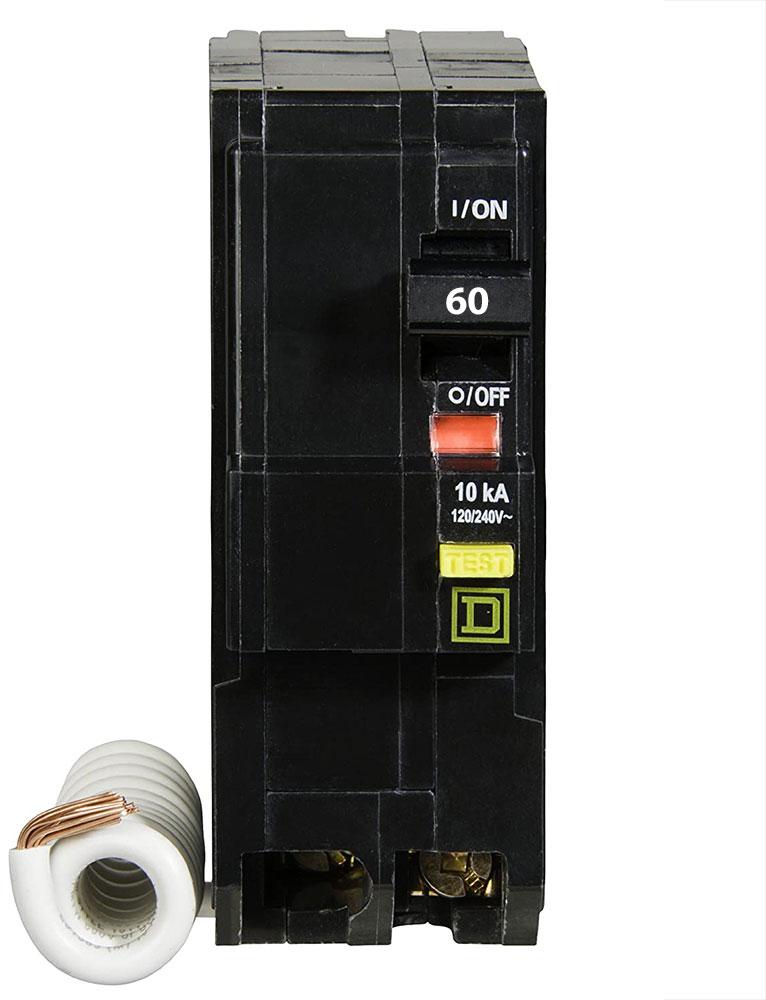

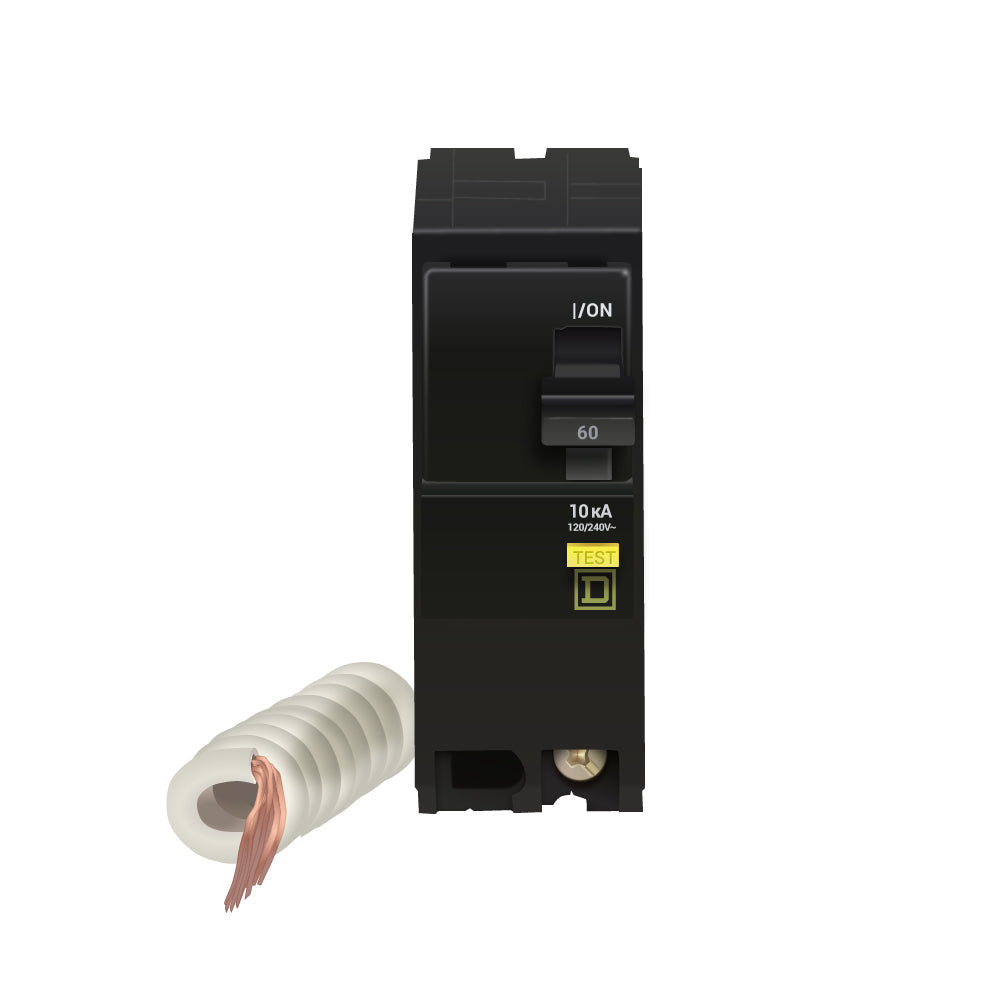

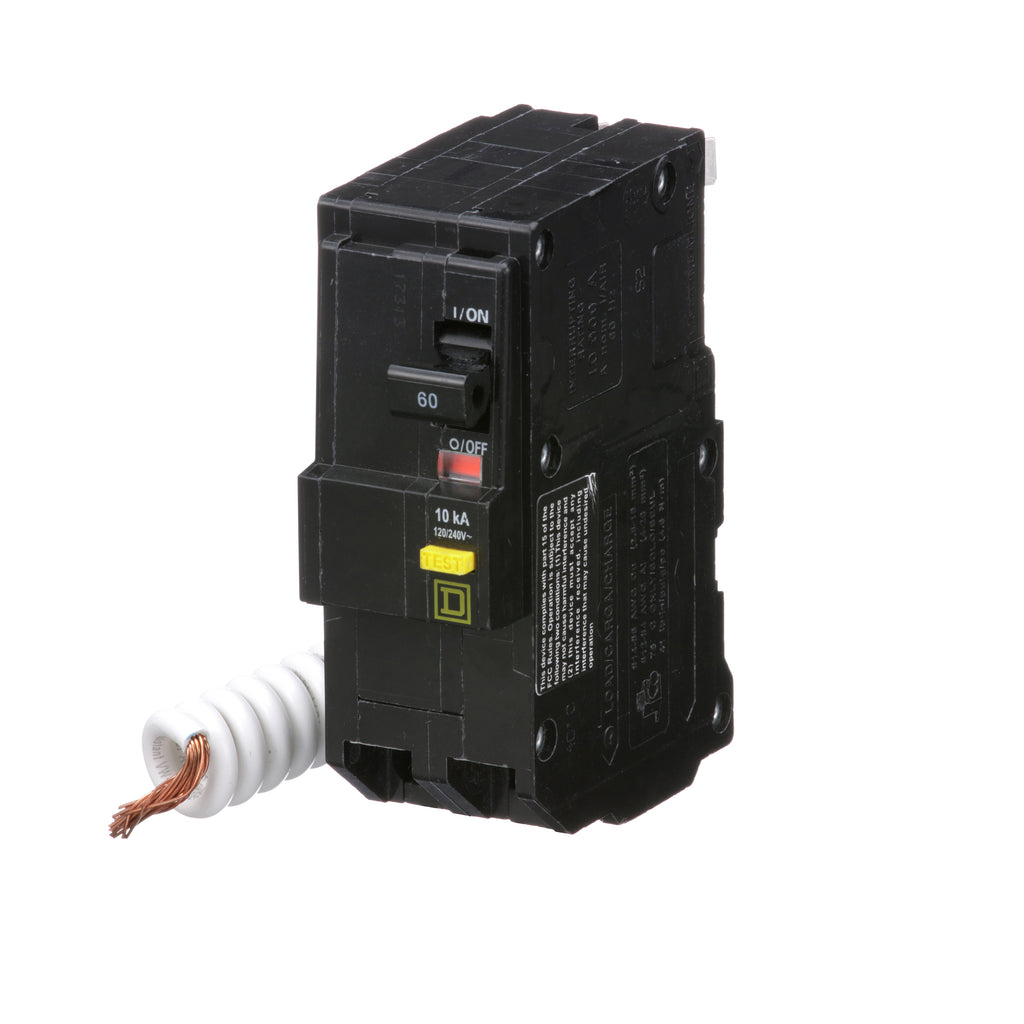

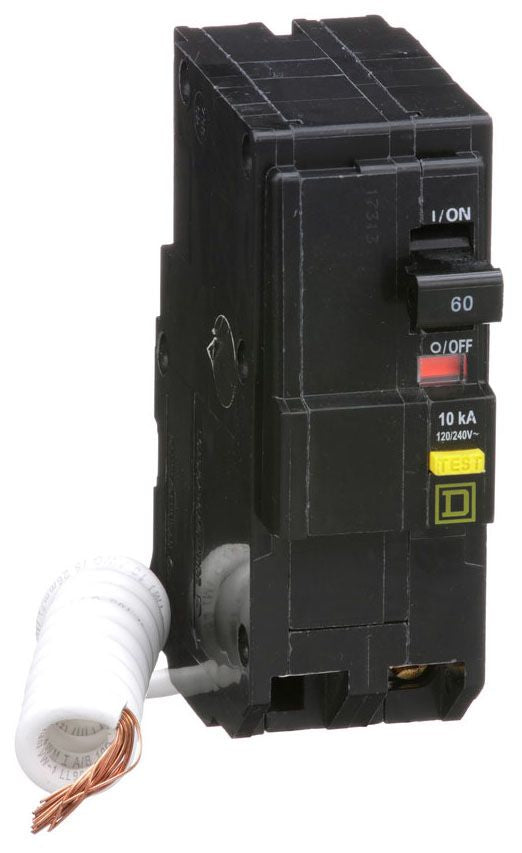

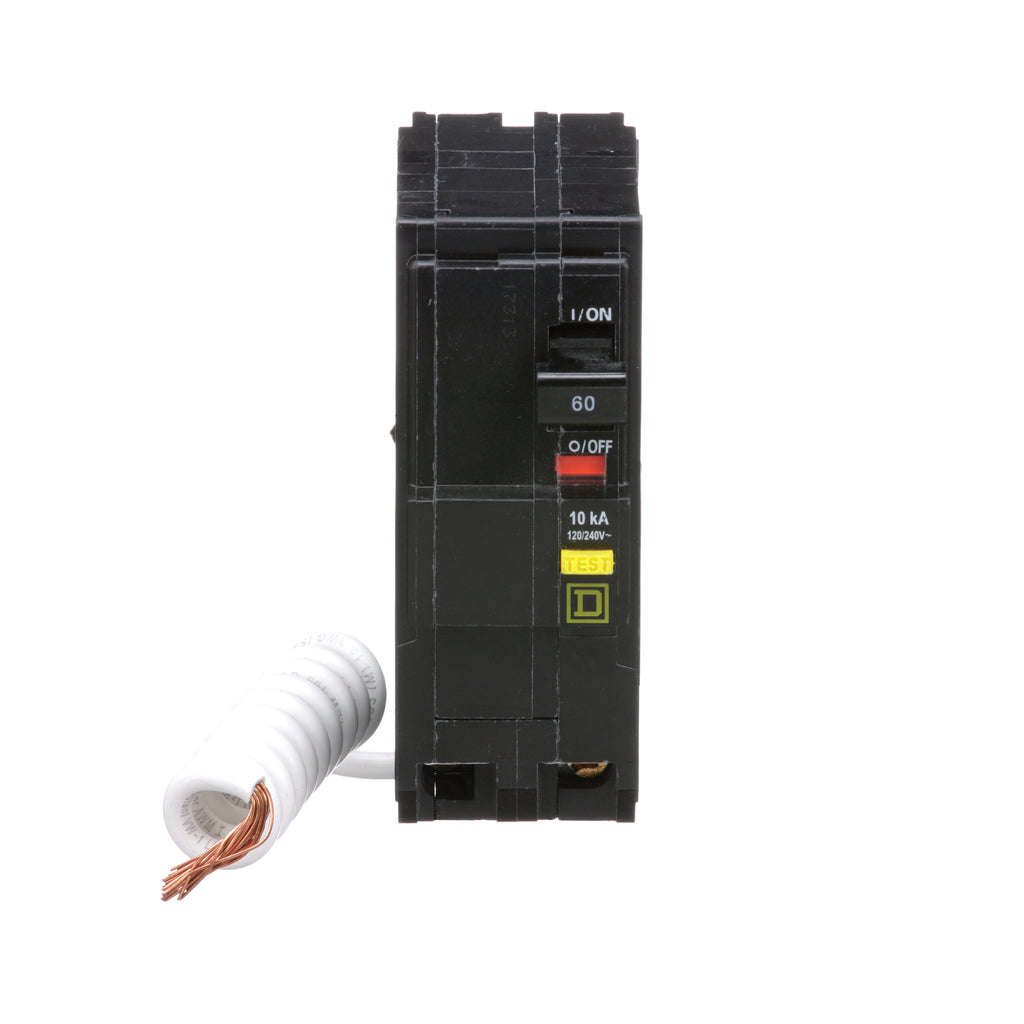

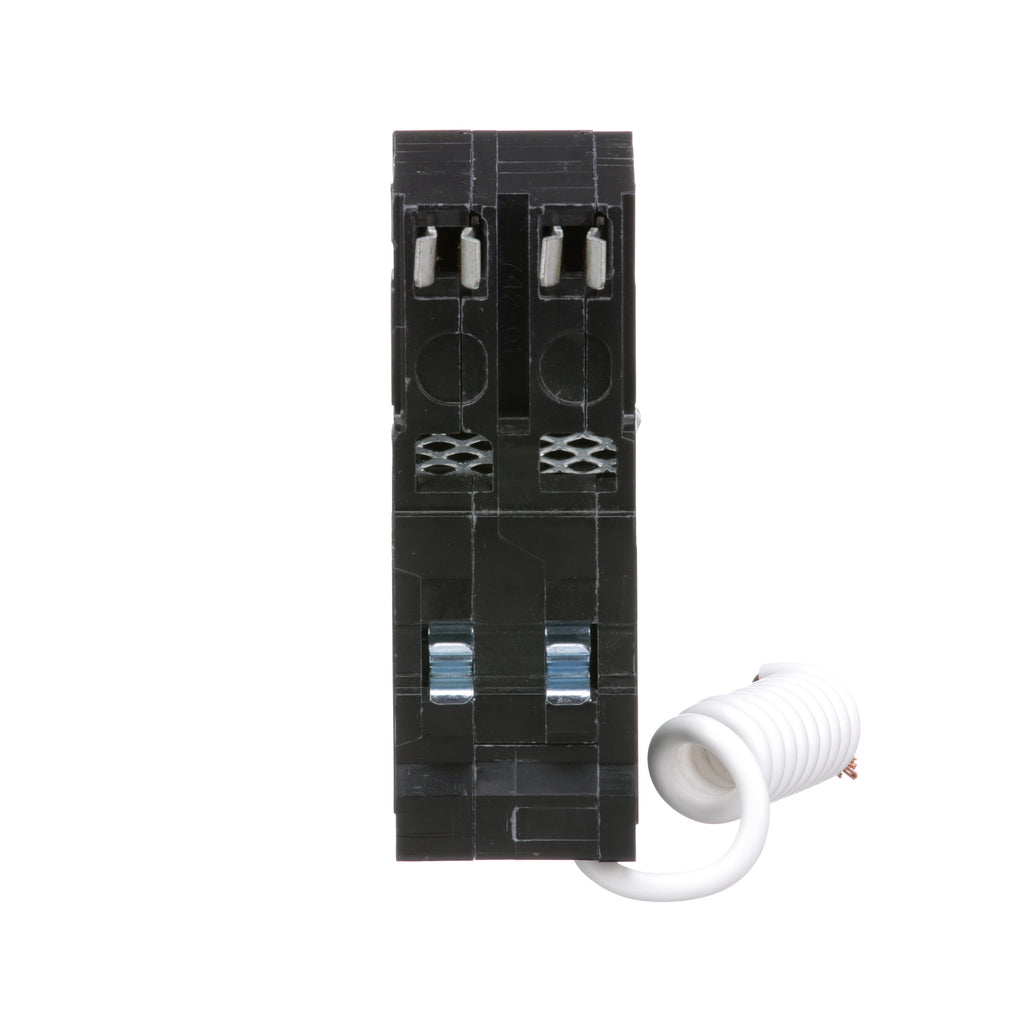

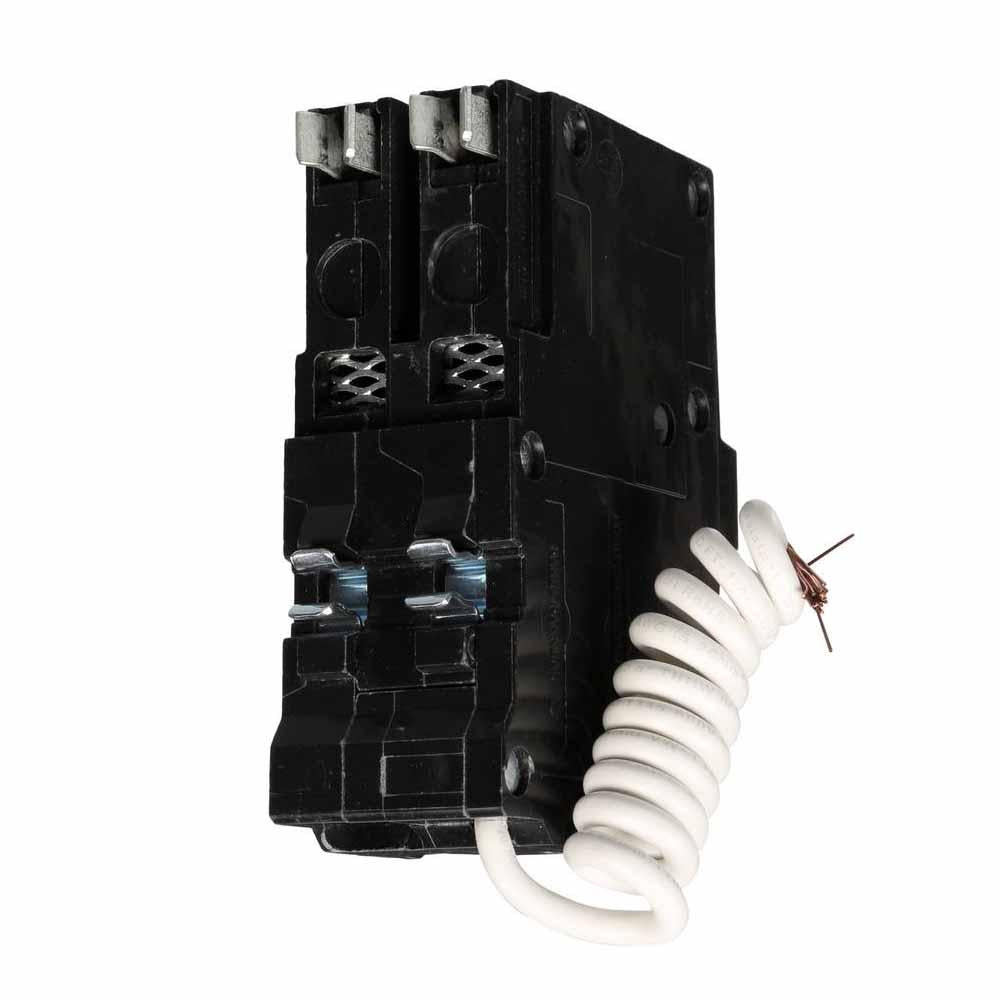

QO260GFI - Square D 60 Amp 2 Pole 120/240V Ground Fault Circuit Breaker Plug-In QO Frame

QO260GFI

QO260GFI is a 2 pole, 60 amp ground fault circuit breaker from Square D designed for 120/240V AC applications with plug-in mounting.This Square D QO260GFI circuit breaker features a thermal magnetic trip unit with long-time and instantaneous trip functions, providing reliable ground fault protection. It has a 10kA interrupting rating at 120/240VAC, fits QO series load centers, and uses box lug terminal connections compatible with copper and aluminum wire. UL and CSA certified, it is suitable for residential and light commercial use.

• Amperage: 60 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10kA at 120/240VAC
• Series/Frame: QO
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Terminal Connection: Box Lugs
• Wire Size: Copper AWG 14-6, Aluminum AWG 12-4
• Certifications: UL Listed, CSA Certified
• Dimensions (H x W x D): 4.1 x 1.5 x 2.9 inches
• Phase: Single Phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO260GFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO-GF
• Voltage : 120/240
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901764878
• GTIN : 00785901764878
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.95
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 6, Copper, AWG 12 to AWG 4, Aluminum
