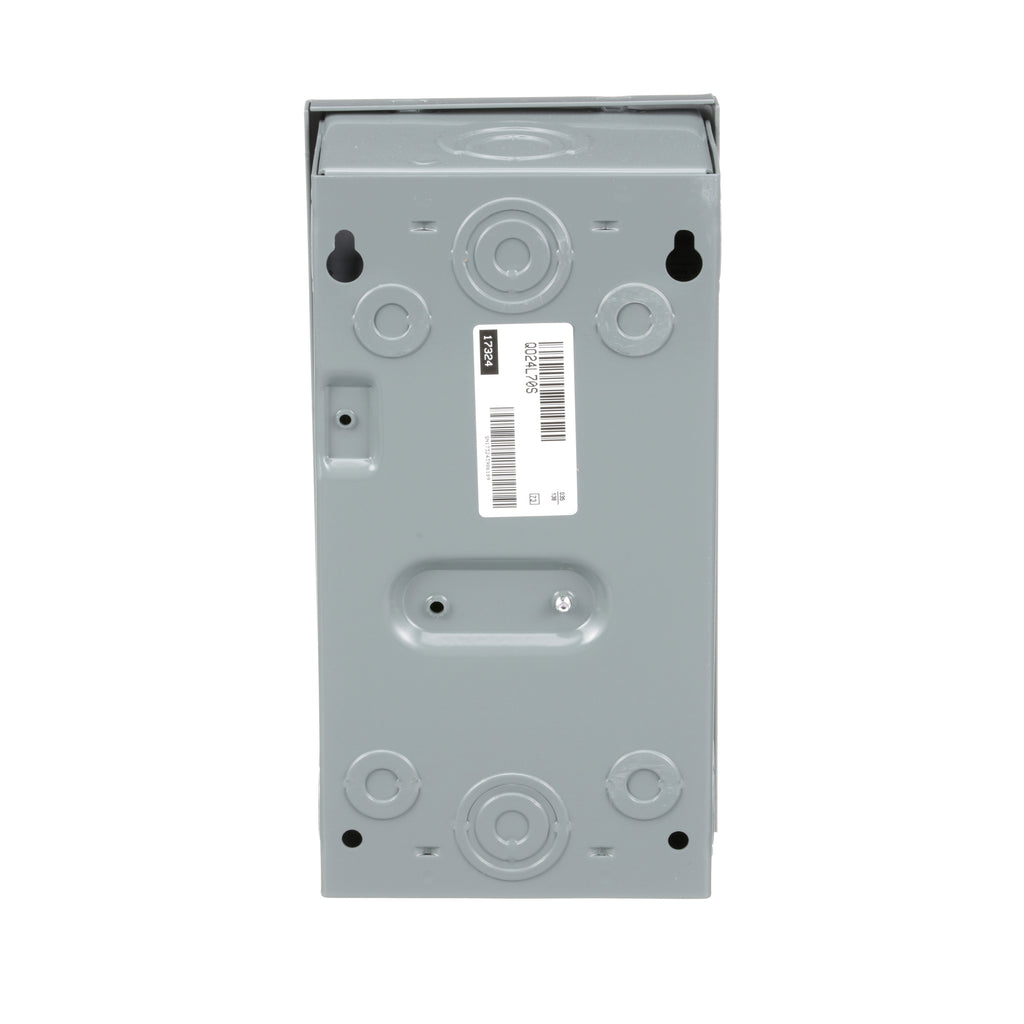

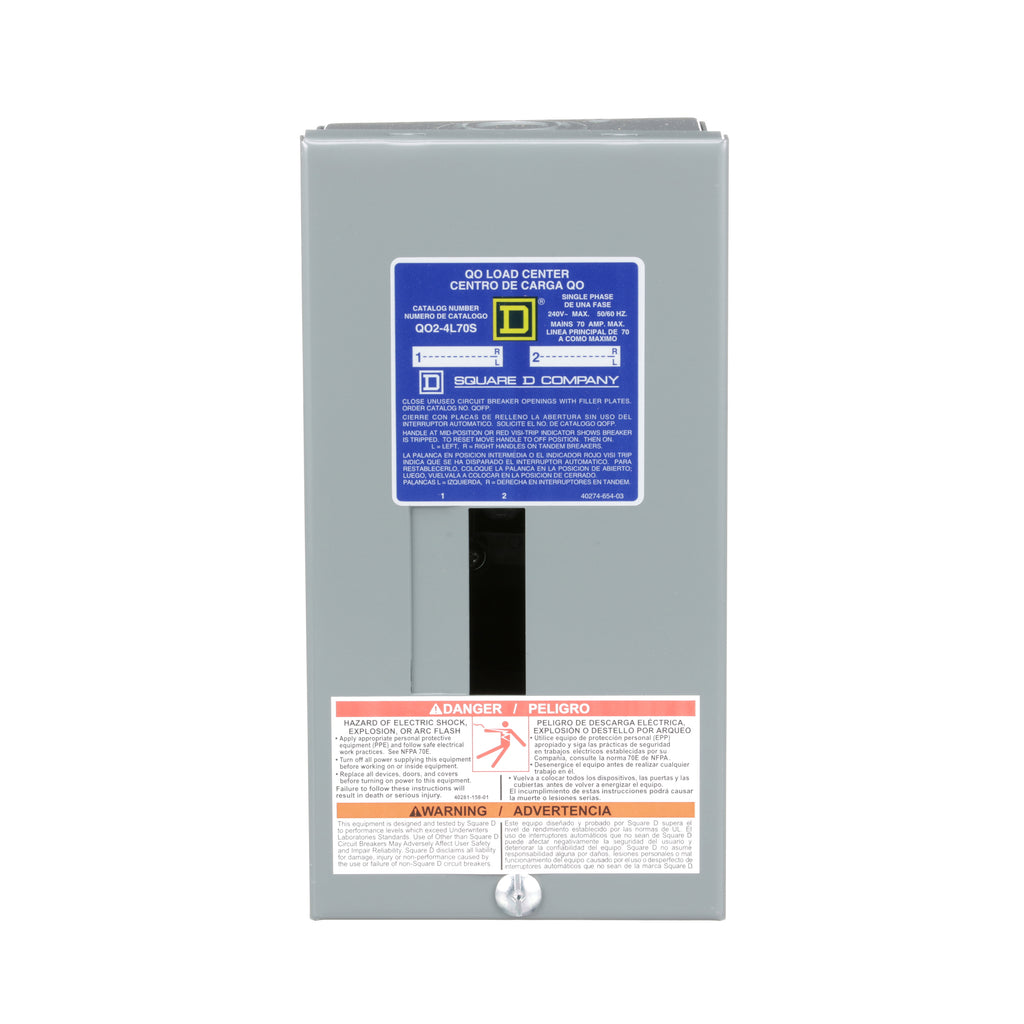

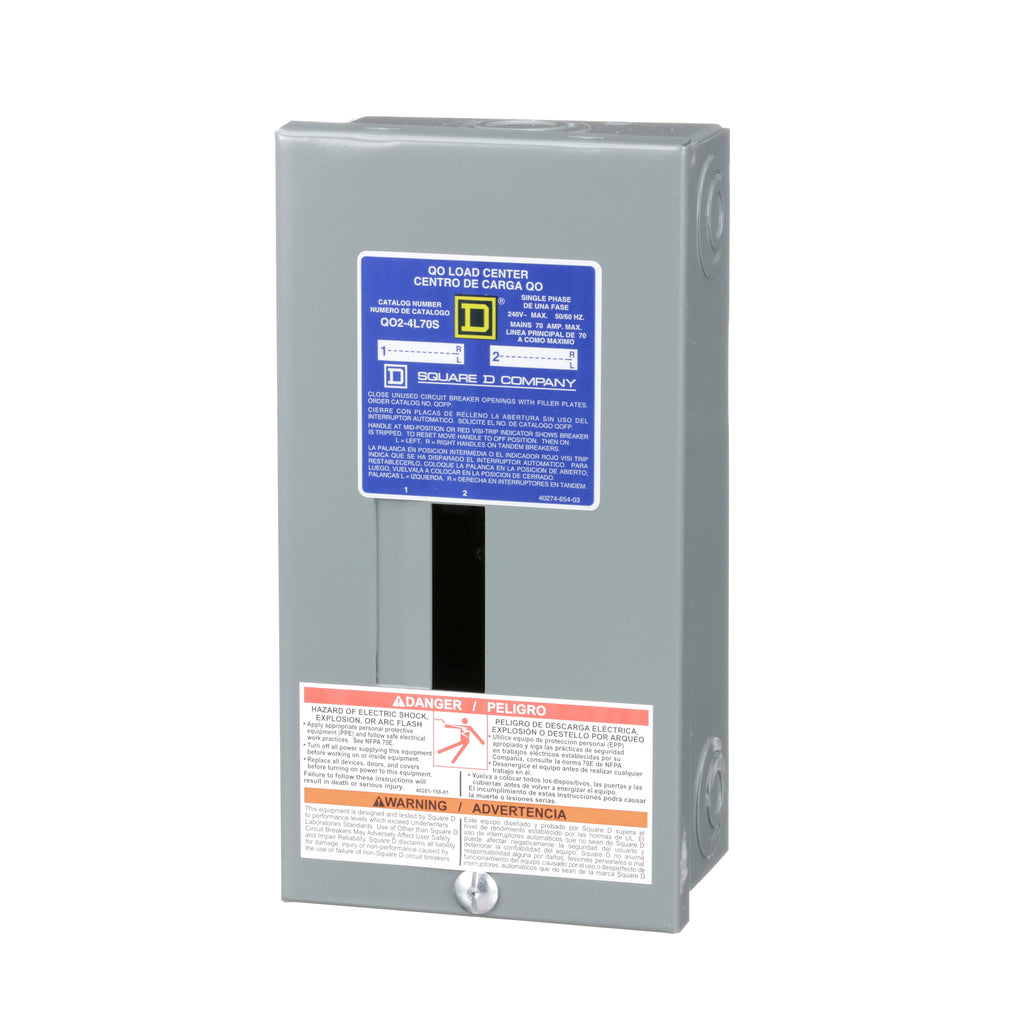

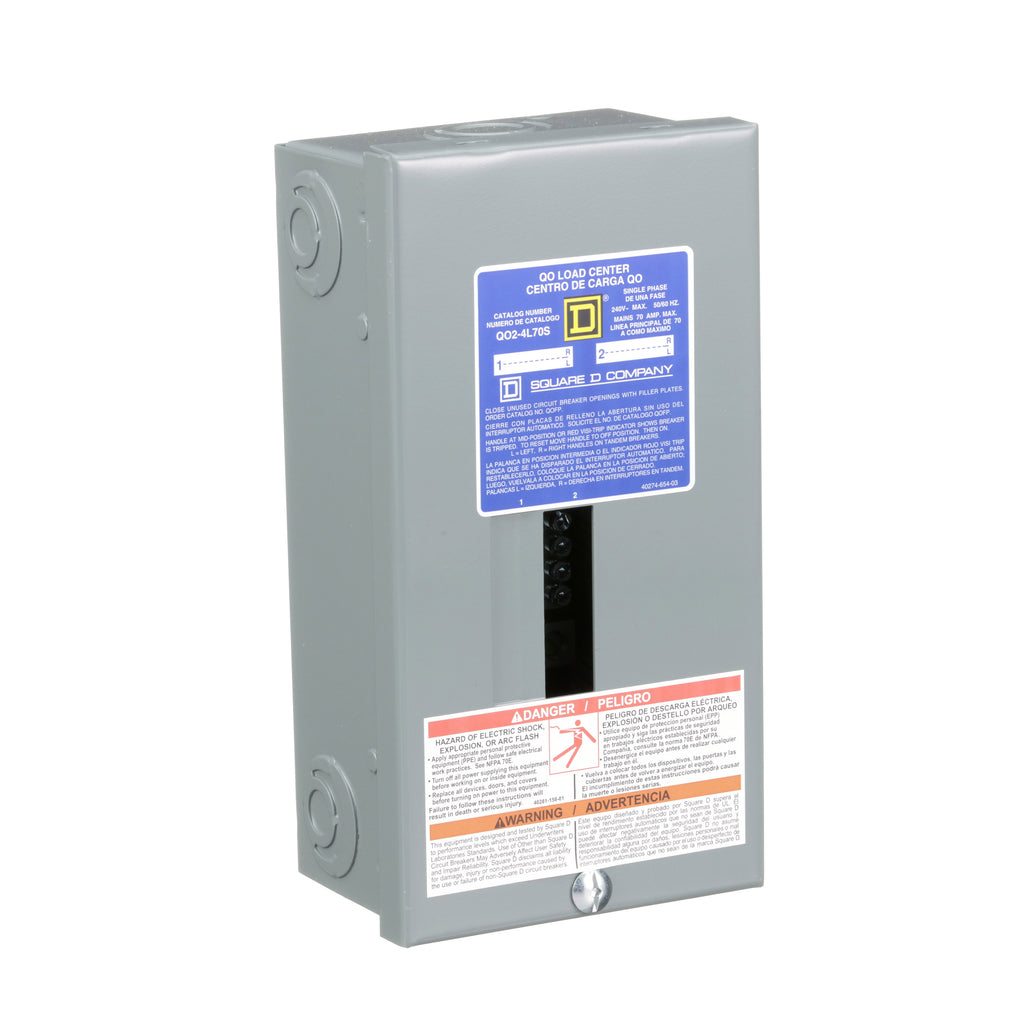

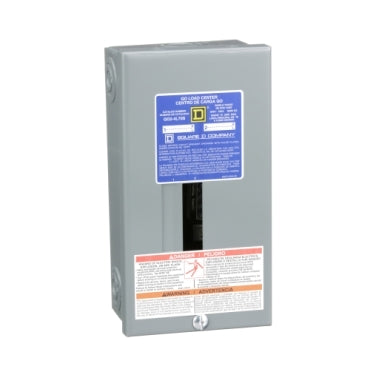

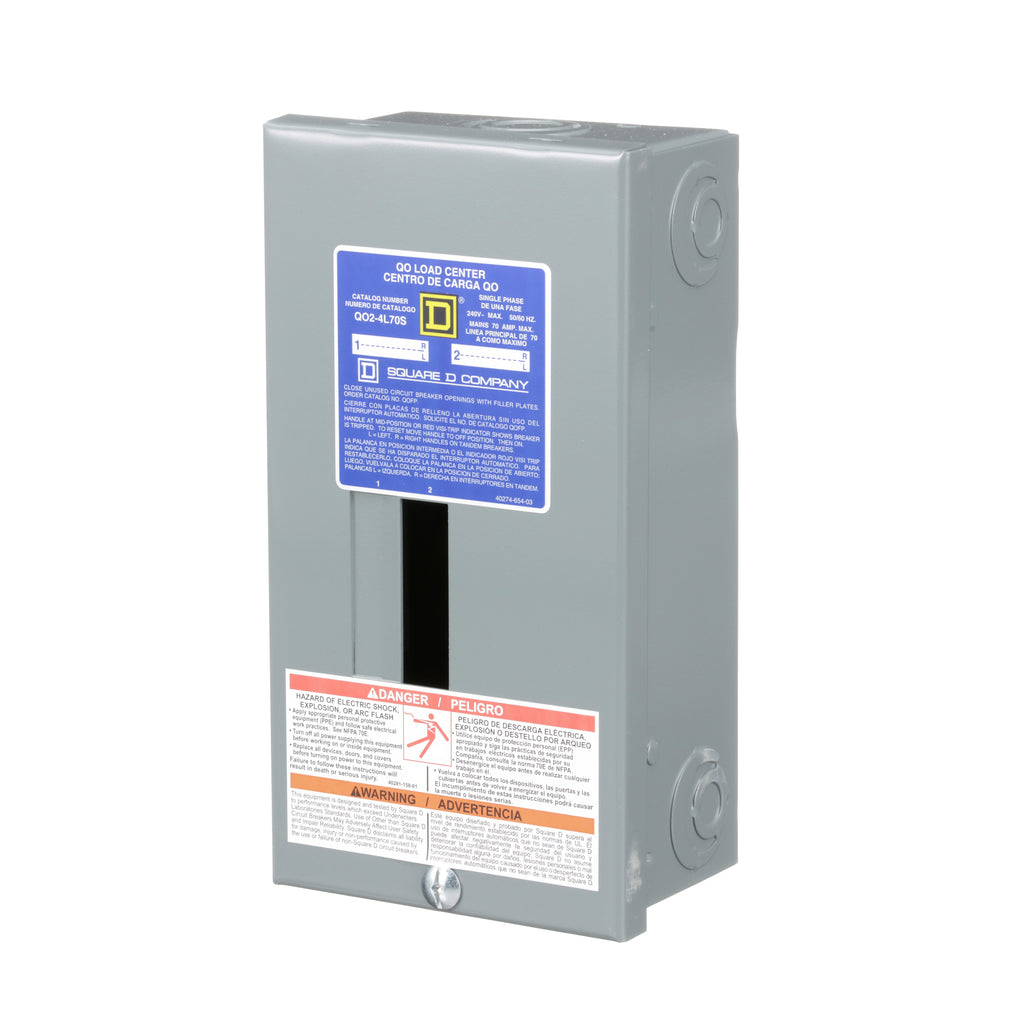

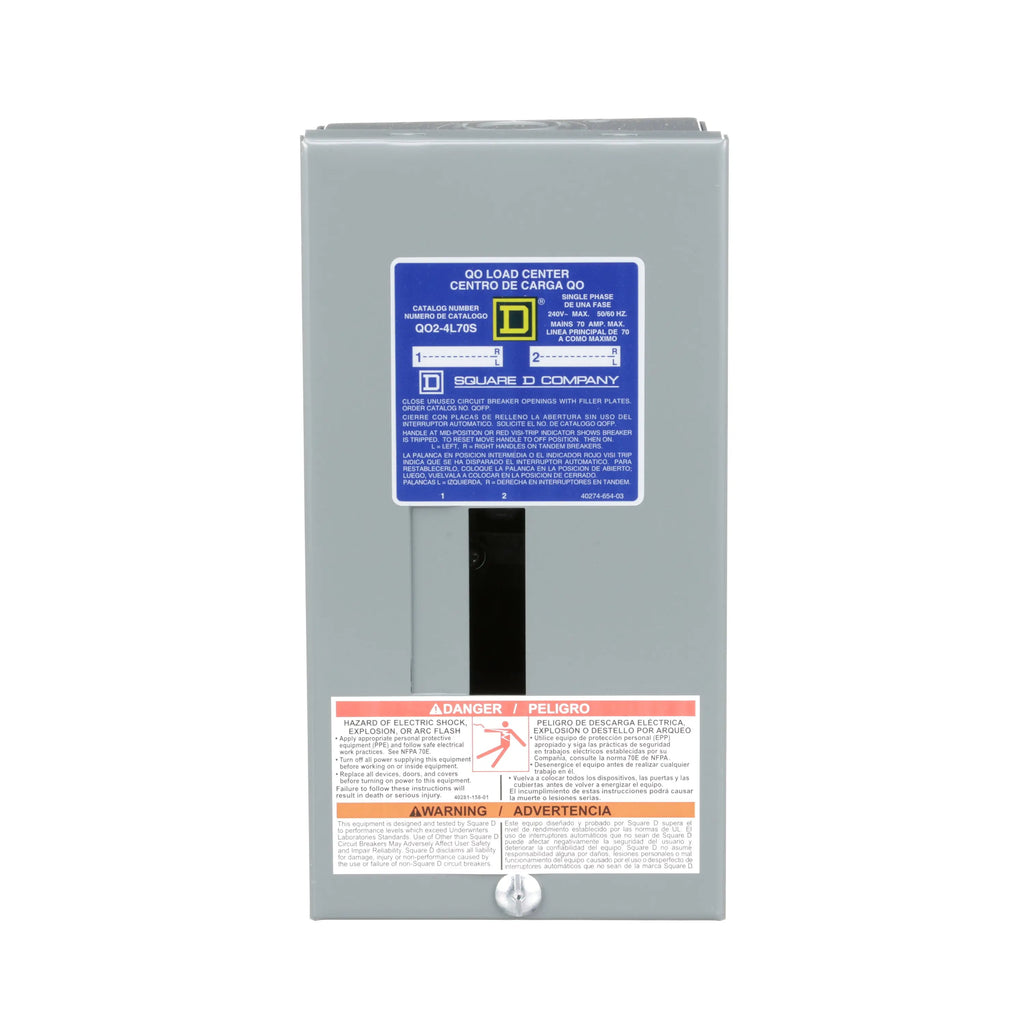

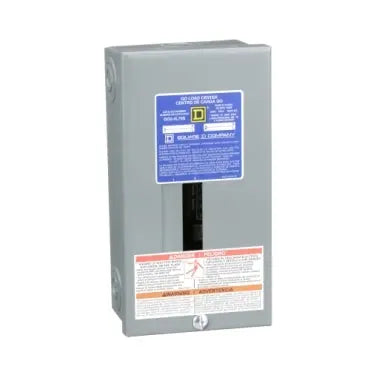

QO24L70S - Square D 70A 120/240V 1-Phase 2-Space 4-Circuit QO Load Center NEMA 1

QO24L70S

QO24L70S is a Square D 70 Amp, 120/240 Volt, 1-phase load center with 2 spaces and 4 circuits designed for panel mounting.This QO load center features a NEMA 1 enclosure and fixed main lugs rated for 70 Amps. It supports QO circuit breakers and offers a short circuit current rating of 65 kAIC. The compact dimensions are approximately 4.81 in W x 3.19 in D x 9.29 in H. It complies with UL 67, CSA, and IEC standards for safety and performance.

• Amperage: 70 A
• Voltage: 120/240 VAC
• Poles: 1-Phase
• Number of Spaces: 2
• Number of Circuits: 4
• Mounting Type: Panel Mount
• Interrupt Rating: 65 kAIC
• Series/Frame: QO
• Enclosure Type: NEMA 1
• Trip Unit: Fixed Main Lugs
• Certifications: UL 67, CSA, IEC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO24L70S
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Load Center
• Family : QO Series
• Type : QO
• Voltage : 120/240 AC
• Amperage : 70
• Phase : 1
• Temp Rating : -13–158 °F (-25–70 °C)
• Wire : 3

Product Data

• UPC : 785901785149
• GTIN : 00785901785149
• Country of Origin : Mexico
• Dimensions : 4.8 in x 9.3 in
• Weight : 3.761
• Certification : RoHS Compliant, UL Listed
• Wire Size : AWG 12 to AWG 3, Aluminum, AWG 14 to AWG 4, Copper
