Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QO230GFI

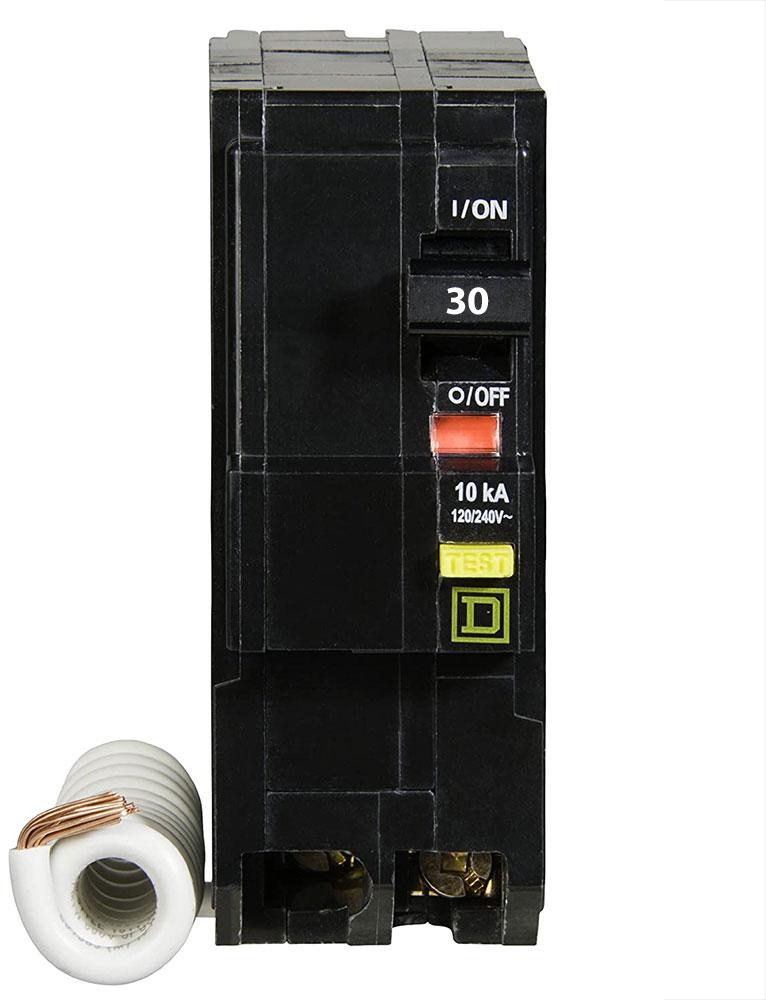

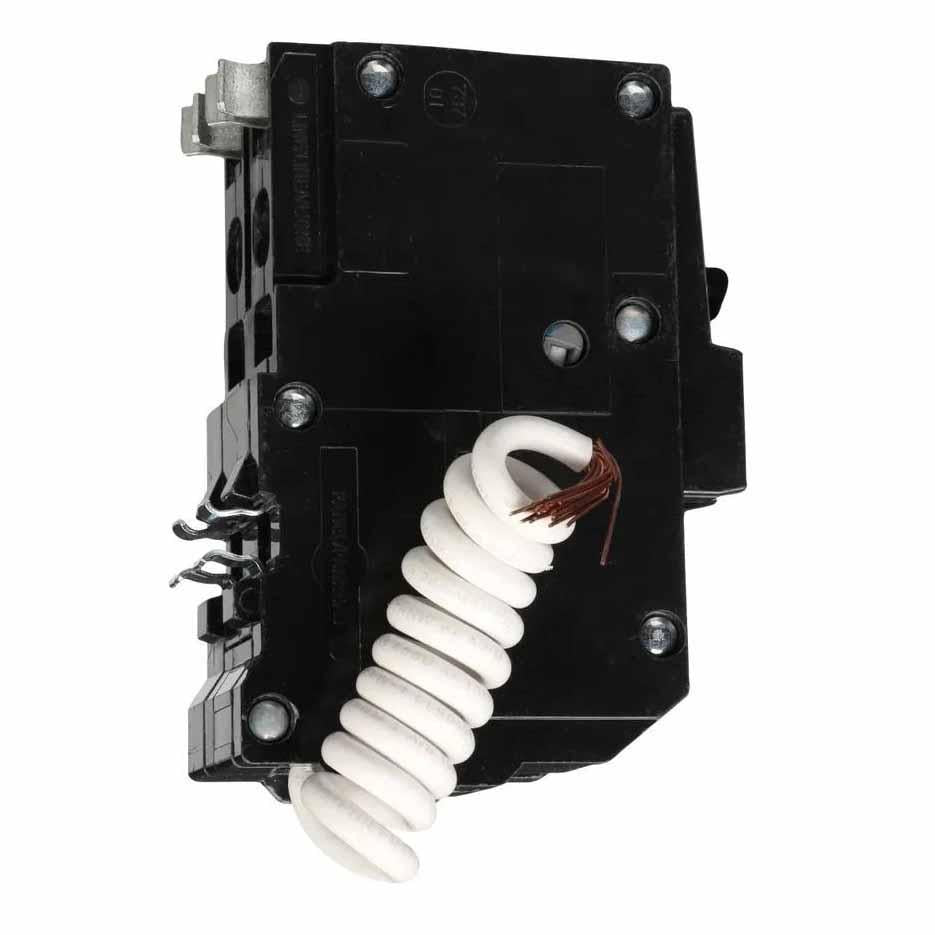

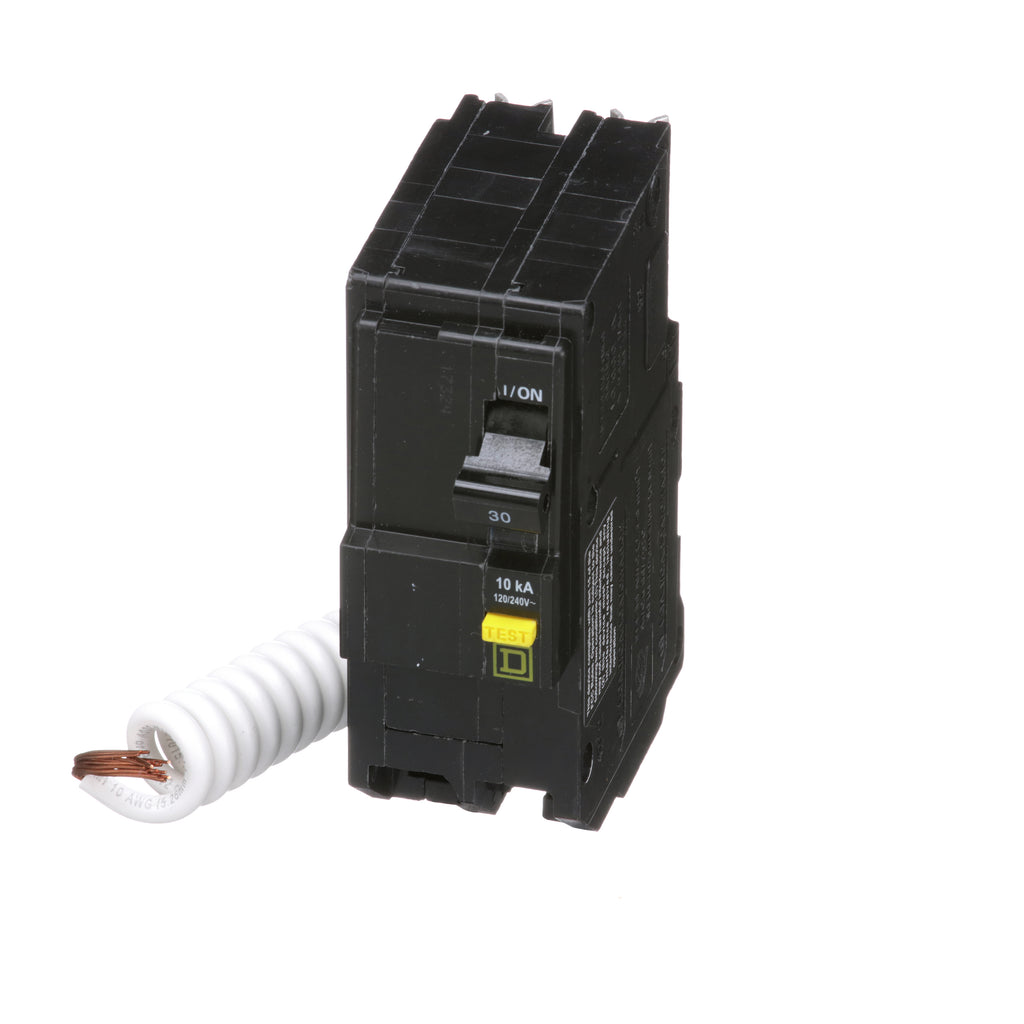

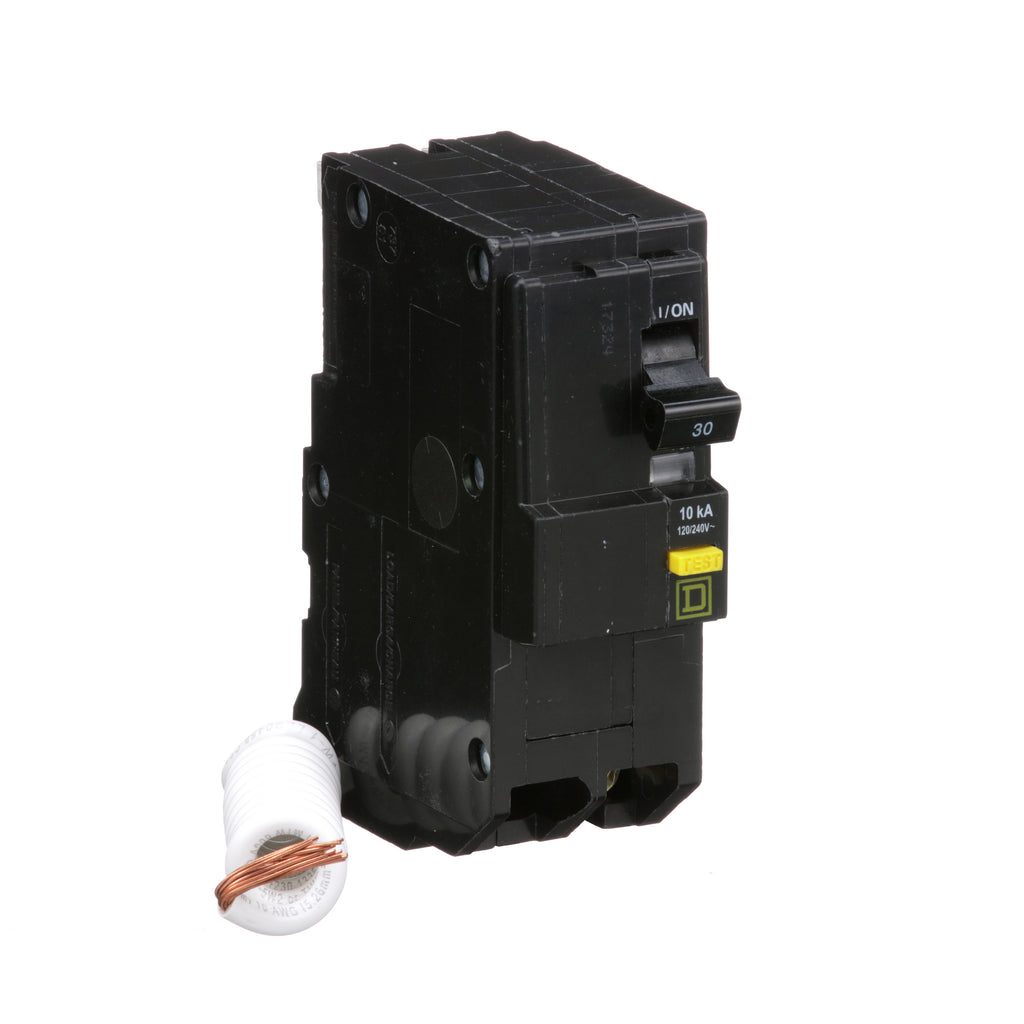

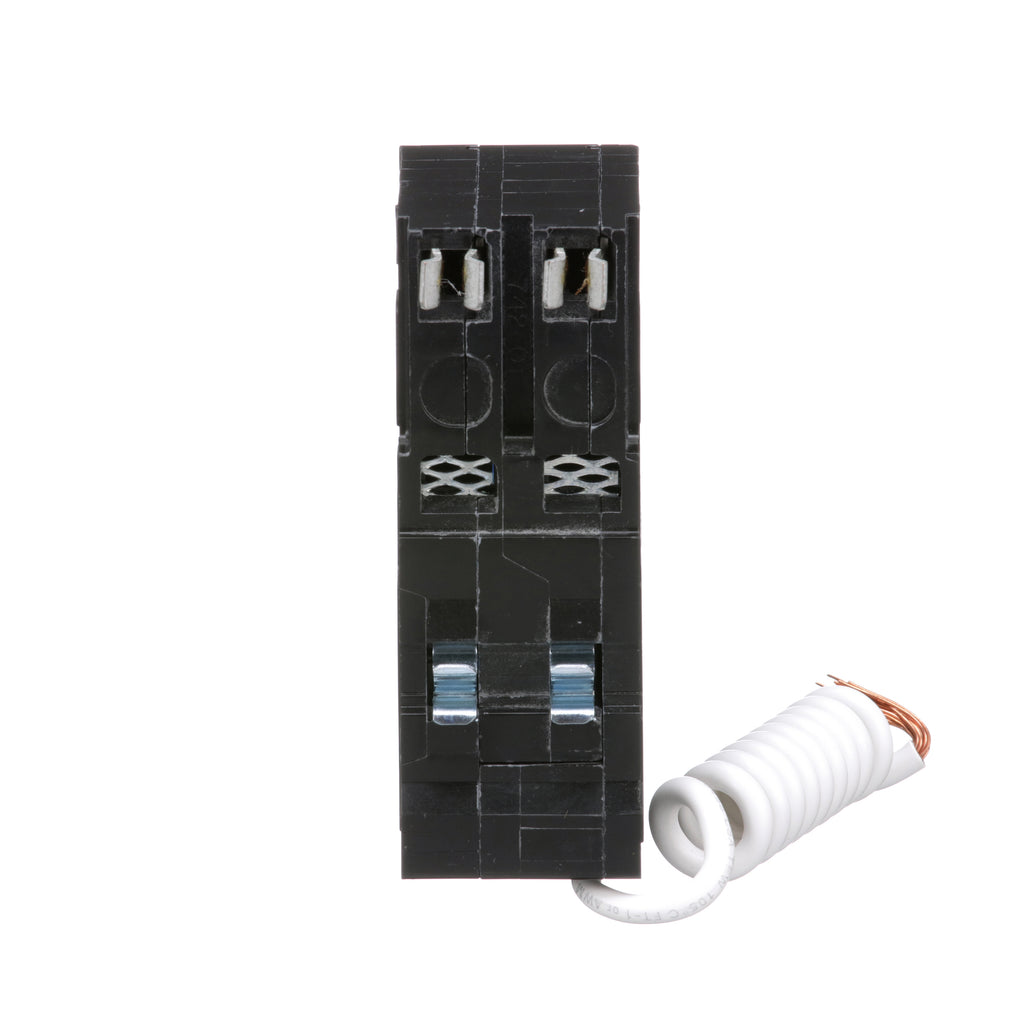

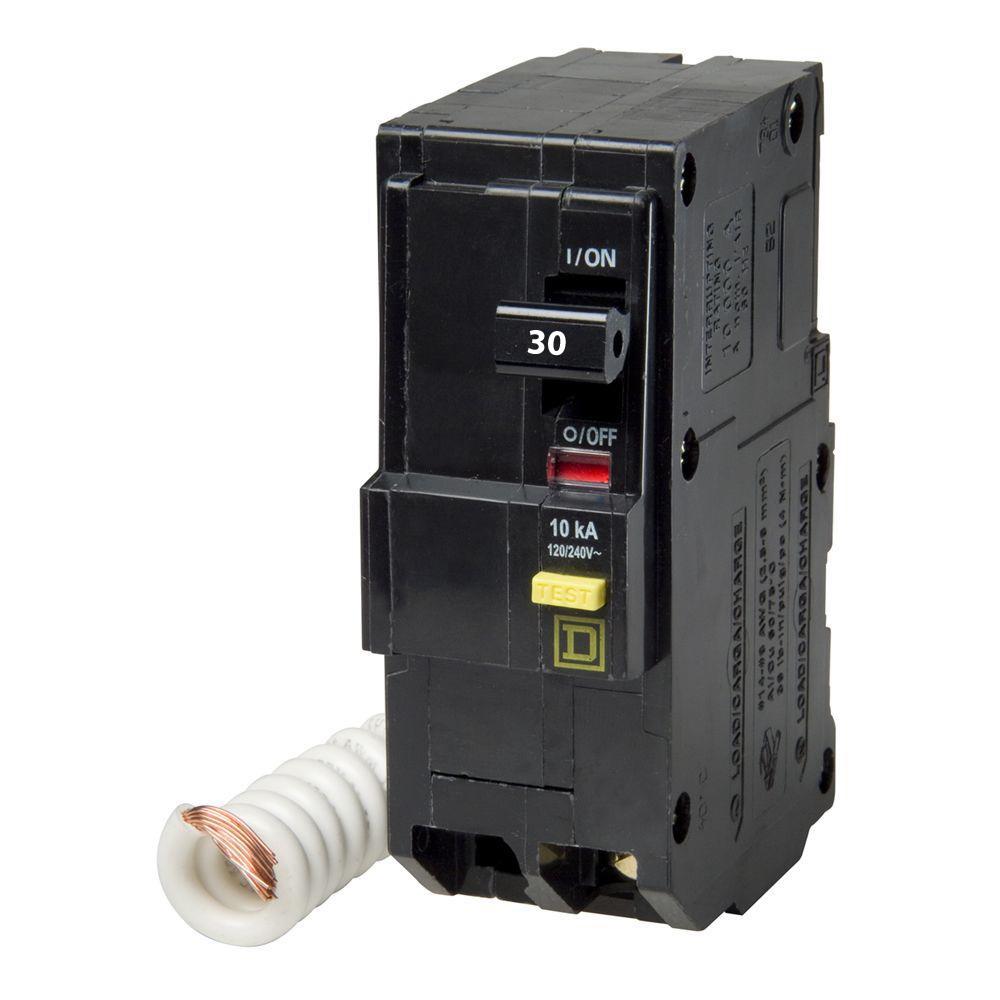

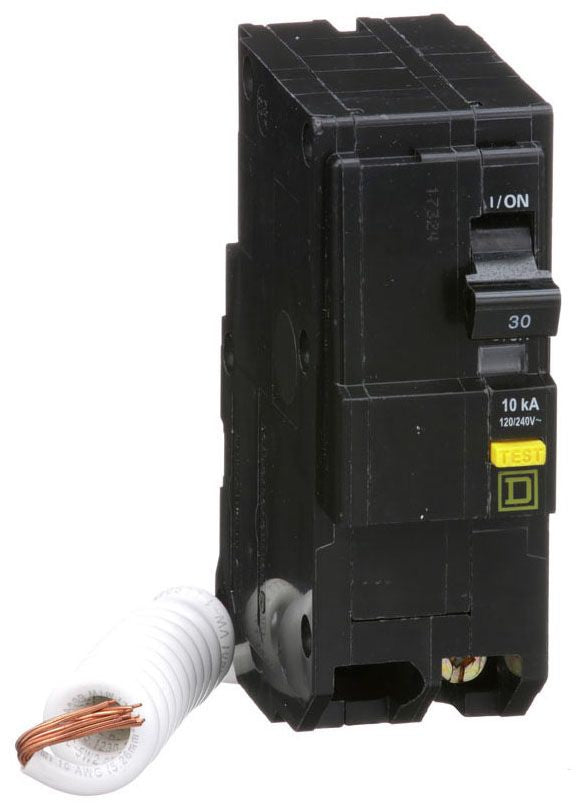

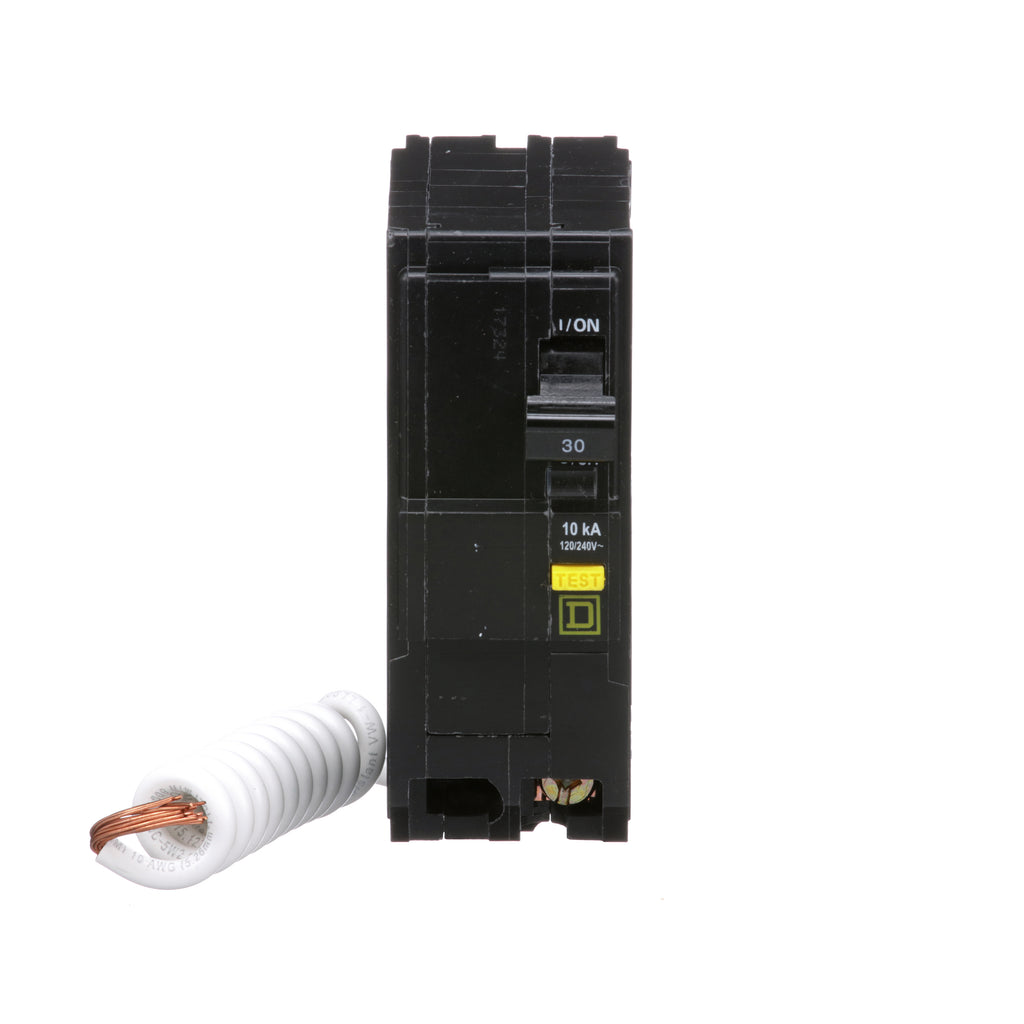

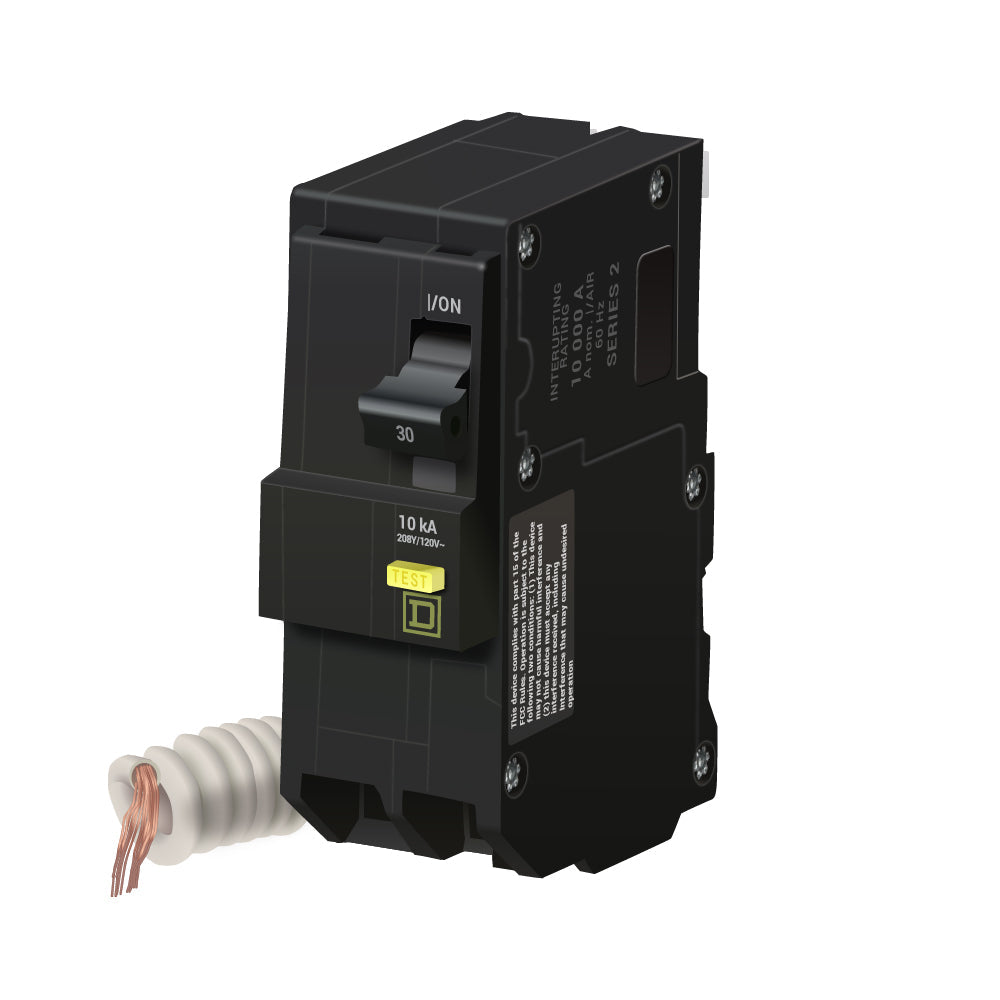

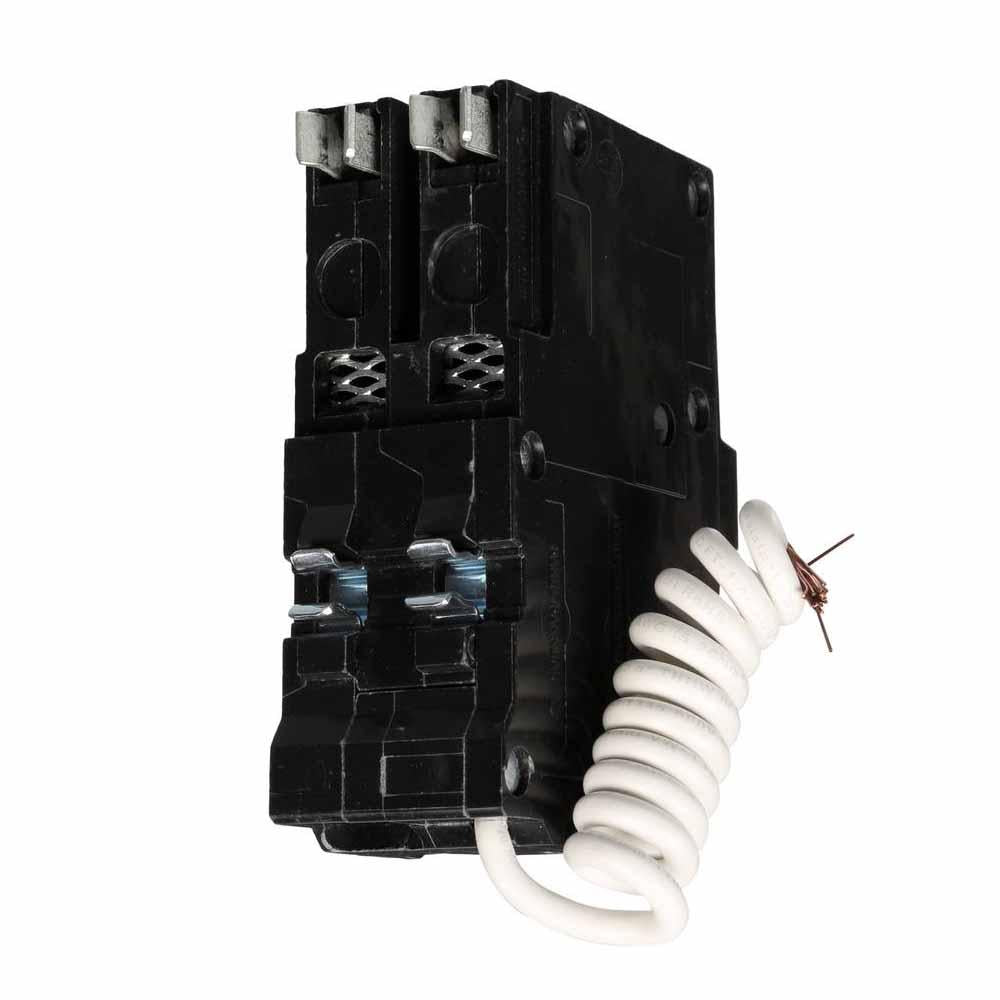

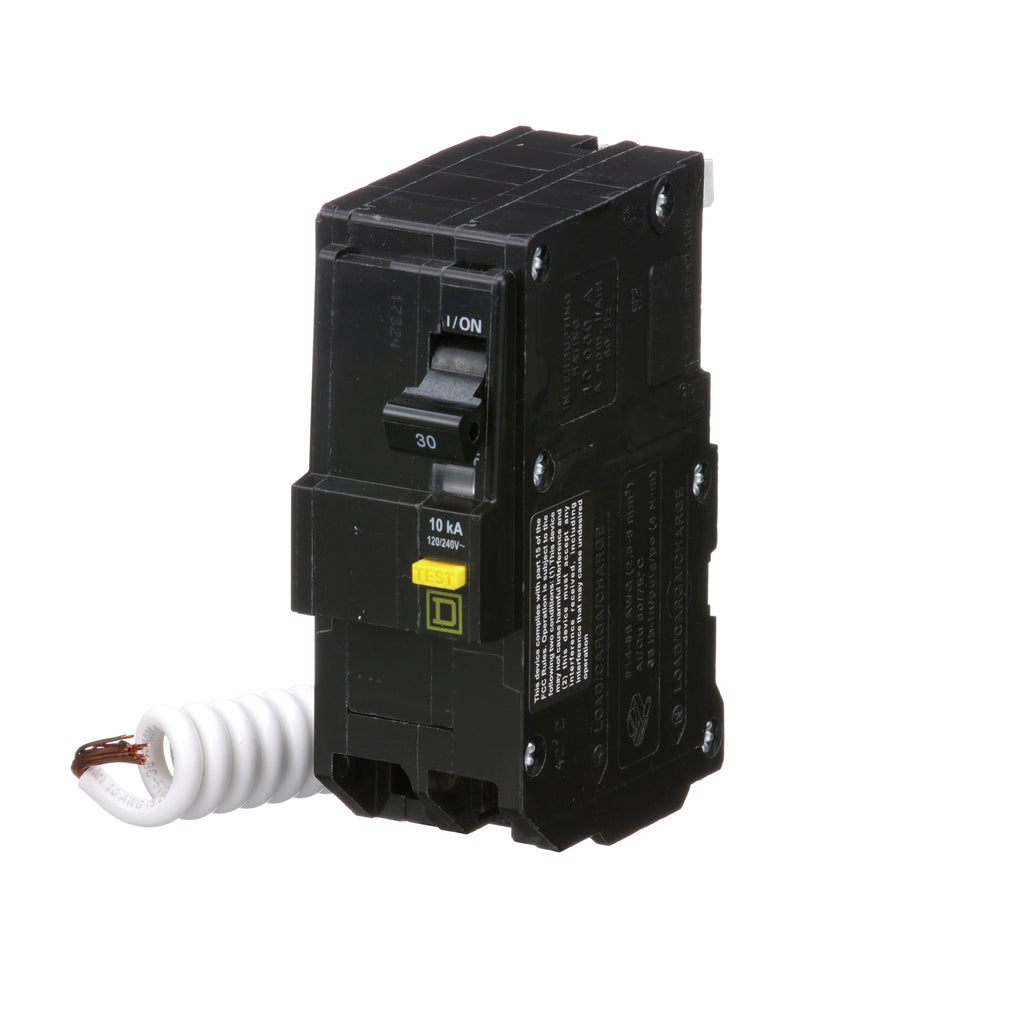

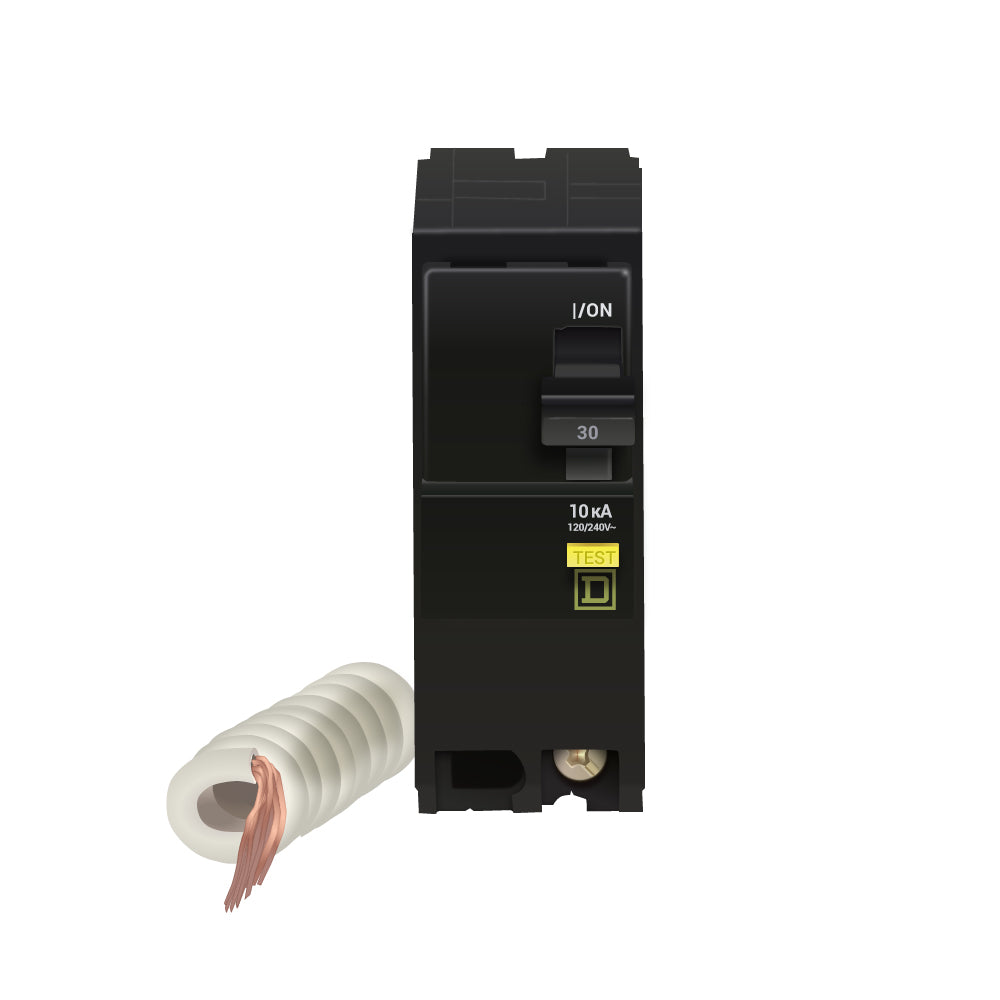

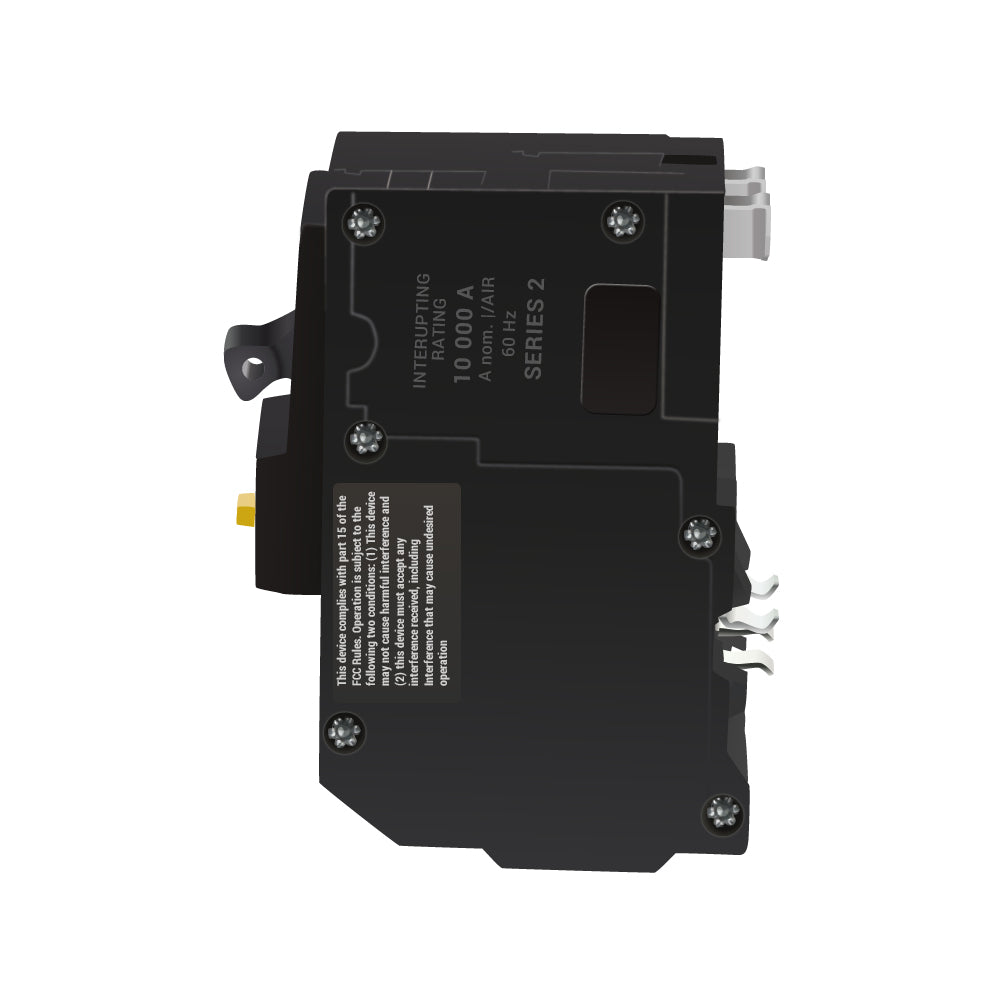

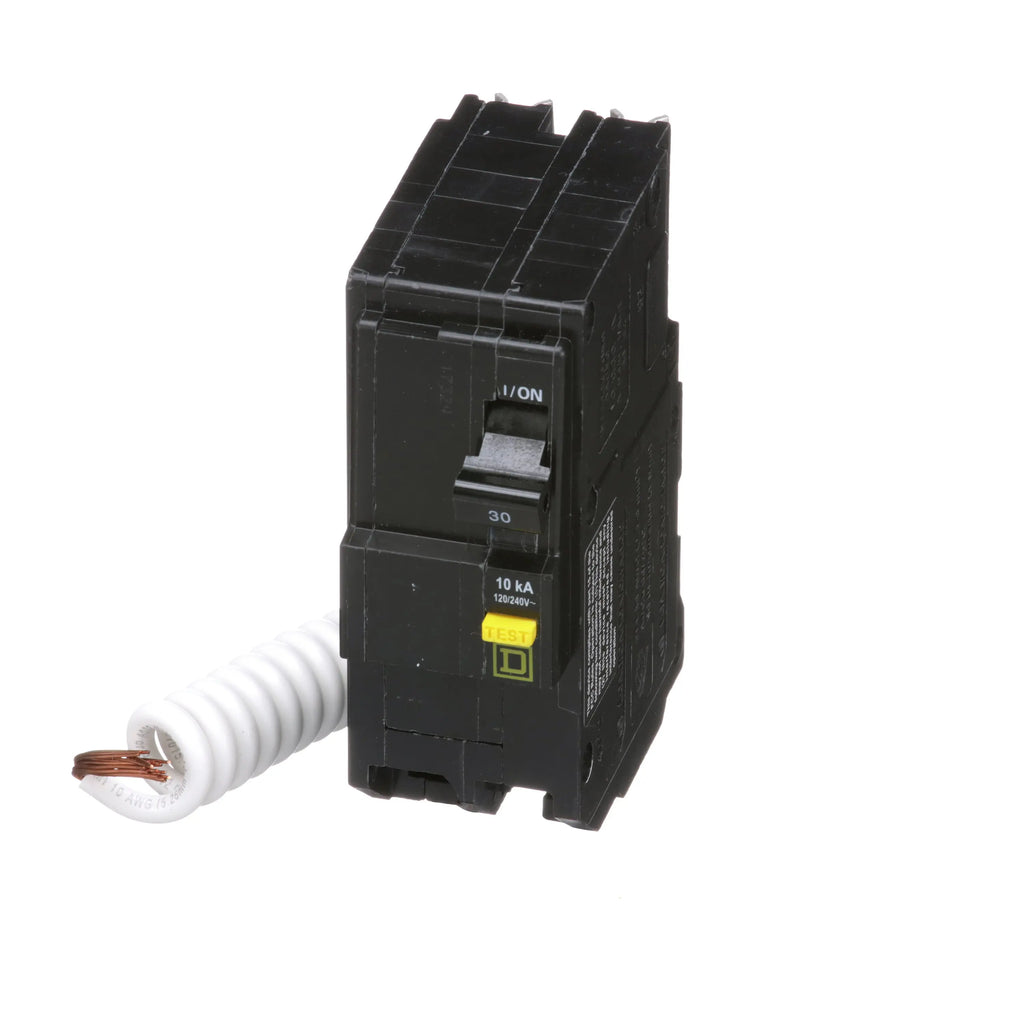

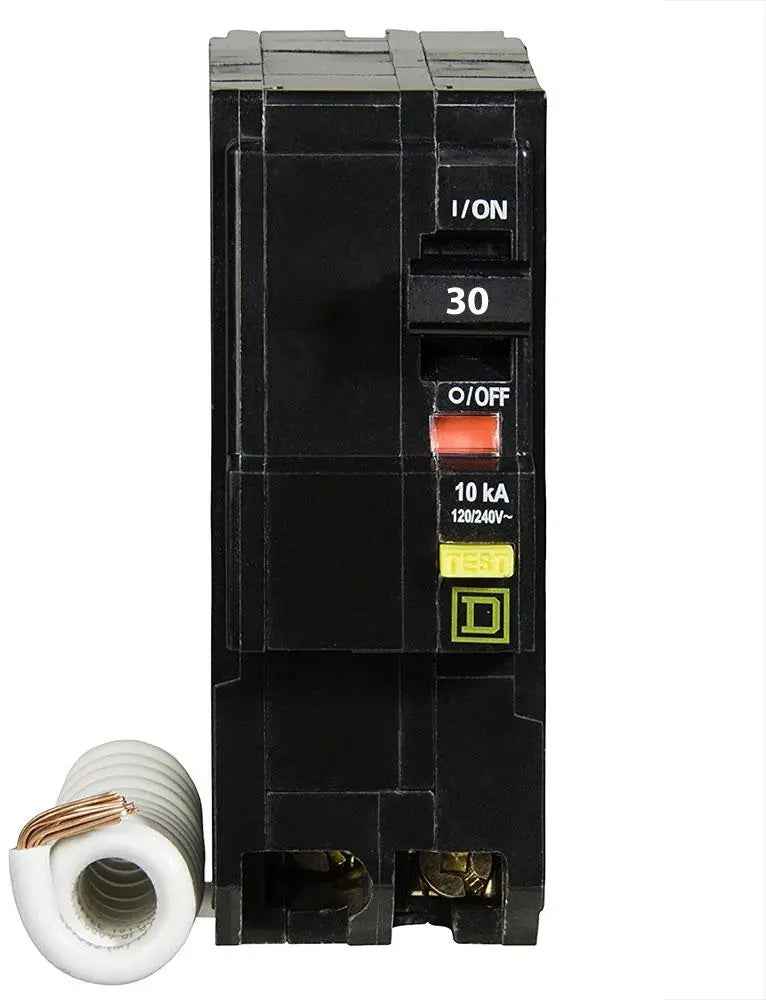

QO230GFI is a Square D 30 Amp, 2-pole, 120/240V plug-in ground fault circuit breaker designed for QO Series load centers.
This thermal magnetic trip breaker provides Class A ground fault protection (6mA trip), features a common trip mechanism, and is compatible with copper and aluminum wiring. It is UL and CSA certified for safety and reliability in residential and light commercial applications.
-
Key Specifications
- Amperage: 30A
- Voltage: 120/240VAC
- Poles: 2
- Mounting Type: Plug-in
- Interrupt Rating: 10kAIC at 120/240VAC
- Series/Frame: QO
- Trip Unit: Thermal Magnetic, LI (Long-Time & Instantaneous)
- Ground Fault Protection: Class A, 6mA
- Connection Type: Pressure plate
- Wire Size: 14–8 AWG copper, 12–8 AWG aluminum
- Certifications: UL 489, CSA 22.2 No. 144, RoHS Compliant
- Dimensions: 4.12" H x 1.5" W x 2.91" D
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: QO230GFI
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QO SEries
- Type : QO-GF
- Voltage : 120/240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Pressure plate
- Frame Size : 100A/QO
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
- Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901563006
- GTIN : 00785901563006
- Country of Origin : Mexico
- Dimensions : 4.1 in (105 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight : 0.94
- Panel Type : QO Load Centers and NQ Panelboards
- Standards : CSA Certified, UL Listed
- Certification : UL Listed
- Wire Size : AWG 14 to AWG 8, Copper, AWG 12 to AWG 8, Aluminum
