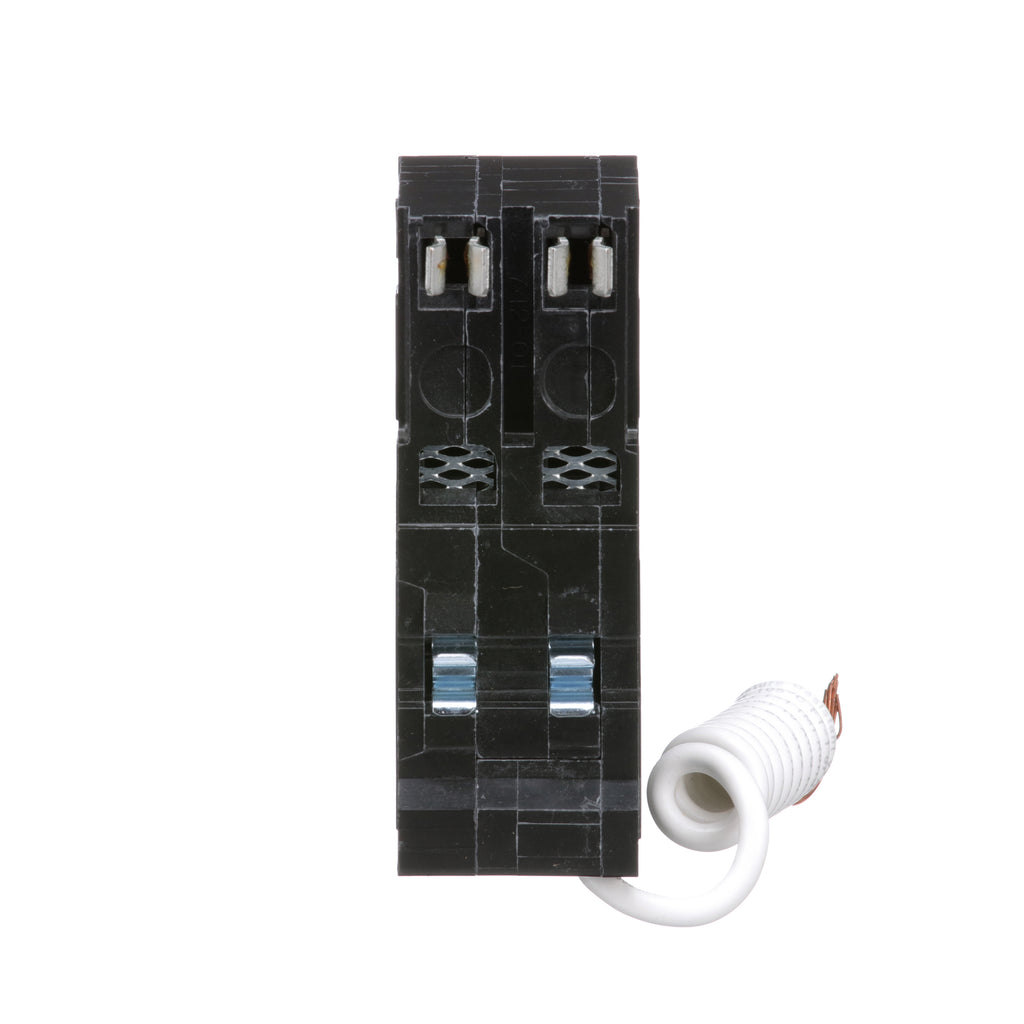

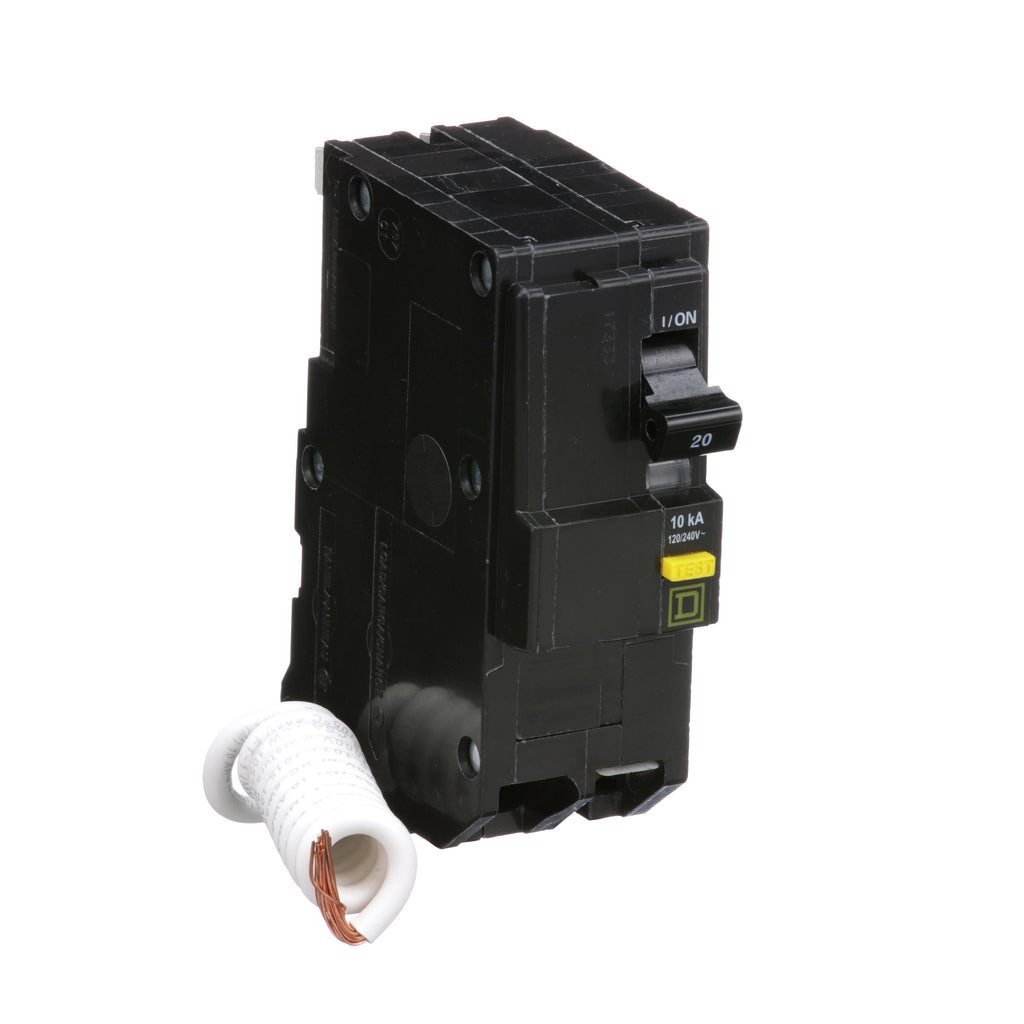

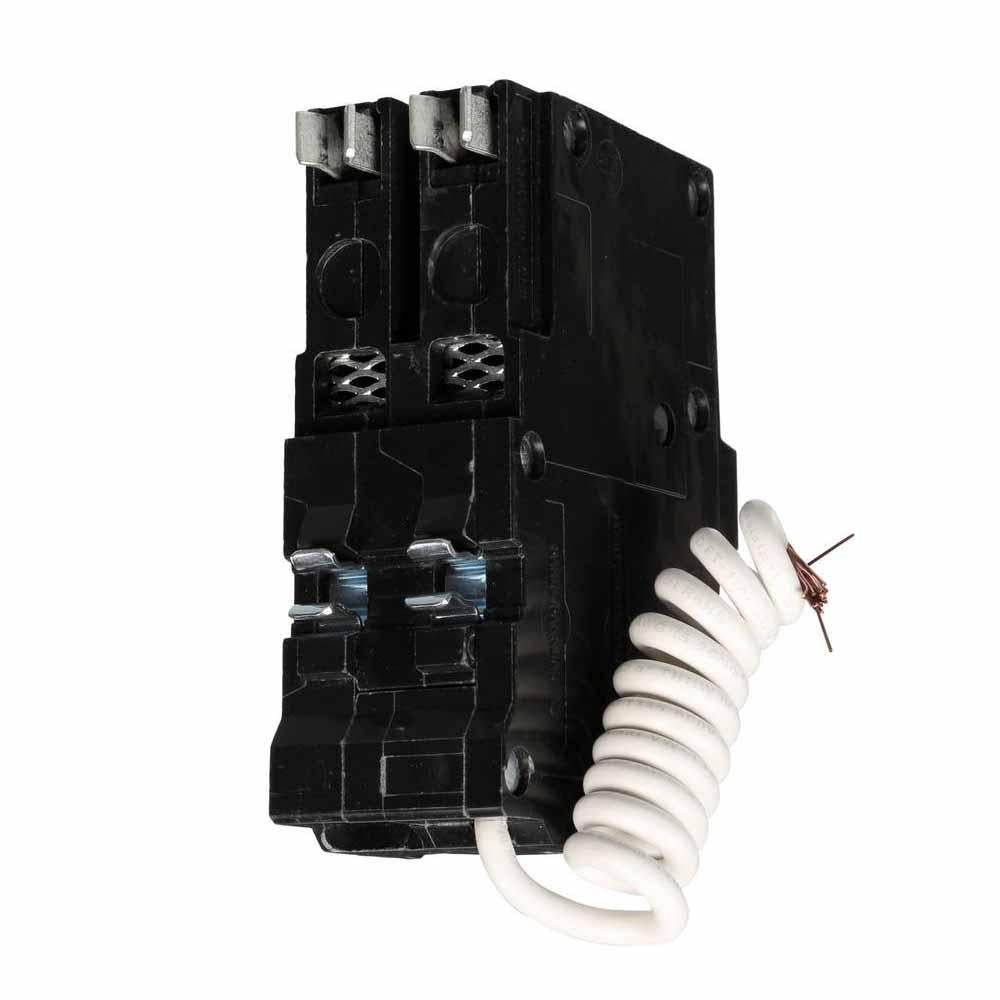

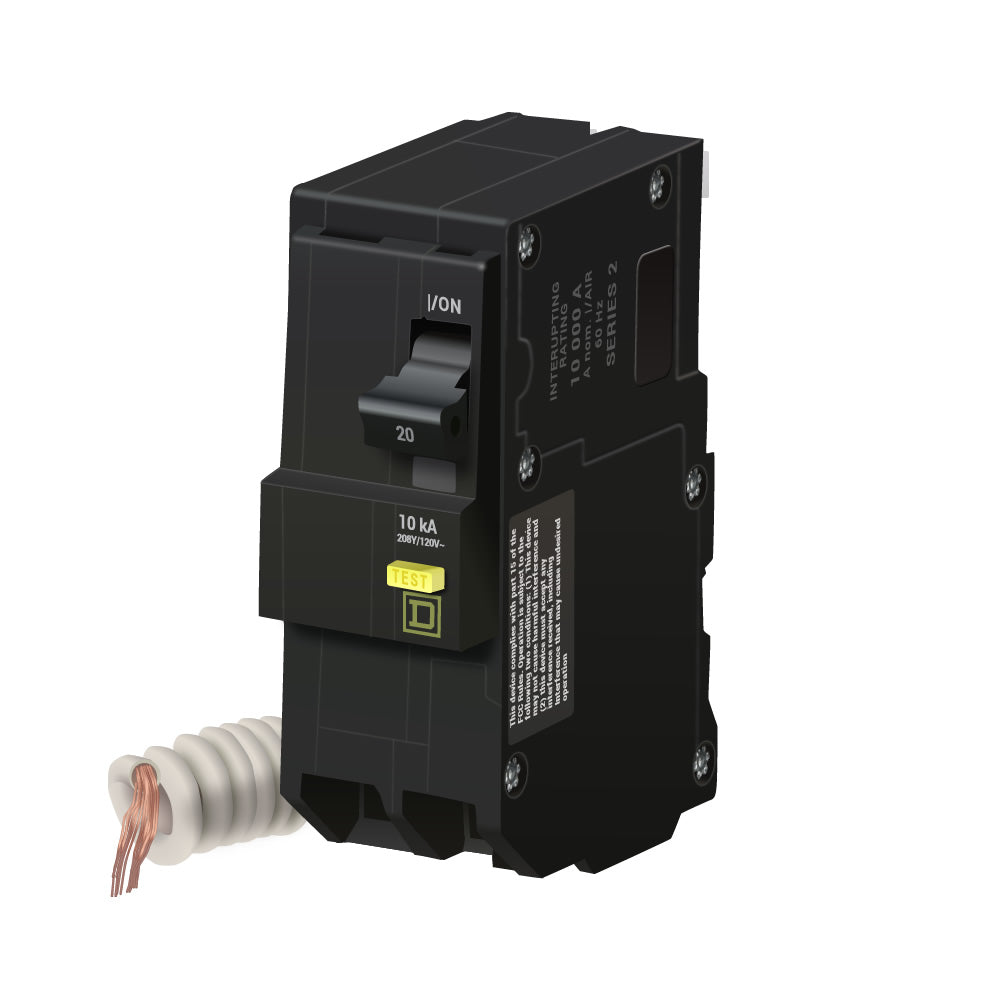

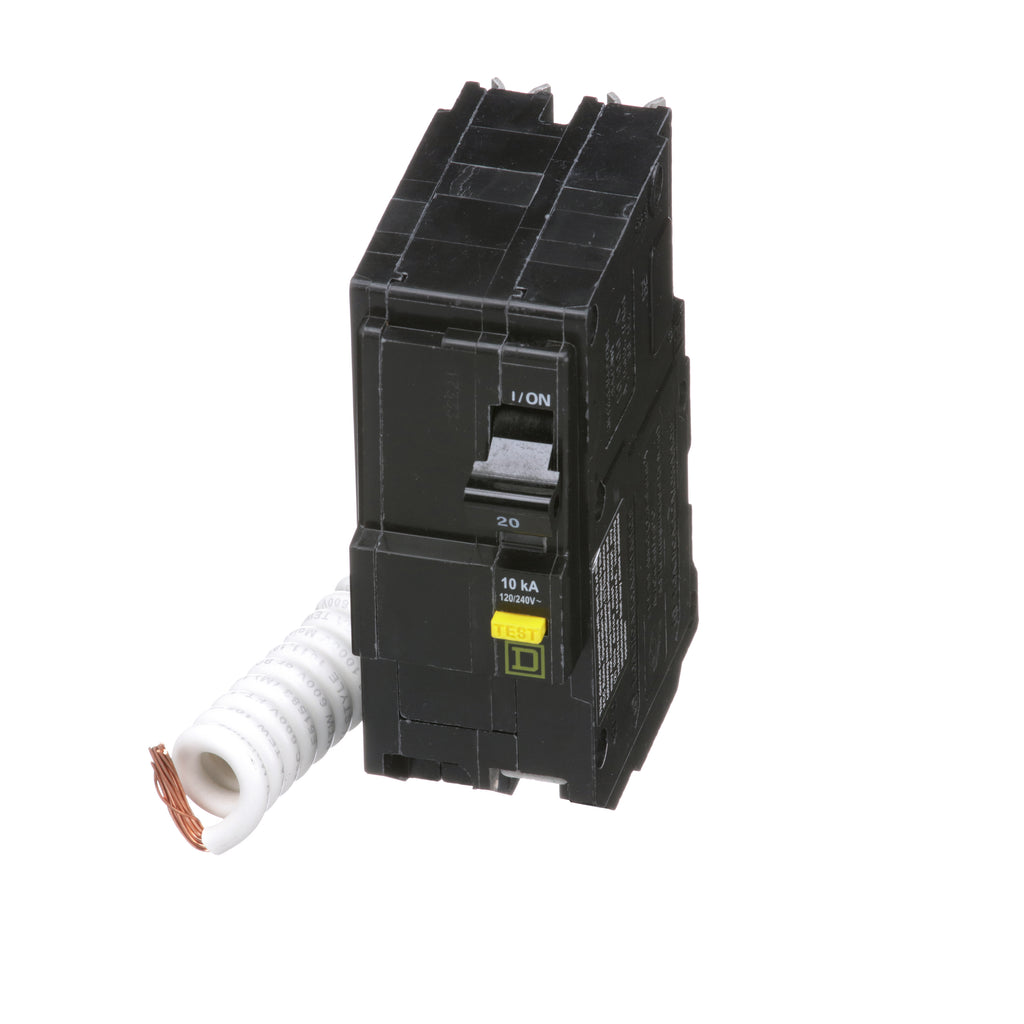

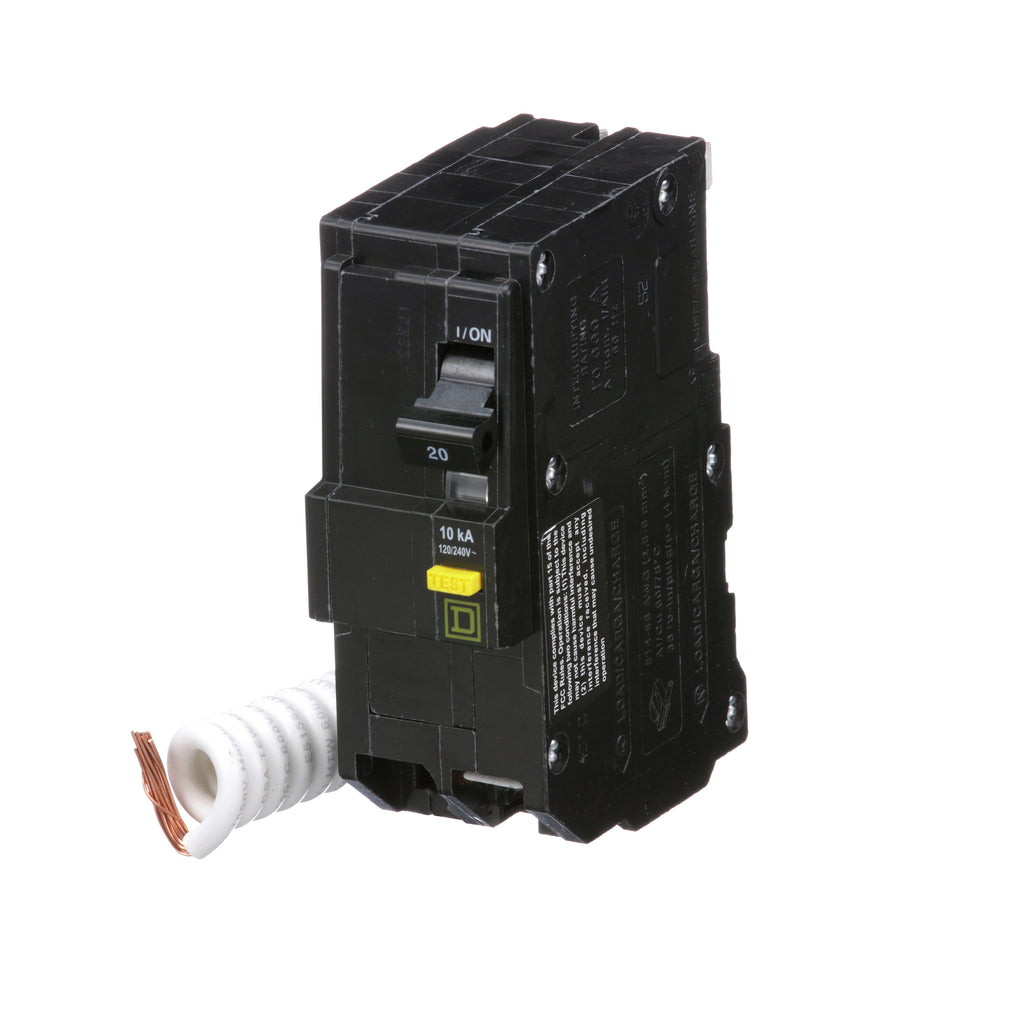

QO220GFI - Square D 20A 120/240V 2 Pole Ground Fault Circuit Breaker Plug-In QO Series

QO220GFI

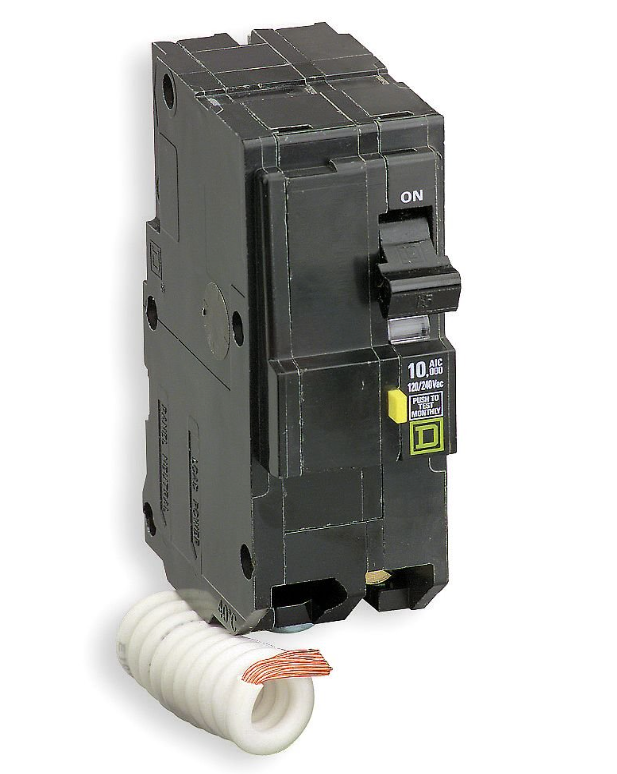

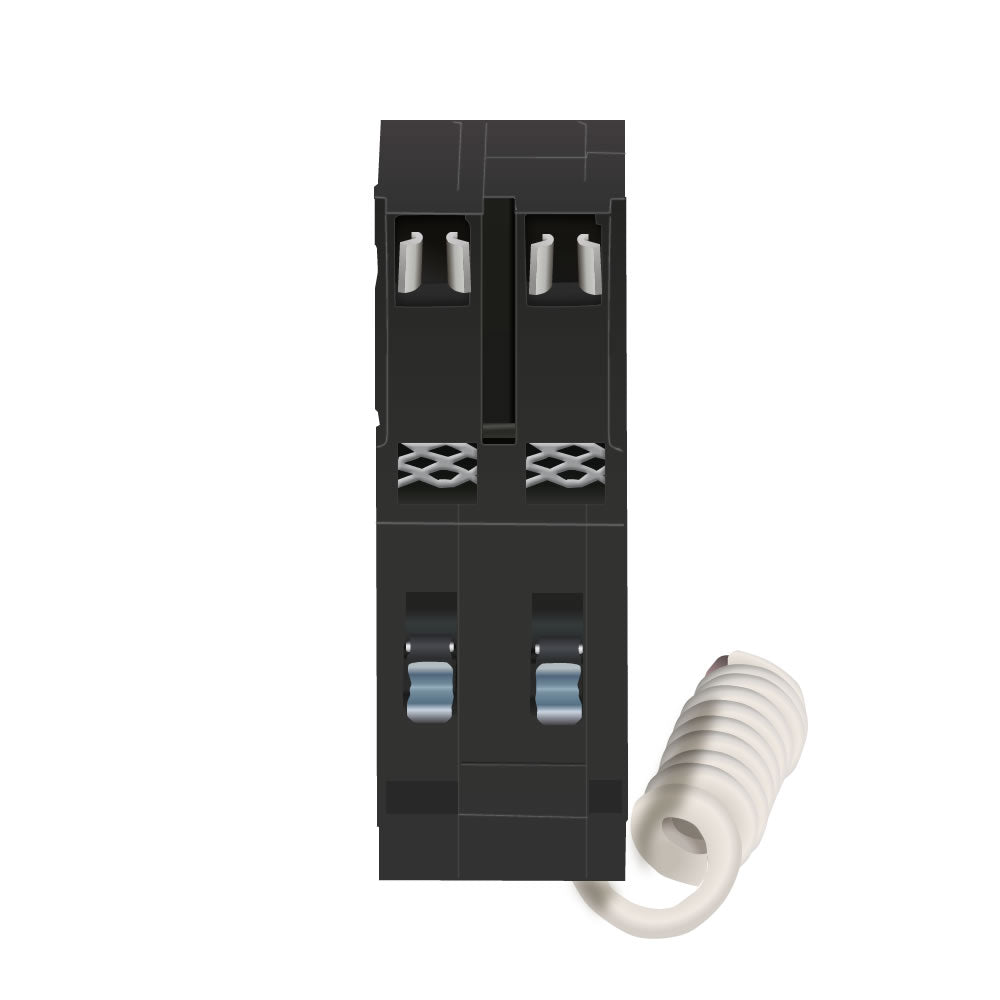

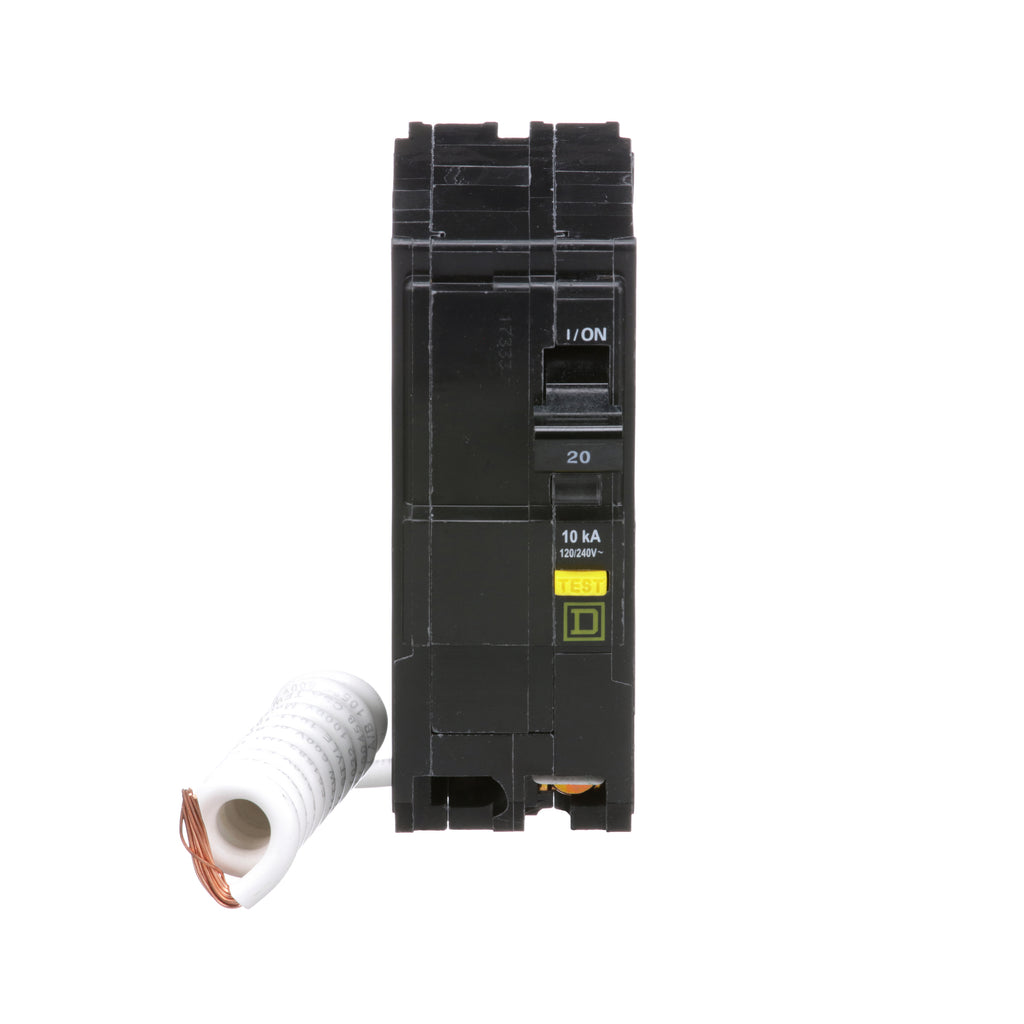

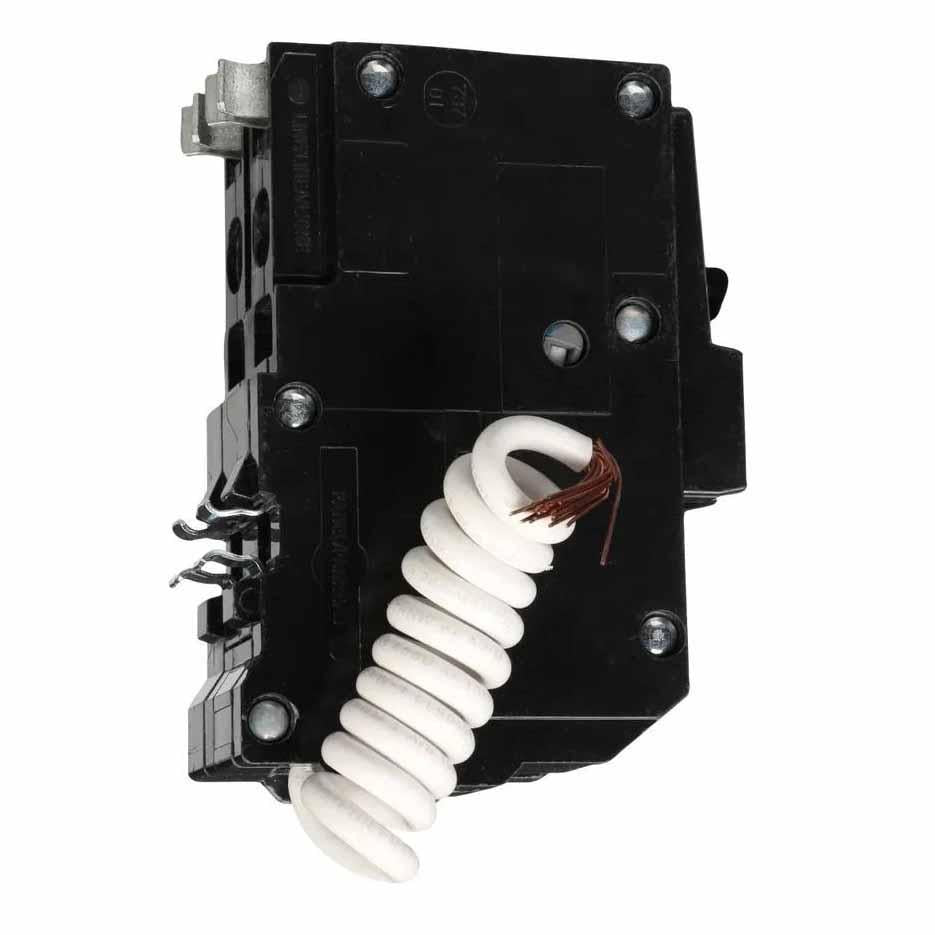

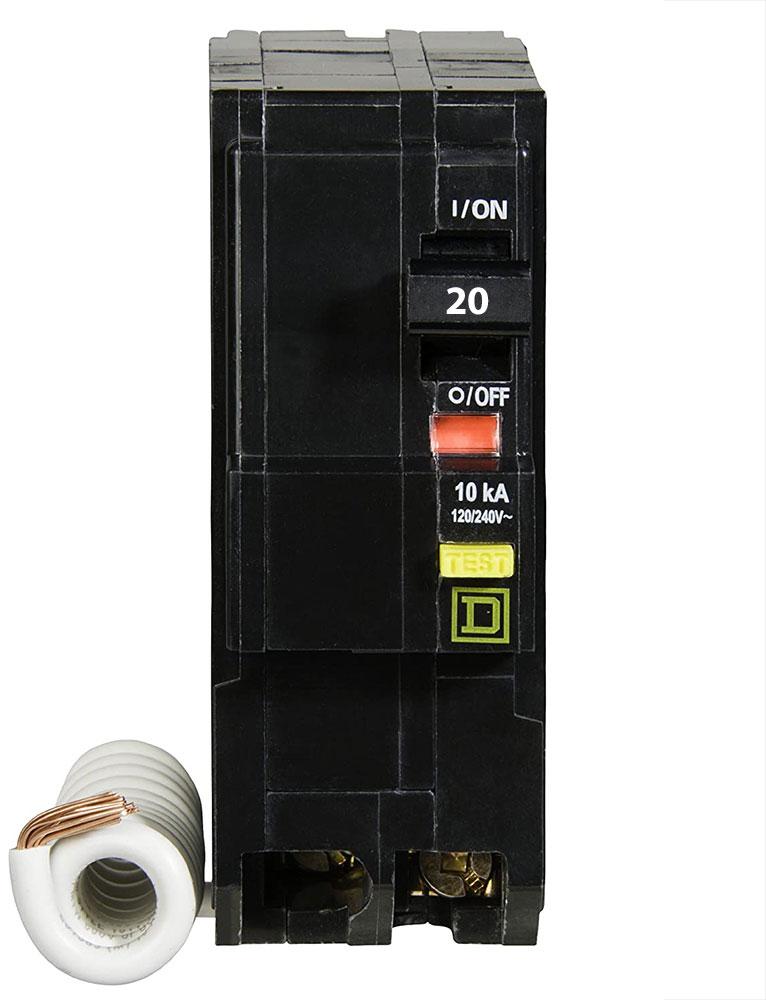

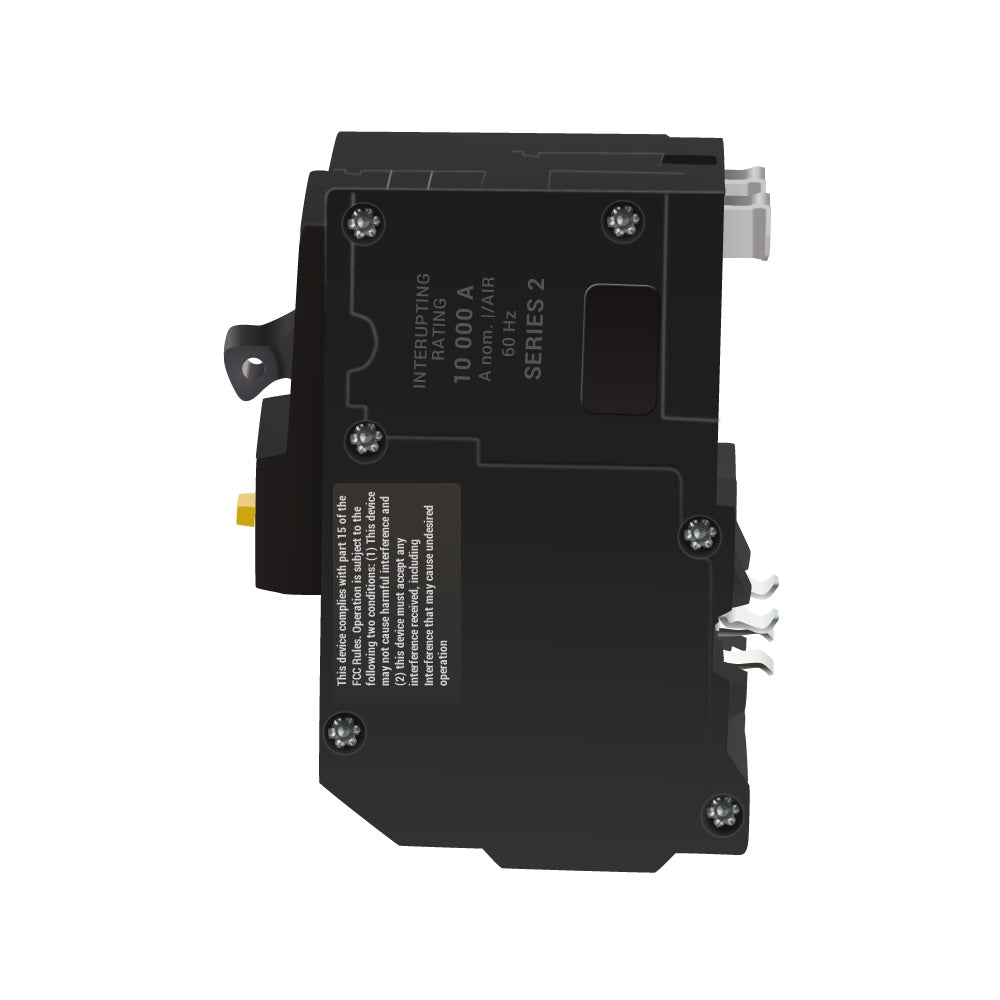

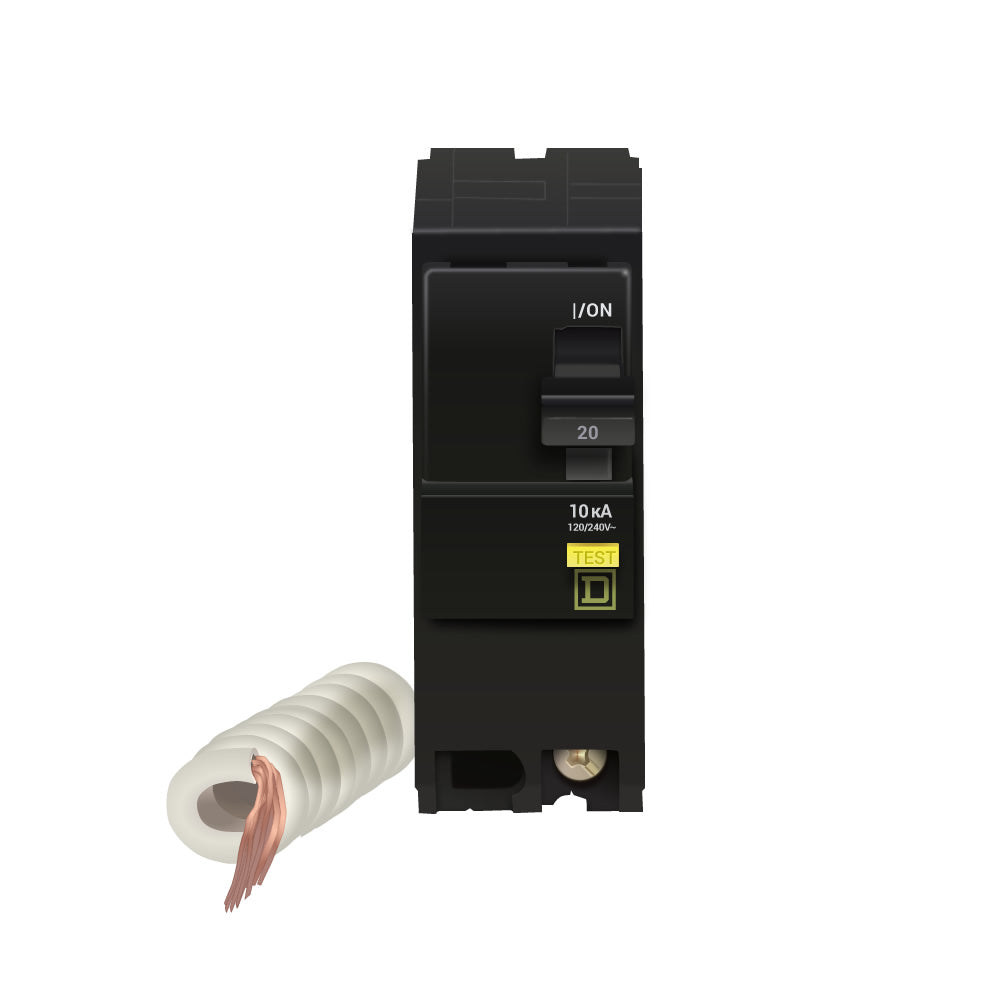

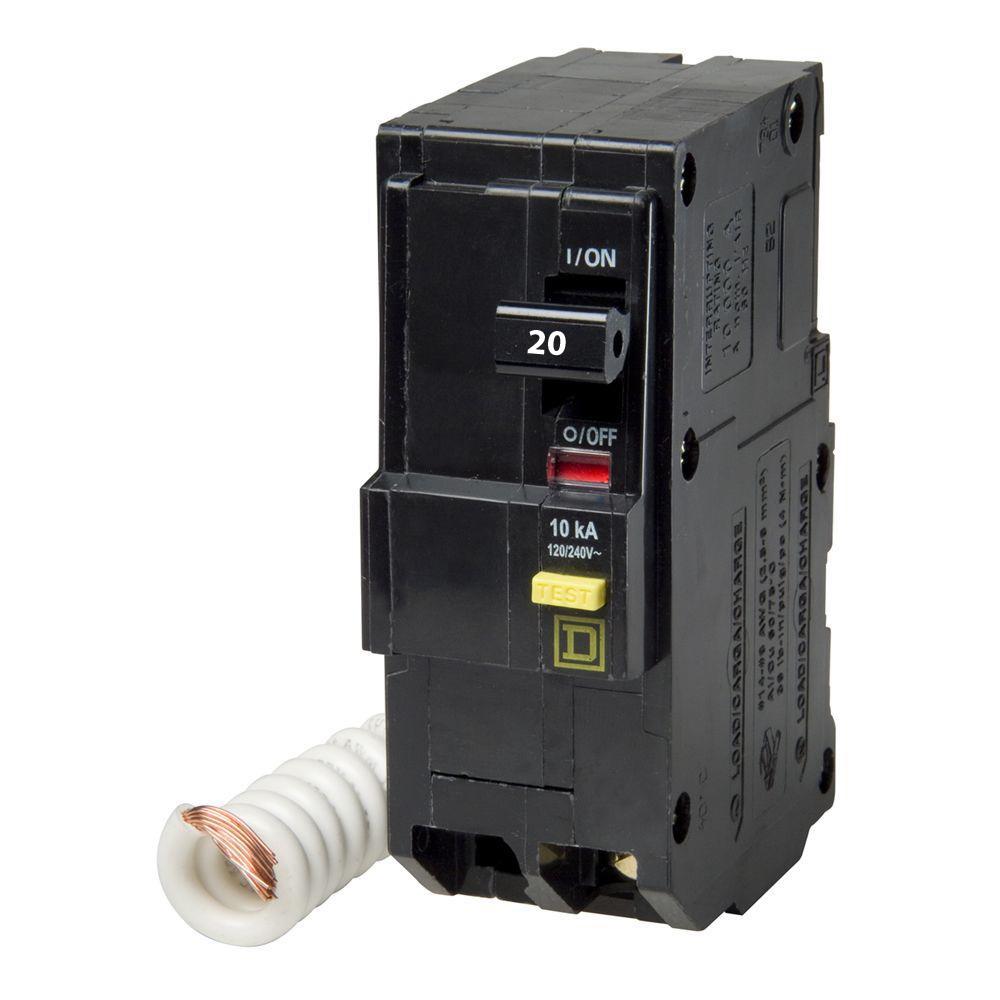

QO220GFI is a Square D 2 Pole 20 Amp 120/240 Volt Ground Fault Circuit Breaker designed for plug-in mounting in QO series load centers.This circuit breaker features thermal magnetic protection with long-time and instantaneous trip functions, a 10kA interrupting rating at 120/240VAC, and a pressure plate terminal connection. It includes Class A ground fault protection and a VISI-TRIP indicator for easy status identification. The breaker supports wire sizes from AWG 14 to AWG 8 copper and AWG 12 to AWG 8 aluminum, and is UL and CSA certified.

• Manufacturer: Square D
• Series: QO
• Amperage: 20A
• Voltage: 120/240VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10kAIC at 120/240VAC
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Connection Type: Pressure Plate
• Protection: Class A Ground Fault
• Certifications: UL, CSA
• Dimensions (HxWxD): 4.1 x 1.5 x 2.9 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO220GFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO-GF
• Voltage : 120/240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure plate
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901562993
• GTIN : 00785901562993
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.95 lb
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper, AWG 12 to AWG 8, Aluminum
