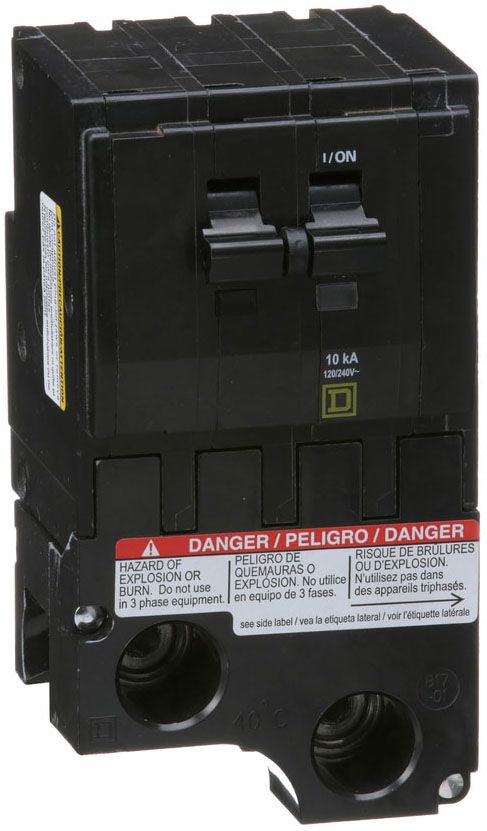

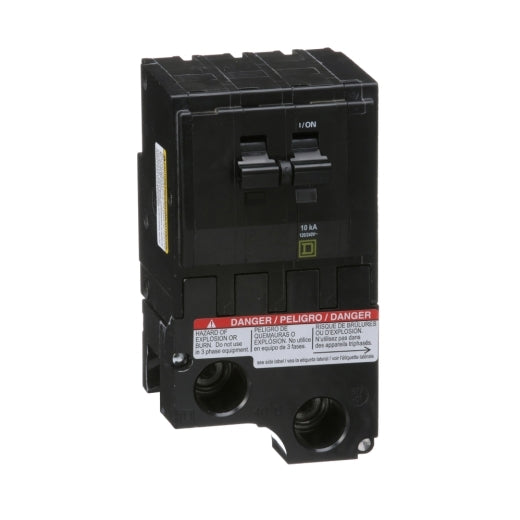

QO2175 - Square D 175A 2-Pole Plug-On Circuit Breaker, 120/240V, QO Series, 10kA Interrupt, VISI-TRIP, UL Listed, CSA Certified

QO2175

QO2175 is a Square D 2-pole, 175-amp, plug-on circuit breaker designed for reliable overload and short circuit protection in residential and light commercial applications.

This thermal magnetic molded case circuit breaker features a VISI-TRIP trip indicator for easy diagnostics, a compact plug-on design for fast installation, and is compatible with Square D QO load centers, NQ & NQOD panelboards/interiors, and Speed-D switchboard distribution panels. It is UL Listed and CSA Certified for safety and compliance.

Key Specifications
• Part Number: QO2175
• Manufacturer: Square D (Schneider Electric)
• Amperage: 175A
• Voltage: 120/240V AC
• Poles: 2
• Mounting Type: Plug-On
• Interrupt Rating: 10kA @ 120/240V AC
• Series/Frame: QO
• Trip Unit: Thermal Magnetic, Common Trip
• Terminal Type: Box Lugs
• Certifications: UL Listed, CSA Certified
• Application: Overload and short circuit protection
• Features: VISI-TRIP indicator, compact design

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO2175
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO
• Voltage : 120/240
• Amperage : 175
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 1/0 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901430520
• GTIN : 00785901430520
• Country of Origin : Mexico
• Dimensions : 3.5 in (89 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 2.551
• Panel Type : Load center QO
• Standards : CSA Certified, HACR, UL Listed
• Certification : HACR, UL Listed
• Wire Size : AWG 1 to 300KCmil, Copper or Aluminum
