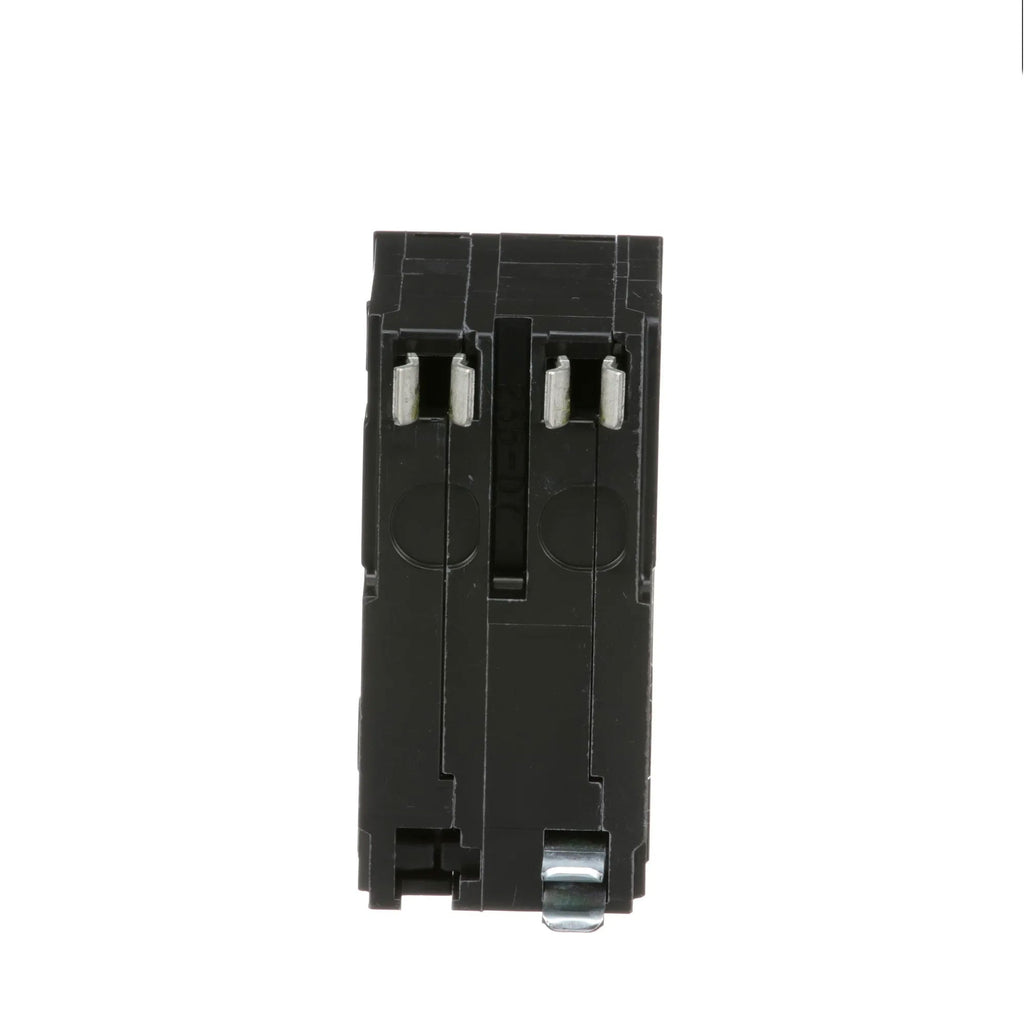

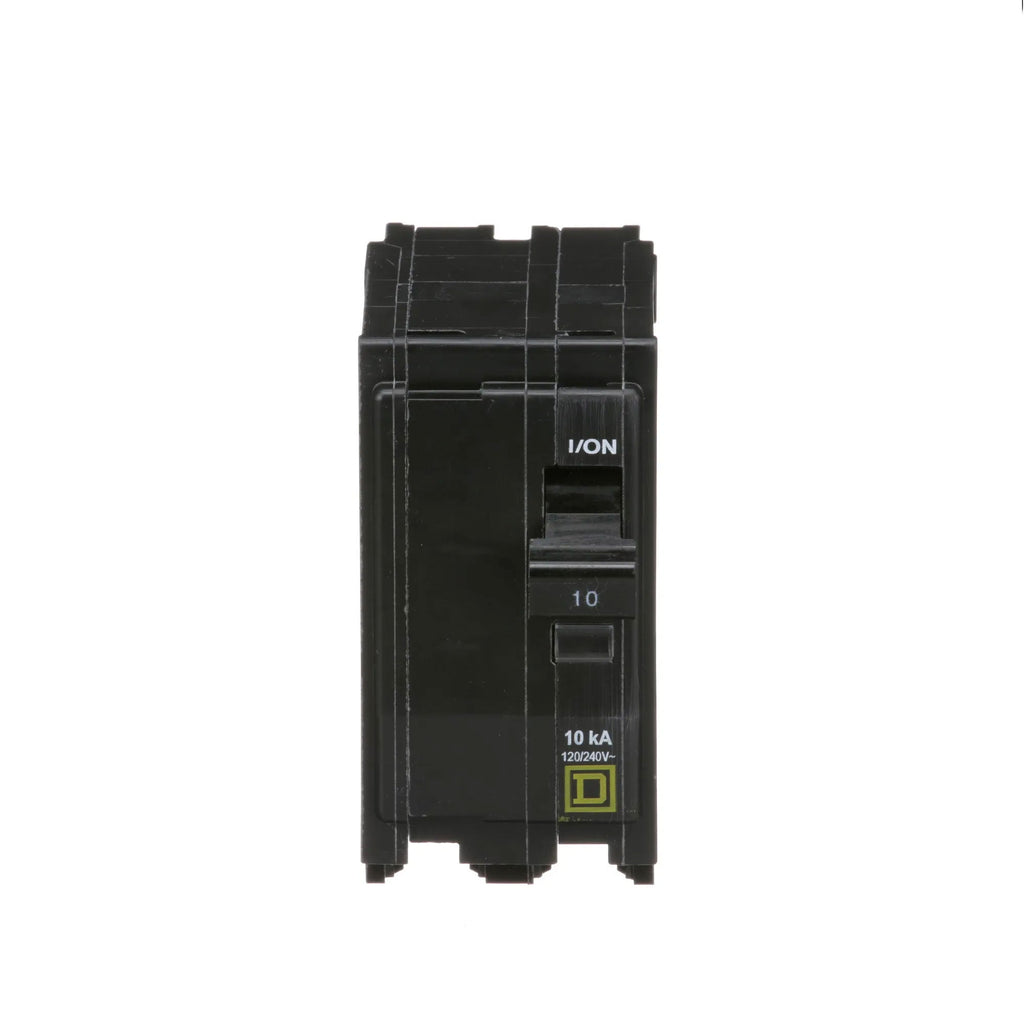

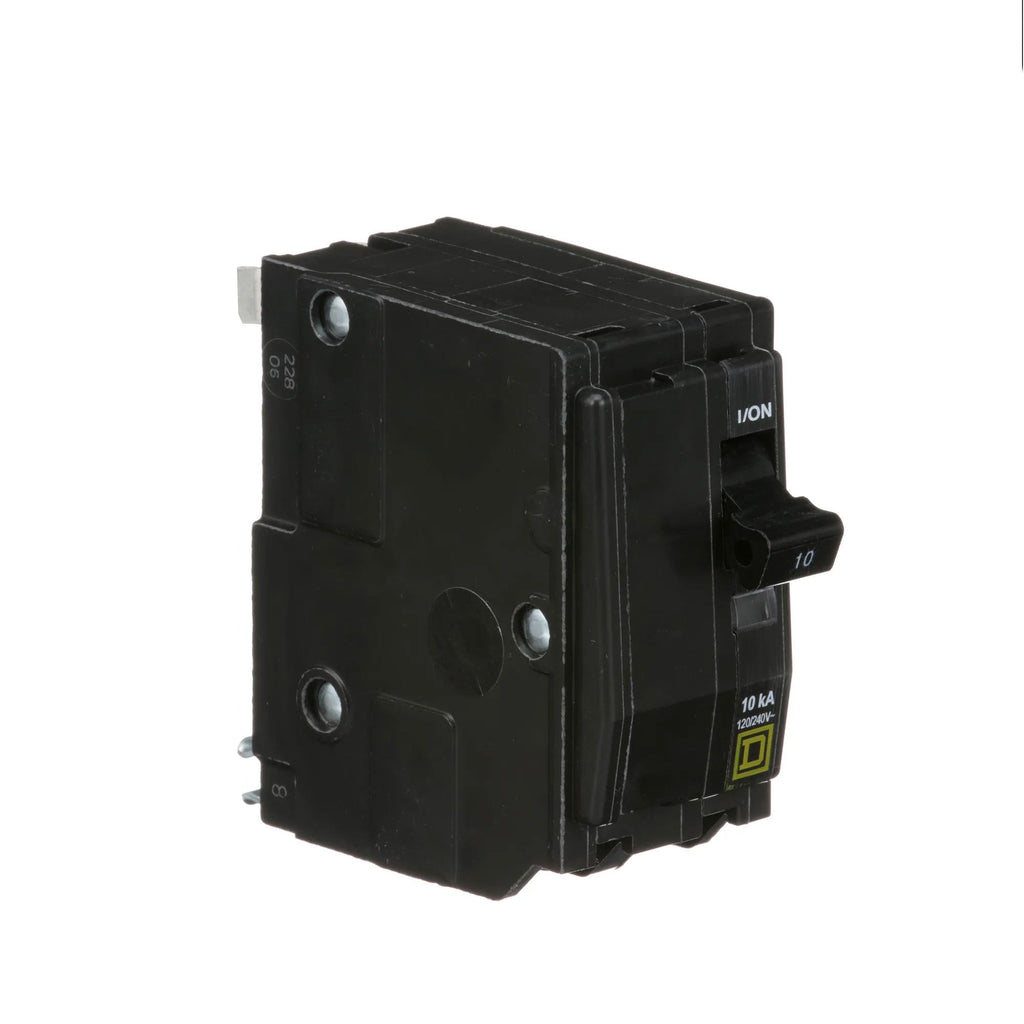

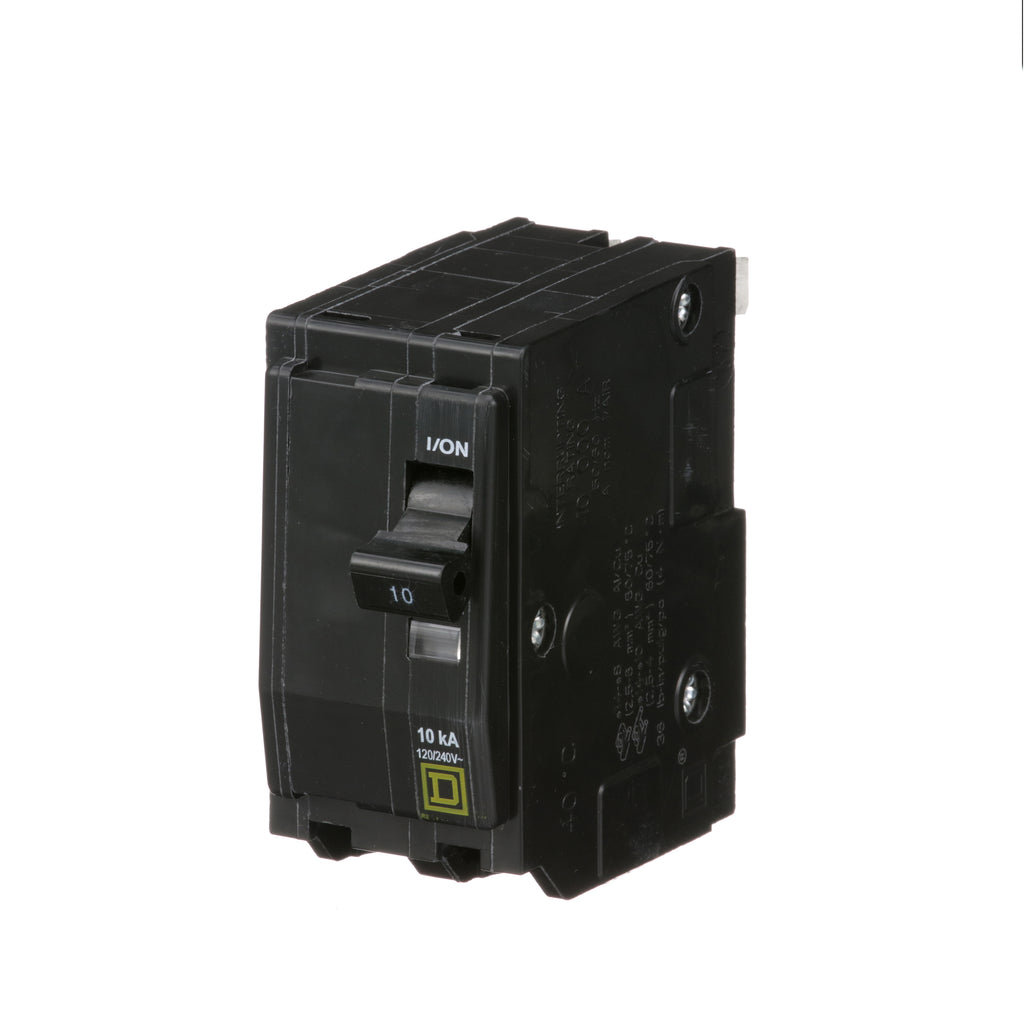

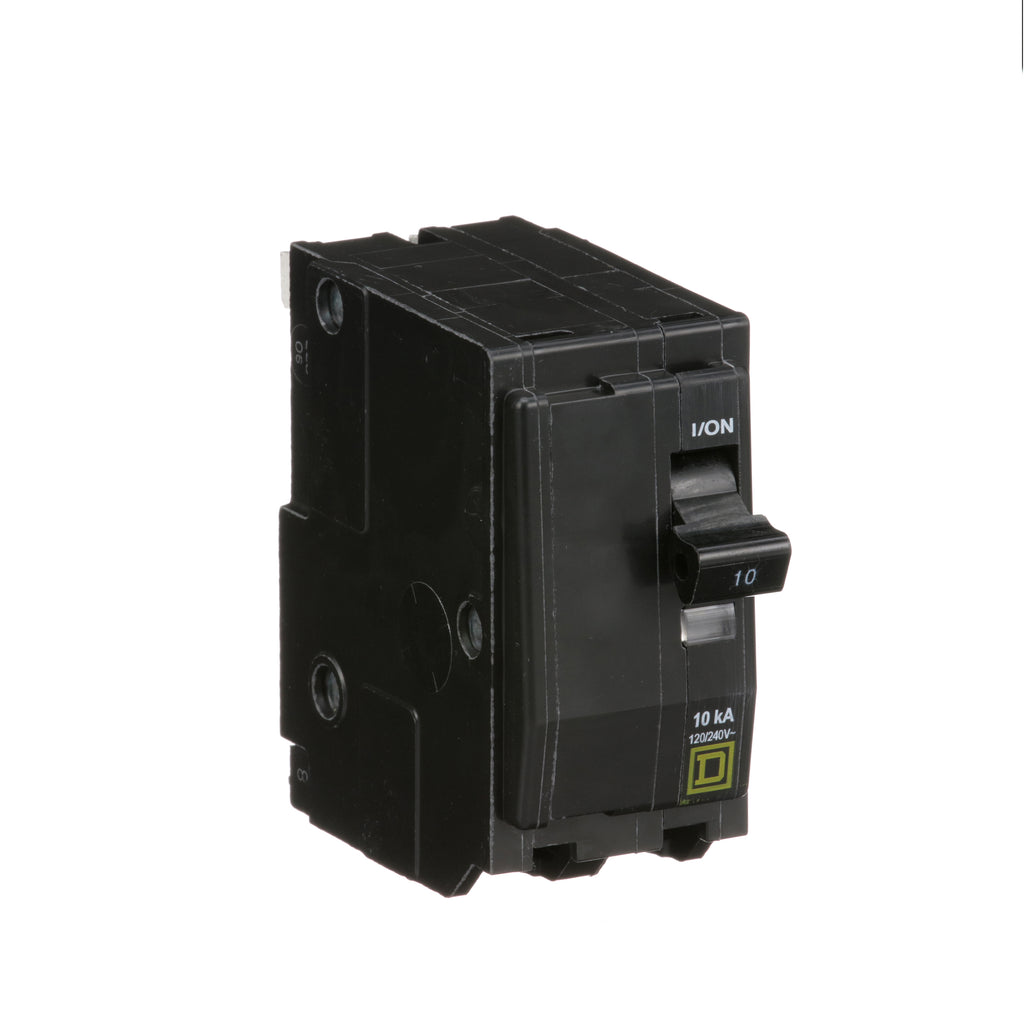

QO210 - Square D 10 Amp 120/240V 2 Pole Plug-In Circuit Breaker QO Series

QO210

QO210 is a Square D 2 Pole 10 Amp circuit breaker designed for 120/240VAC applications.This QO series circuit breaker features a thermal magnetic trip unit with long-time and instantaneous trip functions, a 10kA interrupting rating at 120/240VAC, and a plug-in mounting type. It includes pressure plate terminal connections and meets UL and CSA certifications. The breaker supports wire gauges from AWG 14 to AWG 8 for copper or aluminum wiring and is HACR rated for HVAC applications.

• Amperage: 10 Amp
• Voltage: 120/240VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10kAIC at 120/240VAC
• Series/Frame: QO
• Trip Unit: Thermal Magnetic with LI functions
• Terminal Connection: Pressure Plate
• Certifications: UL, CSA
• Wire Gauge: AWG 14 to AWG 8 Copper or Aluminum
• Standards: HACR

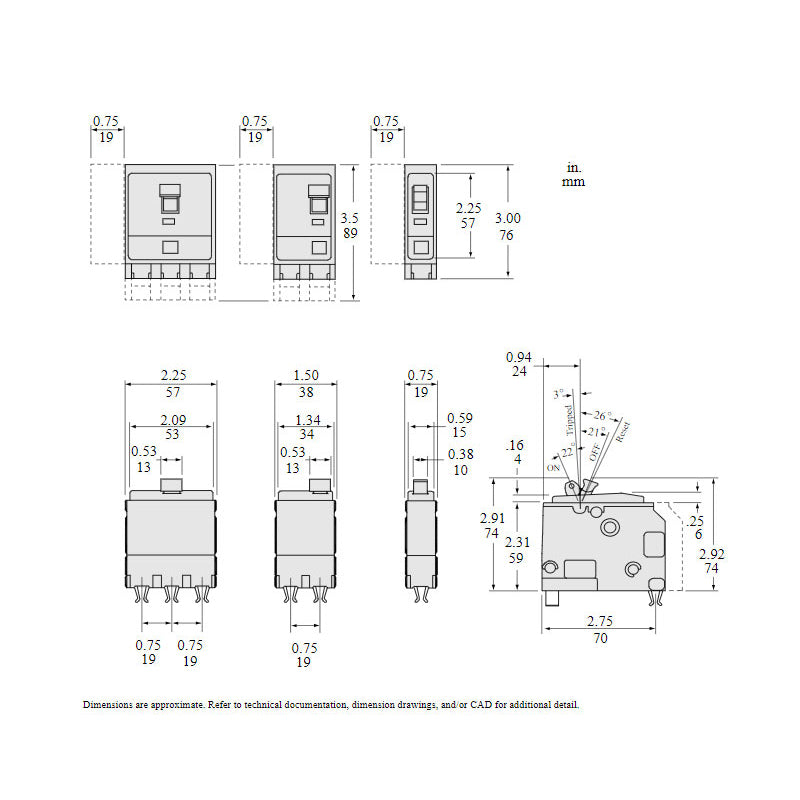

• Dimensions (LxWxH): 2.9 x 1.5 x 3.0 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO210
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 120/240
• Amperage : 10
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure plate
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901205609
• GTIN : 00785901205609
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.53
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper or Aluminum
