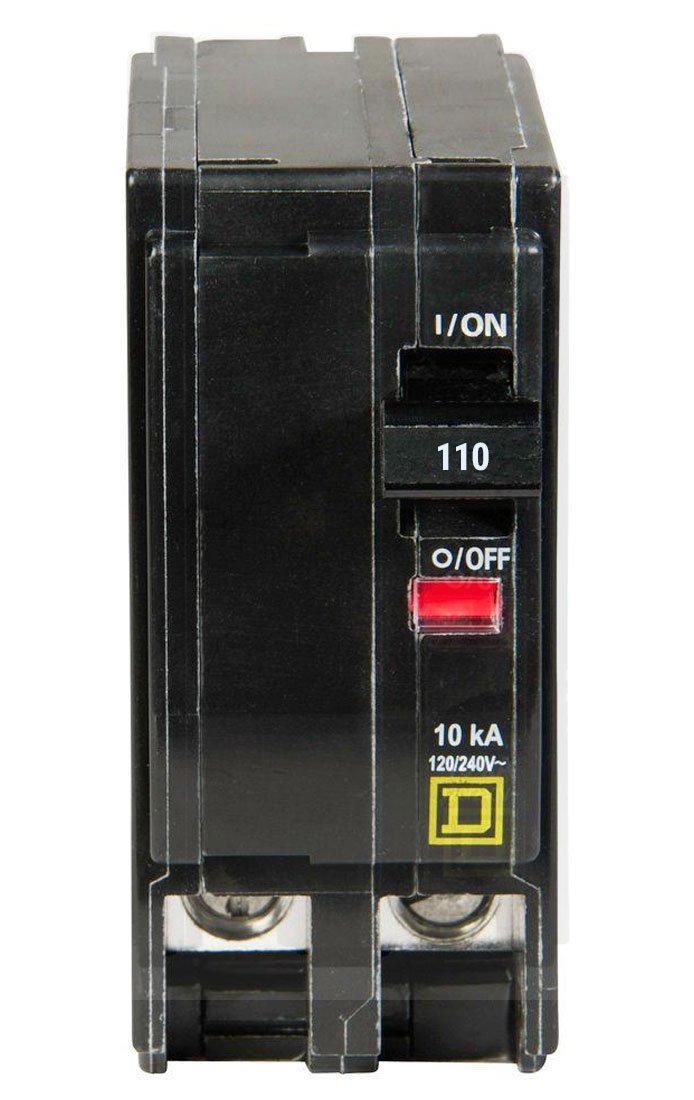

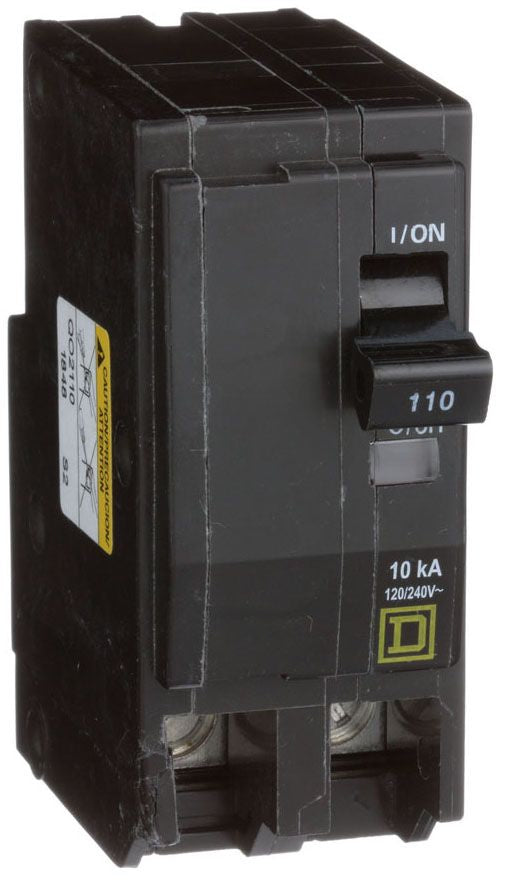

QO2110 - Square D 110 Amp 2 Pole 120/240V Circuit Breaker Plug-In 10kA Interrupt

QO2110

This thermal magnetic circuit breaker from the QO series provides reliable overcurrent protection with a common trip mechanism. It features a plug-in mount for easy installation in Square D QO residential panels, supports 1 phase, and has a 10,000 Amp interrupting capacity. The breaker is UL listed and CSA approved, ensuring safety and compliance with industry standards.

Key Specifications
• Amperage: 110 Amp
• Voltage: 120/240 VAC
• Poles: 2 Pole
• Mounting Type: Plug-In
• Interrupt Rating: 10,000 Amps (10kA)
• Series/Frame: QO Series
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CSA Approved
• Phase: Single Phase
• Connection: Box Lug Load Side
• Dimensions: Approx. 3.5" H x 1.5" W x 3" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: QO2110
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO
• Voltage : 120/240
• Amperage : 110
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 1/0 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic



Product Data

• UPC : 785901031086
• GTIN : 00785901031086
• Country of Origin : Mexico
• Dimensions : 3.5 in (89 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.71
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, HACR, UL Listed
• Certification : HACR, UL Listed
• Wire Size : AWG 4 to AWG 2/0, Copper or Aluminum
