QO2100CP - Square D 100 Amp 2-Pole 120/240V Mini Circuit Breaker Plug Mount

QO2100CP

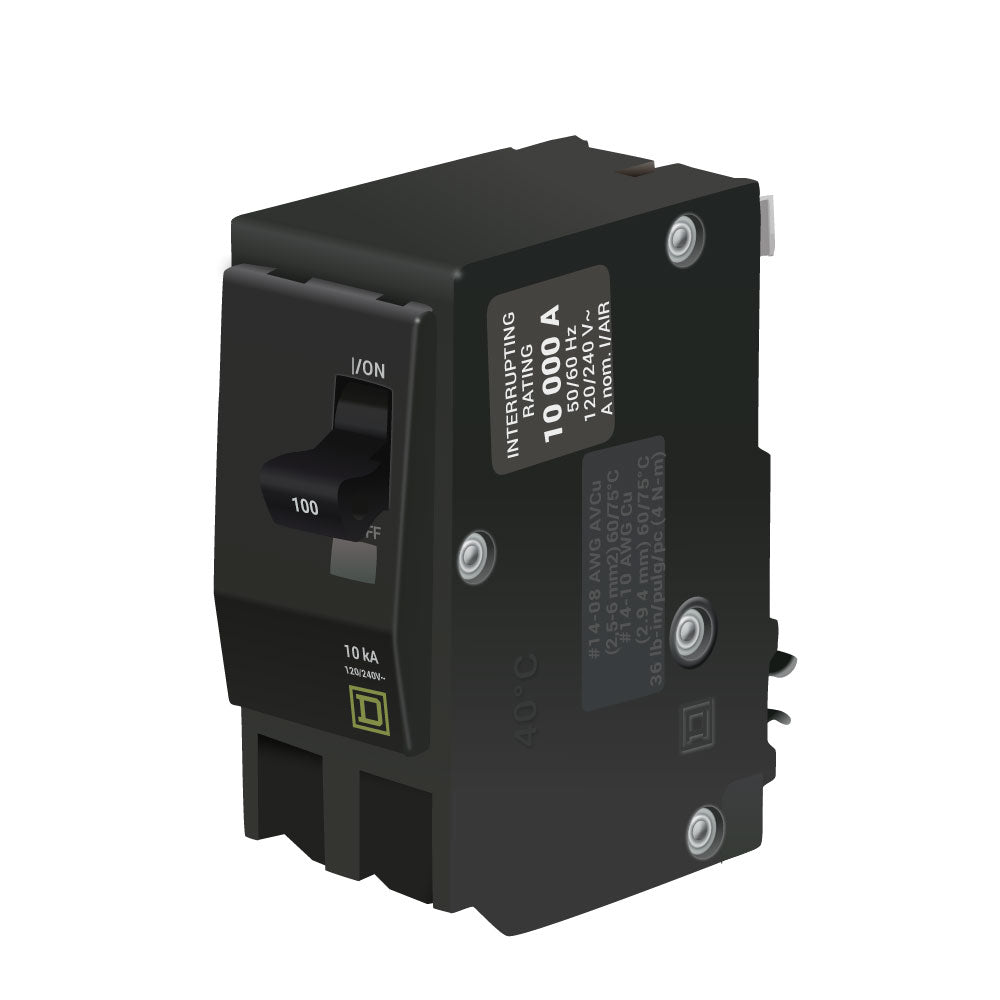

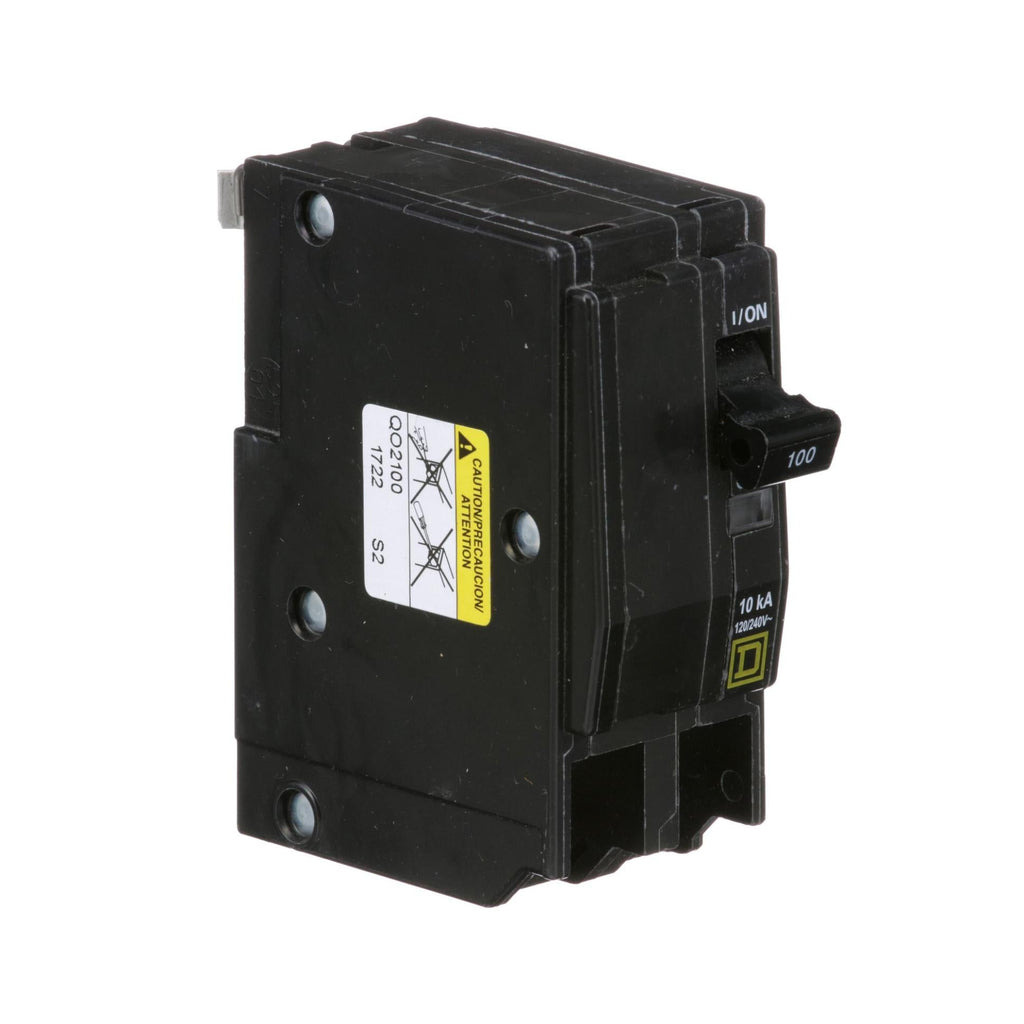

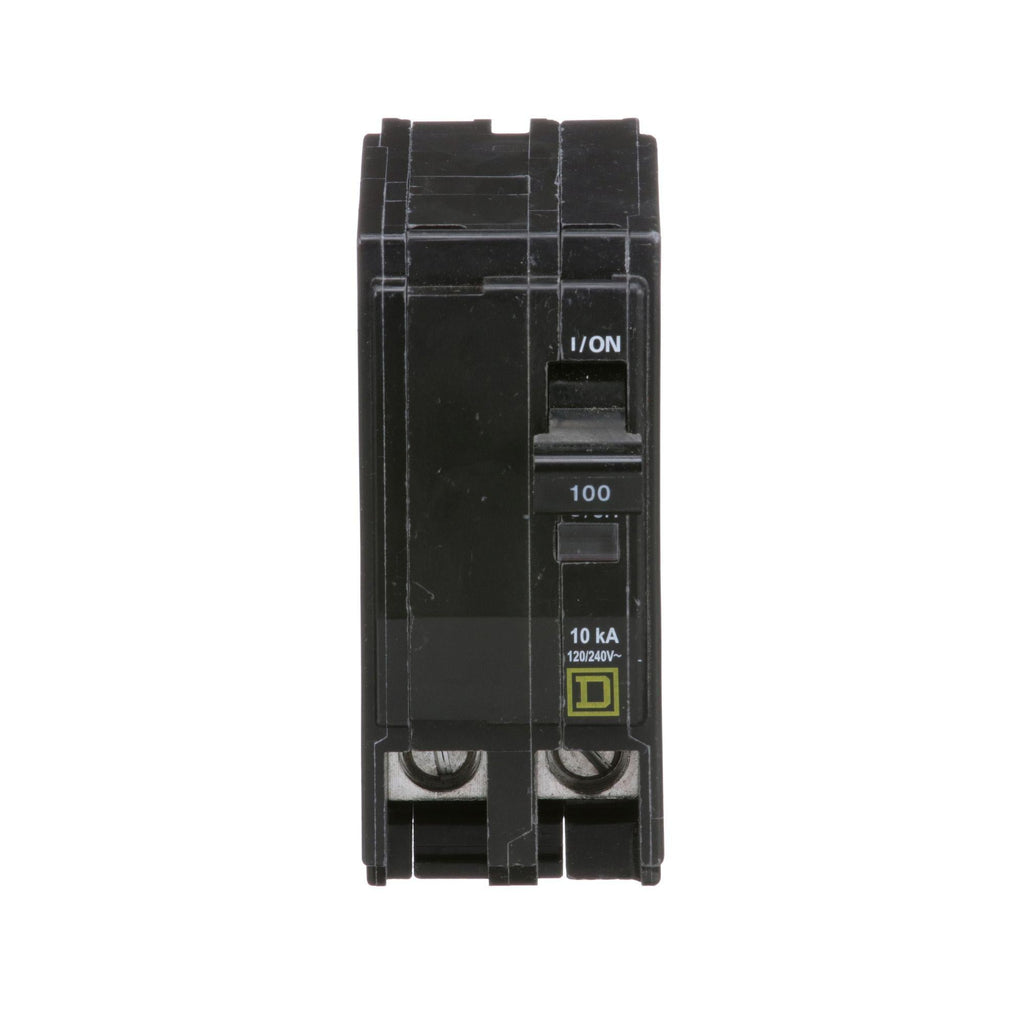

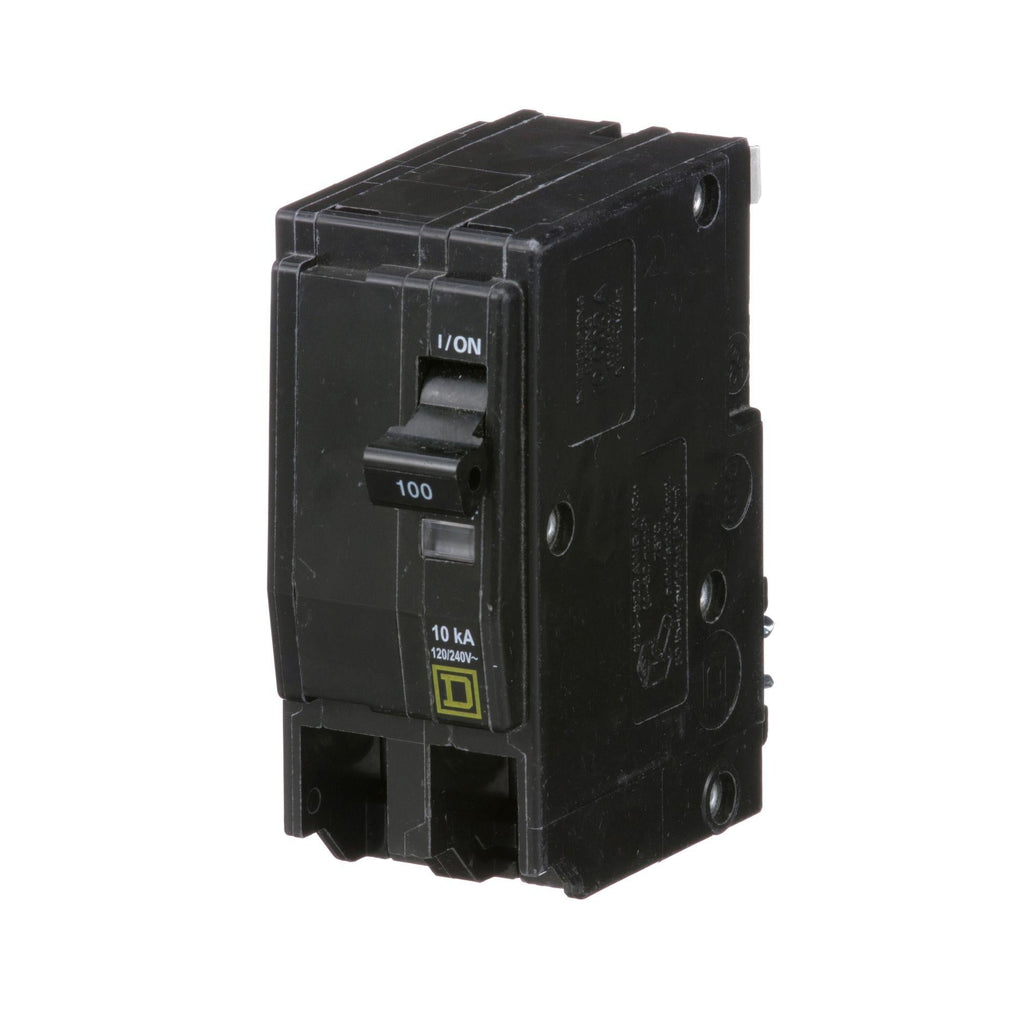

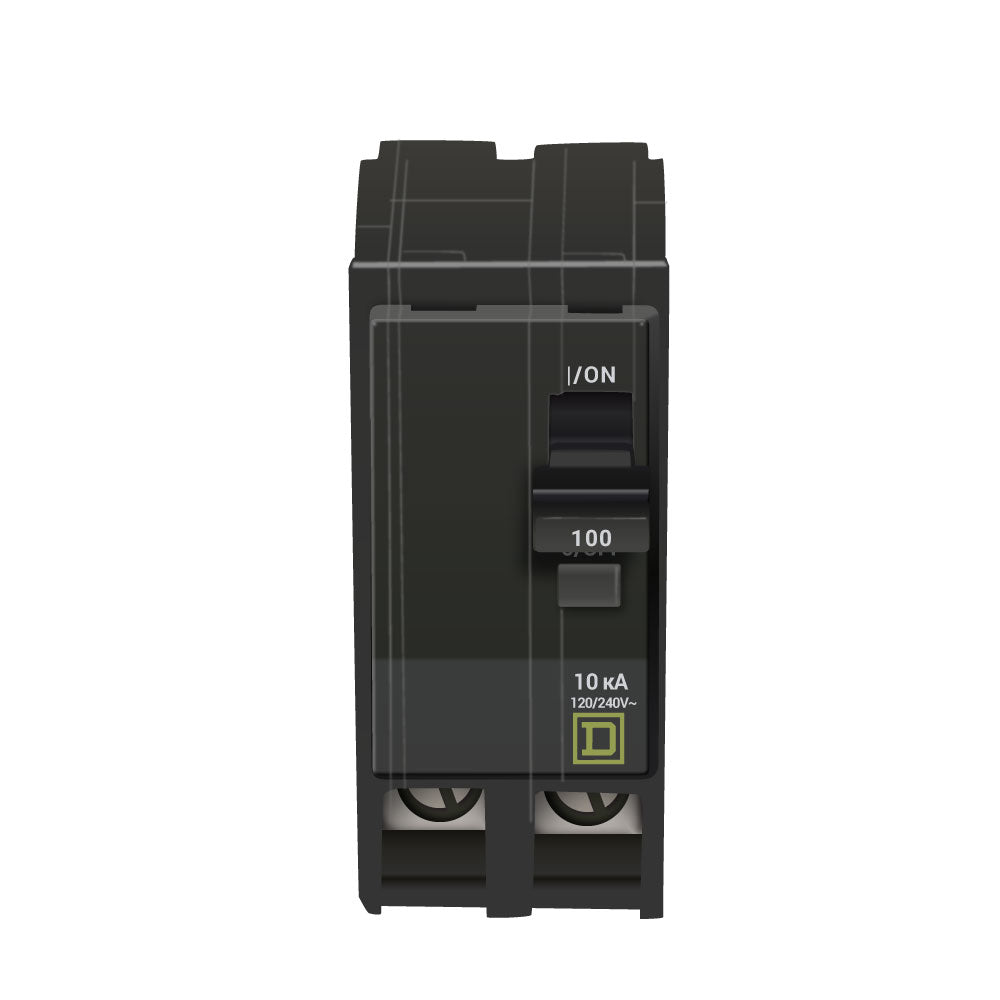

QO2100CP is a Square D 100 Amp 2-Pole Mini Circuit Breaker designed for 120/240 VAC and 48 VDC applications with plug mounting.This circuit breaker features a thermal magnetic trip unit with a 10kA interrupt rating at 240V, compact 3/4 inch width per pole, and the exclusive Qwik-Open protection for fast trip reaction. It includes the red Visi-Trip indicator for easy trip detection and is UL listed for safety and reliability.

• Amperage: 100 Amp
• Voltage Rating: 120/240 VAC, 48 VDC
• Number of Poles: 2

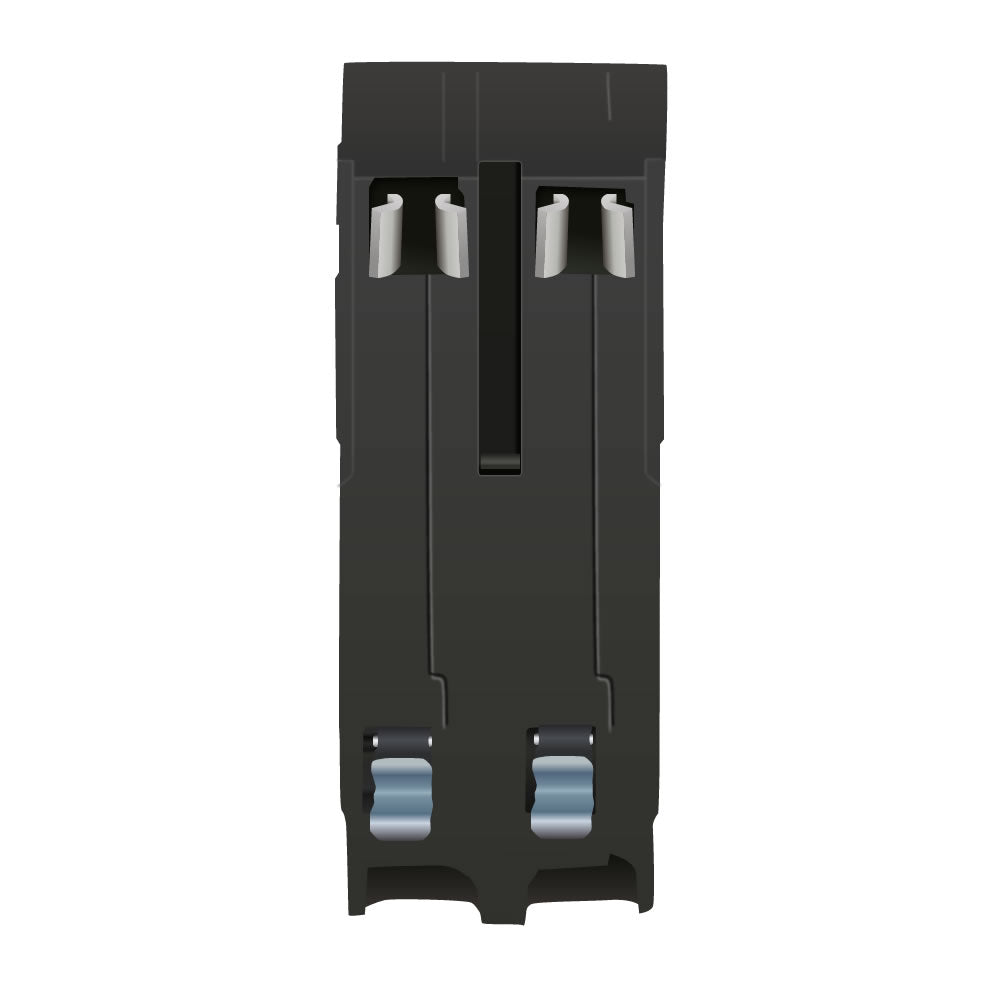

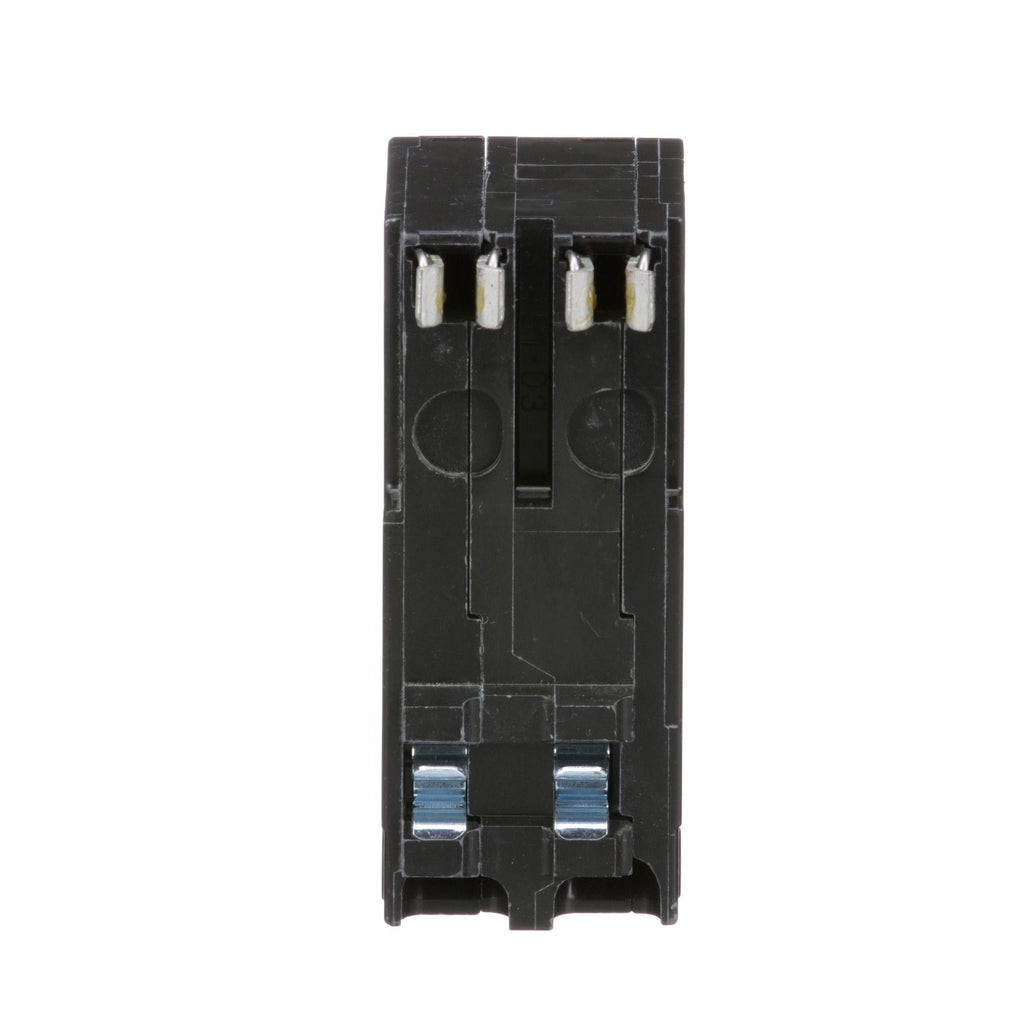

• Mounting Type: Plug-In

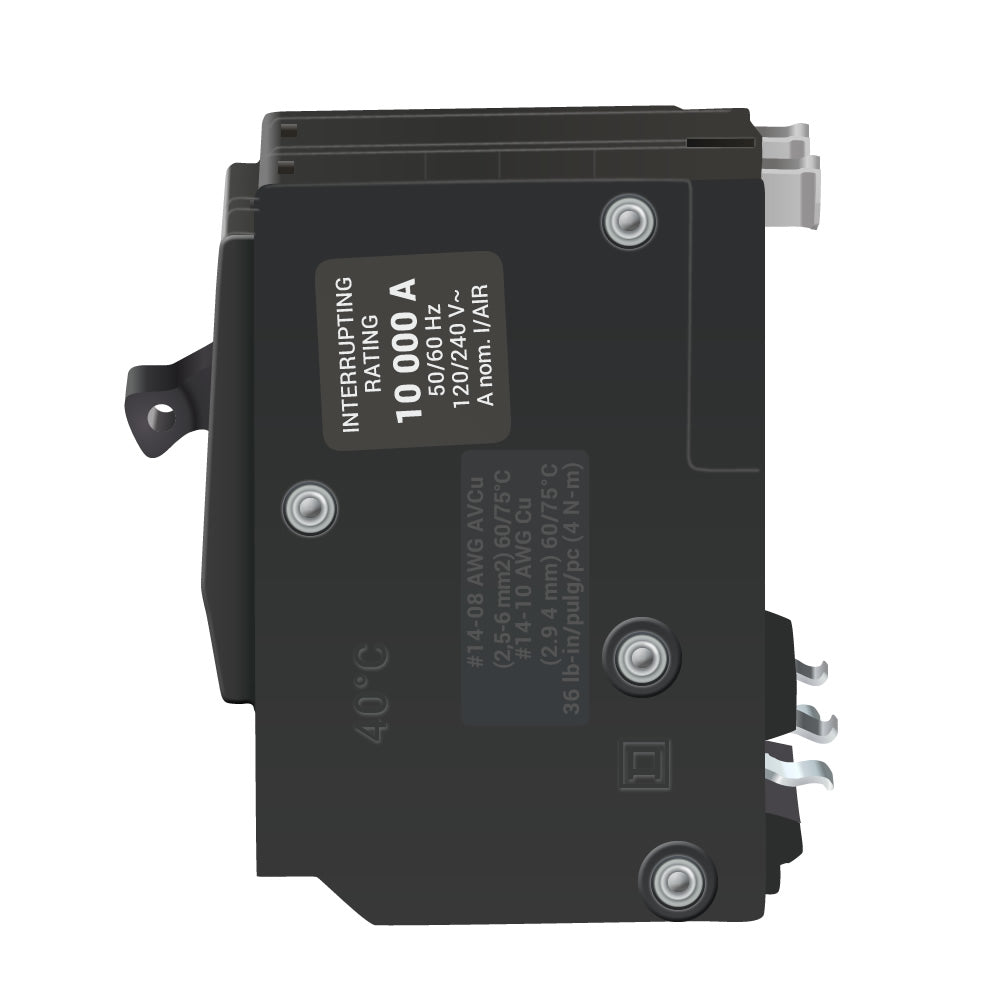

• Interrupt Rating: 10,000 AIC at 240V
• Type: Mini QO Series
• Trip Unit: Thermal Magnetic
• Dimensions: 1.5 in W x 2.91 in D x 3.5 in H
• Color: Black
• Operating Frequency: 50/60 Hz
• UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO2100CP
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Box Lugs
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 047569522291
• GTIN : 00047569522291
• Country of Origin : Mexico
• Dimensions : 3.5 in (89 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.7
• Standards : UL Listed, CSA
• Certification : UL Listed, CSA
• Wire Size : AWG 4 to AWG 2/0, Copper or Aluminum
