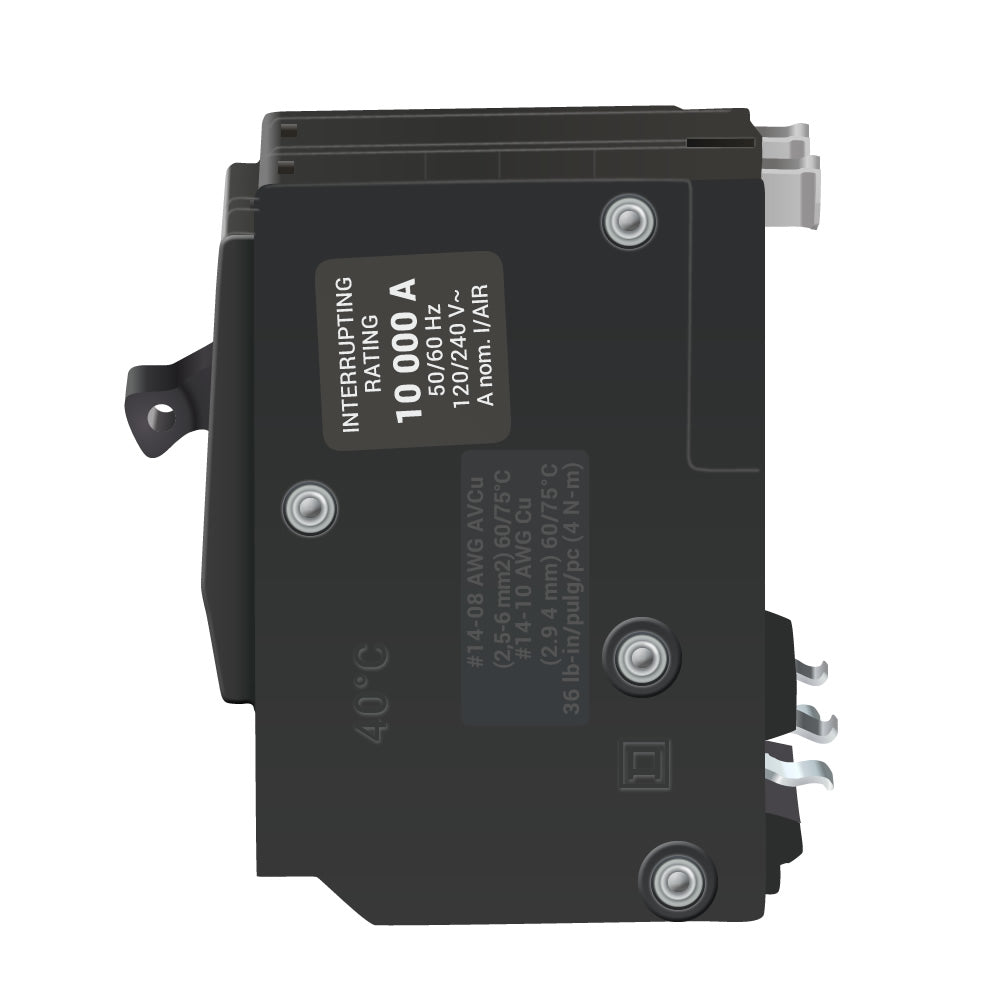

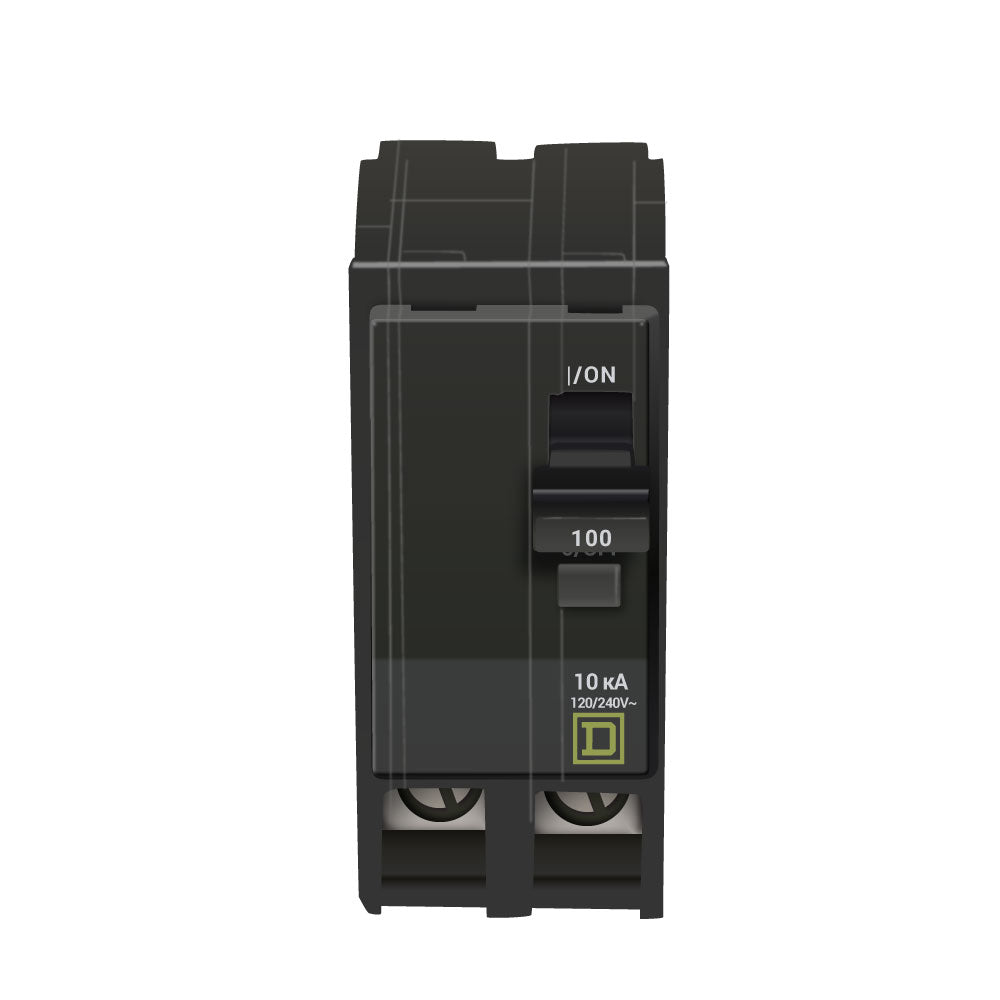

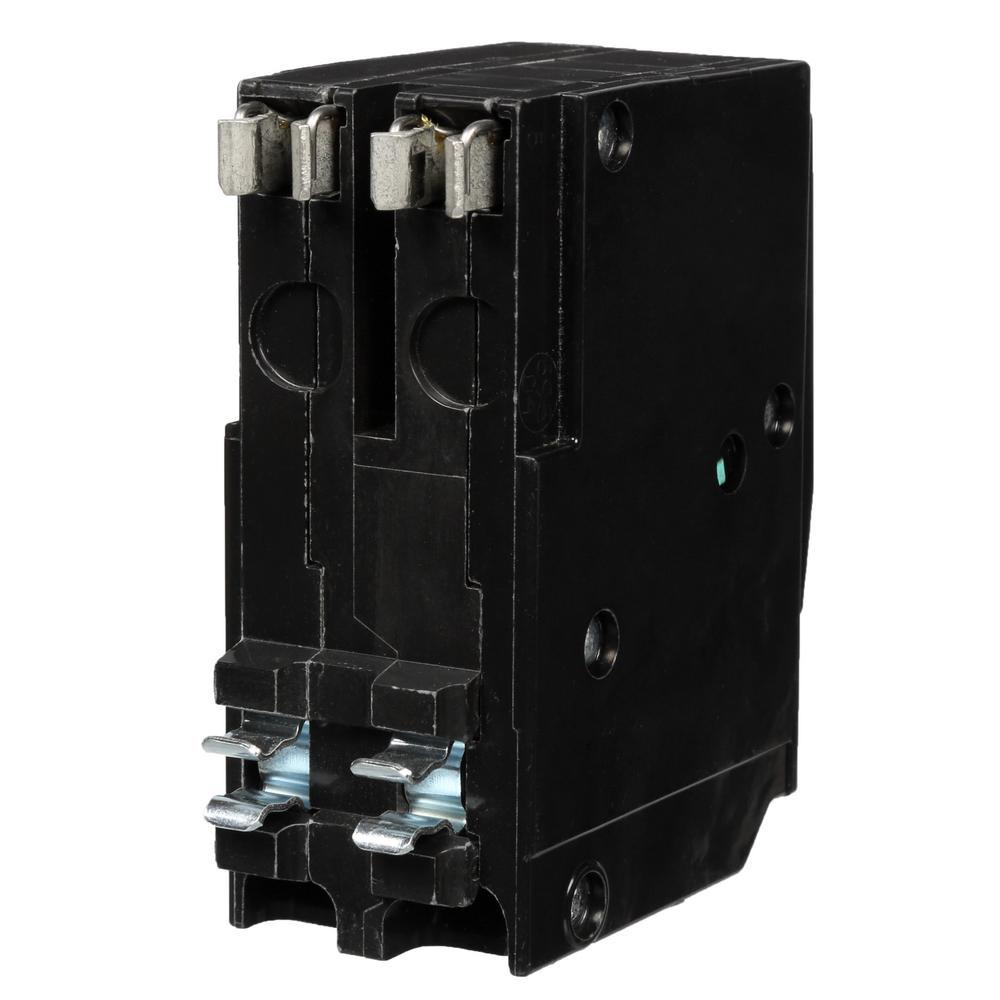

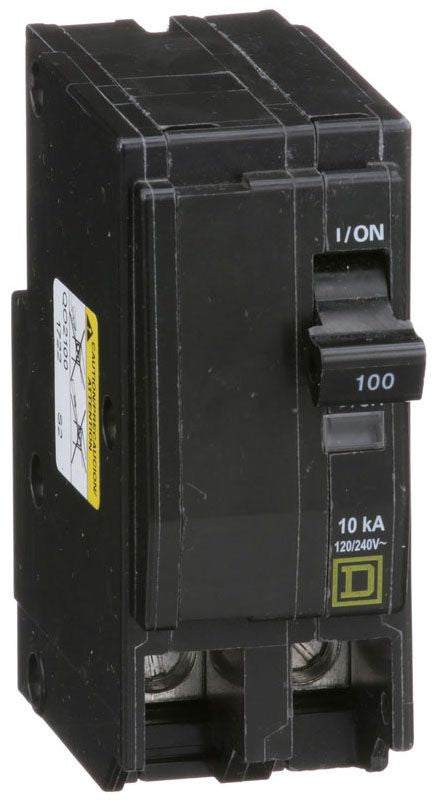

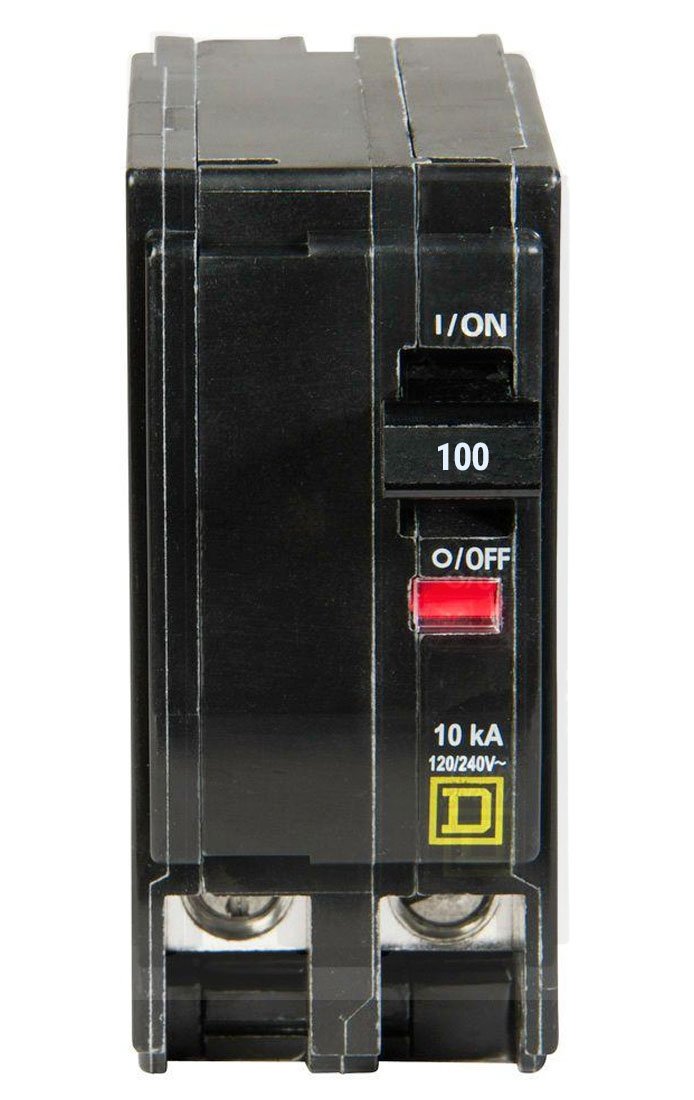

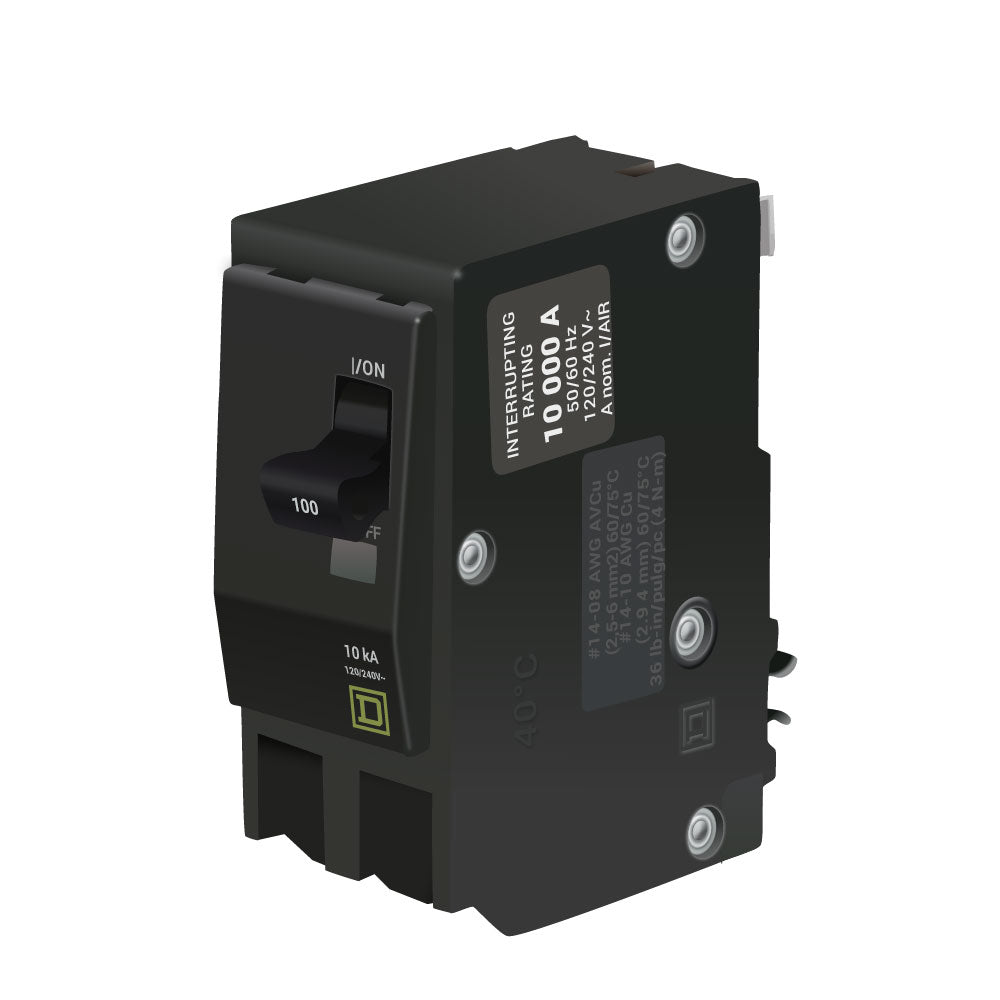

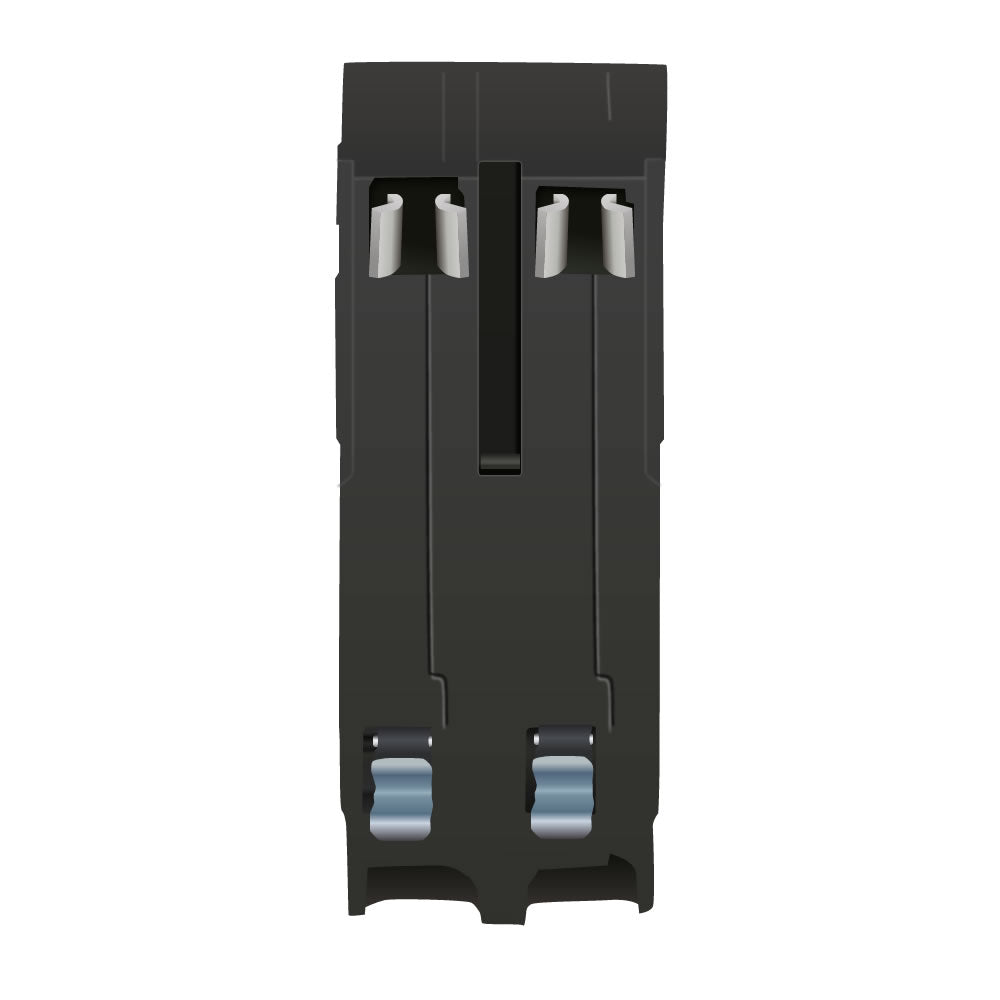

QO2100 - Square D 100 Amp 2 Pole 120/240V QO Series Miniature Circuit Breaker Plug-In

QO2100

QO2100 is a Square D 100 Amp, 2 Pole miniature circuit breaker designed for 120/240 VAC applications with a 10 kA interrupt rating.This QO Series circuit breaker features a plug-in mounting type, common trip thermal magnetic trip unit, and box lug terminals suitable for #4 to #2/0 AWG aluminum or copper conductors. It provides reliable overload and short-circuit protection with UL and CSA certifications.

Key Specifications
• Amperage: 100 Amps
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10 kA
• Series/Frame: QO Series
• Trip Unit: Common Trip, Thermal Magnetic
• Terminal Type: Box Lug
• Certifications: UL Listed, CSA Certified
• Frequency Rating: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO2100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO
• Voltage : 120/240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 1/0 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 78590150130
• GTIN : 00785901501305
• Country of Origin : Mexico
• Dimensions : 3.5 in (89 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.71 lb
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, HACR, UL Listed
• Certification : HACR, UL Listed
• Wire Size : AWG 4 to AWG 2/0, Copper or Aluminum
