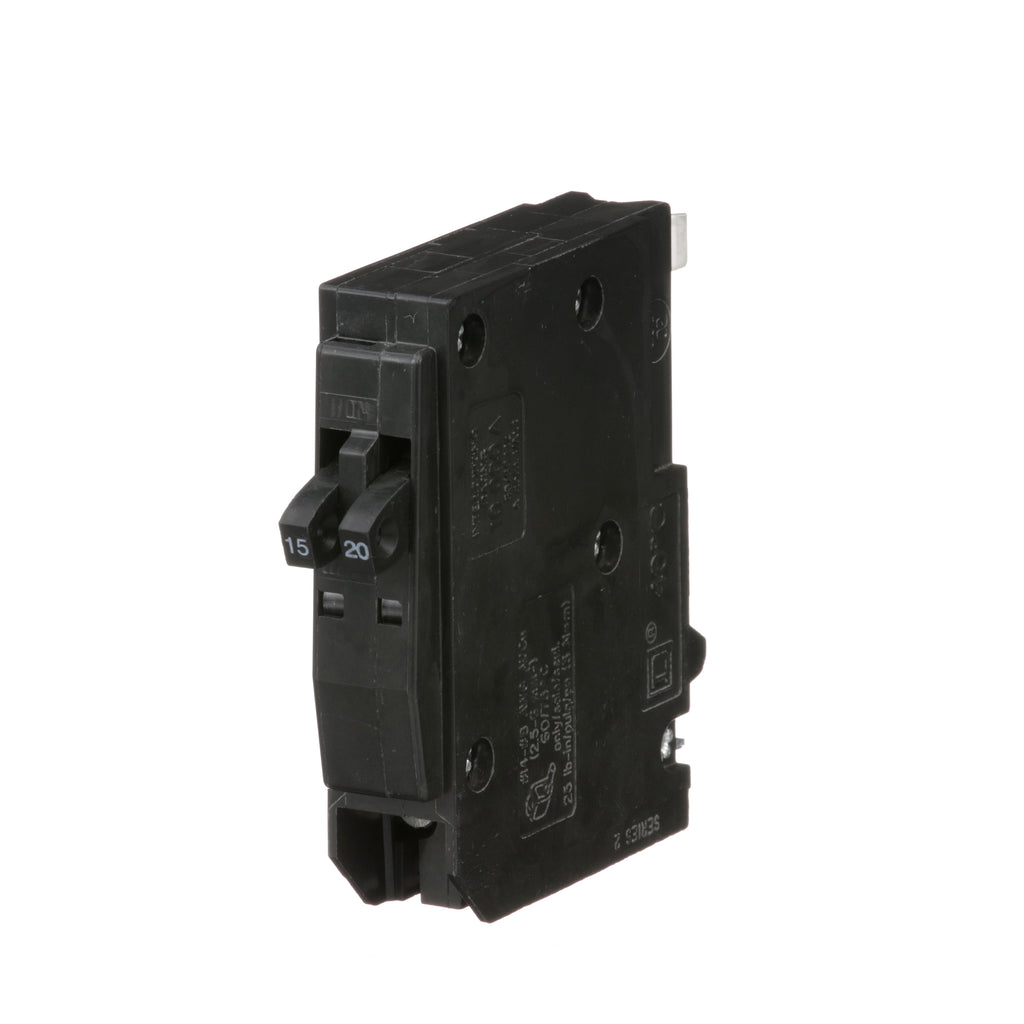

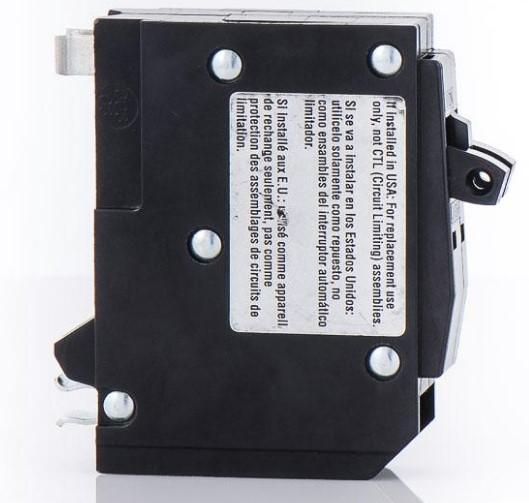

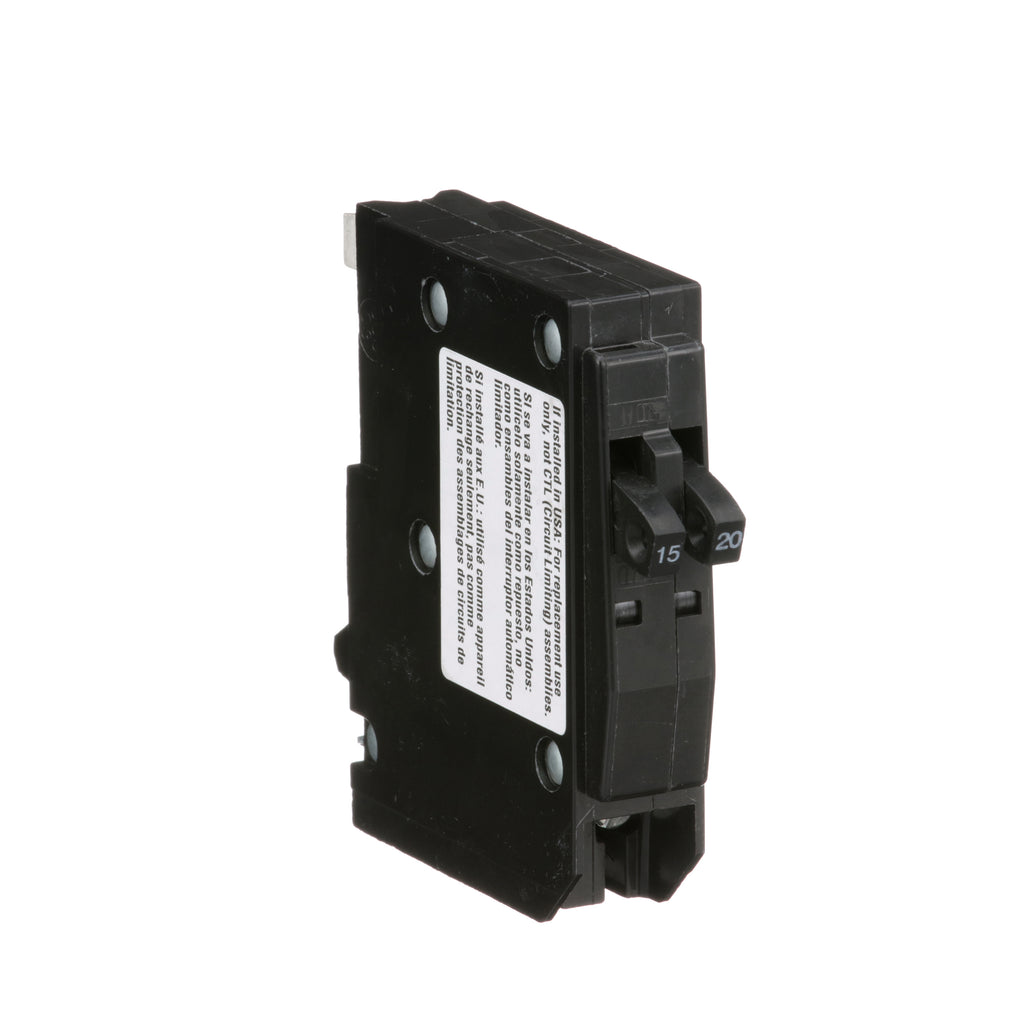

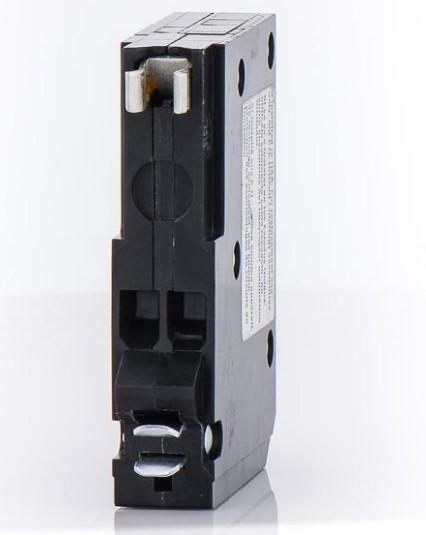

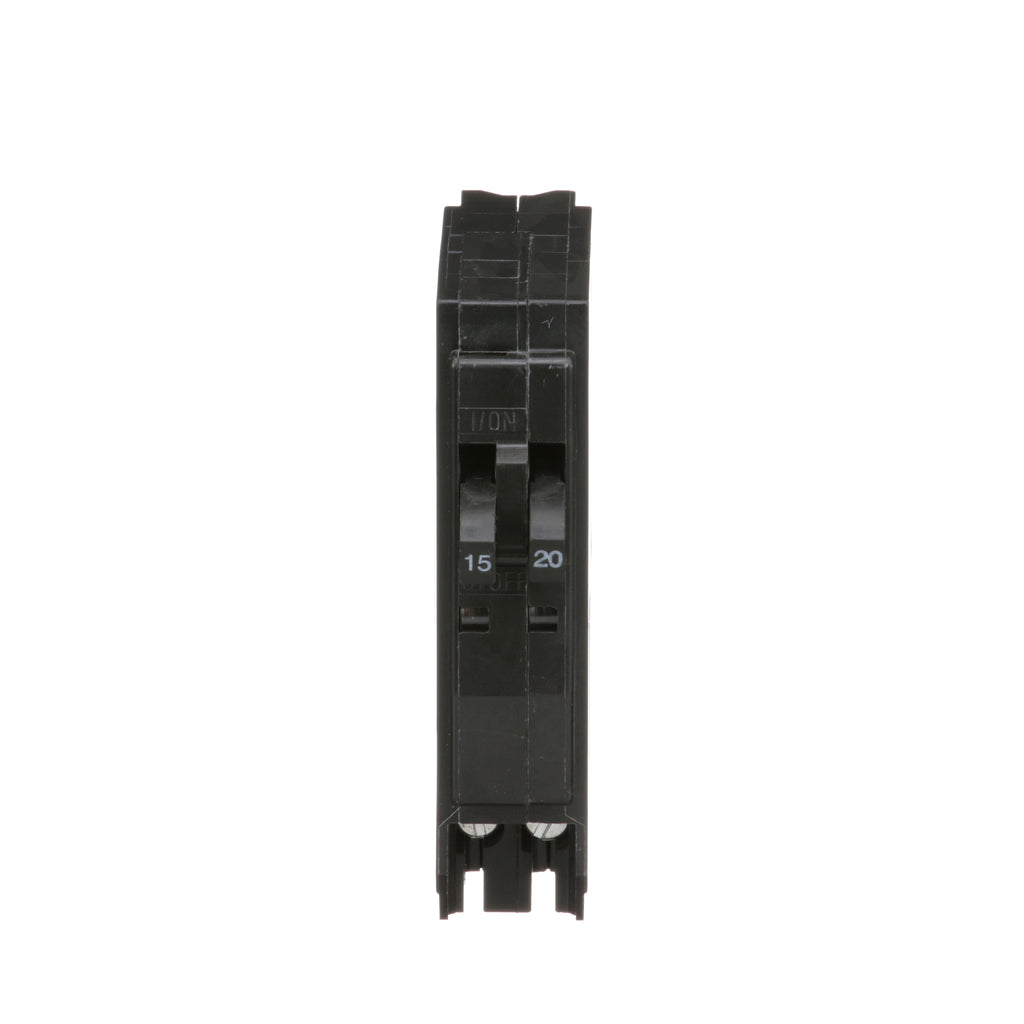

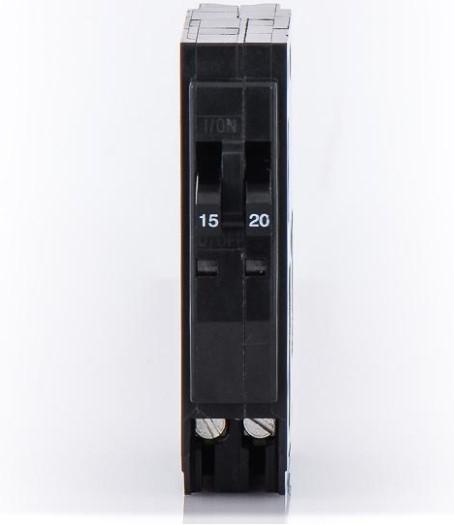

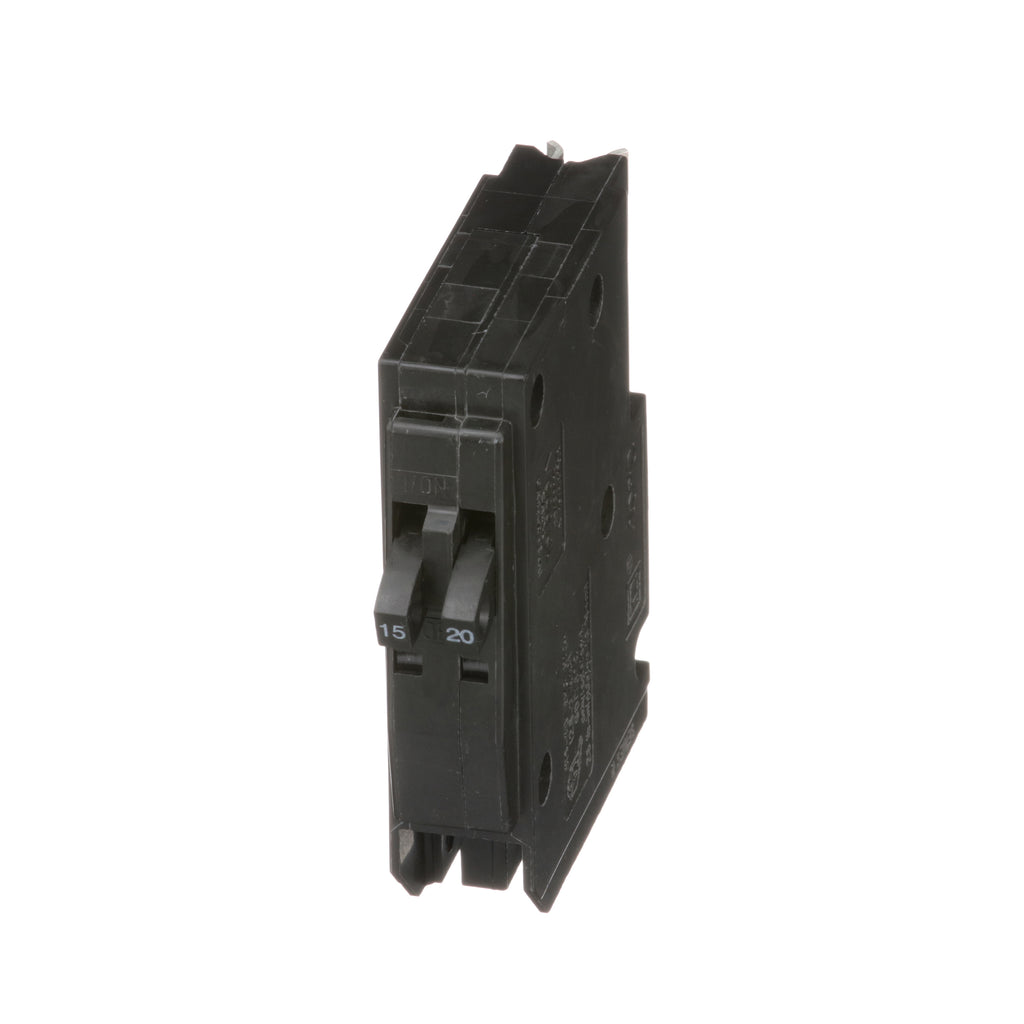

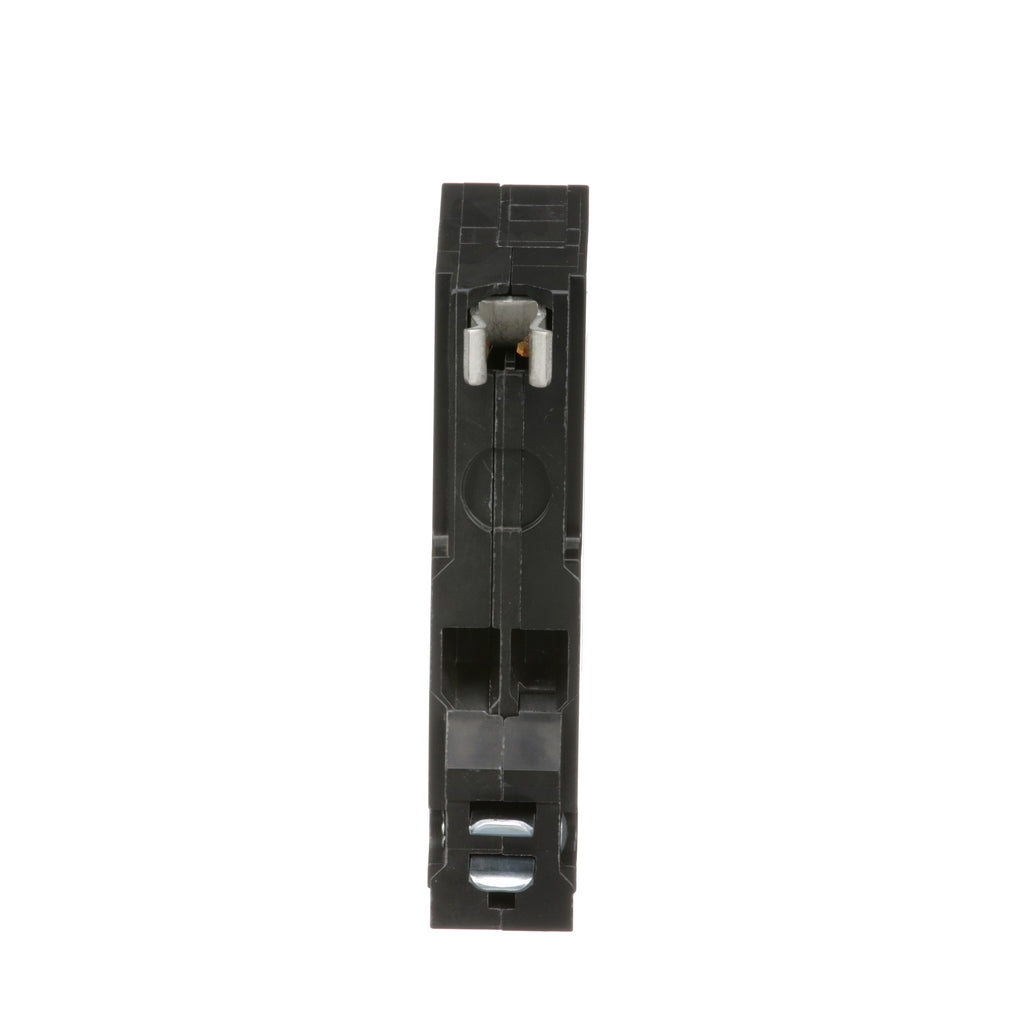

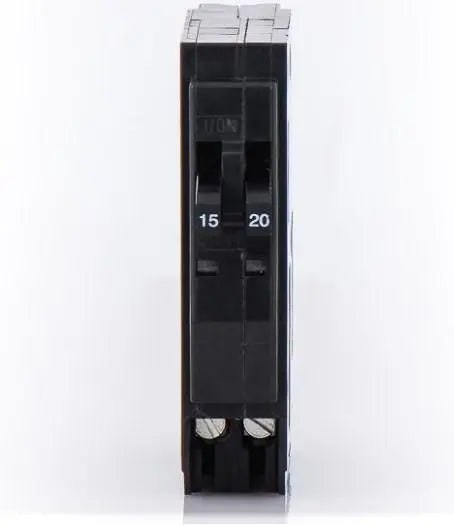

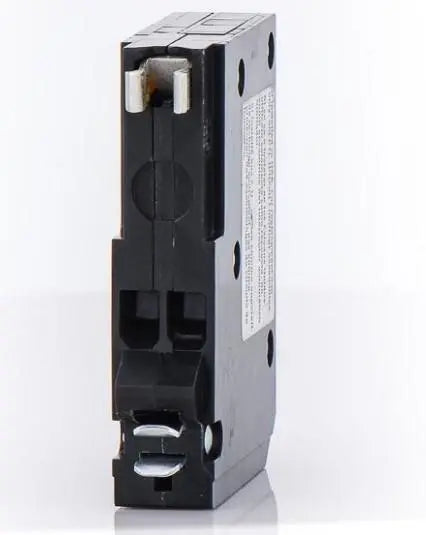

QO1520 - Square D 15/20A 120/240V Tandem Miniature Circuit Breaker 1-Pole Plug-In Mount

QO1520

QO1520 is a Square D tandem miniature circuit breaker designed for use in QO load centers, offering dual 15A and 20A single-pole protection in a compact plug-in design. This thermal magnetic molded case circuit breaker provides reliable protection for branch circuits in residential and commercial applications. It features a 120/240V AC voltage rating, 10 kA interrupt rating, and is suitable for use with both copper and aluminum conductors (14 to 8 AWG). The QO1520 is designed for easy installation in QO series panels and meets all relevant UL and ANSI safety standards.

• Part Number: QO1520
• Manufacturer: Square D
• Amperage: 15A / 20A
• Voltage: 120/240V AC
• Number of Poles: 1 (Tandem)
• Mounting Type: Plug-In
• Interrupt Rating: 10 kA
• Series/Frame: QO
• Conductor Size: 14 to 8 AWG Copper/Aluminum
• Terminal Type: Box Lug
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, ANSI Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO1520
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO
• Voltage : 120/240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : Tandem
• Protection : Thermal Magnetic

Product Data

• UPC : 785901400929
• GTIN : 00785901400929
• Country of Origin : Mexico
• Dimensions : 3.2 in (82 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.35
• Panel Type : Old Non Class CTL QO Load Center
• Standards : CSA Certified, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper or Aluminum
