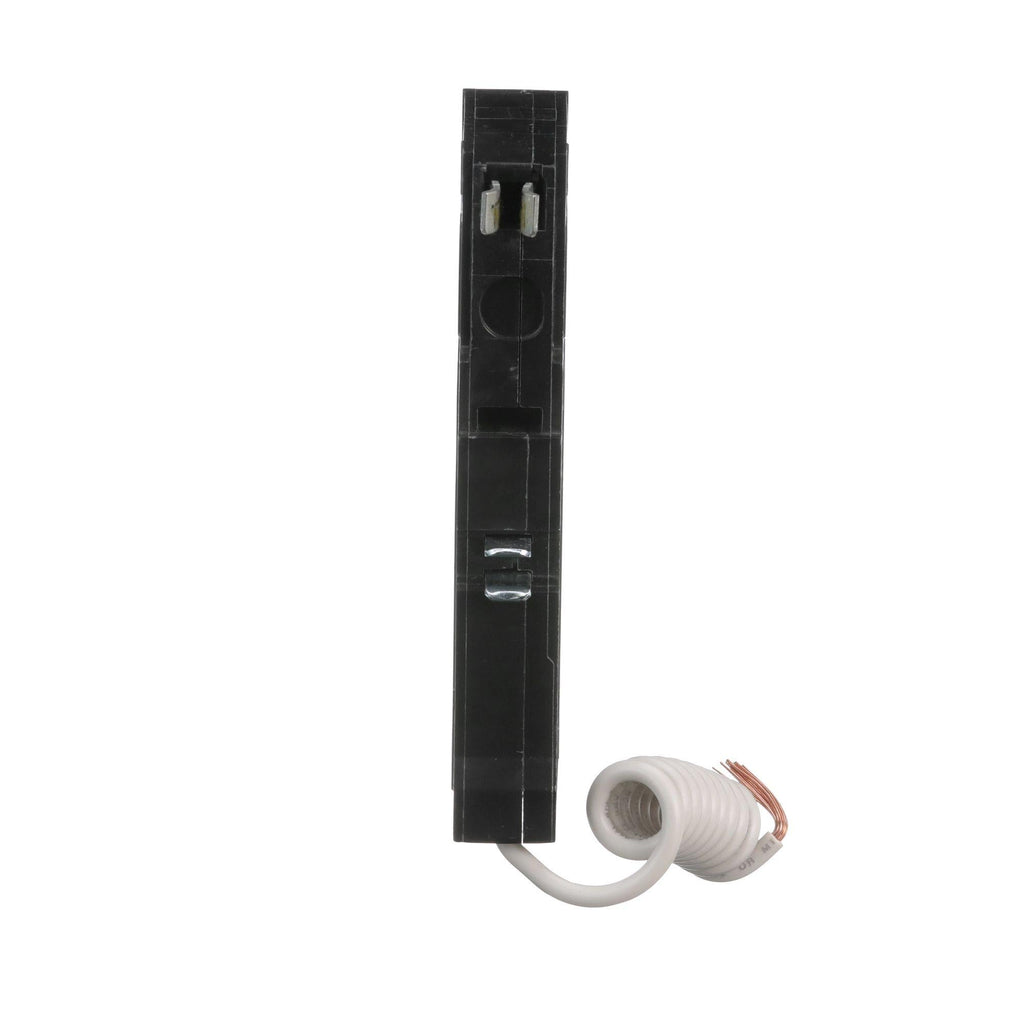

QO120VHGFI - Square D 20 Amp 120 Volt 1 Pole Bolt-On Ground Fault Circuit Breaker

QO120VHGFI

QO120VHGFI is a Square D 20 Amp, 120 Volt, 1 Pole bolt-on ground fault circuit breaker designed for reliable electrical protection.This circuit breaker features thermal magnetic trip units with ground fault protection rated at 6 mA Class A. It has a 10kA interrupting rating at 120 VAC and is compatible with QO load centers and NQ panelboards. The breaker supports wire sizes from 14 to 8 AWG copper or aluminum and meets UL and CSA certifications.

• Amperage: 20 Amps
• Voltage: 120 VAC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA at 120V
• Series/Frame: QOB
• Trip Unit: Thermal Magnetic with Ground Fault 6 mA Class A
• Wire Size: 14-8 AWG Copper or Aluminum
• Certifications: UL Listed, CSA Certified
• Dimensions: Approx. 4.1" H x 0.7" W x 2.9" D
• Compatible with QO Load Centers and NQ Panelboards
• Mercury Free

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO120VHGFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 22kA@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu), 12 AWG (Al) Max. Wire Size 8 AWG (Cu), 8 AWG (Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901520610
• GTIN : 00785901520610
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.53
• Standards : UL Listed, CSA
• Certification : UL Listed, CSA
• Wire Size : AWG 14 to AWG 8 Copper, AWG 12 to AWG 8 Aluminum
