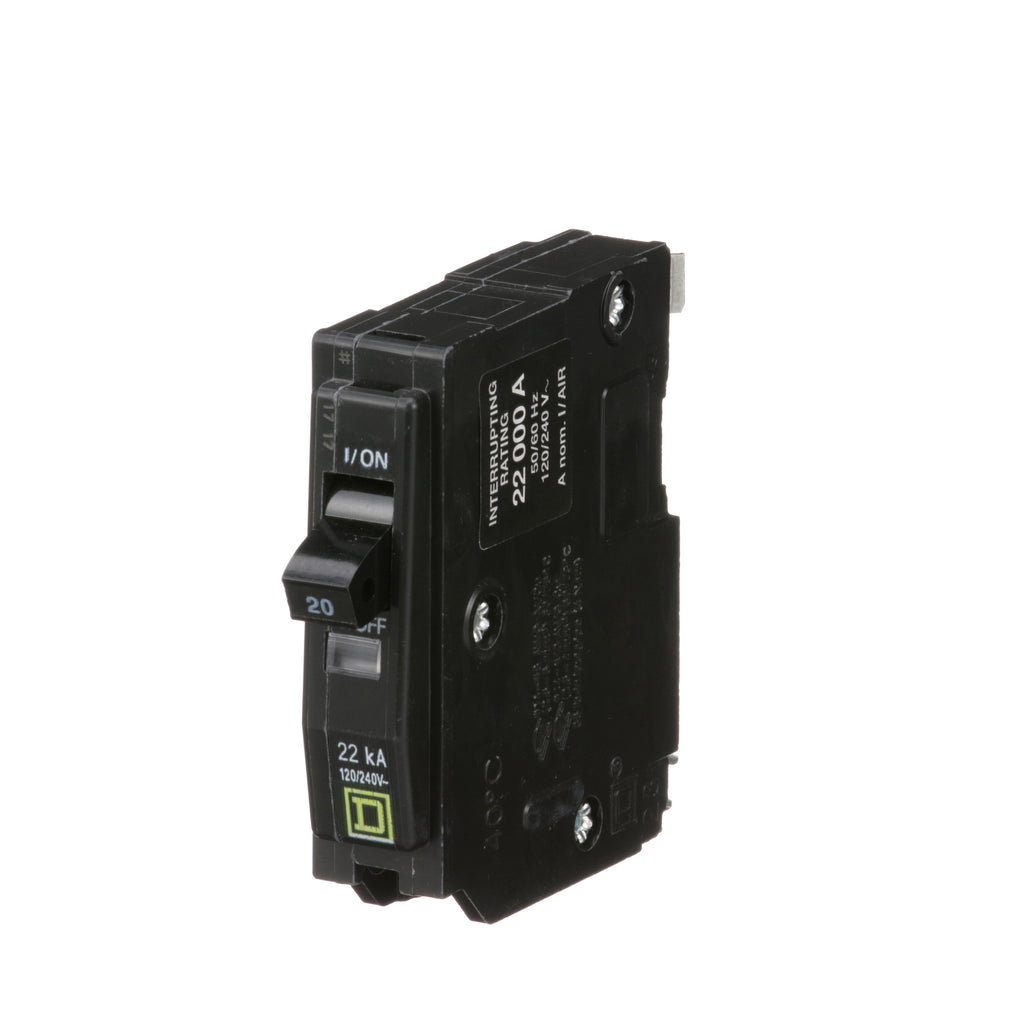

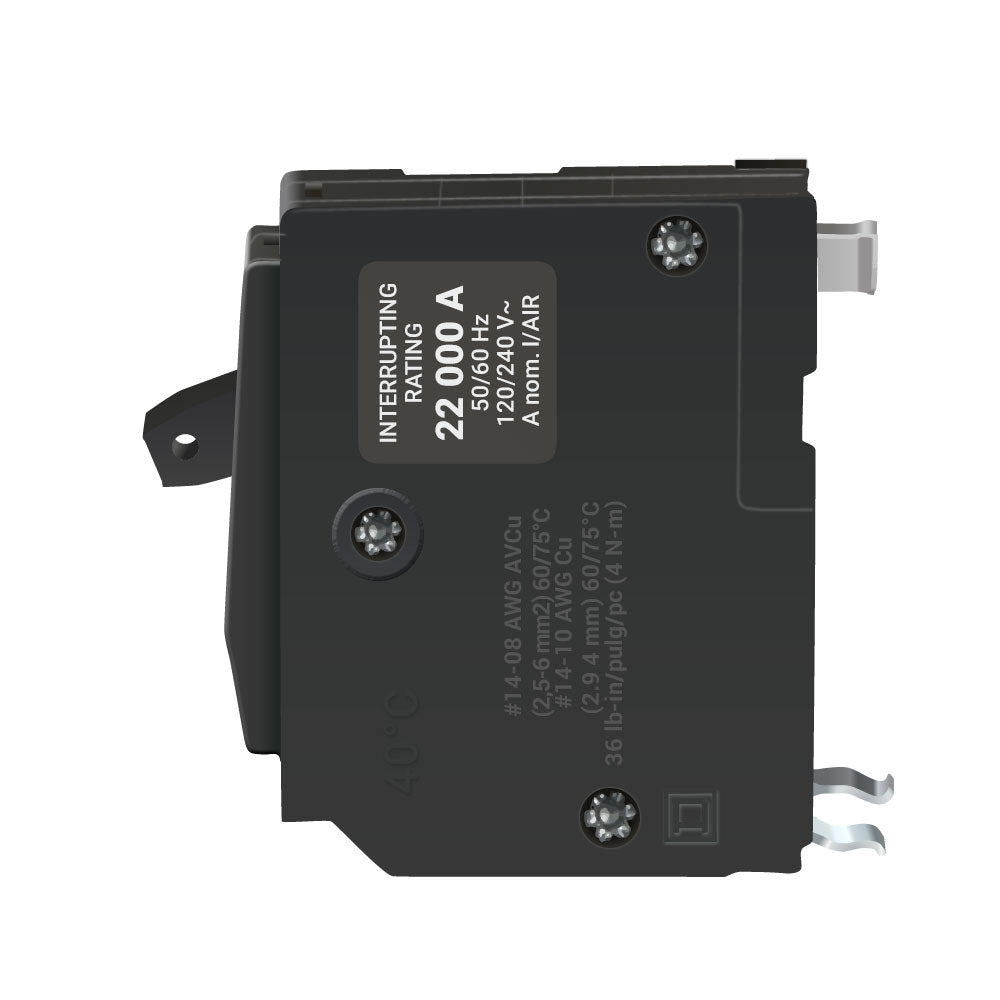

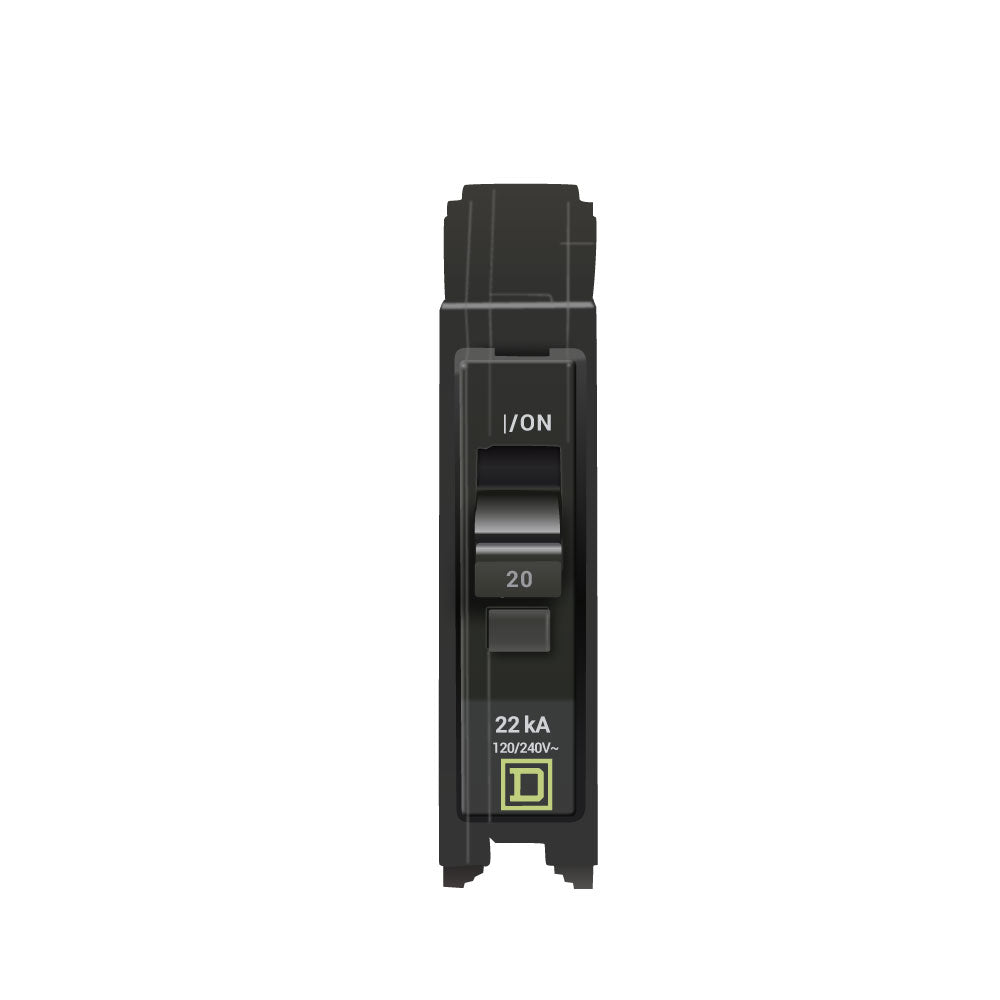

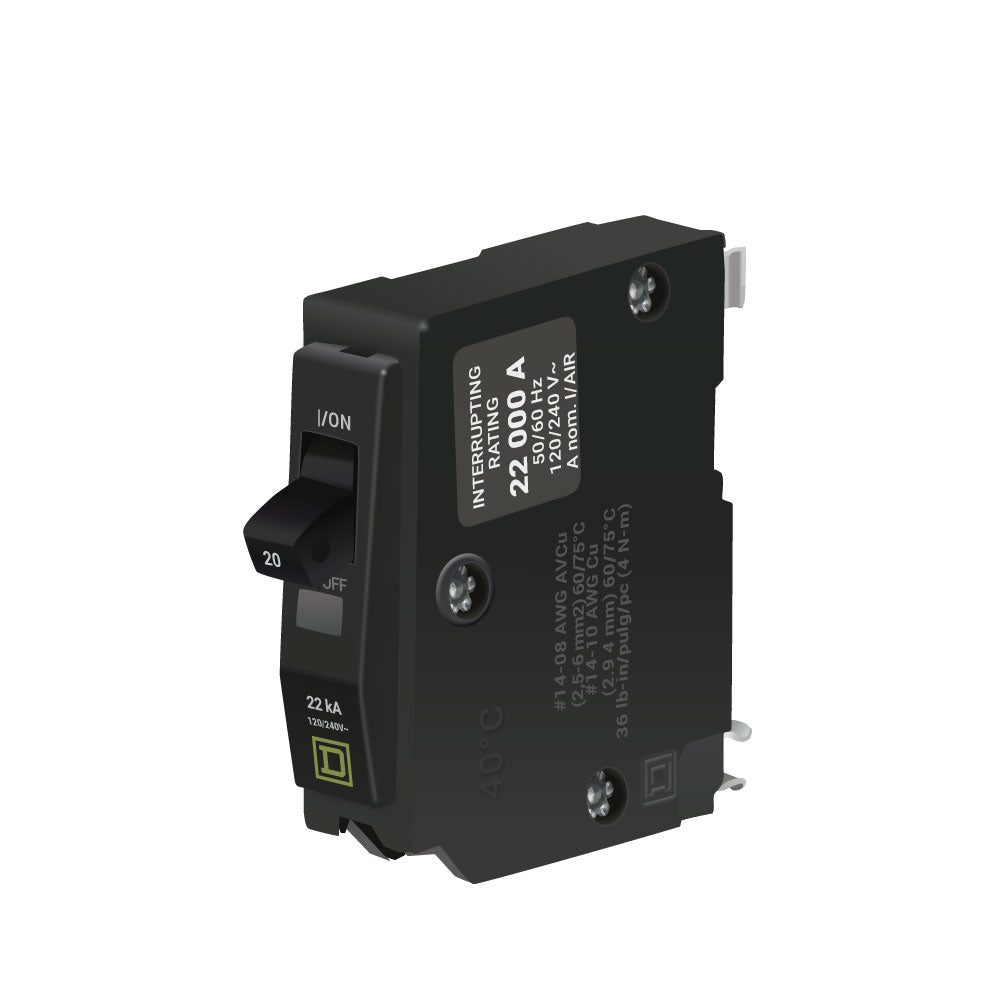

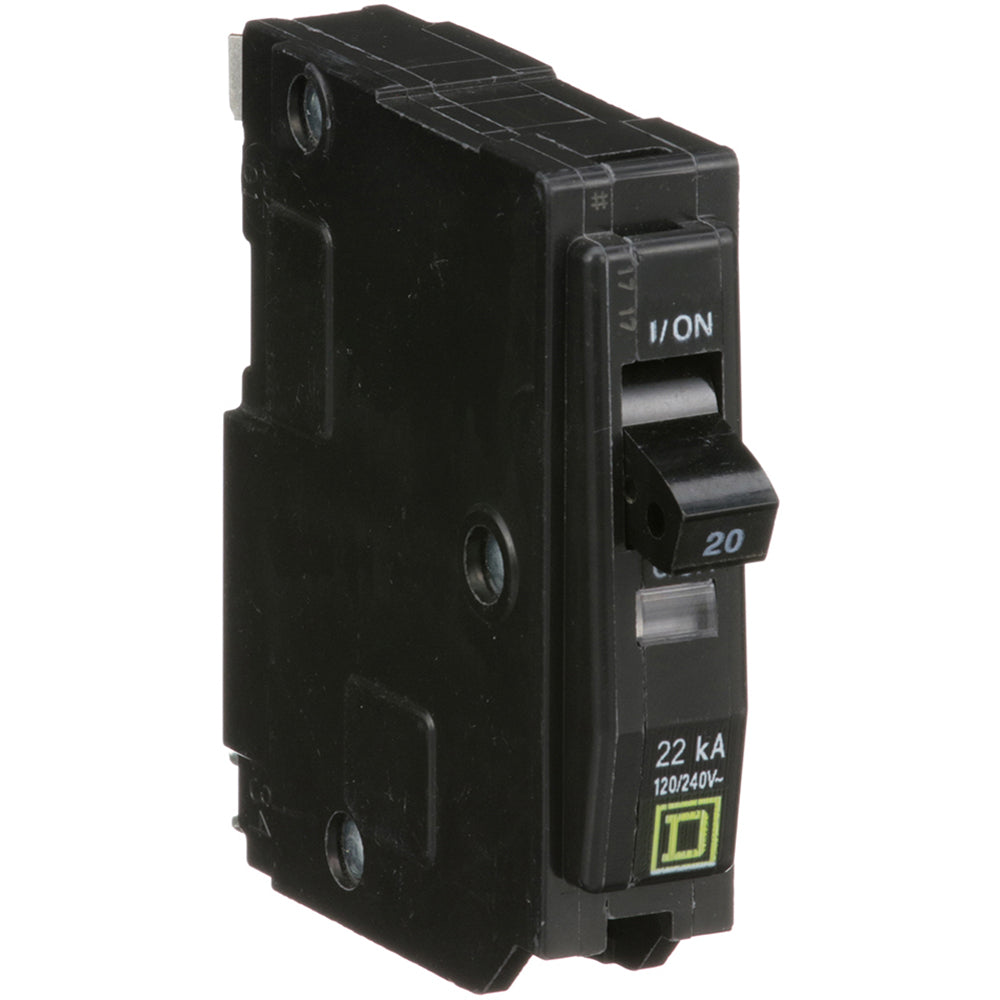

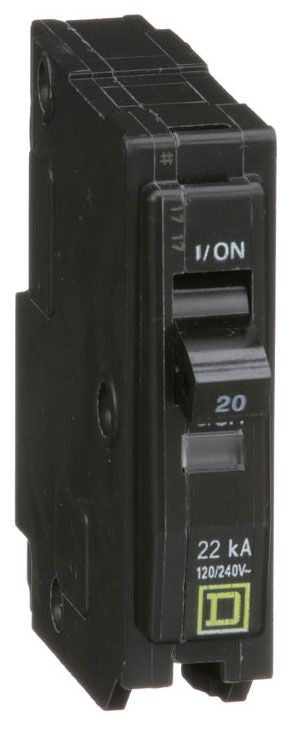

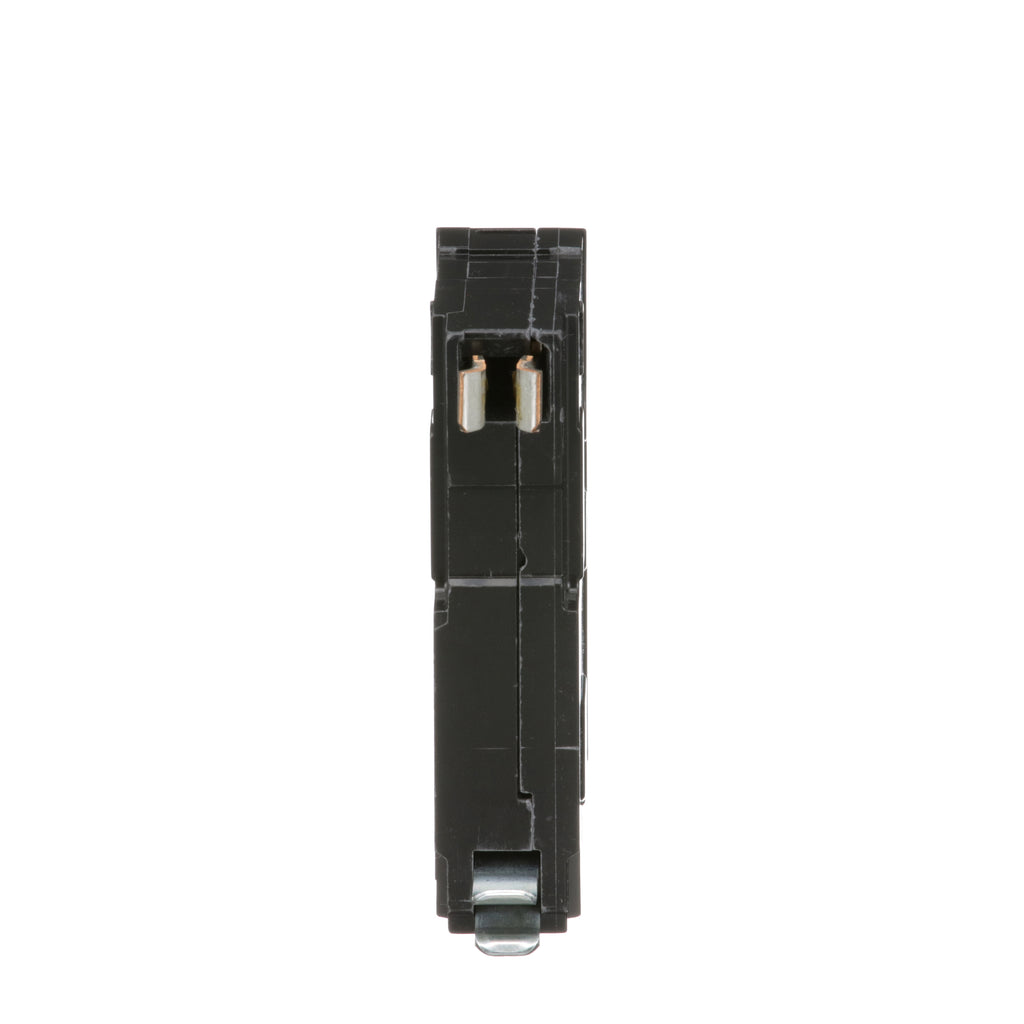

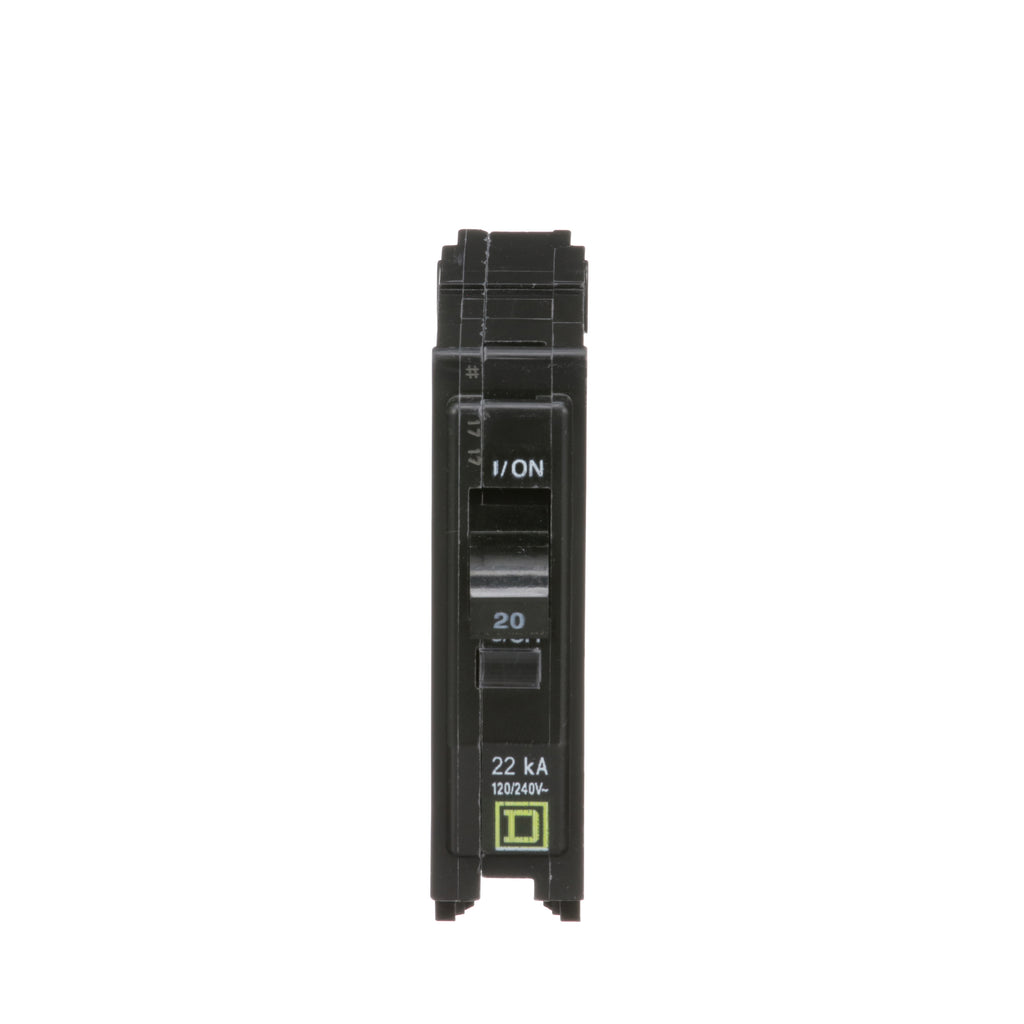

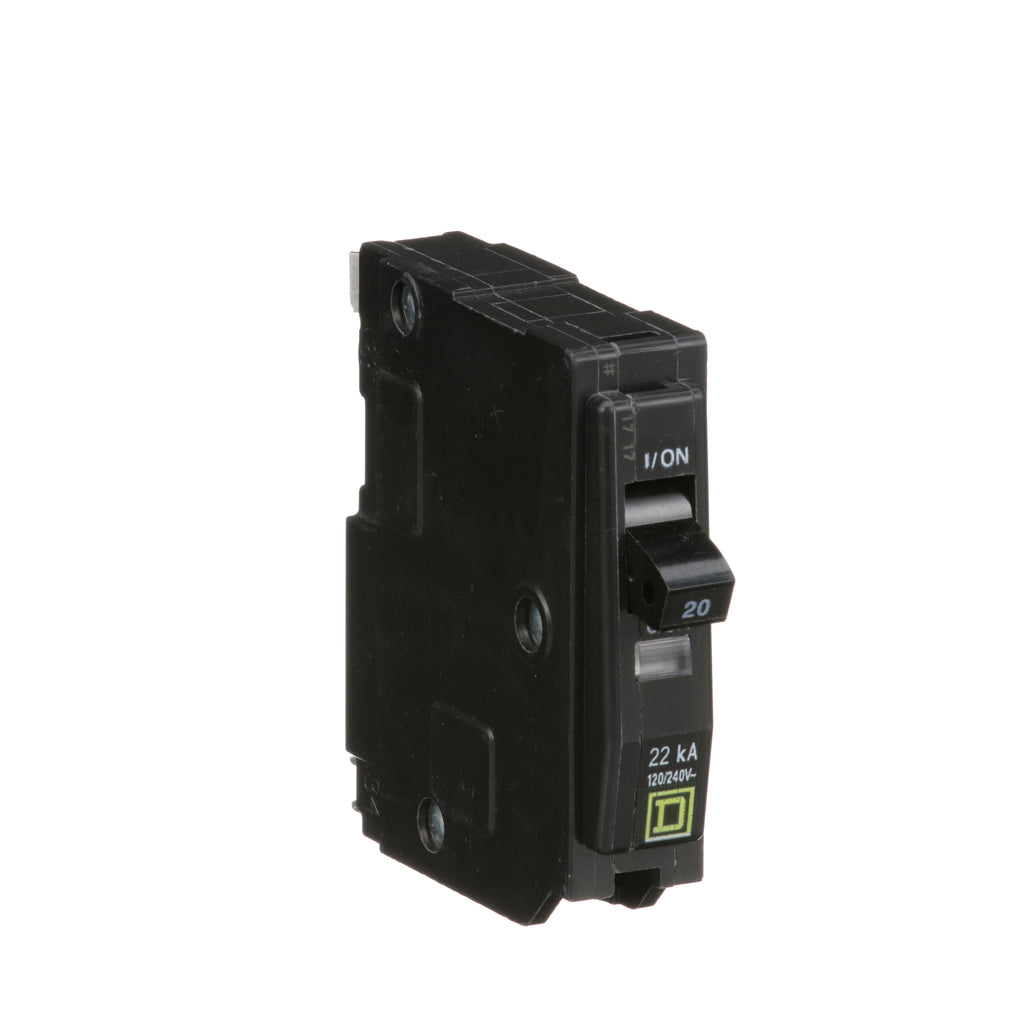

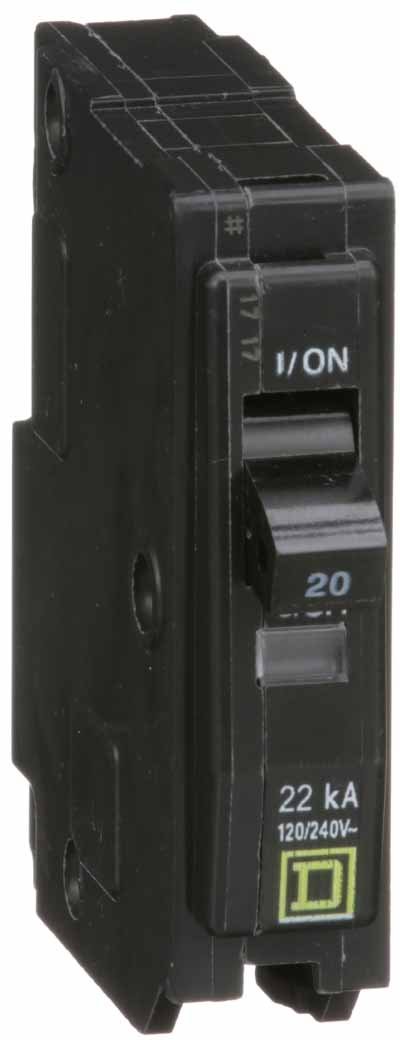

QO120VH - Square D 20 Amp 1 Pole 120/240VAC Thermal Magnetic Circuit Breaker Plug-On 22kA Interrupting Rating

QO120VH

QO120VH is a 20 Amp, 1 Pole thermal magnetic circuit breaker from Square D designed for 120/240VAC applications with a 22kA interrupting rating.The Square D QO120VH circuit breaker features a plug-on mounting type for easy installation, long-time and instantaneous trip functions, and a thermal magnetic trip unit. It is UL and CSA certified, suitable for use in QO load centers and NQ panelboards, and provides reliable overcurrent protection with a 22kA interrupting capacity at 120/240VAC.

Key Specifications
• Amperage: 20 Amp
• Voltage: 120/240VAC, 48VDC
• Poles: 1

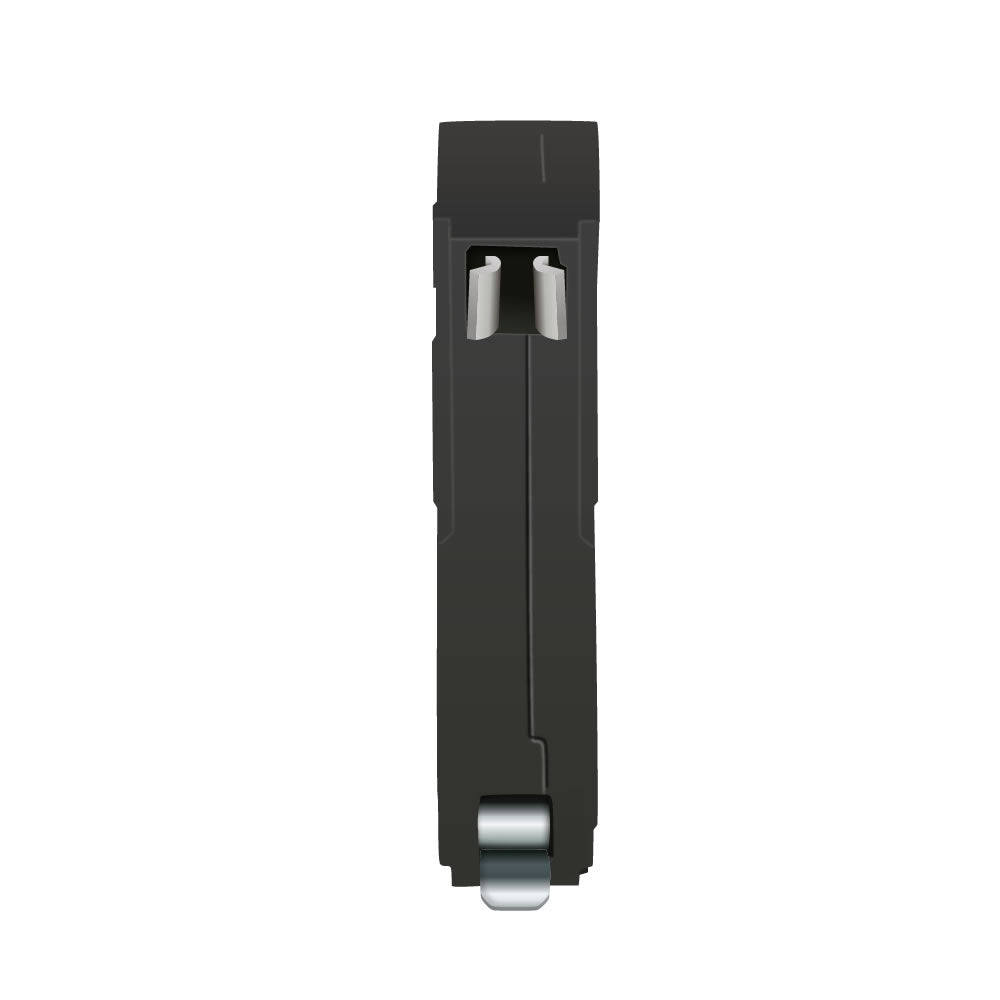

• Mounting Type: Plug-On
• Interrupting Rating: 22kA at 120/240VAC
• Series/Frame: QO
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Connection Type: Plug-In
• Certifications: UL Listed, CSA Approved
• Dimensions (H x W x L): 2.99" x 0.75" x 2.91"
• Wire Gauge: AWG 14 to 8, Cu/Al
• Protection: Thermal Magnetic

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO120VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 120/240
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 22kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure plate
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic

Product Data

• UPC : 785901371786
• GTIN : 00785901371786
• Country of Origin : United States
• Dimensions : 3.0 in (76 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.538
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to 8, Cu/Al
