Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Load Center
Description
QO120L125PG

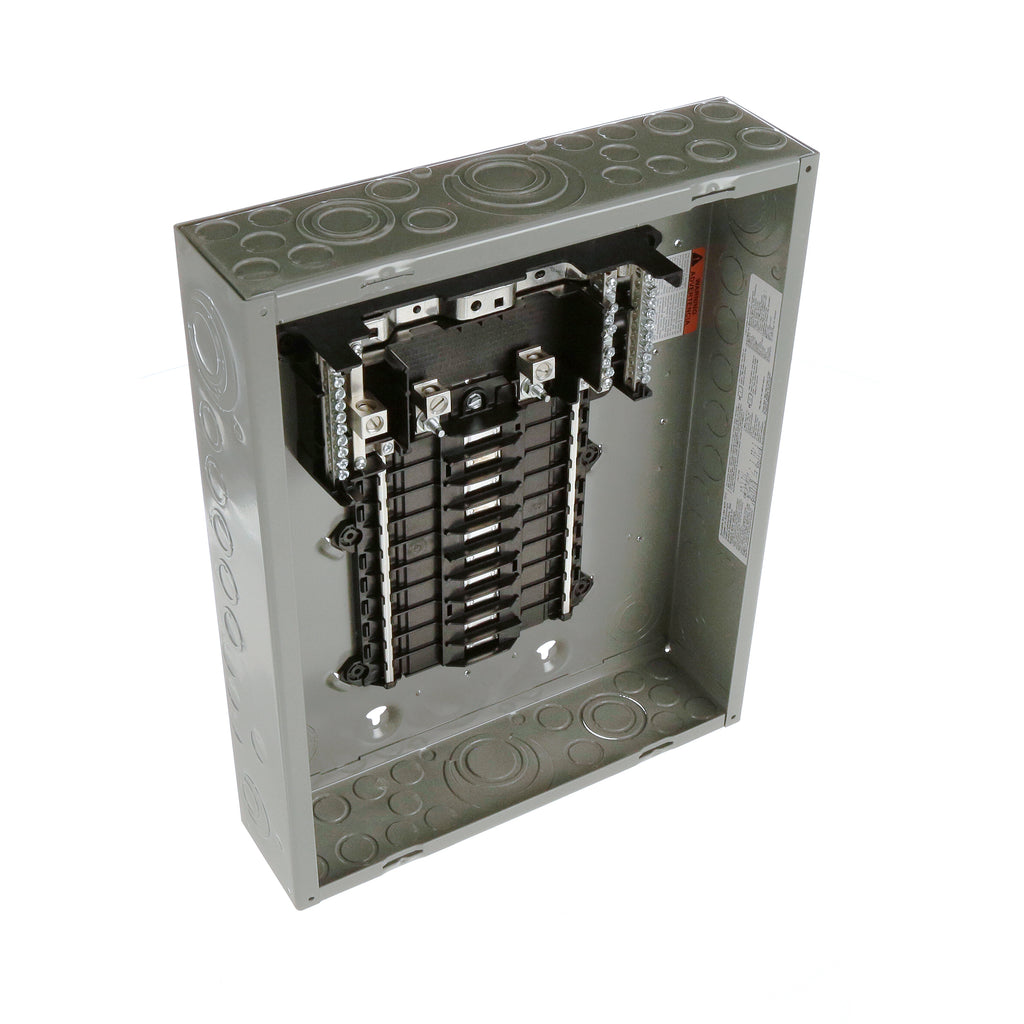

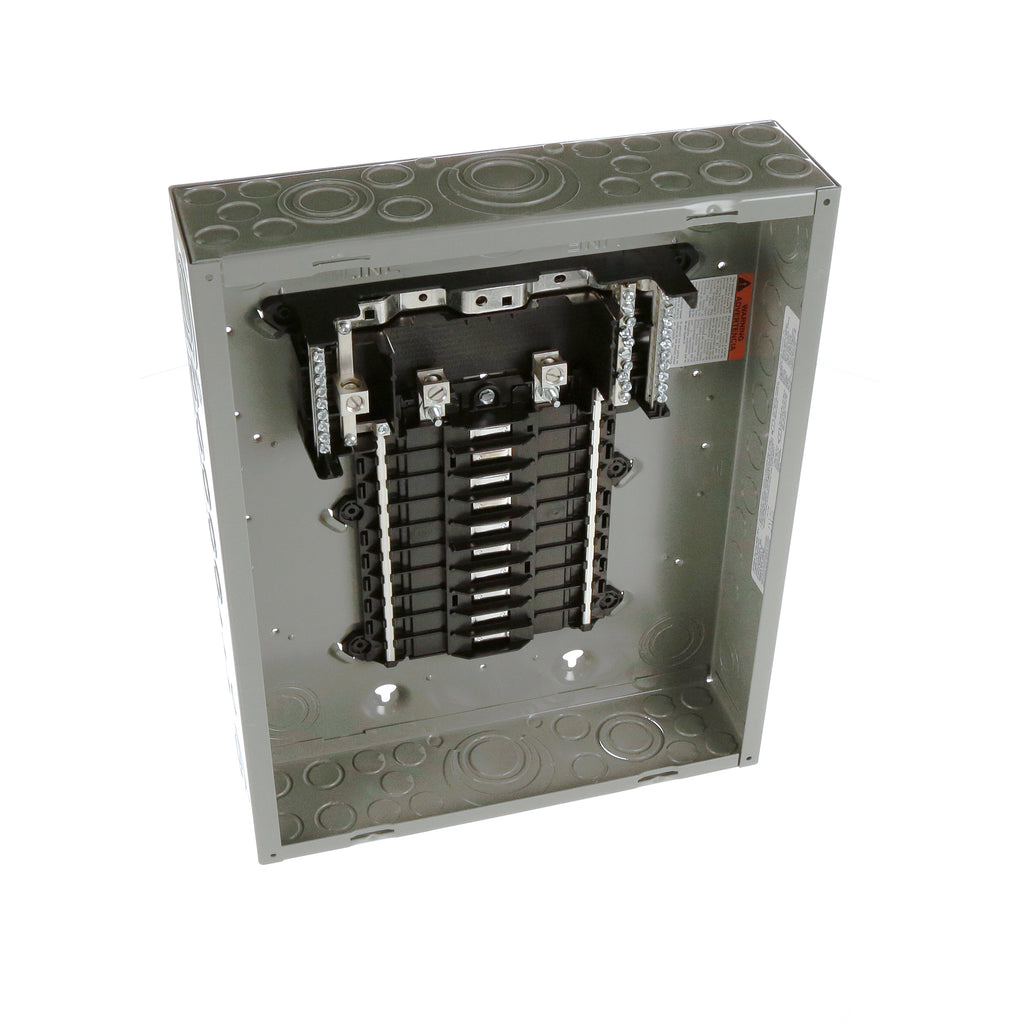

QO120L125PG is a Square D 125 Amp, 120/240 Volt, 1-Pole Convertible Main Lug Load Center designed for residential and light commercial electrical distribution.This load center features a NEMA 1 enclosure suitable for indoor use, supports up to 20 circuits with 20 spaces, and includes a plug-on neutral design for easy installation. It is rated for 125 amps with a 1-phase, 3-wire configuration and a 3W power rating. The compact dimensions are approximately 14.25 inches wide, 3.75 inches deep, and 17.92 inches high.
- Key Specifications
- Amperage Rating: 125 A
- Voltage Rating: 120/240 V AC
- Number of Poles: 1
- Type: 1-Phase, 3-Wire
- Mounting Type: Convertible Main Lug
- Enclosure Type: NEMA 1 (Indoor)
- Maximum Circuits: 20
- Power Rating: 3 W
- Plug-On Neutral Design
- Dimensions: 14.25" W x 3.75" D x 17.92" H
Specifications
- Part Number: QO120L125PG
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Load Center
- Family : QO Series
- Type : QO
- Voltage : 120/240 AC
- Amperage : 125
- Phase : 1
- Wire : 3
Product Data
- UPC : 78590160940
- GTIN : 00785901609407
- Country of Origin : Mexico
- Dimensions : 17.9 in (455 mm) x 14.3 in (362 mm) x 3.7 in (95 mm) (Height x Width x Depth)
- Weight : 11.151
- Certification : RoHS Compliant, UL Listed
- Wire Size : 23 to 104 °F
