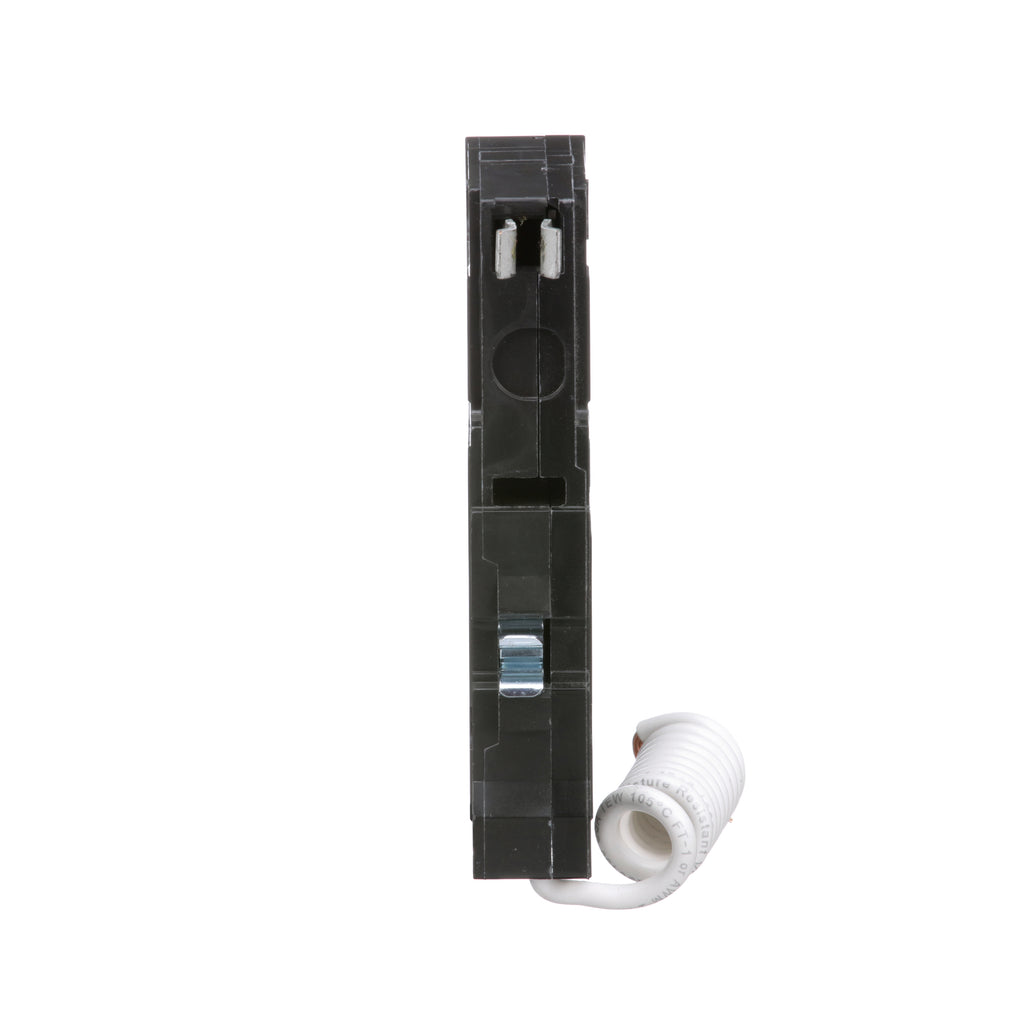

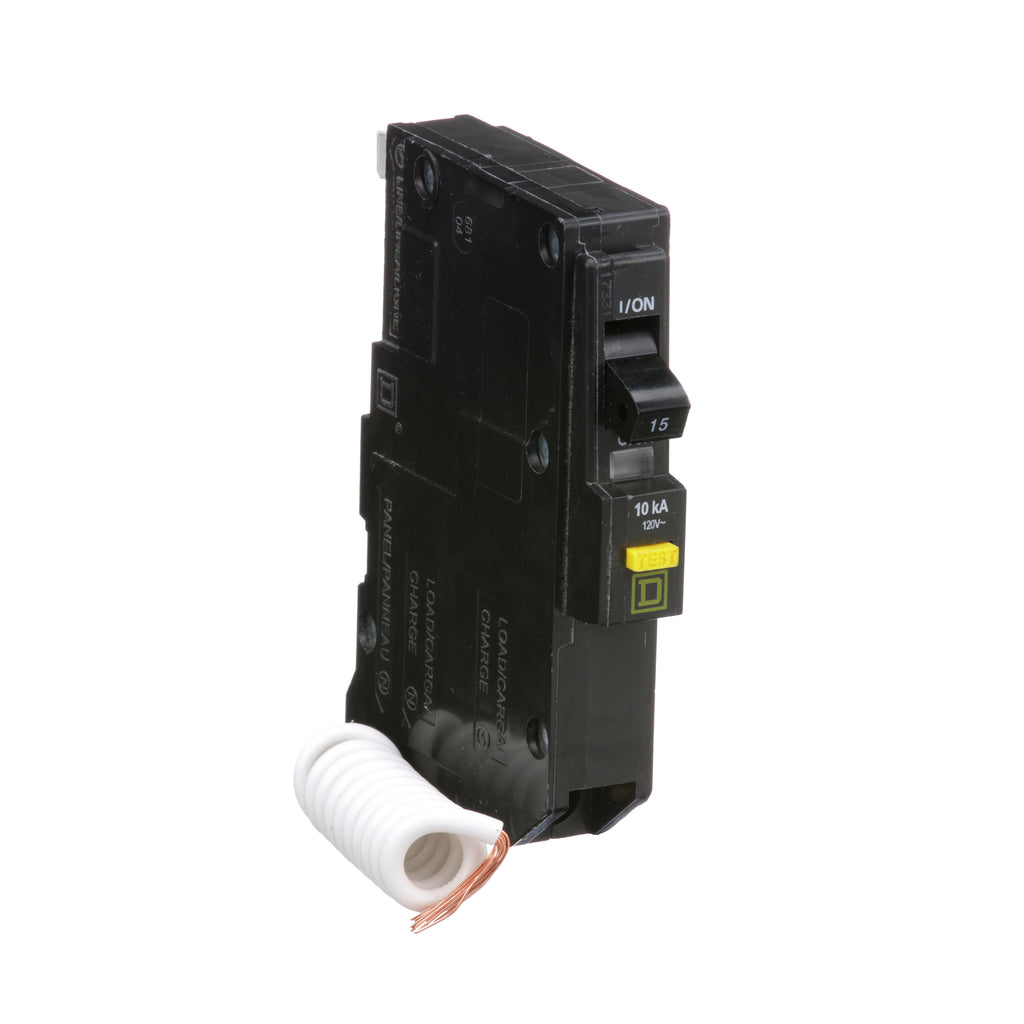

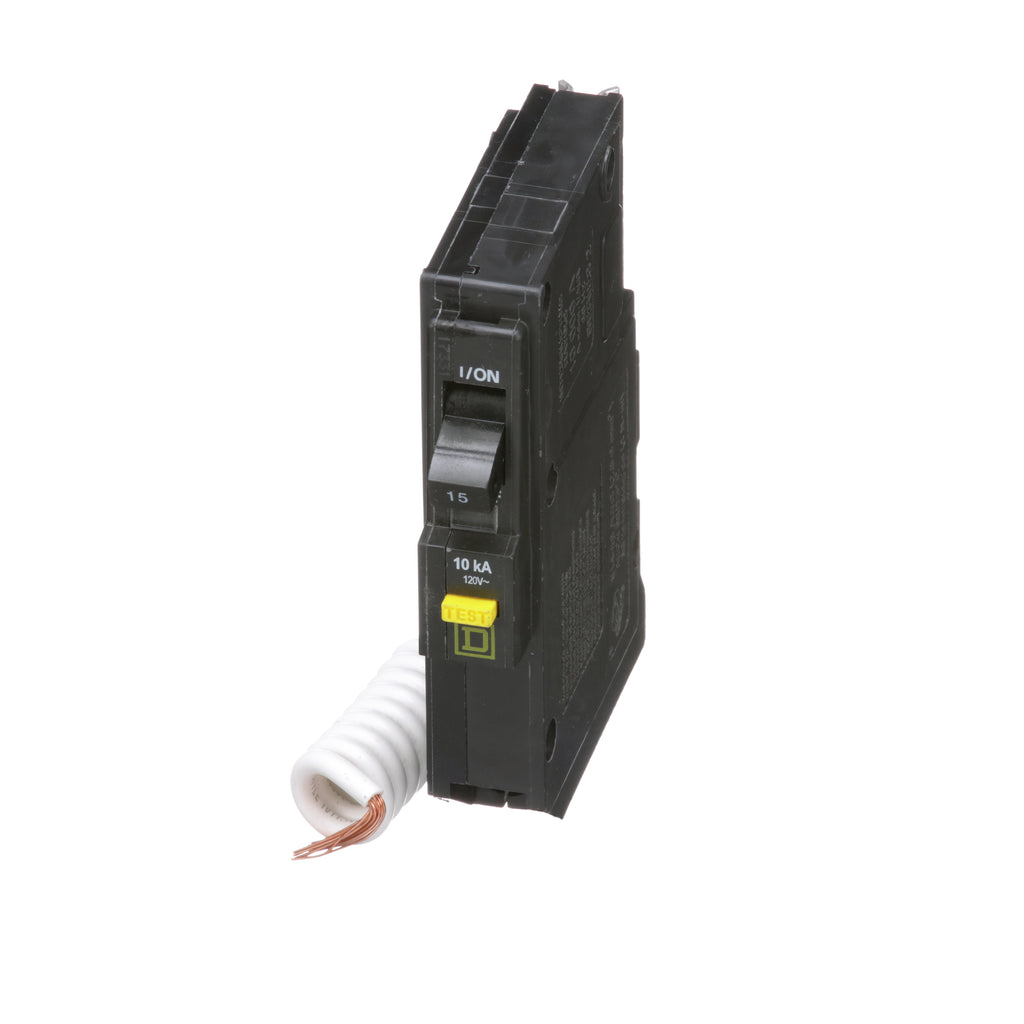

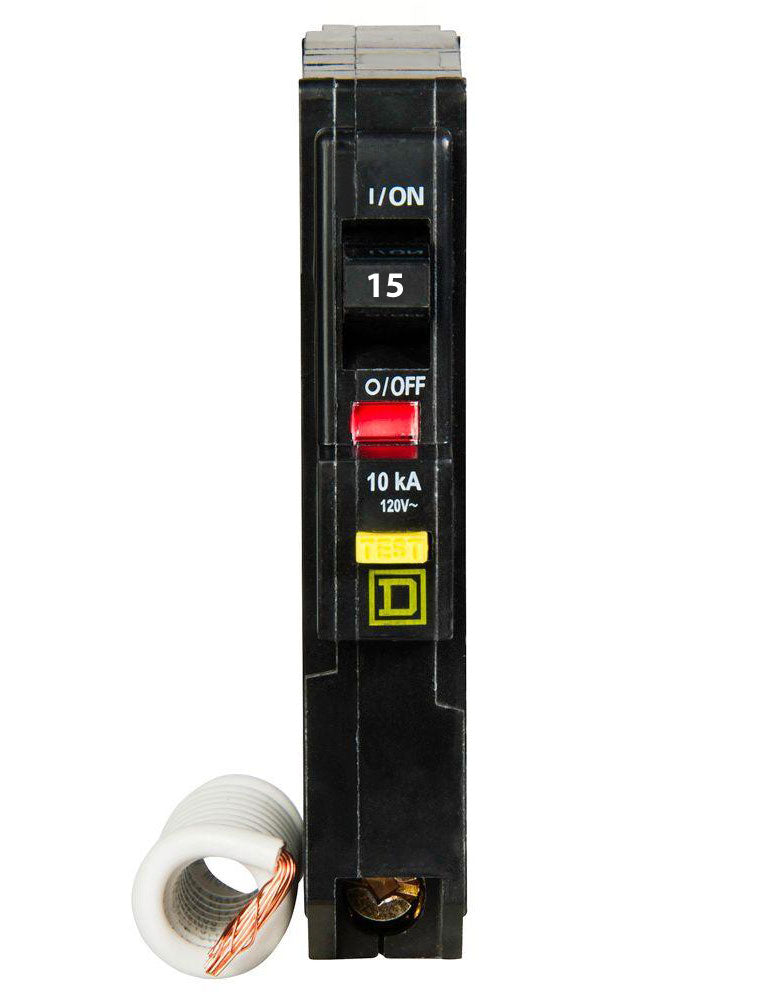

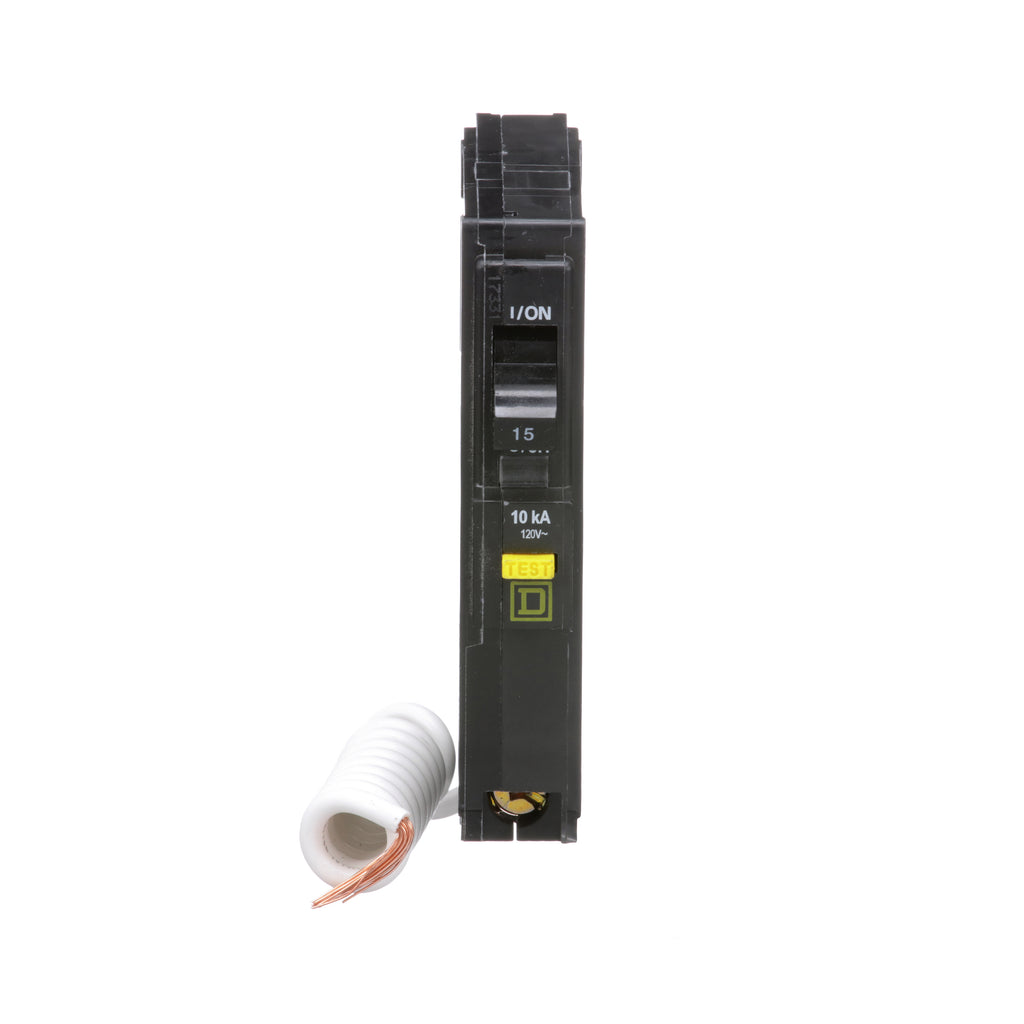

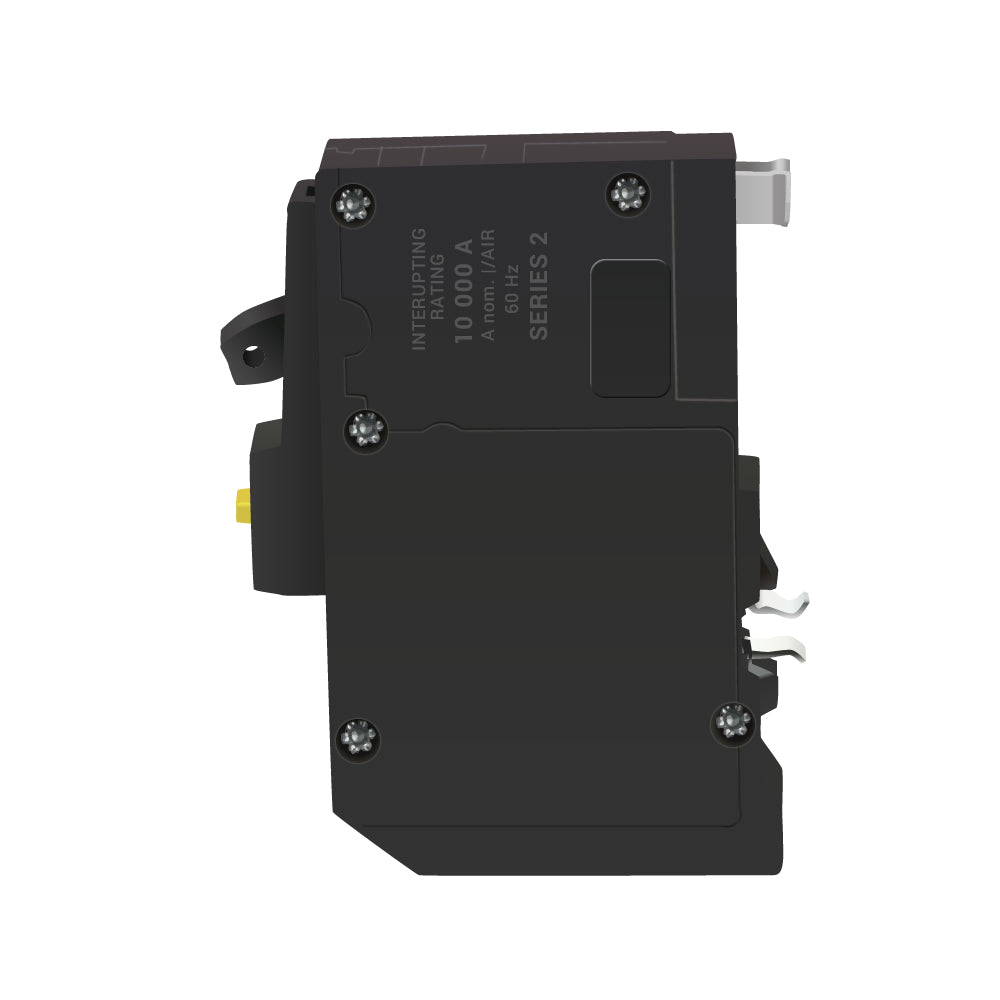

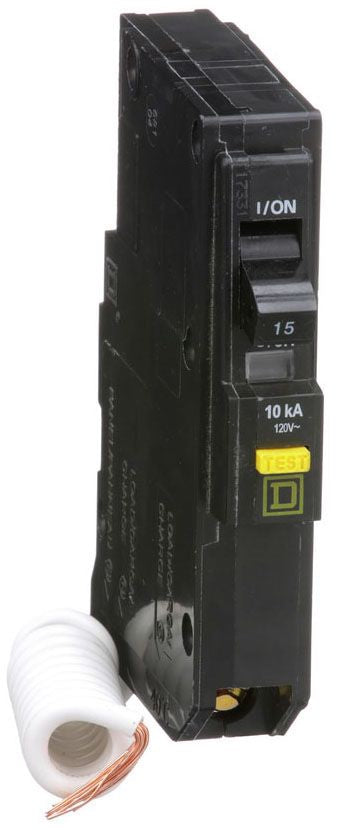

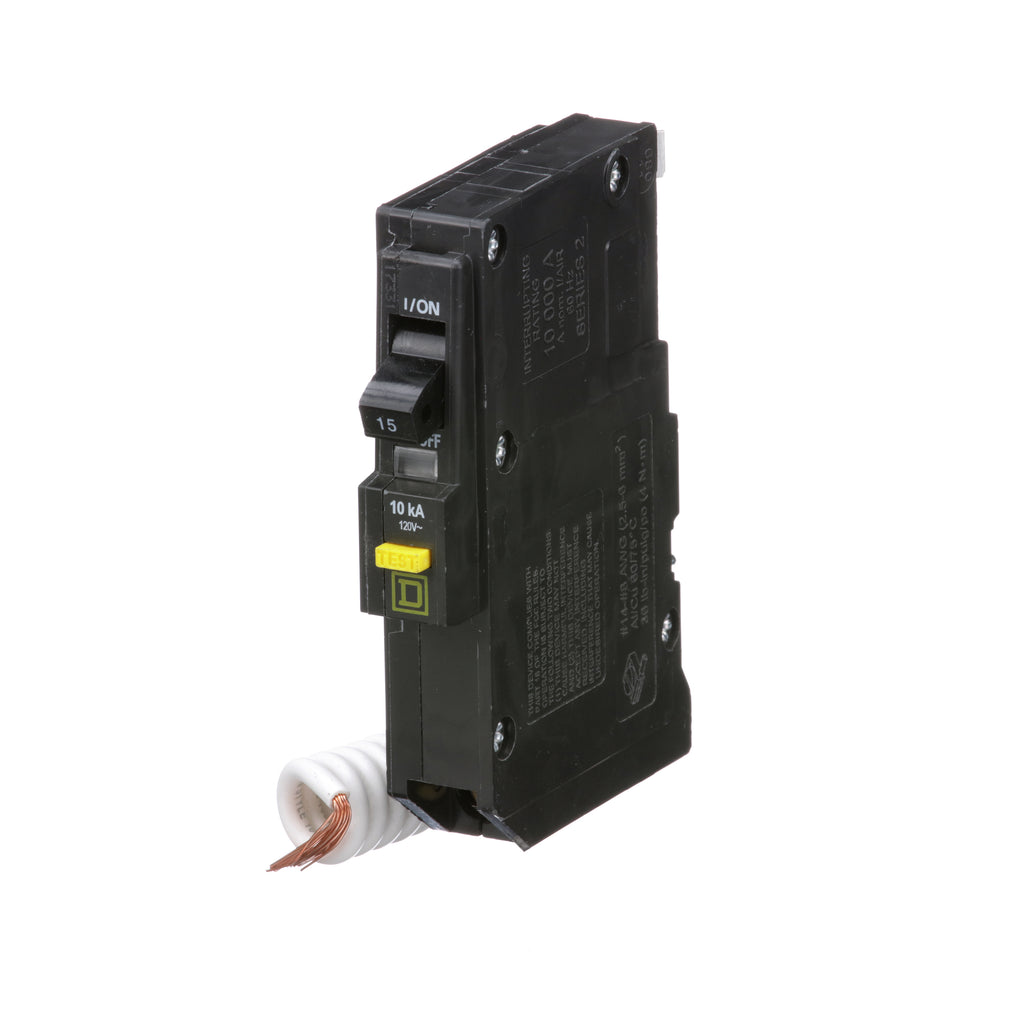

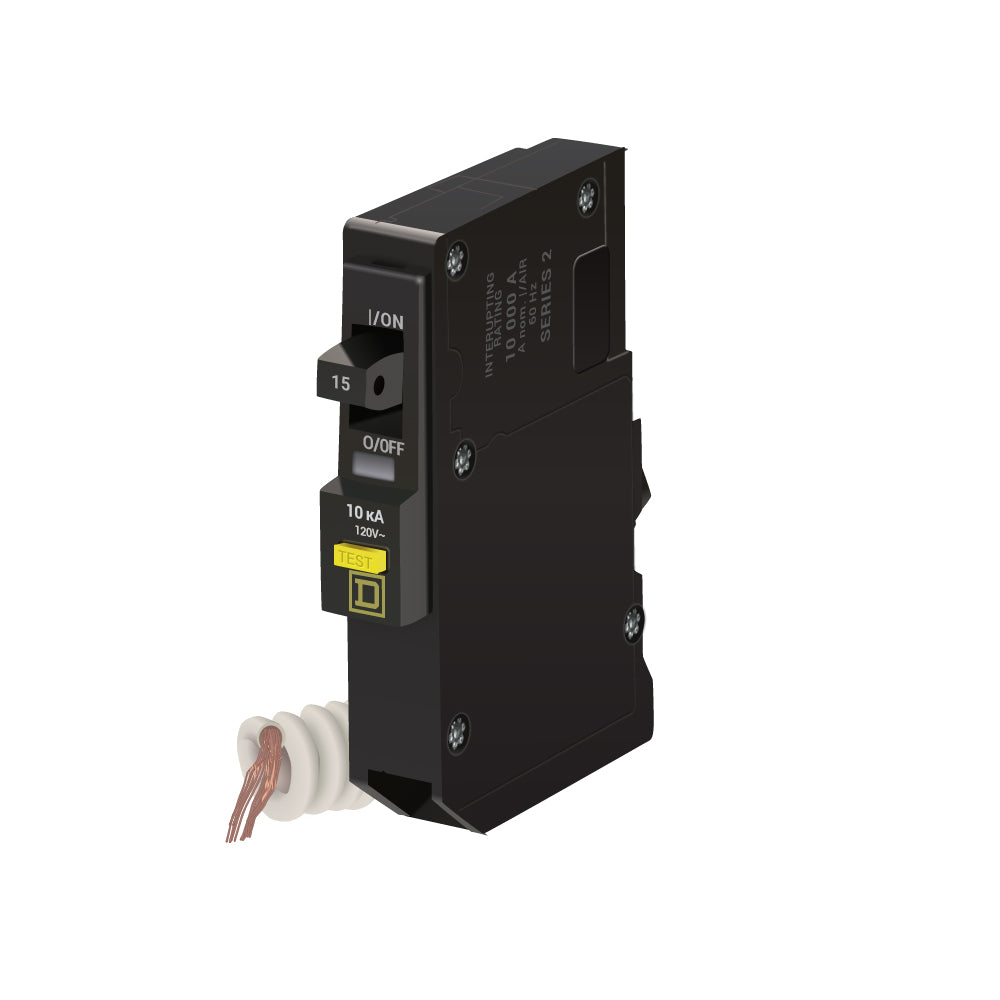

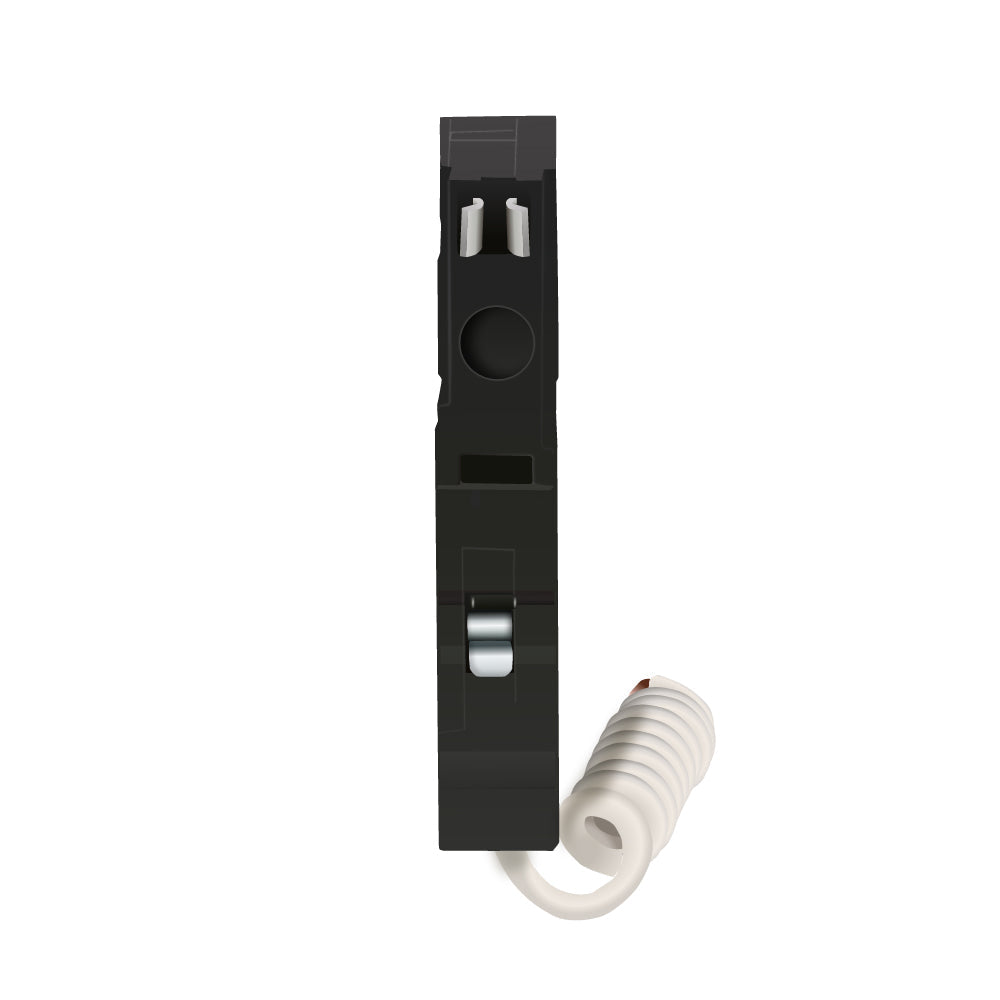

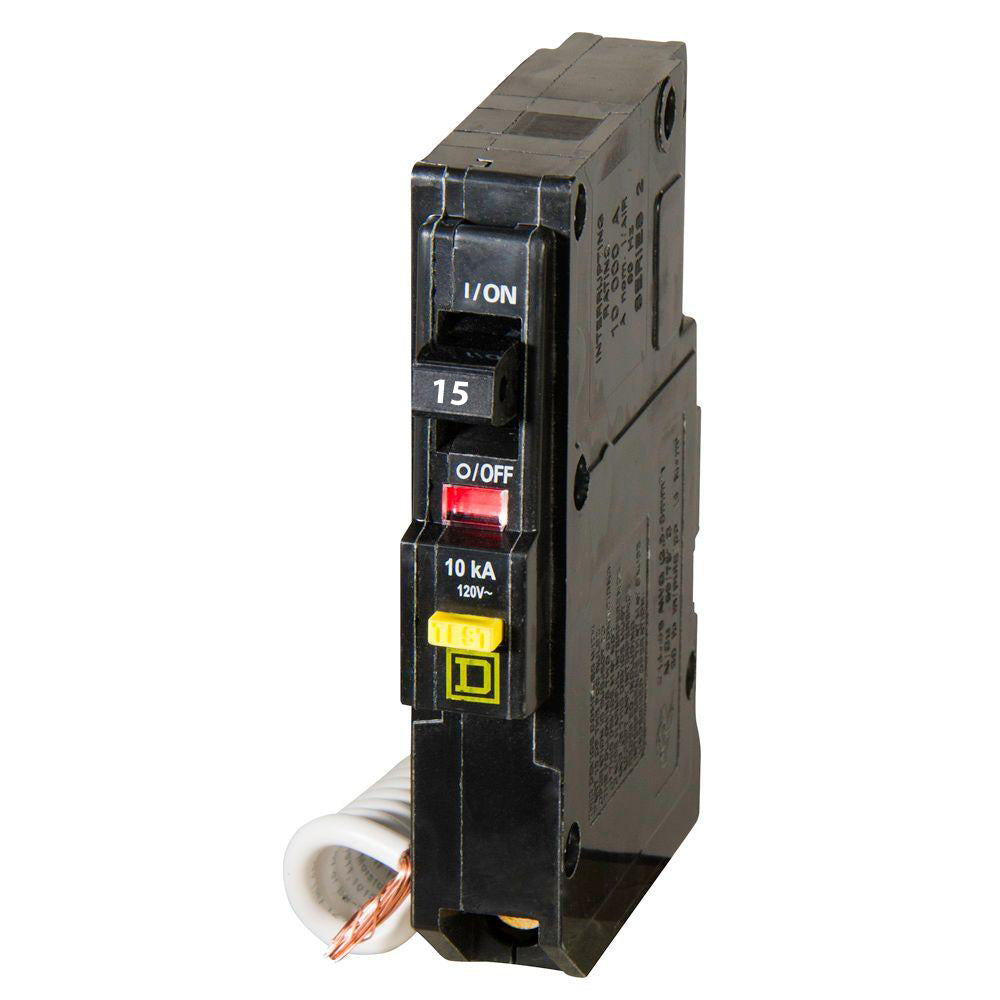

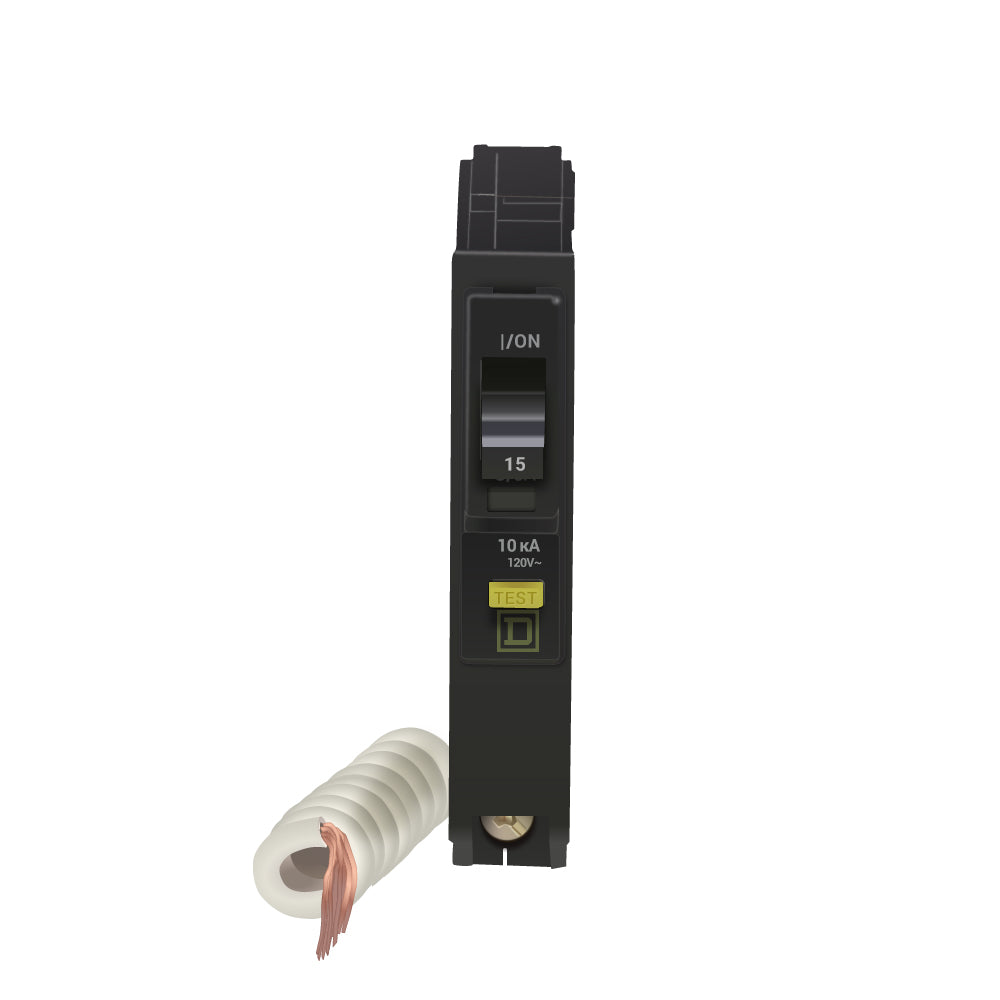

QO115GFI - Square D 15 Amp 120VAC 1-Pole GFCI Circuit Breaker QO Frame Plug-On

QO115GFI

QO115GFI is a 15 Amp, 120VAC, 1-pole GFCI circuit breaker from Square D designed for reliable ground fault protection.This Square D QO series circuit breaker features a plug-on mounting type, a 10kA interrupt rating, and a thermal magnetic trip unit. It provides superior circuit protection with a compact design for fast installation. The breaker is UL 489 and CSA certified, ensuring compliance with safety standards.

• Manufacturer: Square D
• Part Number: QO115GFI
• Amperage: 15 Amps
• Voltage: 120VAC
• Poles: 1
• Mounting Type: Plug-On
• Interrupt Rating: 10kA
• Frame Type: QO
• Trip Unit: Thermal Magnetic
• Ground Fault Protection: 6mA GFCI
• Certifications: UL 489, CSA 22.2 No. 144, RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO115GFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO-GF
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Pressure plate
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901255062
• GTIN : 00785901255062
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.51
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, IEC, UL listed
• Certification : IEC, UL listed
• Wire Size : AWG 14 to AWG 8, AWG 12 to AWG 8, Copper/Aluminum
