Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
QN2175R

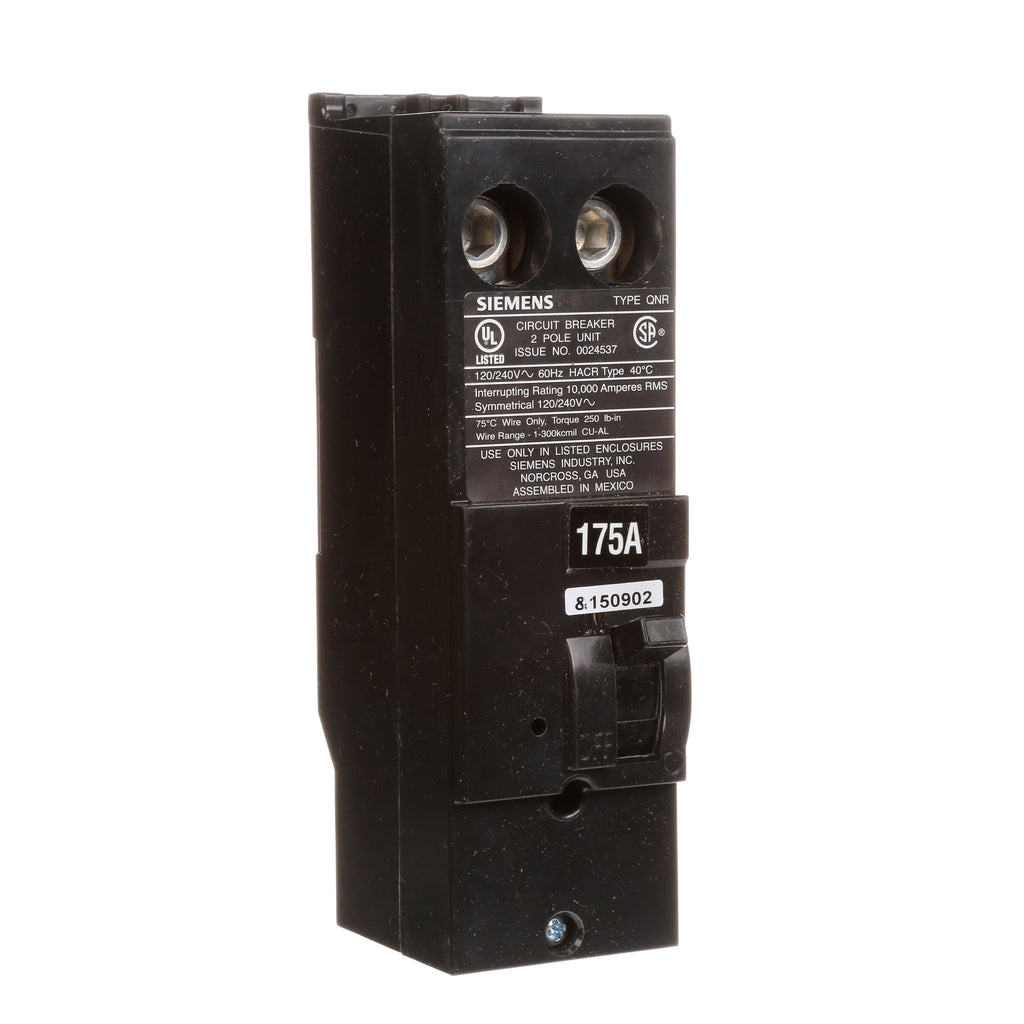

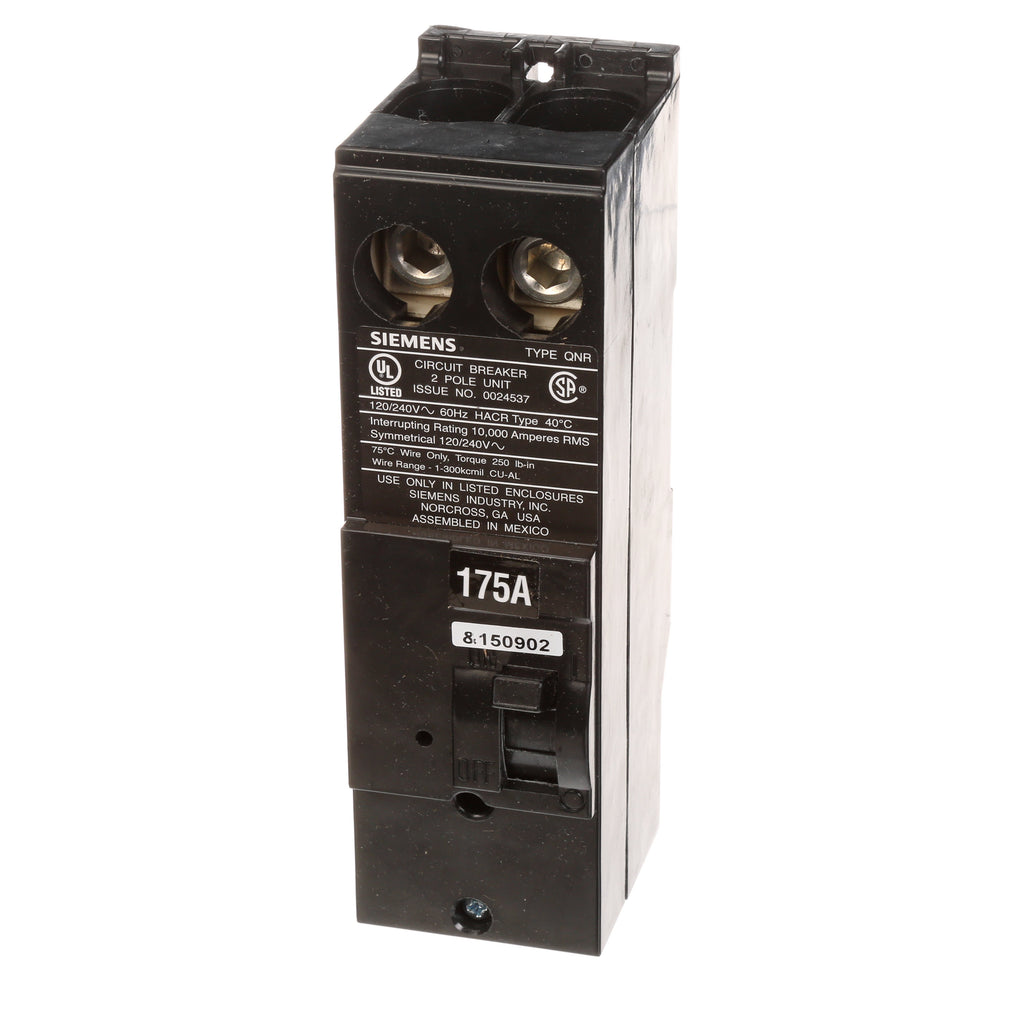

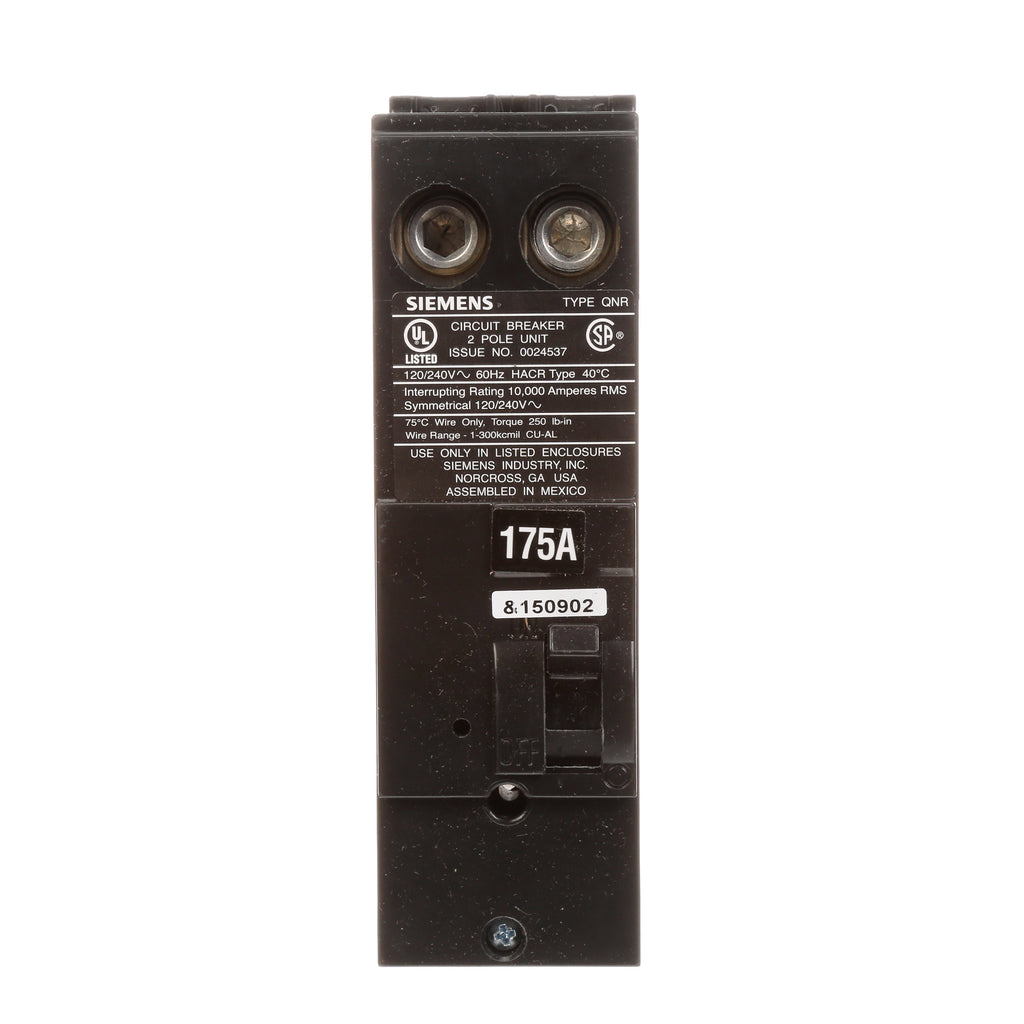

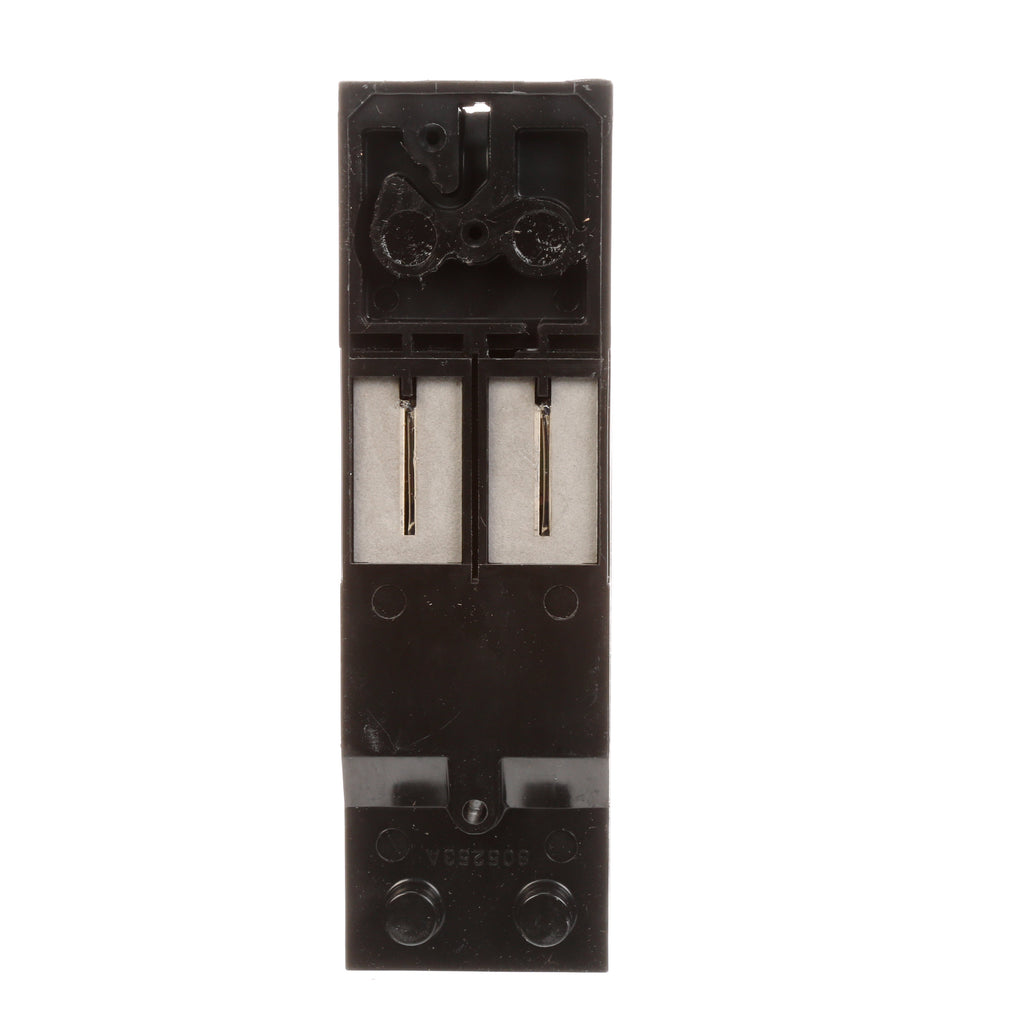

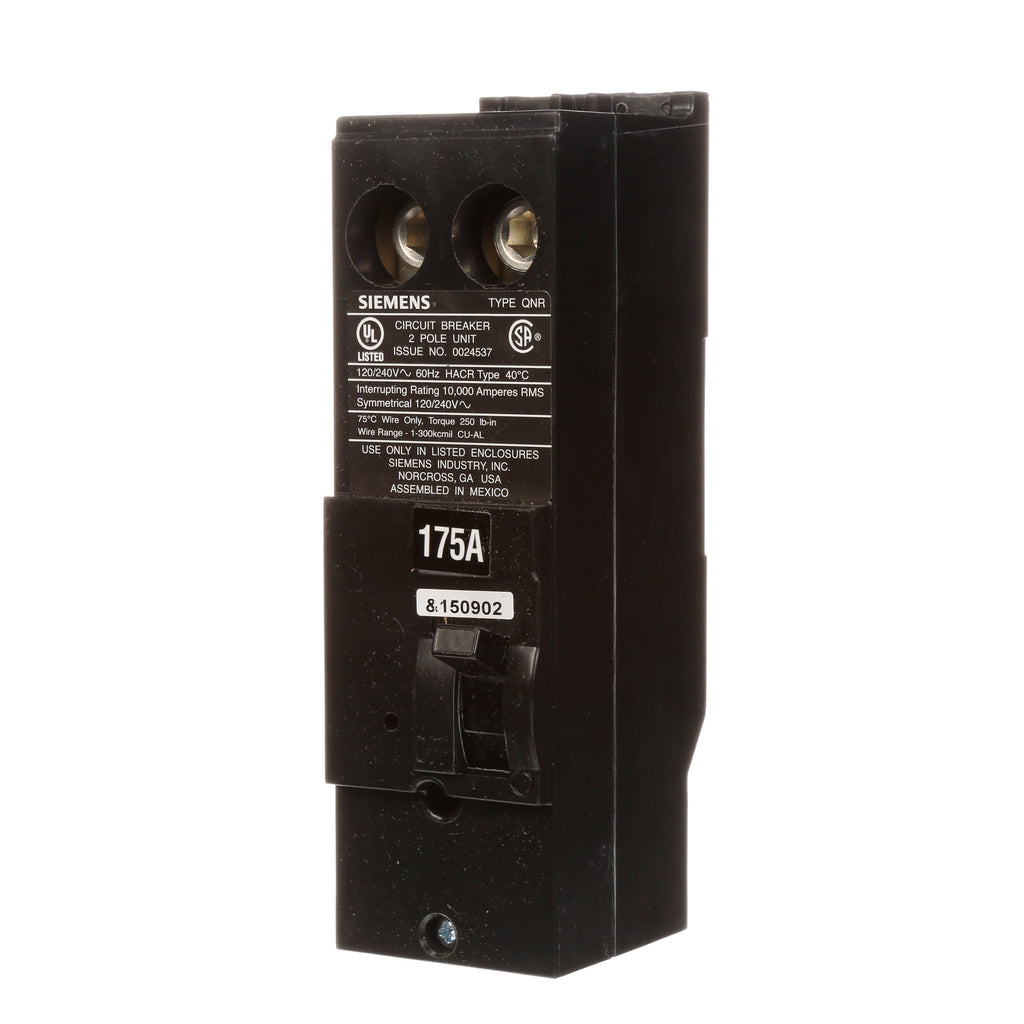

QN2175R is a Siemens 2 pole thermal magnetic molded case circuit breaker rated for 175 amps and 120/240 volts AC. It features a plug-in mounting type and is designed for reliable circuit protection.This Siemens QN2175R breaker offers a 10kA interrupting rating at 240 volts and includes long time and instantaneous trip functions for enhanced safety. It is part of the Q frame series, suitable for use in load centers with wire sizes from 4 AWG to 300 kcmil aluminum or copper conductors. The breaker is UL listed and has a reverse handle actuator.
- Key Specifications
- Amperage: 175A
- Voltage: 120/240VAC
- Poles: 2
- Mounting Type: Plug-In
- Interrupt Rating: 10kAIC at 240V
- Series/Frame: Q
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
- Wire Gauge: 4 AWG to 300 kcmil Al/Cu
- Phase: Single
- Certifications: UL Listed
- Actuator Type: Reverse Handle
Specifications
- Part Number: QN2175R
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q Series
- Type : QN
- Voltage : 240
- Amperage : 175
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783643204249
- GTIN : 00783643204249
- Country of Origin : Mexico
- Dimensions : 8.661 x 5.906 x 2.756 inch
- Weight : 2.205 lb
- Wire Size : 4 AWG to 300KCmil, Al/Cu
