Product Info
- Manufacturer:American/Federal Pacific
- Sub-Category:Panel Mount
Description
QMQB1032

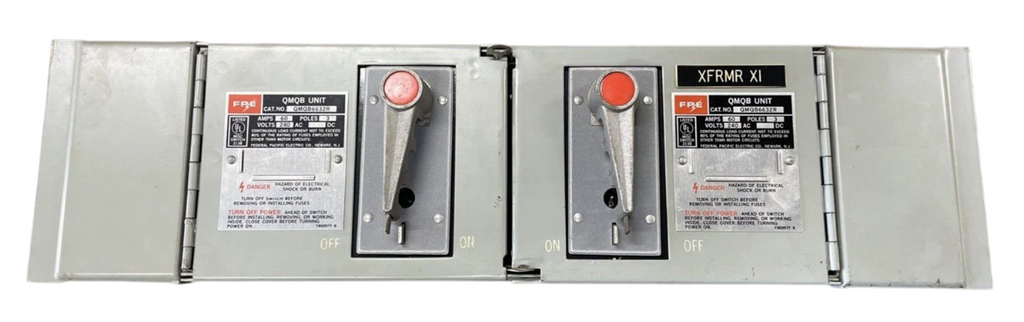

QMQB1032 is a 100 amp, 240 volt, 3 pole fusible panelboard switch from American/Federal Pacific designed for commercial and industrial applications.This switch features a QMQB frame type and is rated for 200kA interrupt capacity at 240 volts AC. It is NEMA 4X rated and accepts Class H, K, J, and R fuses, providing reliable fusible protection. The switch is suitable for panel mount installation and is part of the current Federal Pacific switch series.
- Key Specifications
- Amperage: 100A
- Voltage: 240V AC
- Poles: 3
- Frame Type: QMQB
- Interrupt Rating: 200kA @ 240V
- Fusible: Accepts Class H, K, J, R fuses
- Mounting Type: Panelboard
- Enclosure Rating: NEMA 4X
- Part Number: QMQB1032
- Manufacturer : American/Federal Pacific
- Brand : American/Federal Pacific
- Category : Switch
- Item Subcategory : Panel Mount
- Family : QMQB Series
- Type : QMQB
- Voltage : 240
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Fuse Class : H,K,J,R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : THLC
- Weight : 30
