2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
QJ23B10000S01

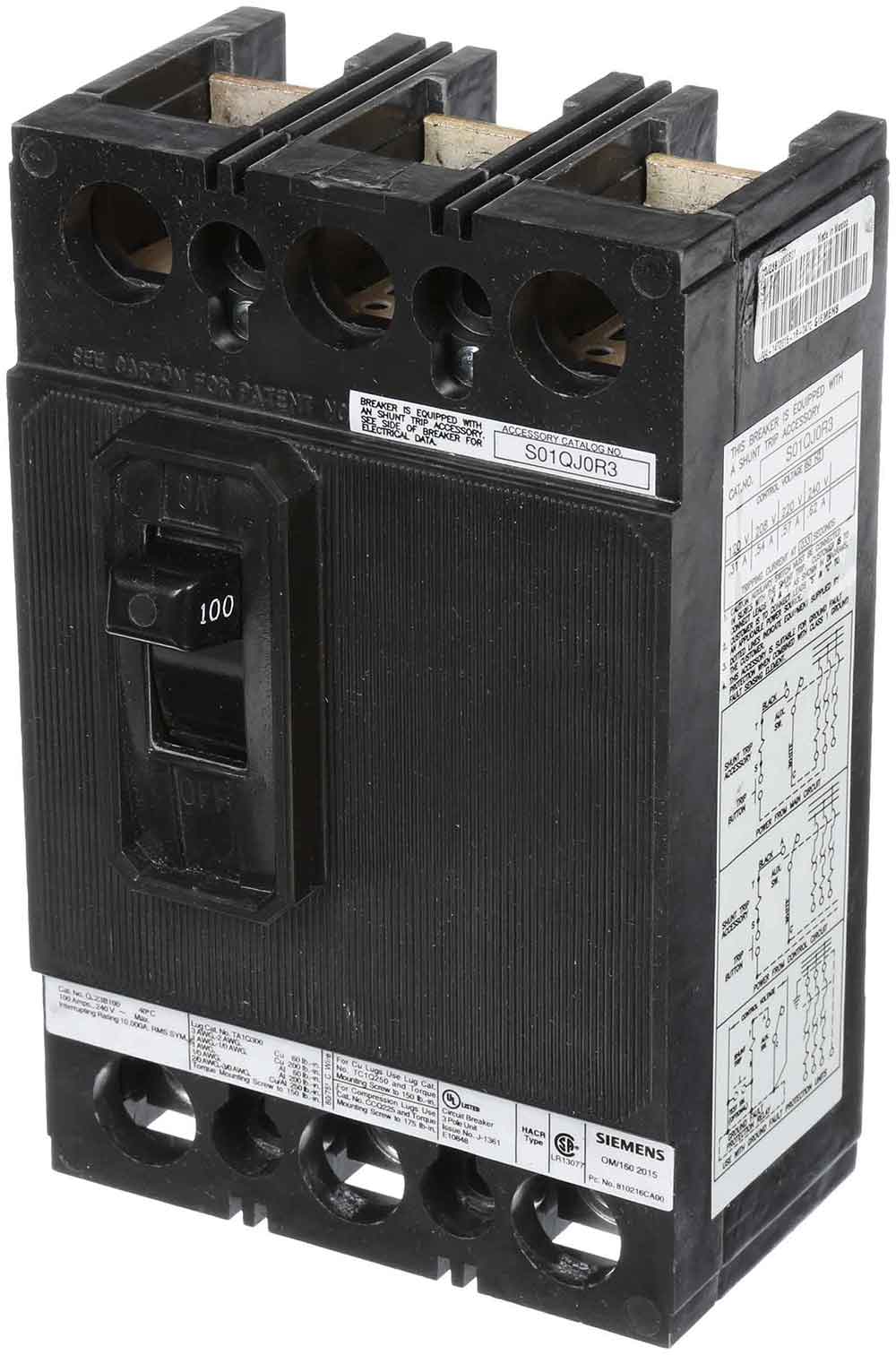

QJ23B10000S01 is a 3 pole, 100A, 240VAC molded case circuit breaker from Siemens QJ2 series, designed for reliable thermal magnetic protection in commercial and industrial applications. This Siemens QJ23B10000S01 circuit breaker features a bolt-on mounting style, long time and instantaneous trip functions, and a 10kAIC interrupting rating at 240VAC. It is suitable for 3-phase systems and includes a 120/240V shunt trip for remote operation. The breaker is UL and CSA listed, ensuring compliance with safety standards.
- Part Number: QJ23B10000S01
- Manufacturer: Siemens
- Series/Frame: QJ2
- Amperage: 100A
- Voltage: 240VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 10kAIC @ 240VAC
- Protection Type: Thermal Magnetic
- Functions: Long Time and Instantaneous Trip
- Shunt Trip: 120/240V
- Certifications: UL, CSA
Specifications
- Part Number: QJ23B10000S01
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QJ Frame
- Type : QJ2
- Voltage : 240
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643335097
- GTIN : 00783643335097
- Country of Origin : Mexico
- Weight : 4
- Certification : UL, CSA
- Wire Size : 4 AWG to 300KCmil Copper, 6 AWG to 300KCmil Aluminum
