Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
QJ22M070HL

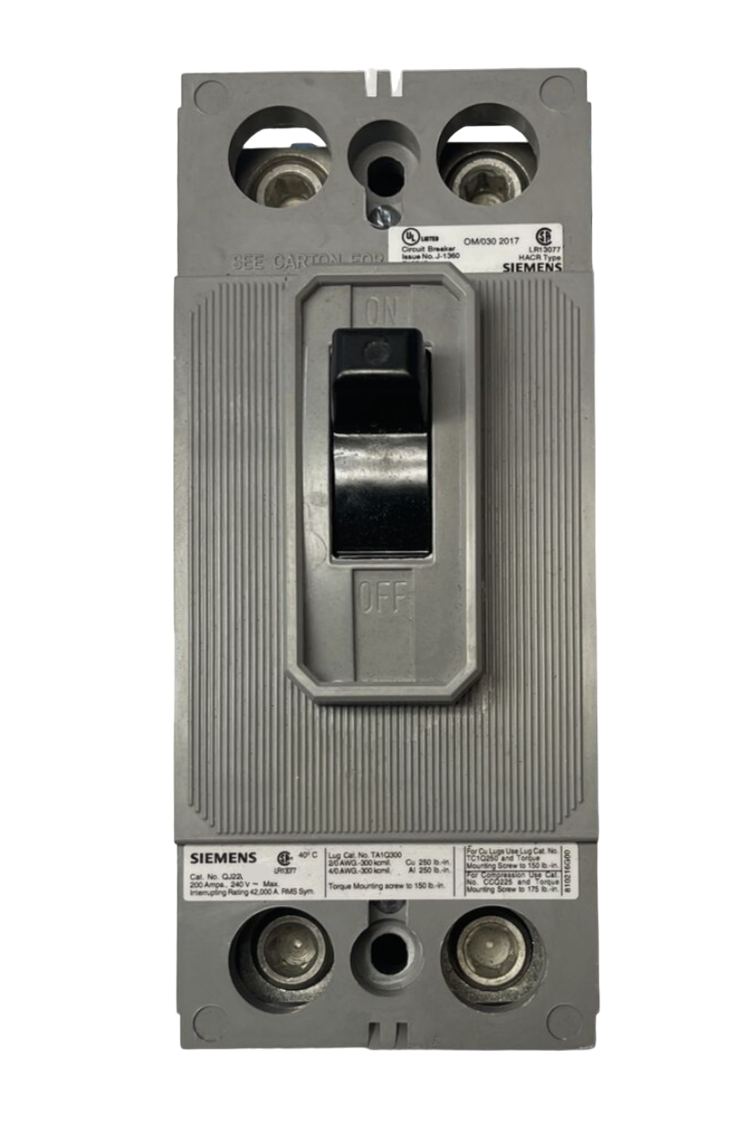

QJ22M070HL is a Siemens molded case circuit breaker designed for reliable thermal magnetic protection in industrial and commercial applications. This 2-pole breaker operates at 240 volts and is rated for 70 amperes at 40 degrees Celsius, featuring a 42,000 ampere interrupting capacity (AIC) at 240V for enhanced safety and performance. The QJ frame design provides compact mounting with high in-rush current capability and a push-to-trip button for manual operation.
- Frame Type: QJ
- Poles: 2
- Voltage: 240 VAC
- Amperage: 70A at 40°C
- Trip Unit: Thermal Magnetic
- Interrupting Rating: 42,000A at 240V (UL)
- Frequency: 60 Hz
- In-Rush Current Capability: 450%
- Manual Trip: Push-to-Trip Button
Specifications
- Part Number: QJ22M070HL
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QJ Frame
- Type : QJ2H
- Voltage : 240
- Amperage : 70
- Phase : 1
- Poles : 2
- AIC rating : 42kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Weight : 3
