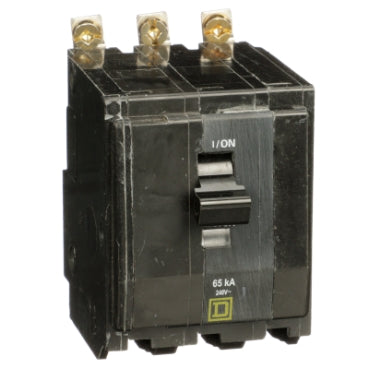

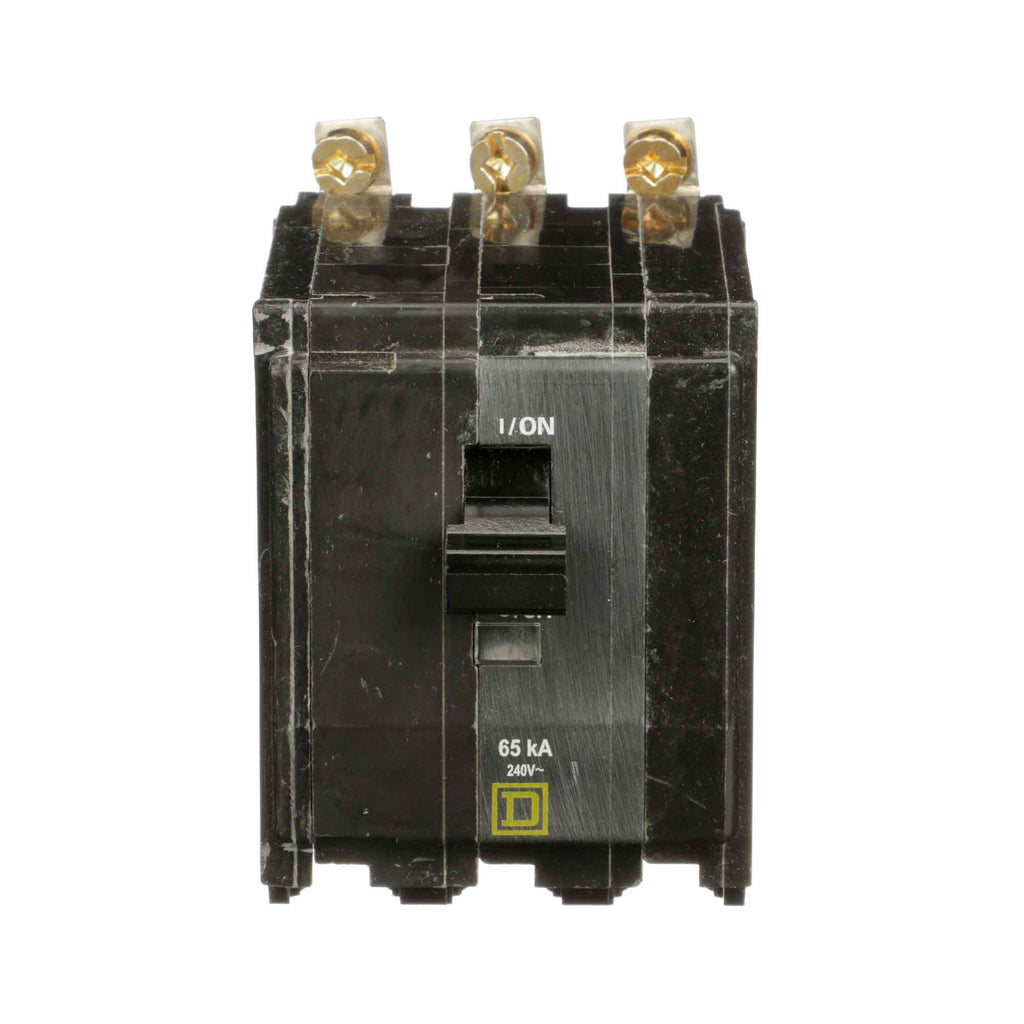

QHB315 - Square D 15A 240V 3 Pole Bolt-On Circuit Breaker 65kA Interrupt Rating QOB Series

QHB315

QHB315 is a Square D 15 Amp, 240 Volt, 3 Pole bolt-on circuit breaker from the QOB Series designed for reliable circuit protection.This thermal magnetic molded case circuit breaker features a 65kA interrupting rating at 240V and is suitable for use in QO Series load centers. It supports bolt-on mounting and provides long-time and instantaneous trip functions. Certified by UL and CSA, it complies with RoHS and REACH standards.

• Manufacturer: Square D
• Part Number: QHB315
• Amperage: 15 Amp
• Voltage Rating: 120/240 Volt AC
• Poles: 3 Pole
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA at 240V
• Series/Frame: QOB Series
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA, RoHS, REACH
• Dimensions (HxWxD): Approx. 2.91 x 2.24 x 2.99 inches
• Weight: Approx. 0.86 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QHB315
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QHB
• Voltage : 240
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901341659
• GTIN : 00785901341659
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.86
• Wire Size : AWG 14 to AWG 8, Copper/Aluminum
