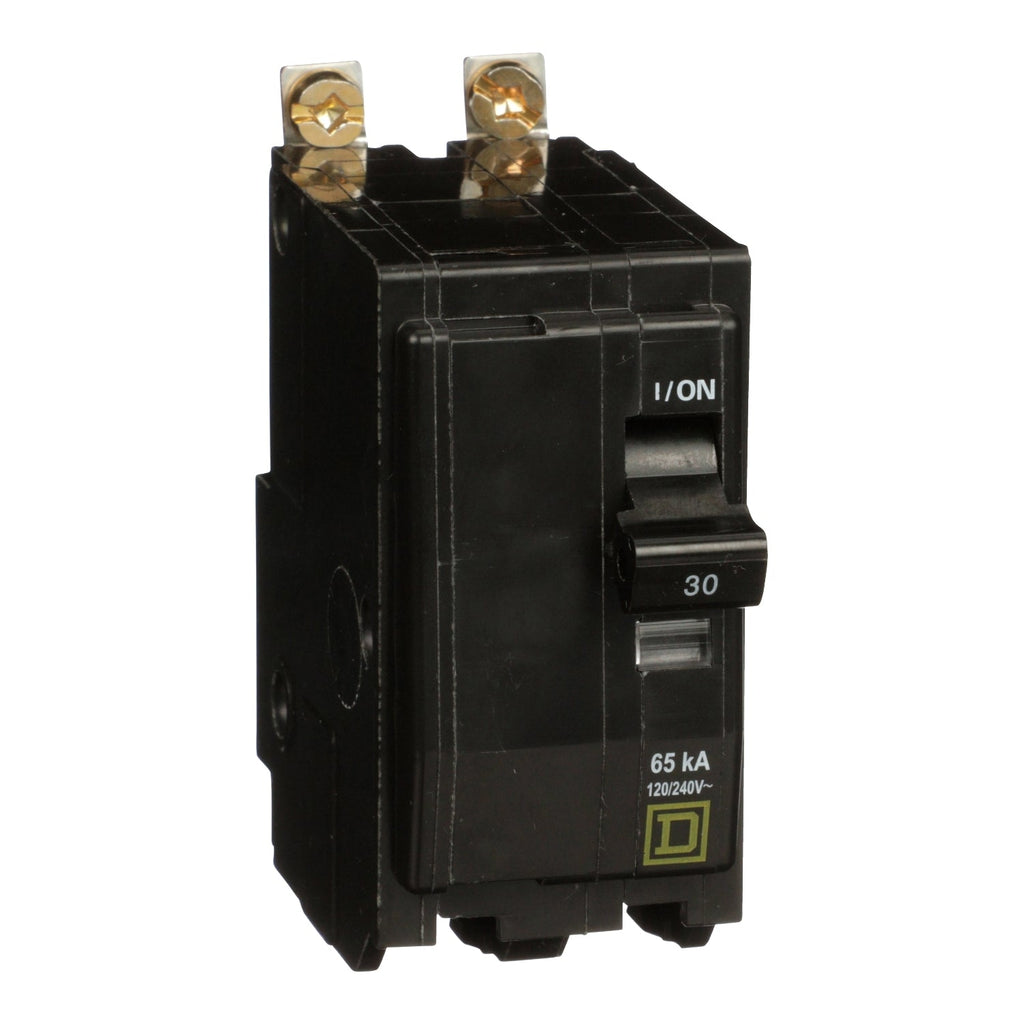

QHB230 - Square D 30A 2-Pole 120/240VAC Mini Circuit Breaker QO Series Bolt-On

QHB230

QHB230 is a Square D QO Series 30 Amp, 2-pole mini circuit breaker designed for 120/240VAC applications with bolt-on mounting.This circuit breaker features a 65kA interrupt rating, plug-on neutral design for faster installation, and reliable thermal magnetic trip unit. It is UL and CSA listed, providing superior circuit protection with a compact footprint suitable for residential and commercial panelboards.

Key Specifications
• Amperage: 30 Amps
• Voltage Rating: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA
• Series/Frame: QO
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CSA Approved
• Plug-On Neutral Design
• Compact Miniature Size
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QHB230
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QHB
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 65kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 8 AWG (Cu/Al)
• Breaker Type : Standard
• Protection : Thermal Magnetic



Product Data

• UPC : 785901341642
• GTIN : 00785901341642
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.56
• Standards : UL Listed, CSA
• Certification : UL Listed, CSA
• Wire Size : AWG 14 to AWG 8 Copper/Aluminum
