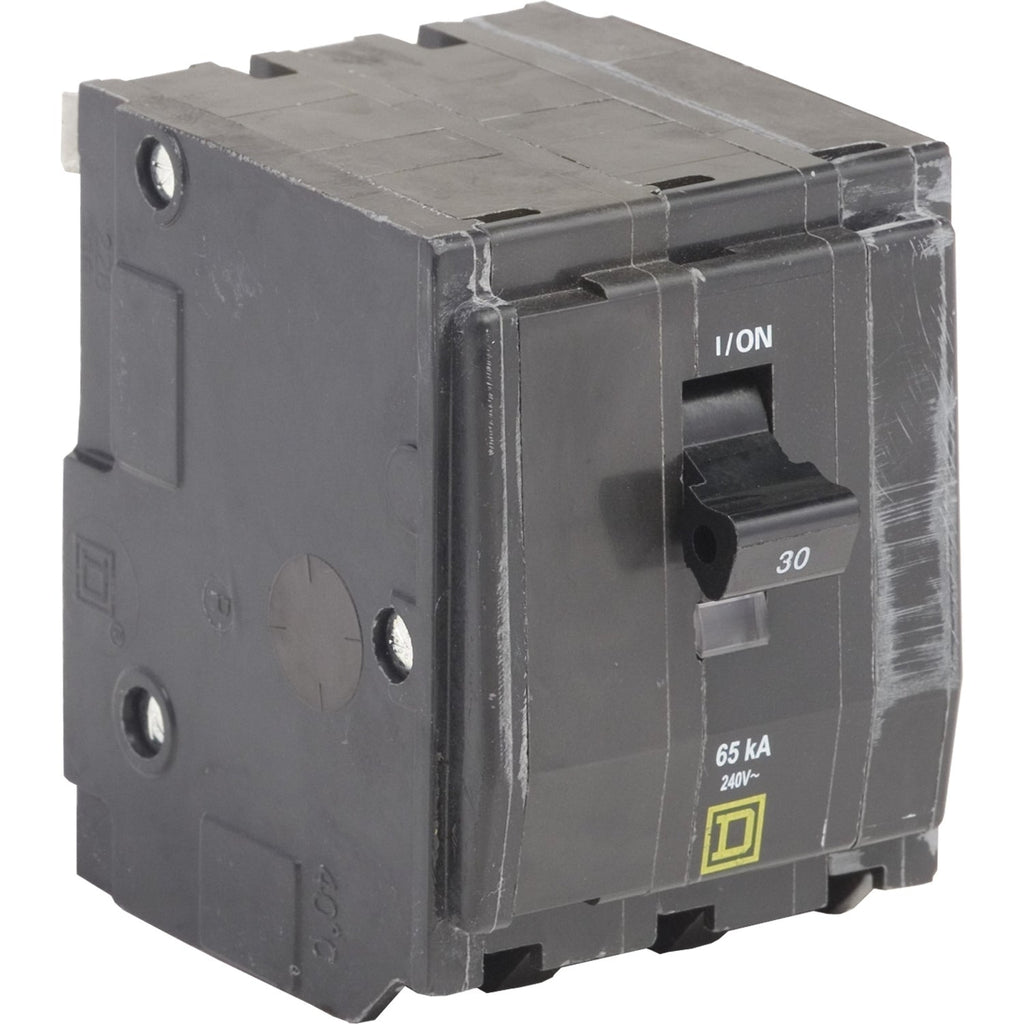

QH330 - Square D 30A 240V 3 Pole Plug-In Miniature Circuit Breaker, 65kA Interrupt Rating

QH330

QH330 is a Square D 3 pole miniature circuit breaker rated for 30 amps and 240 volts AC with a plug-in mounting type.QH330 features a 65 kA interrupt rating at 120/240V AC, suitable for standard circuit protection in commercial and industrial applications. It is HACR rated with pressure plate electrical connections and supports wire sizes from 14 AWG to 8 AWG. The breaker is designed for use in QO load centers and offers reliable trip performance with an 18-month warranty.

Key Specifications
• Amperage: 30A
• Voltage: 120/240V AC
• Number of Poles: 3
• Mounting Type: Plug-In
• Interrupt Rating: 65 kA @ 120/240V AC
• Frame Type: QO
• Trip Unit: Standard
• Wire Size: 14 AWG to 8 AWG
• HACR Rated
• Electrical Connection: Pressure Plate
• Dimensions: Approx. 2.2" W x 3" H x 2.9" D
• Warranty: 18 Months

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QH330
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QH
• Voltage : 240
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 8 AWG (Cu/Al)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901205548
• GTIN : 00785901205548
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.83
• Standards : UL Listed, CSA
• Certification : UL Listed, CSA
• Wire Size : AWG 14 to AWG 8, Copper/Aluminum
