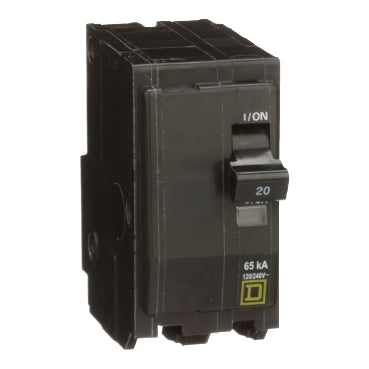

QH220 - Square D 20A 120/240V 2-Pole QO Series Molded Case Circuit Breaker, 65kA Interrupt Rating, Plug-In Mount

QH220

QH220 is a Square D 20 Amp, 2-pole molded case circuit breaker from the QO Series designed for 120/240V applications.This circuit breaker features a thermal magnetic trip unit with a 65kA interrupt rating at 240V, providing reliable protection for electrical circuits. It is a plug-in type breaker compatible with QO load centers and supports conductor sizes from 14 to 8 AWG.

• Amperage: 20 Amps
• Voltage: 120/240 Volts AC
• Poles: 2
• Interrupt Rating: 65kA at 240V
• Series/Frame: QO Series
• Trip Unit: Thermal Magnetic
• Mounting Type: Plug-In
• Conductor Size: 14-8 AWG
• Common Trip
• Standard Type
• Compatible with QO Load Centers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QH220
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QH
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 65kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Pressure Plate
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 8 AWG (Cu/Al)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901012917
• GTIN : 00785901012917
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.5
• Standards : UL Listed, CSA
• Certification : UL Listed, CSA
