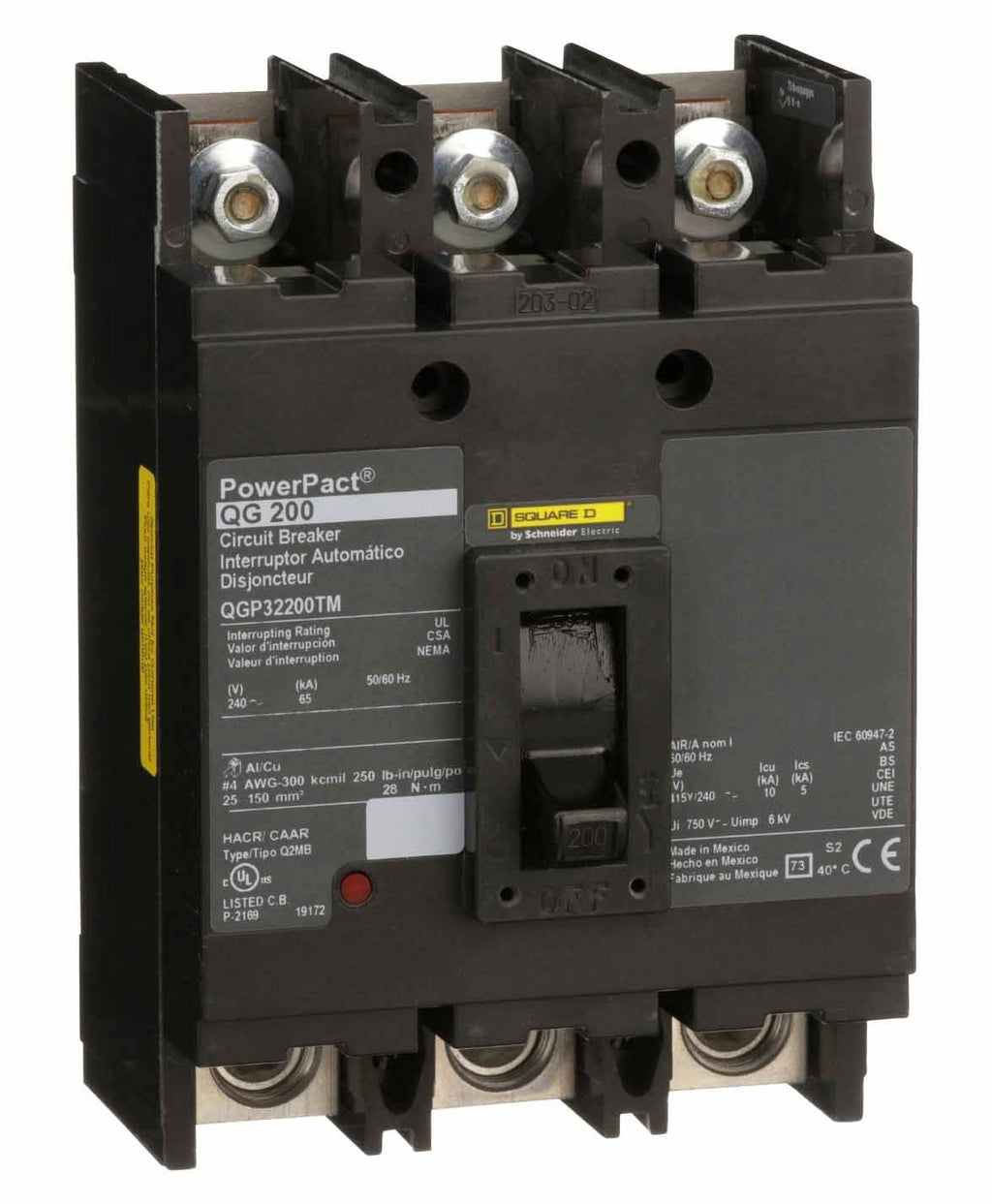

QGP32200TM - Square D 200 Amp 3 Pole 240V Thermal Magnetic Circuit Breaker Bolt-On PowerPact Q Frame

QGP32200TM

QGP32200TM is a Square D 3 Pole thermal magnetic molded case circuit breaker rated for 200 Amps and 240 Volts with bolt-on mounting.This circuit breaker features a 65kA interrupting rating at 240V, thermal-magnetic trip unit with long-time and instantaneous functions, and is designed for use in PowerPact Q Frame applications. It includes stud line terminals and lug load terminals suitable for wire sizes from 4 AWG to 300 kcmil copper or aluminum. The breaker is UL, CSA, and CE certified for safety and reliability.

Key Specifications
• Amperage: 200 Amps
• Voltage Rating: 240 Volts AC
• Number of Poles: 3
• Mounting Type: Bolt-On
• Interrupting Rating: 65kA at 240V
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Frame/Series: PowerPact Q Frame (QGP)
• Terminal Type: Stud Line and Lug Load
• Wire Size Range: 4 AWG to 300 kcmil Copper/Aluminum
• Certifications: UL Listed, CSA, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QGP32200TM
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Meter-Pak
• Type : QGP
• Voltage : 240
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : Q
• Protection : Thermal Magnetic



Product Data

• UPC : 785901434061
• GTIN : 00785901434061
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.59
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
