Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QGP22225TM

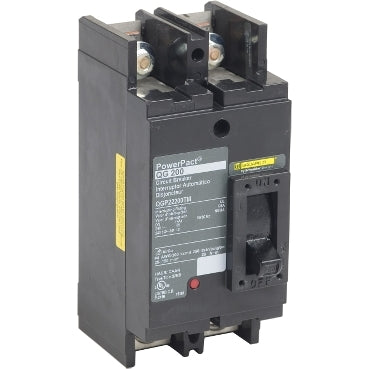

QGP22225TM is a Square D 2 pole thermal magnetic circuit breaker rated for 225 amps and 240 volts AC.This circuit breaker features a 65kA interrupt rating at 240V, designed for reliable protection in industrial and commercial power distribution applications.
- Amperage: 225A
- Voltage: 240V AC
- Poles: 2
- Interrupt Rating: 65kA at 240V
- Trip Unit: Thermal Magnetic
- Mounting Type: Bolt-On
- Frame/Series: PowerPact Q
- UL and CSA Certified
- Continuous Current Rating: 80%
- Wire Size Range: 4 AWG to 300 kcmil Aluminum/Copper
Specifications
- Part Number: QGP22225TM
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Meter-Pak
- Type : QGP
- Voltage : 240
- Amperage : 225
- Phase : 1
- Poles : 2
- AIC rating : 65kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug, Terminal Nut
- Frame Size : Q
- Protection : Thermal Magnetic
Product Data
- UPC : 785901672173
- GTIN : 00785901672173
- Country of Origin : Mexico
- Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
- Weight : 3.24
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
- Certification : UL, CSA, NOM
- Wire Size : 4 AWG TO 300 KCMIL (ALUMINUM/COPPER)
